F5 DNS (GTM)

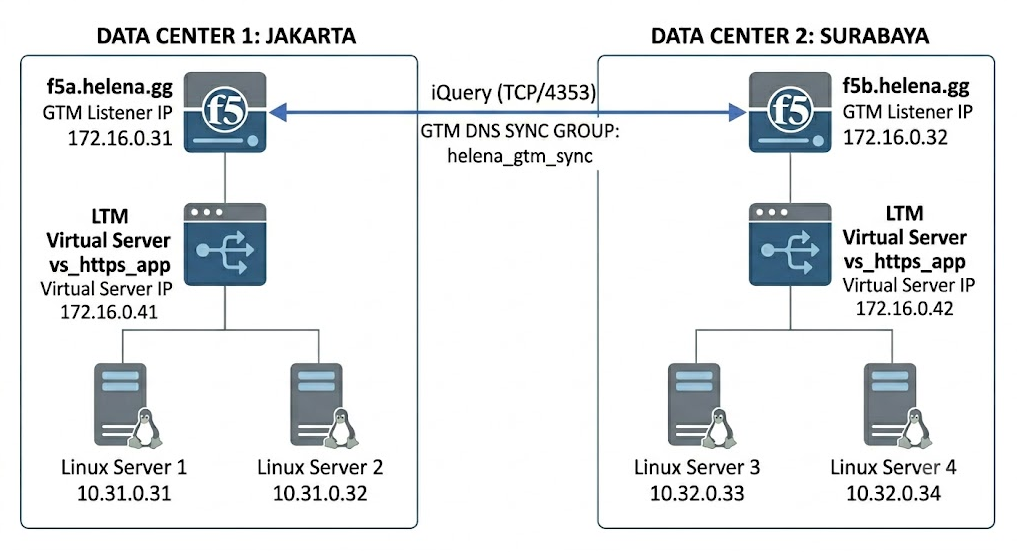

Following from our previous LTM lab, we will now configure GTM. GTM is an intelligent, DNS-based traffic manager that routes users globally before a network connection is ever established. In this lab, we scale our infrastructure into a dual-data-center mesh spanning DC Jakarta (f5a.helena.gg) and DC Surabaya (f5b.helena.gg). Using an encrypted iQuery sync group (helena_gtm_sync), local port 53 listeners, and Windows DNS zone delegation

DC Surabaya

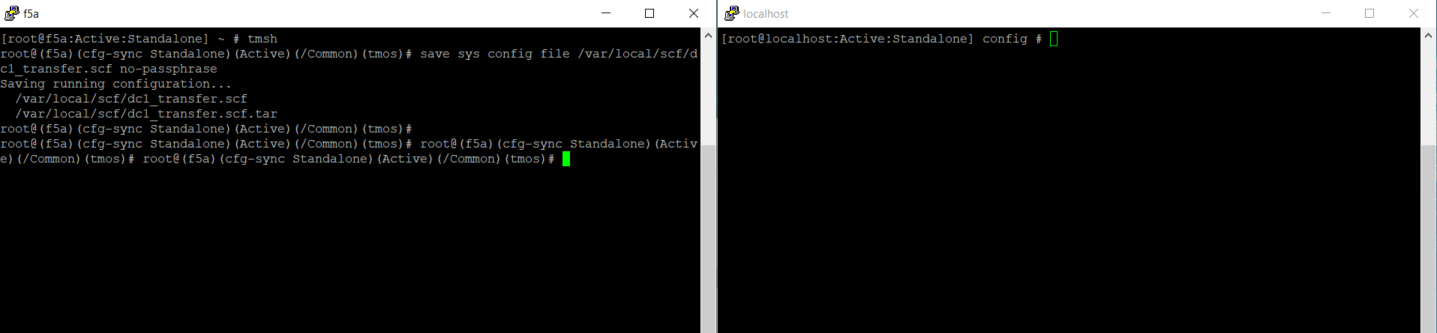

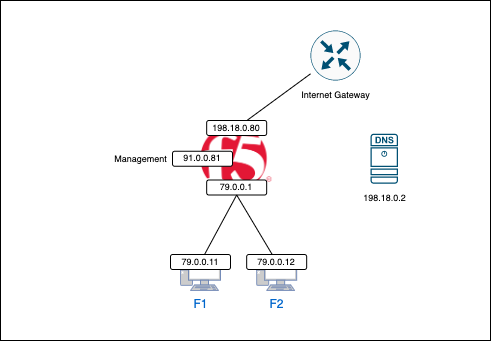

In the last lab, we have configured a single standalone LTM box which we will call the DC Jakarta box, now we will deploy another box to cover the DC Surabaya box. Because the underlying LTM configurationis similar, we will export the configuration from box 1 using cli commands

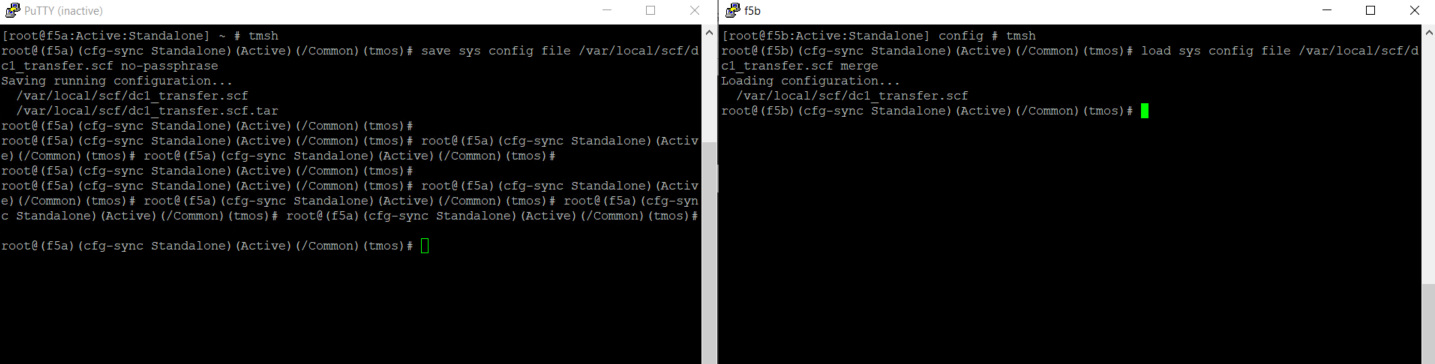

tmsh
save sys config file /var/local/scf/dc1_transfer.scf no-passphrase

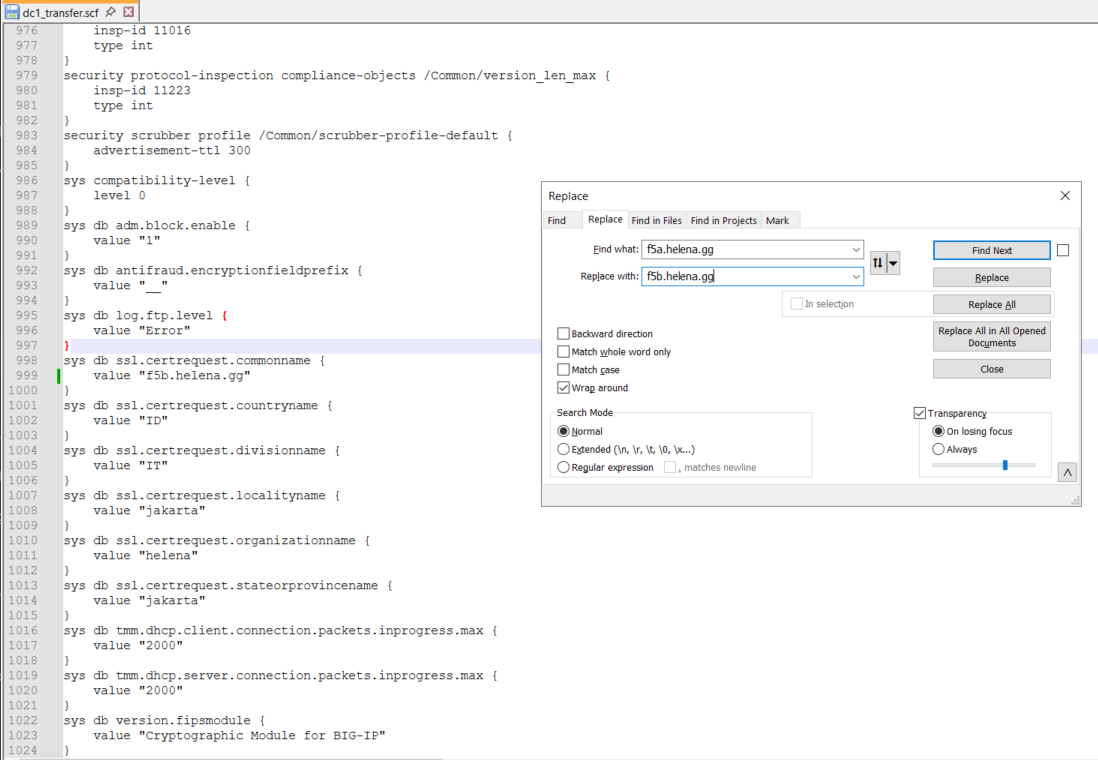

Then we can edit the .scf file and adjust the values like IP Addresses and naming conventions to fit our box 2

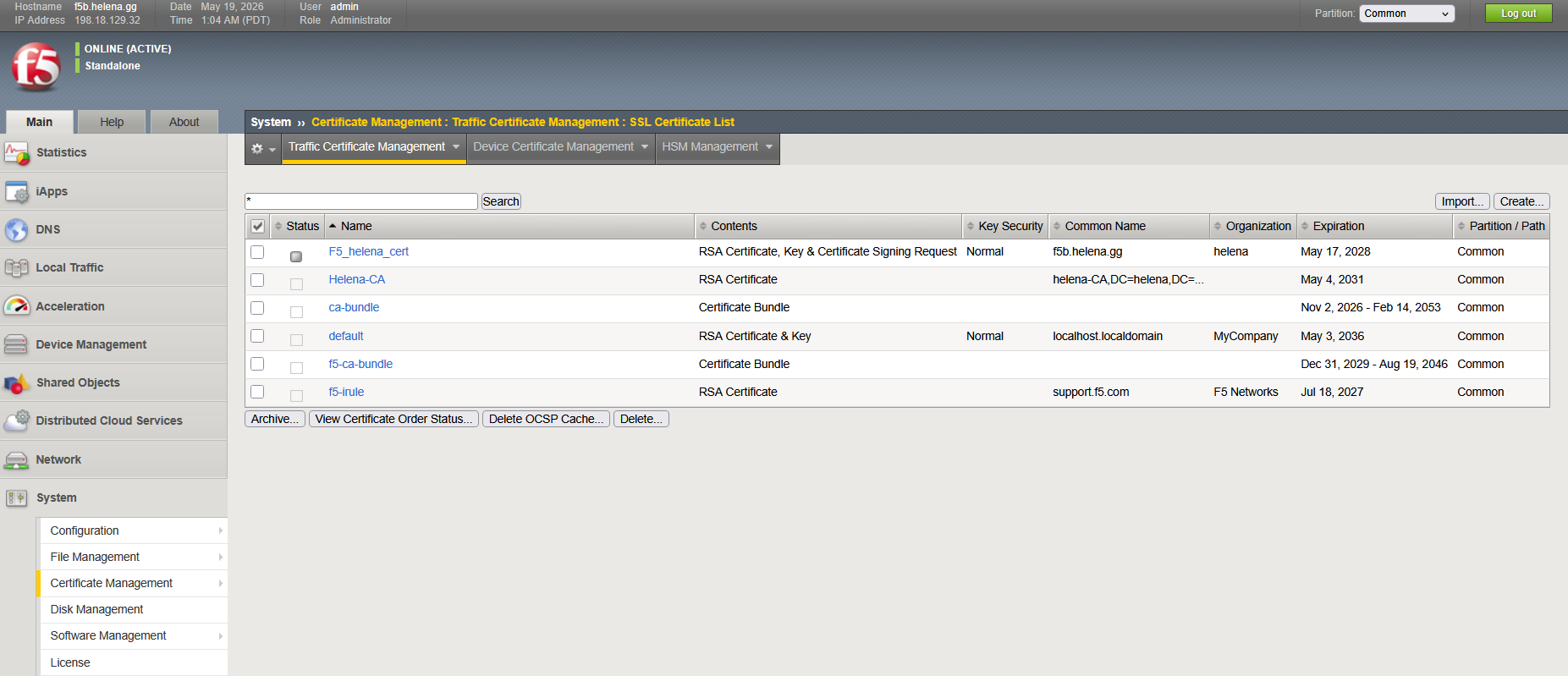

Next we prepare the Box 2, its a freshly installed F5 with with only certificates configured so we don’t face certificates error when importing config from Box 1

Then we can load the backup on Box 2 using cli command

tmsh
load sys config file /var/local/scf/dc1_transfer.scf merge

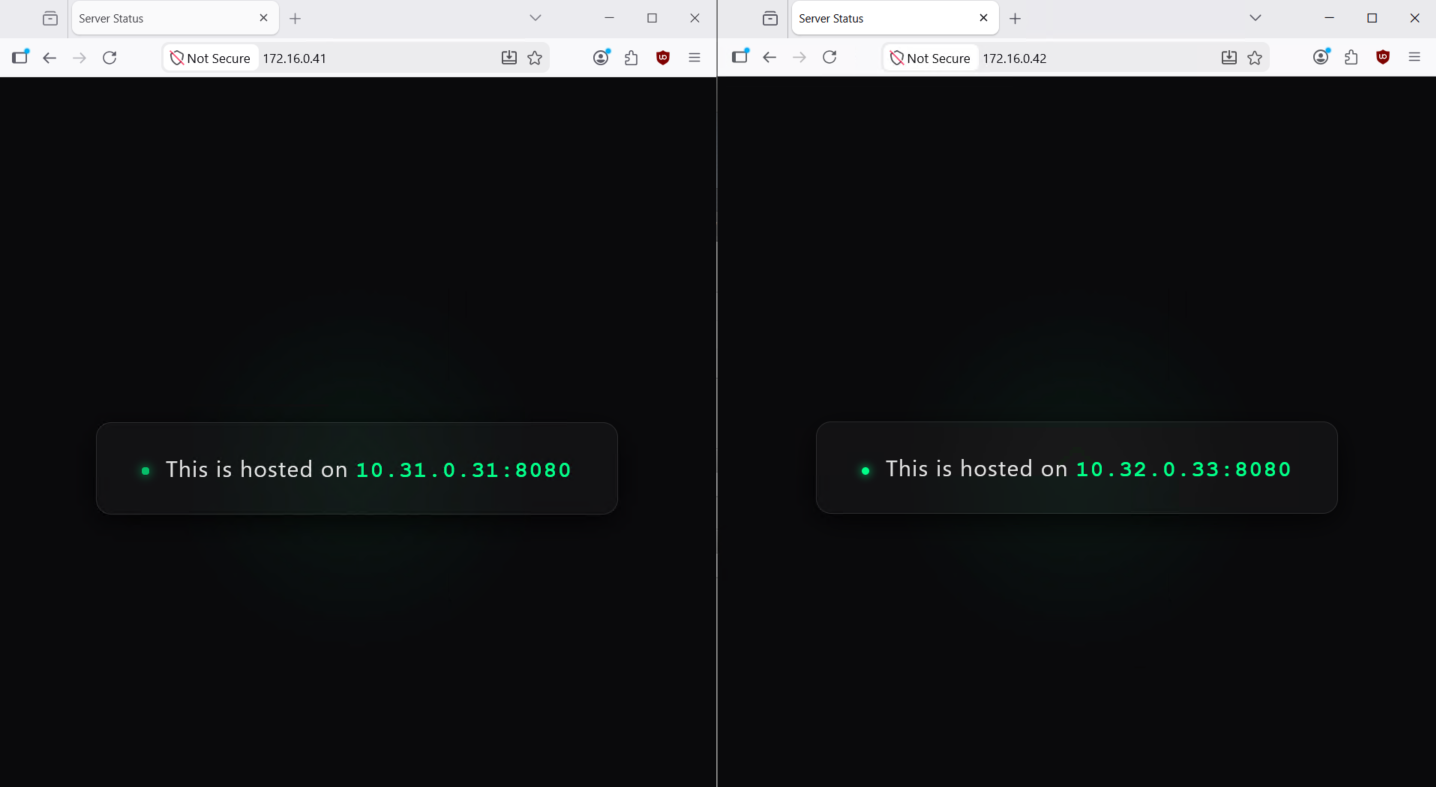

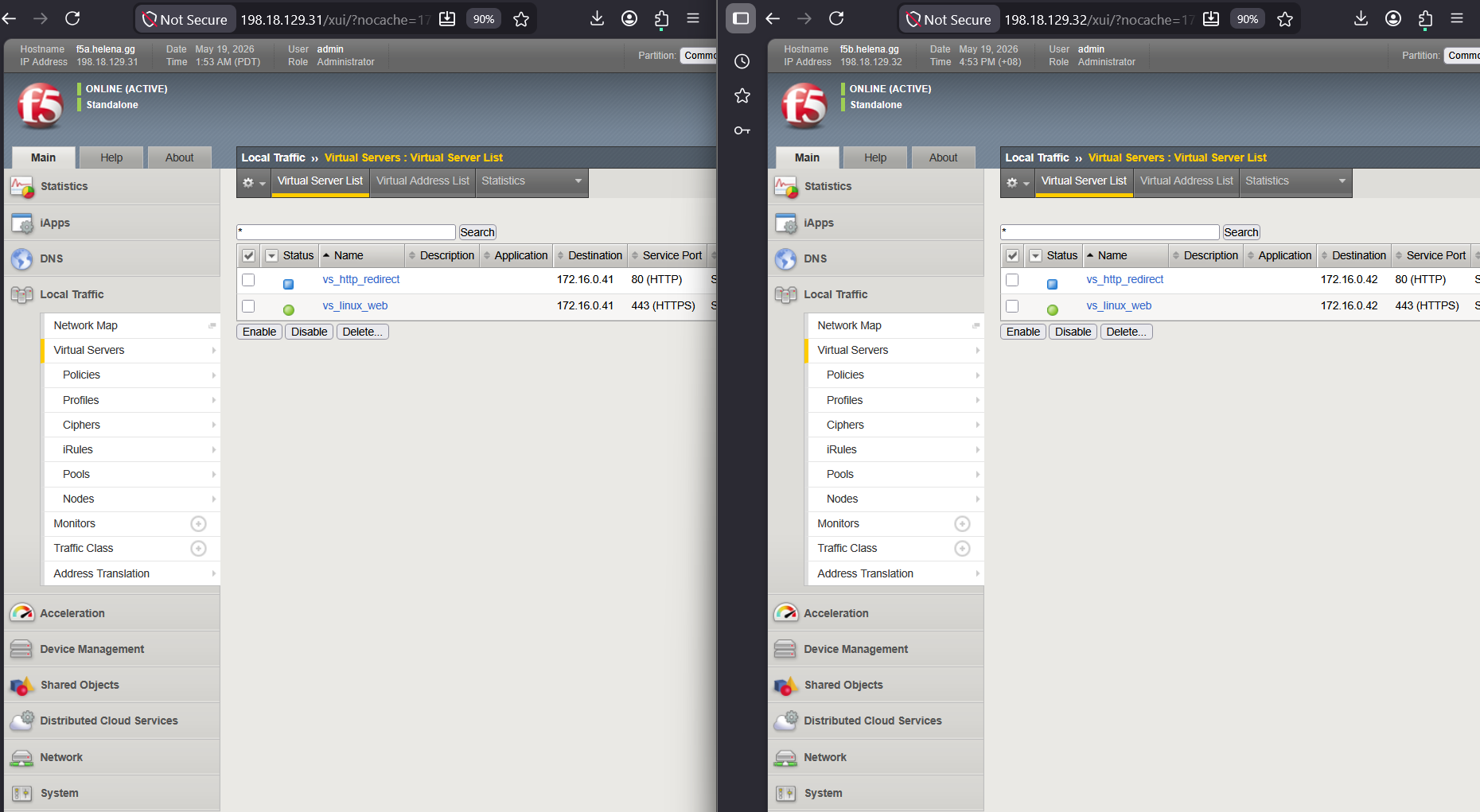

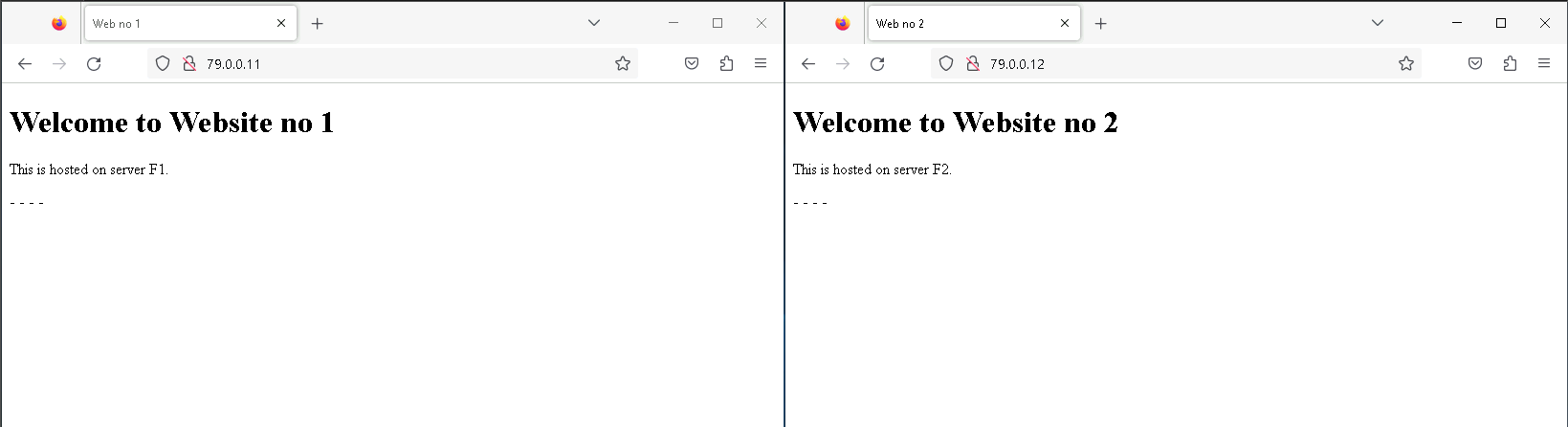

Now both DC 1 and DC 2 boxes are up with LTM configurations

Enabling GTM Sync

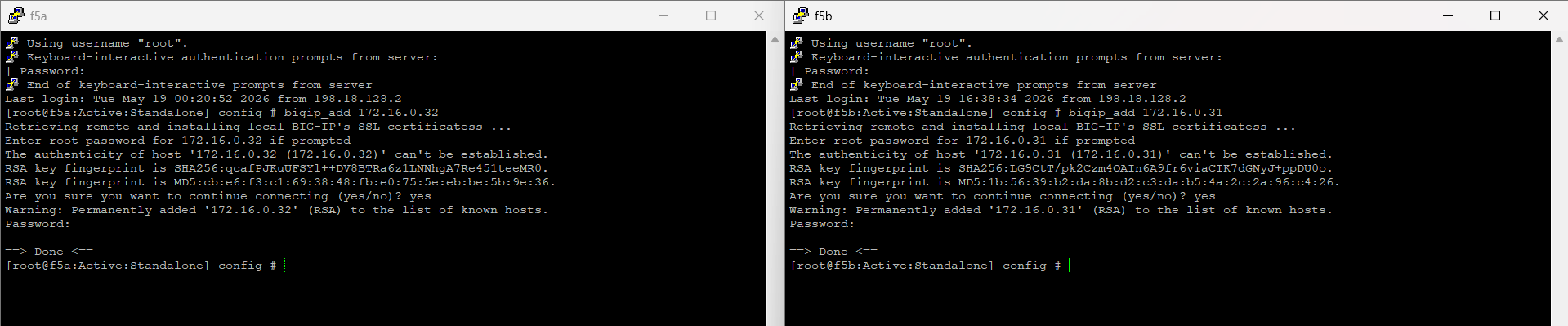

Next we will configure the GTM Sync between these 2 boxes so we can configure all DNS/GTM configuration from Box 1, first we need them to trust each other’s certificates by running this command

bigip_add 172.16.0.x

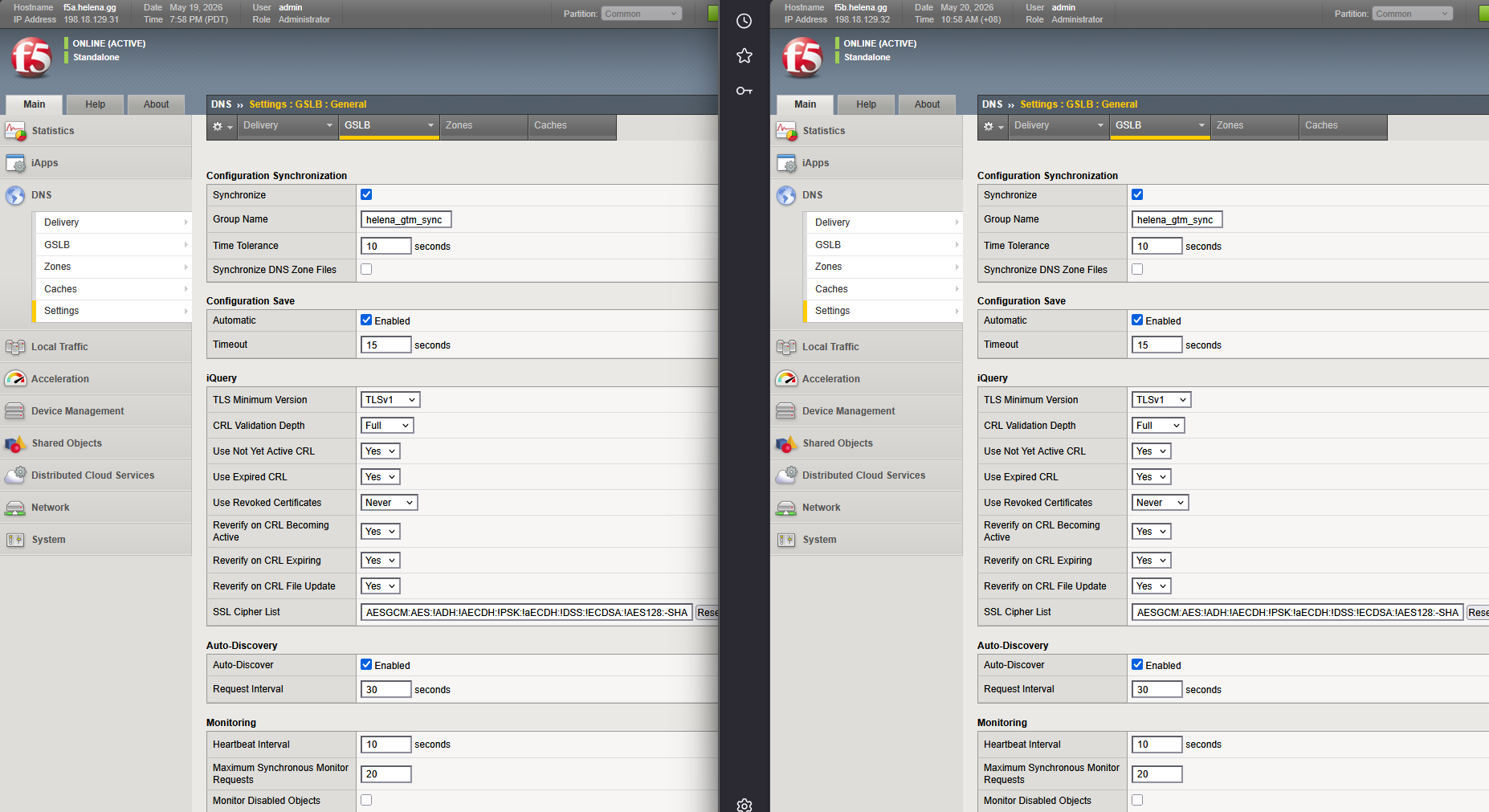

Then on DNS » Settigs » GSLB » General, we enable the Sync with the same group name

Configuring GTM

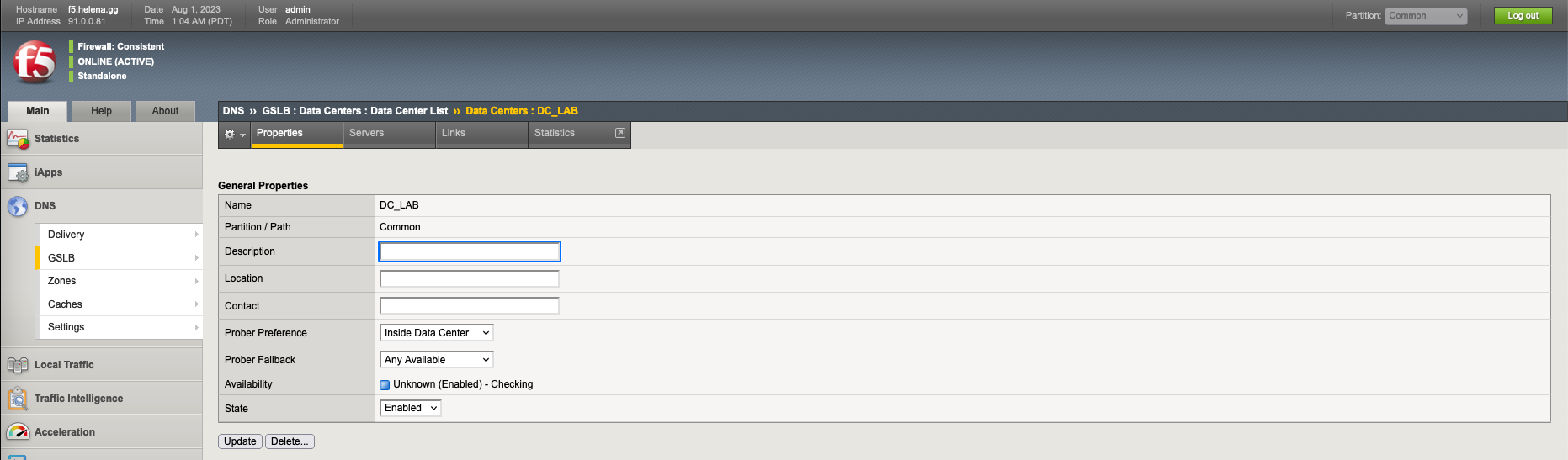

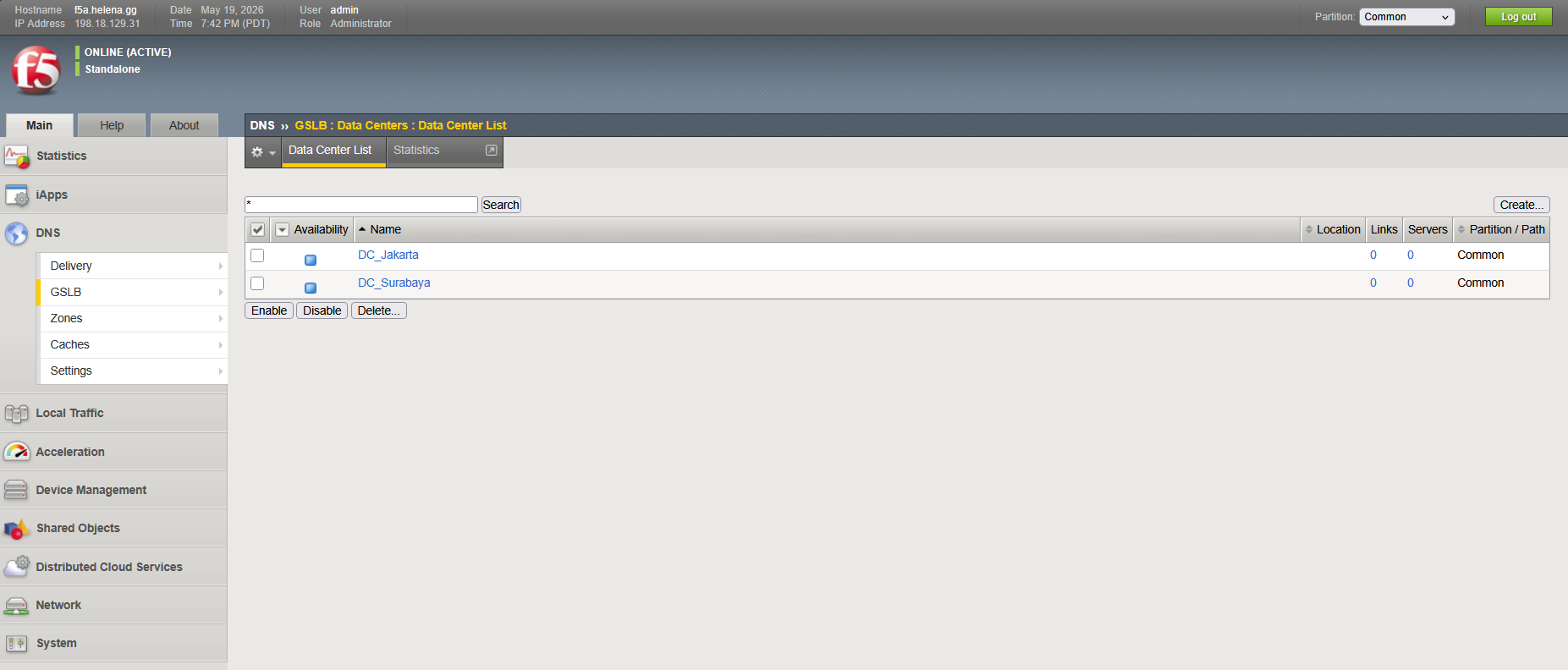

Now we can start configuring GTM, first we will create 2 Datacenters

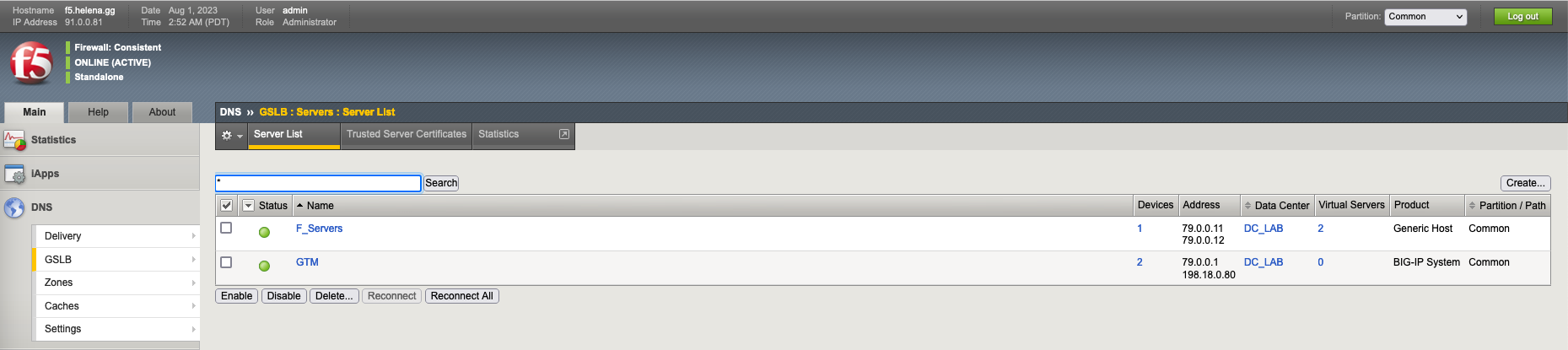

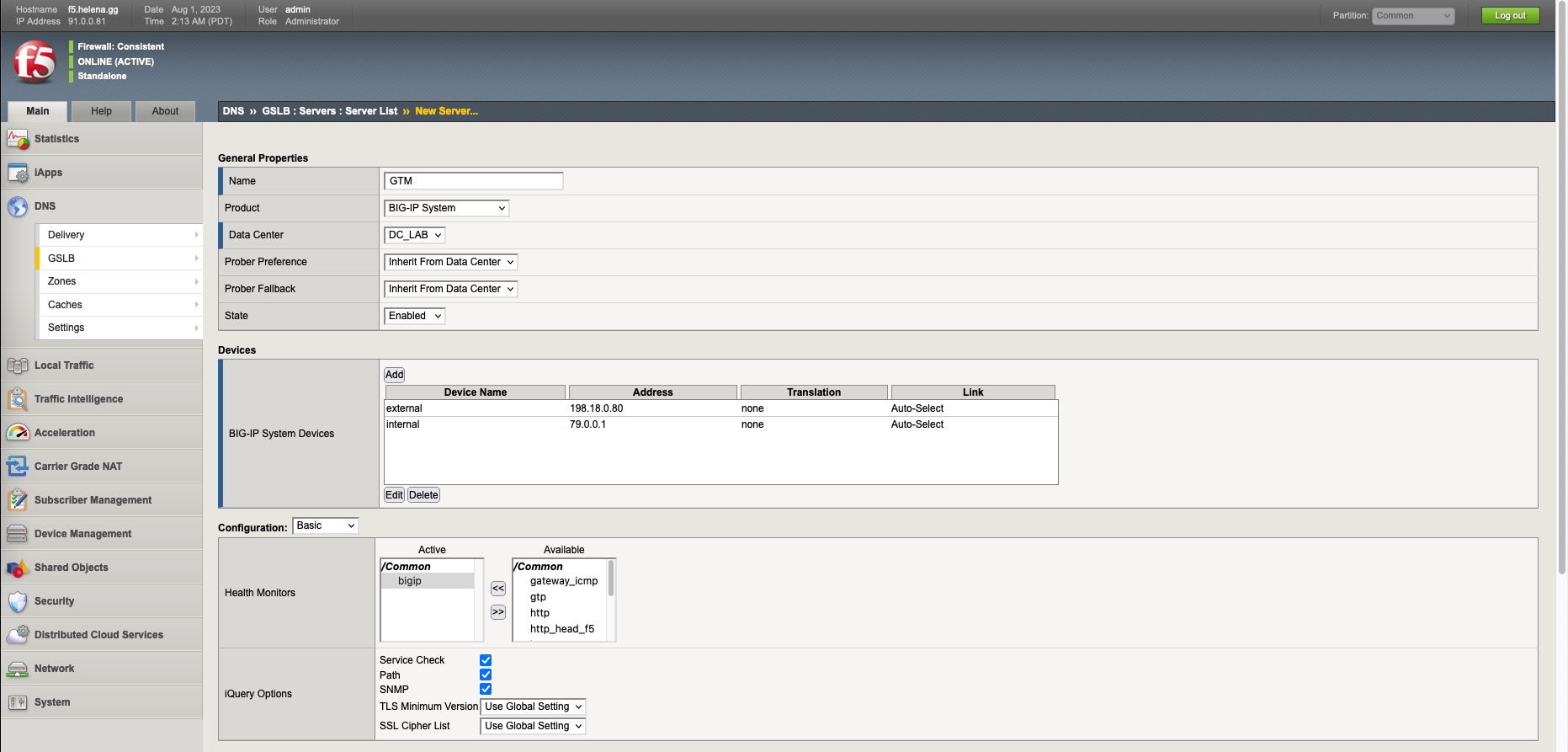

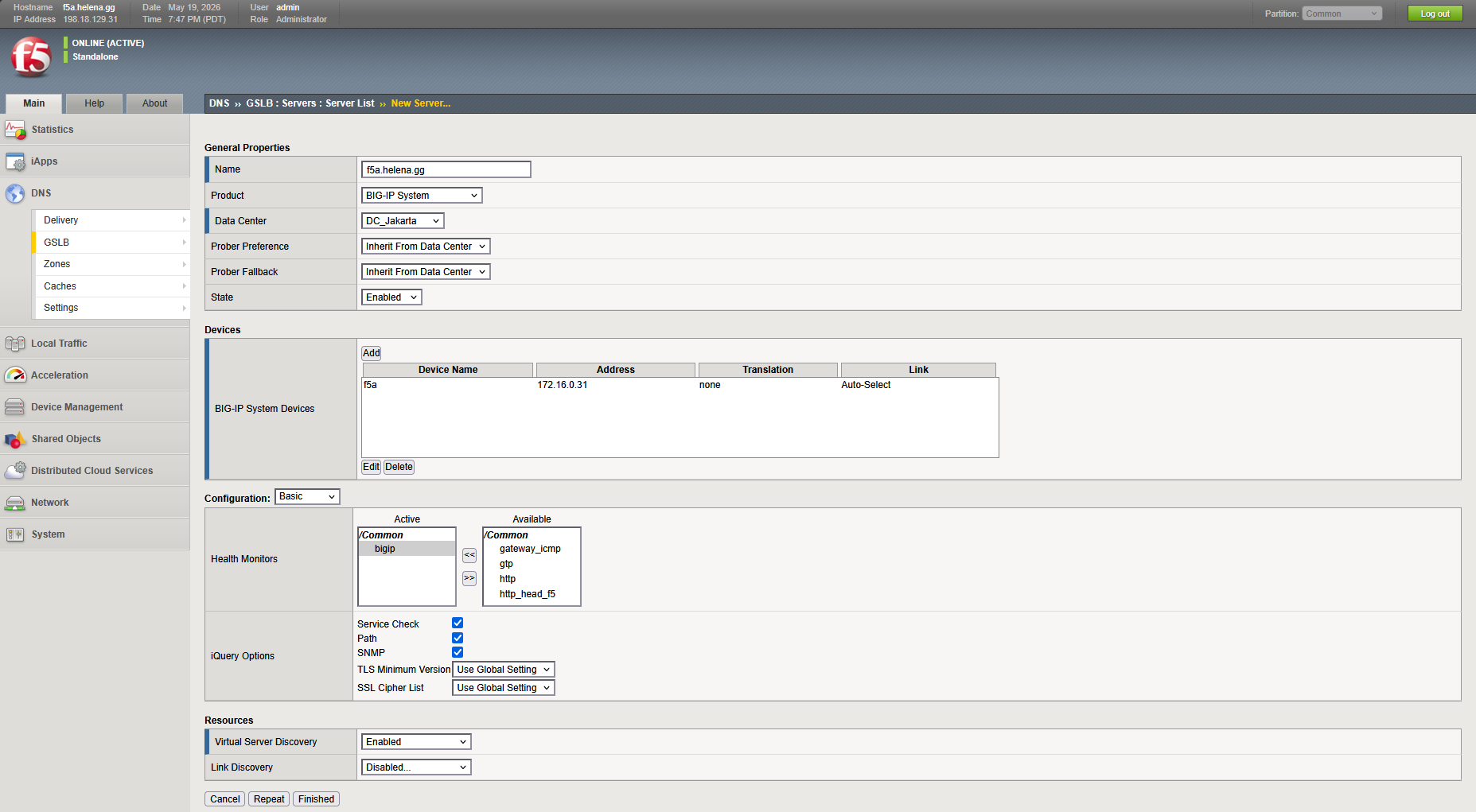

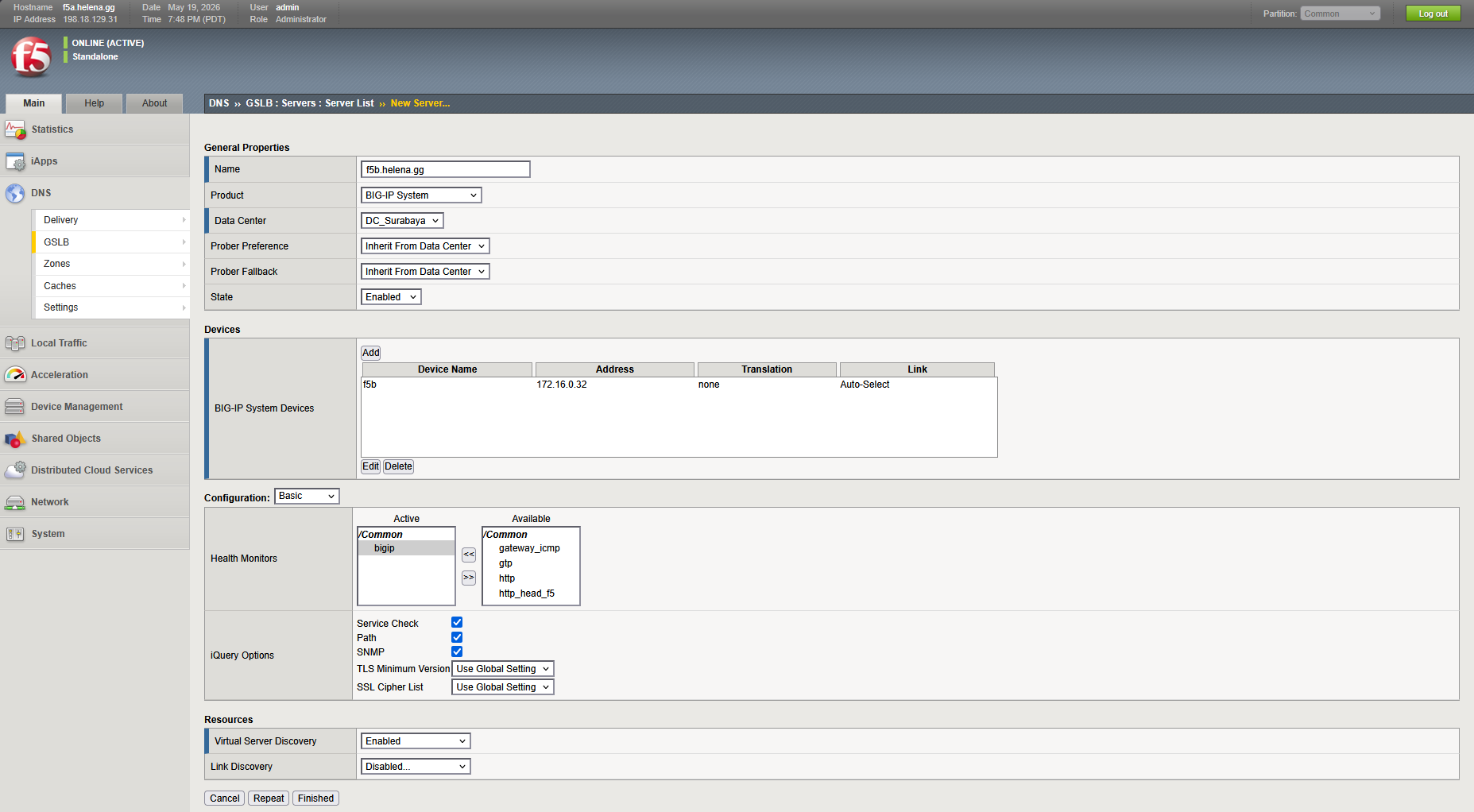

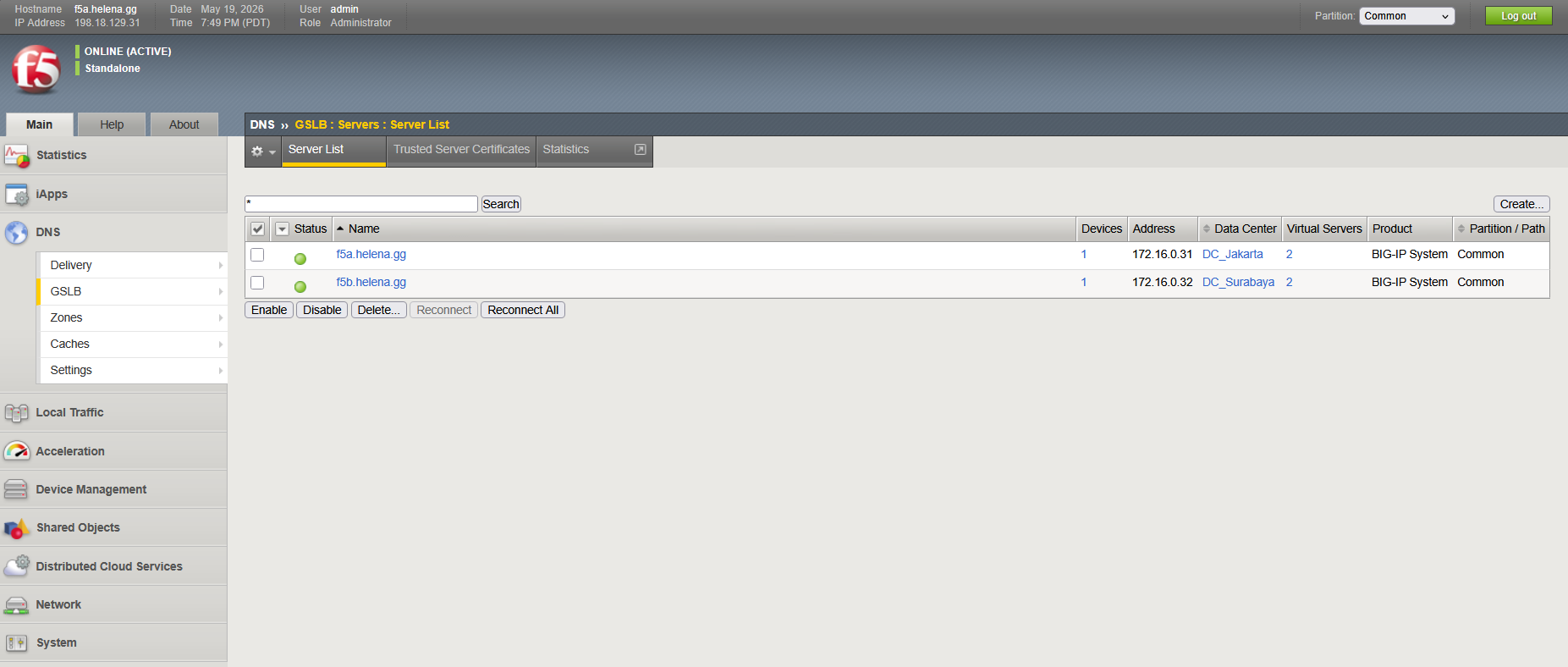

Then we create Server List for both boxes, pointing to the external Self IPs with VS discovery enabled so all VS from each box are discovered

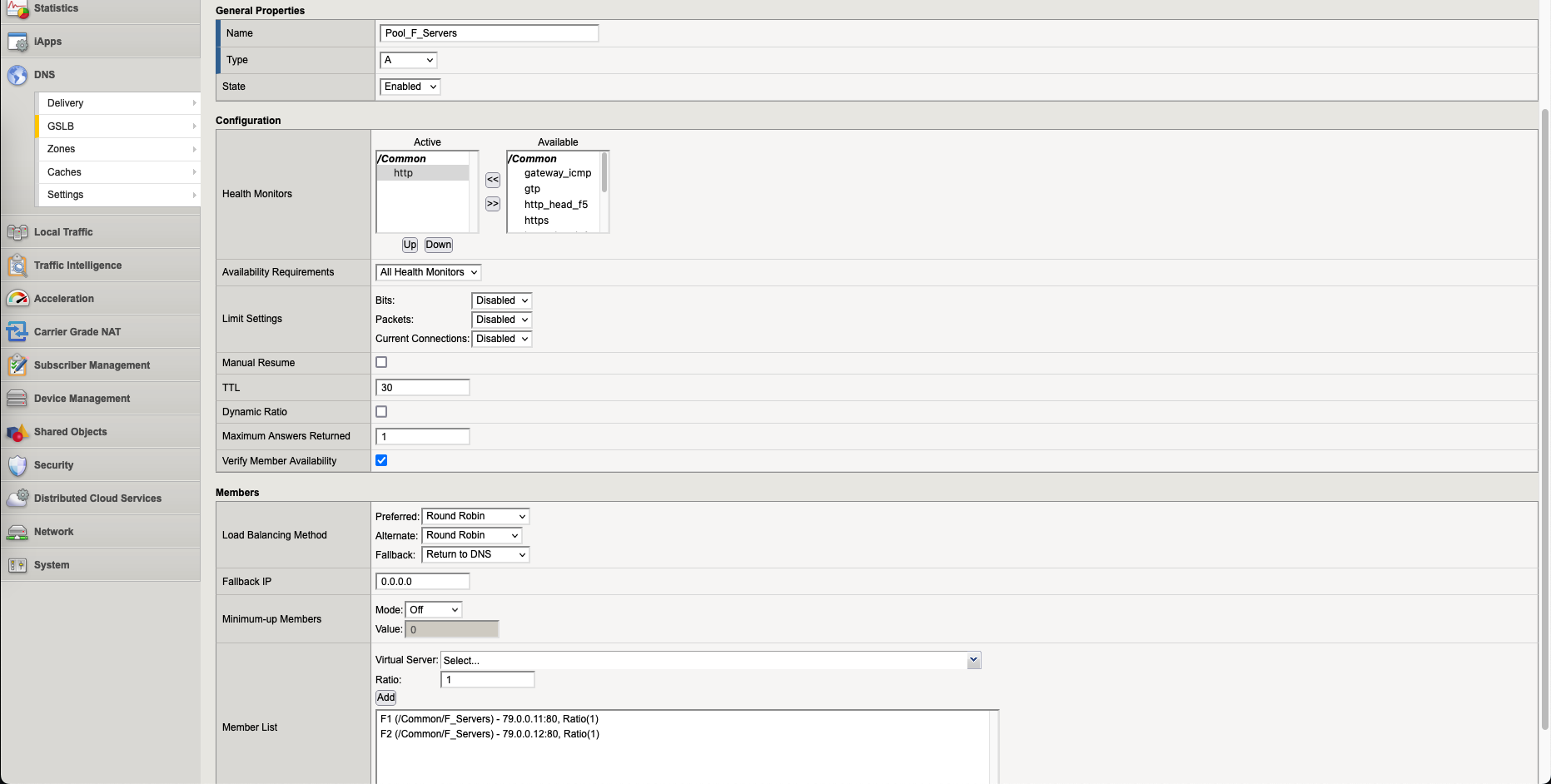

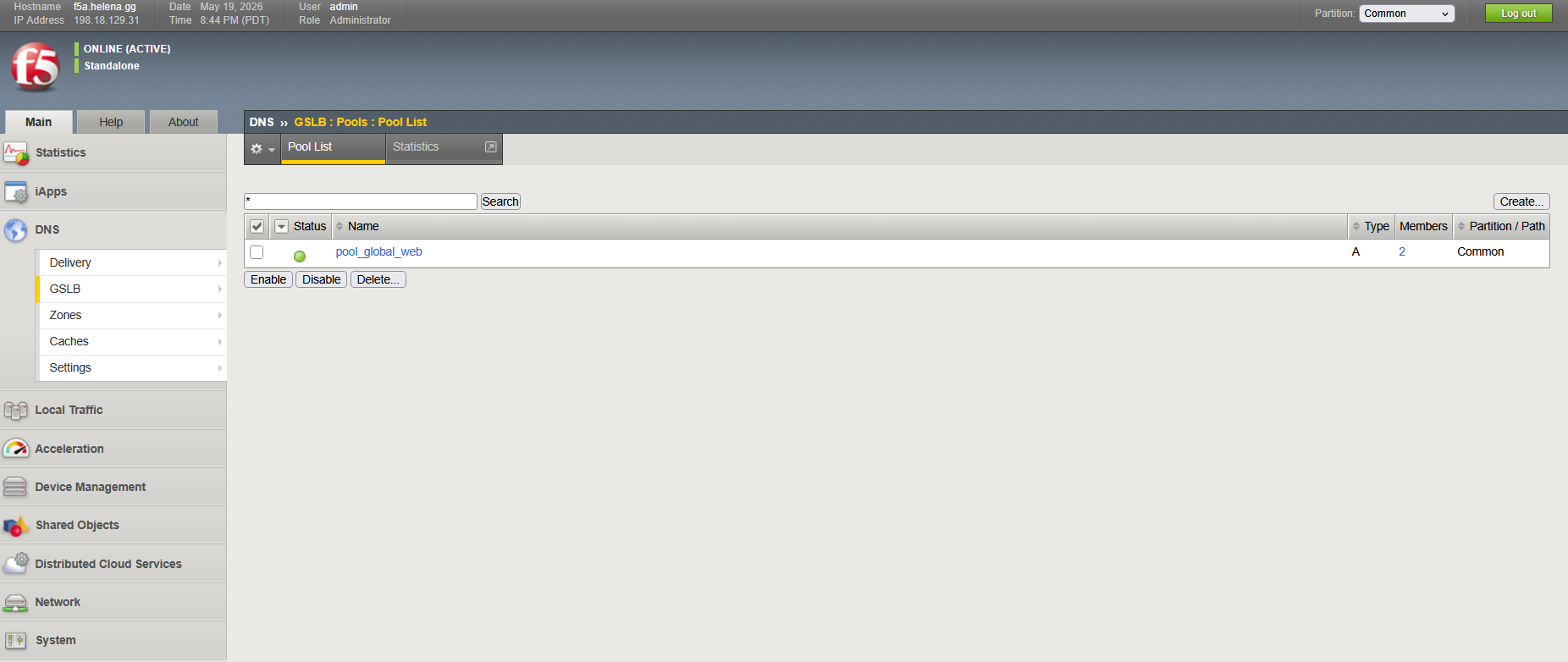

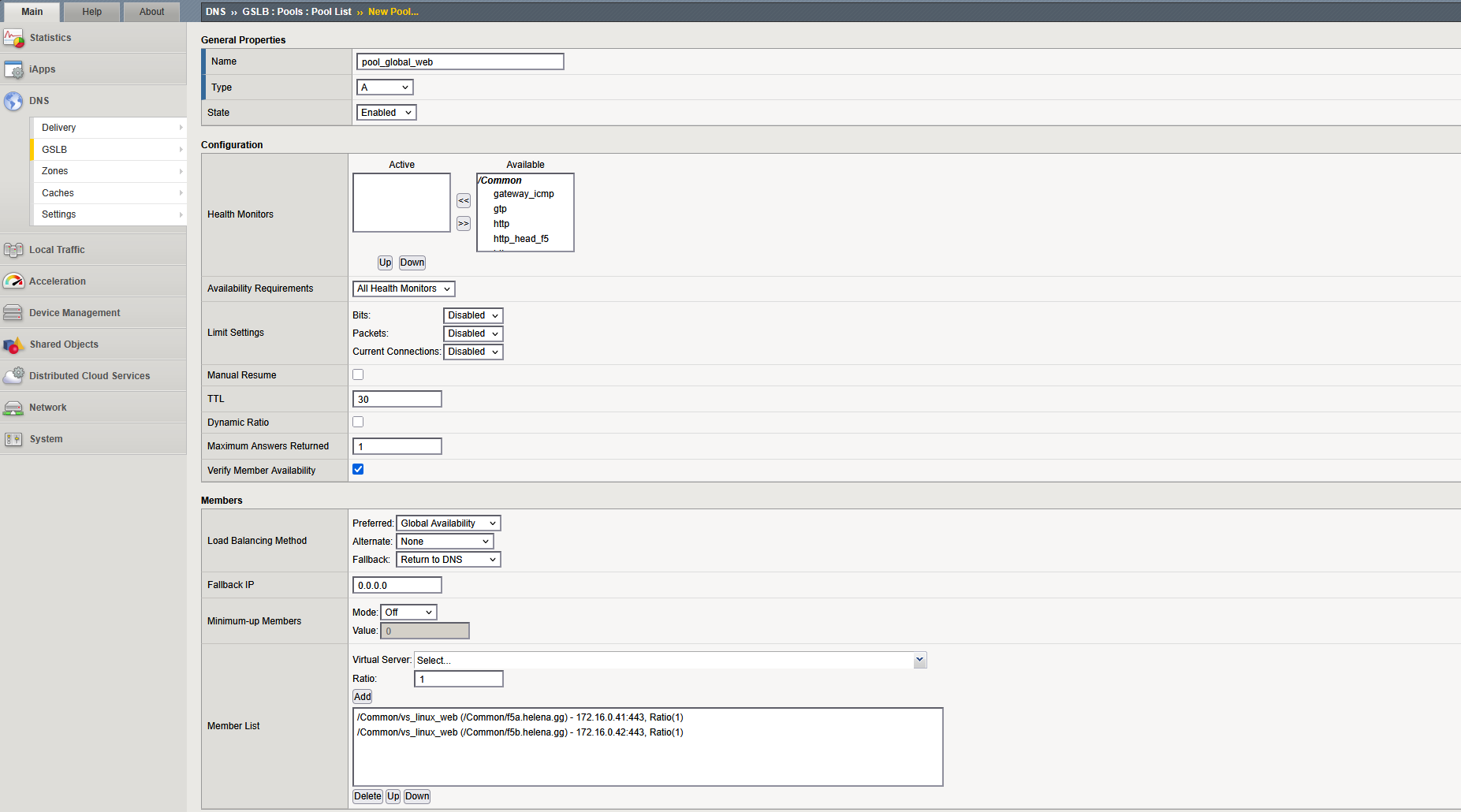

After that we create the Pool List and select the web VS from each box

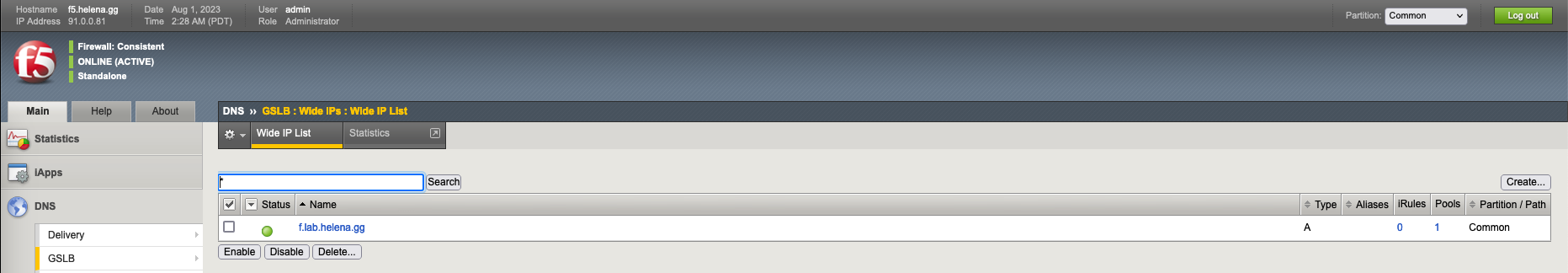

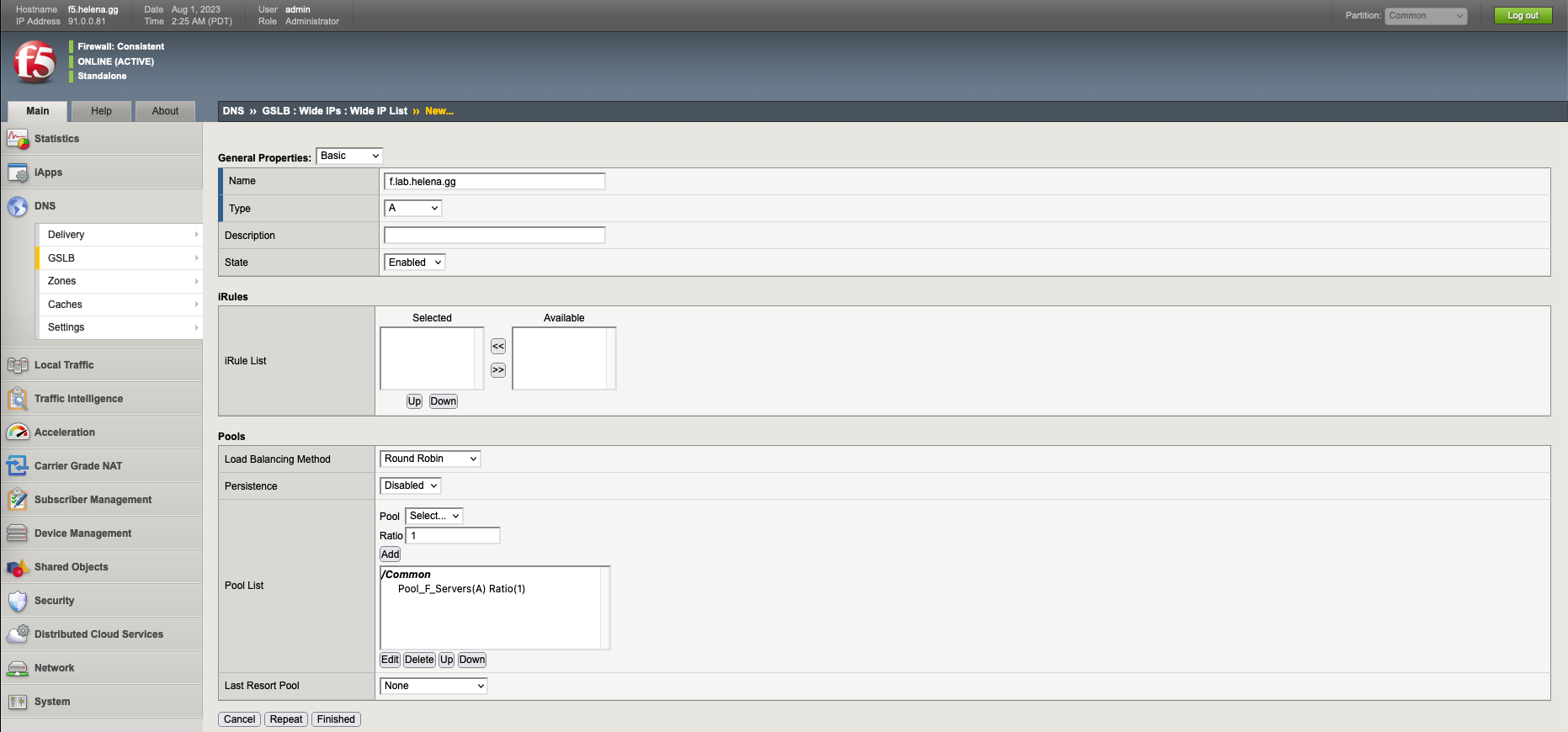

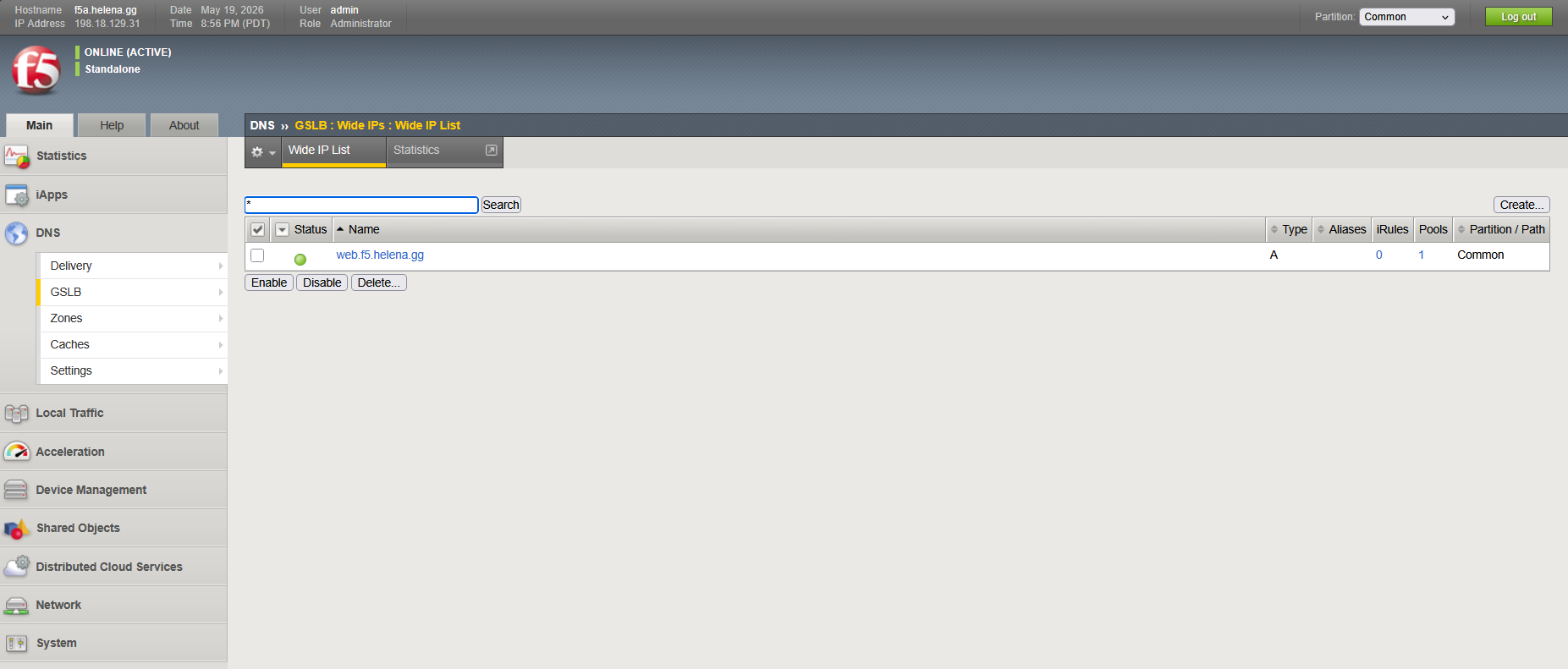

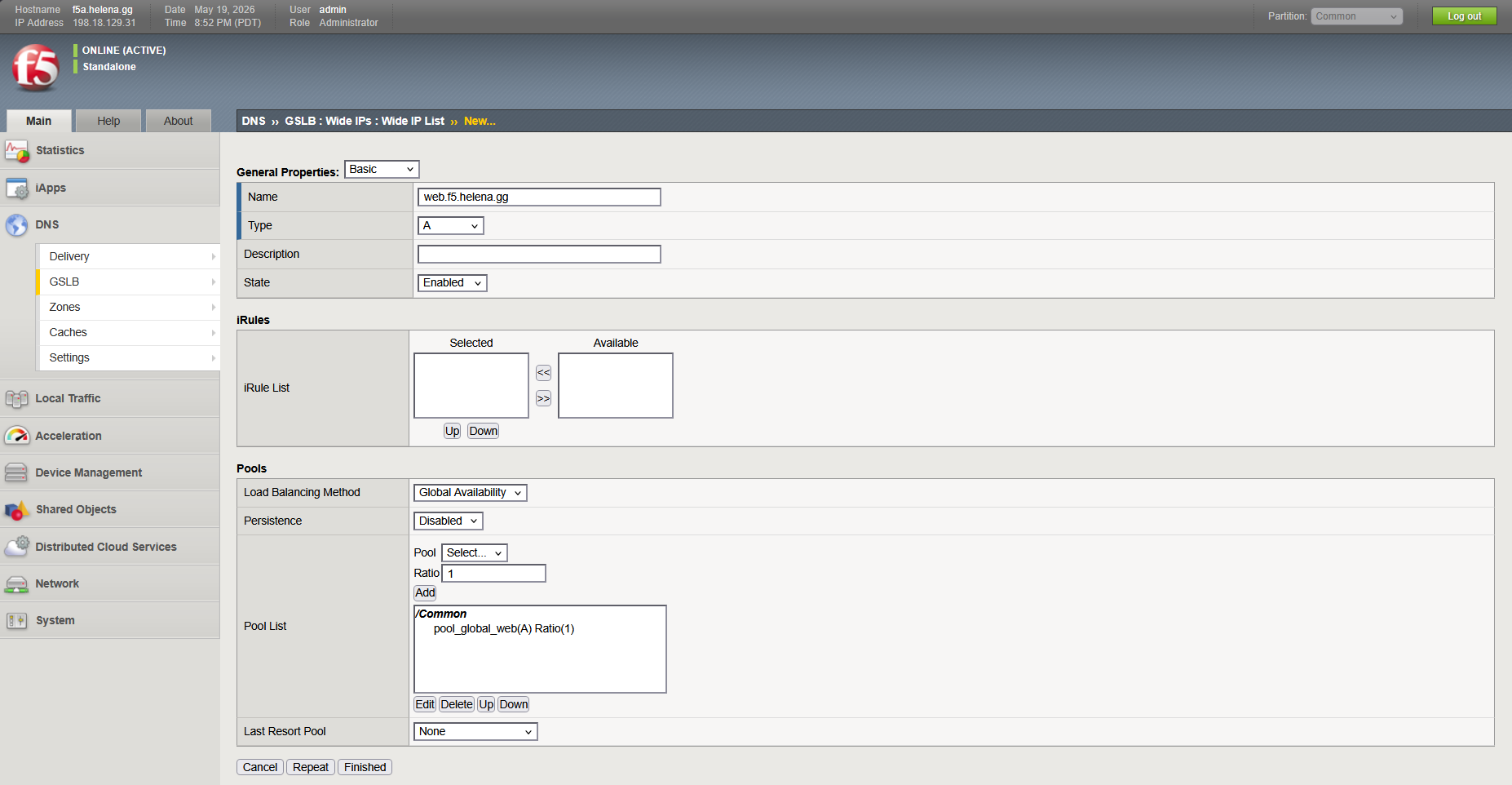

Next we create the Wide IP List, this is the actual FQDN that we will query from endpoint, in this case we will call it web.f5.helena.gg and point it to the Pool we created

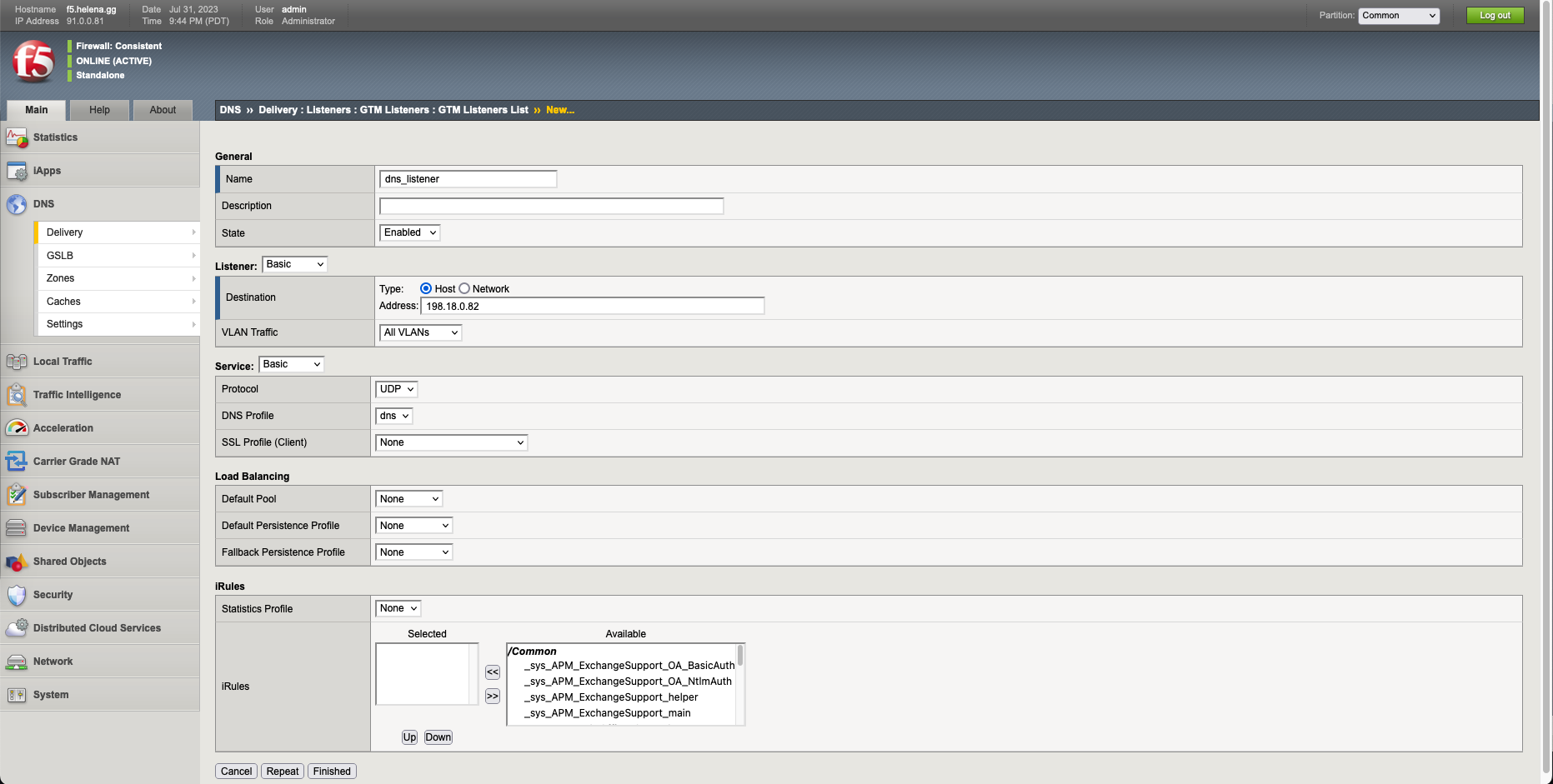

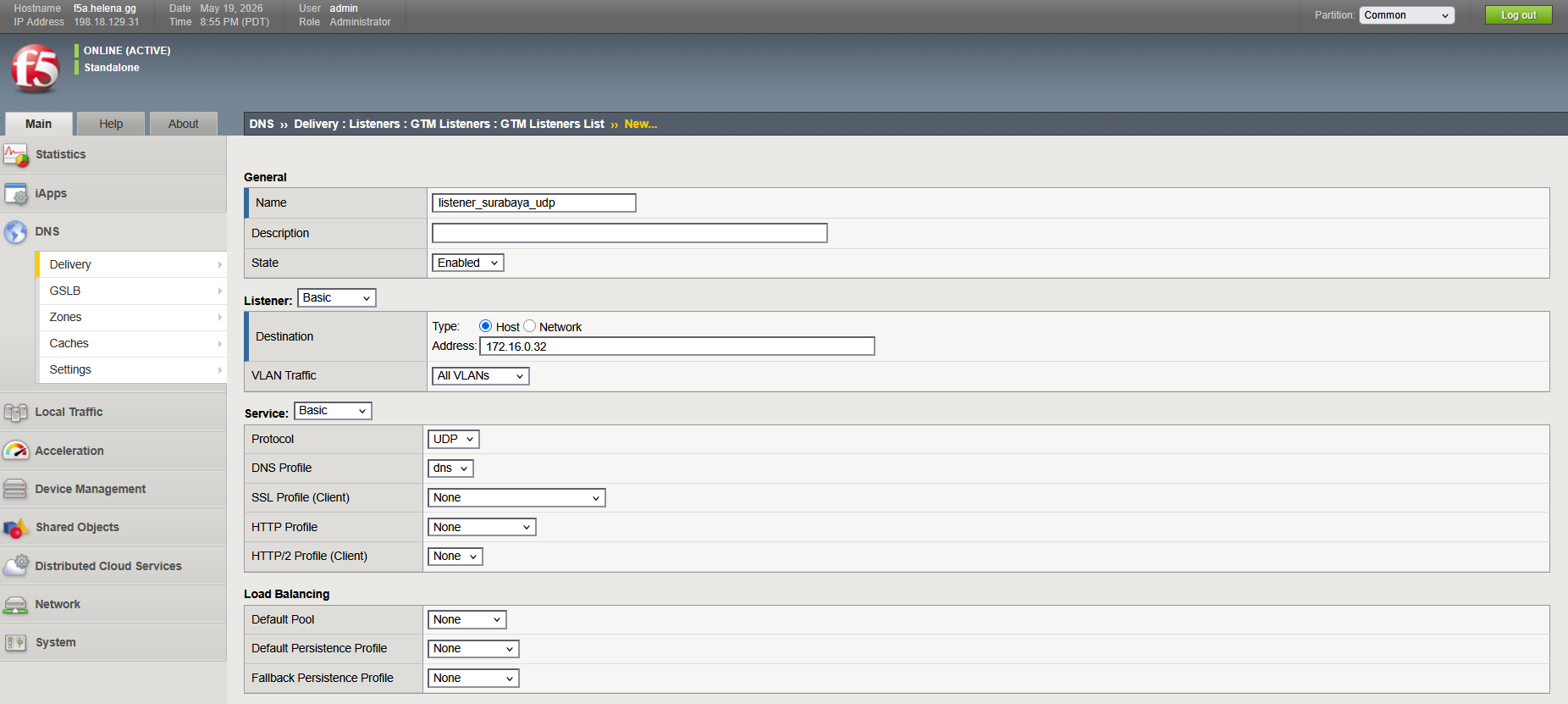

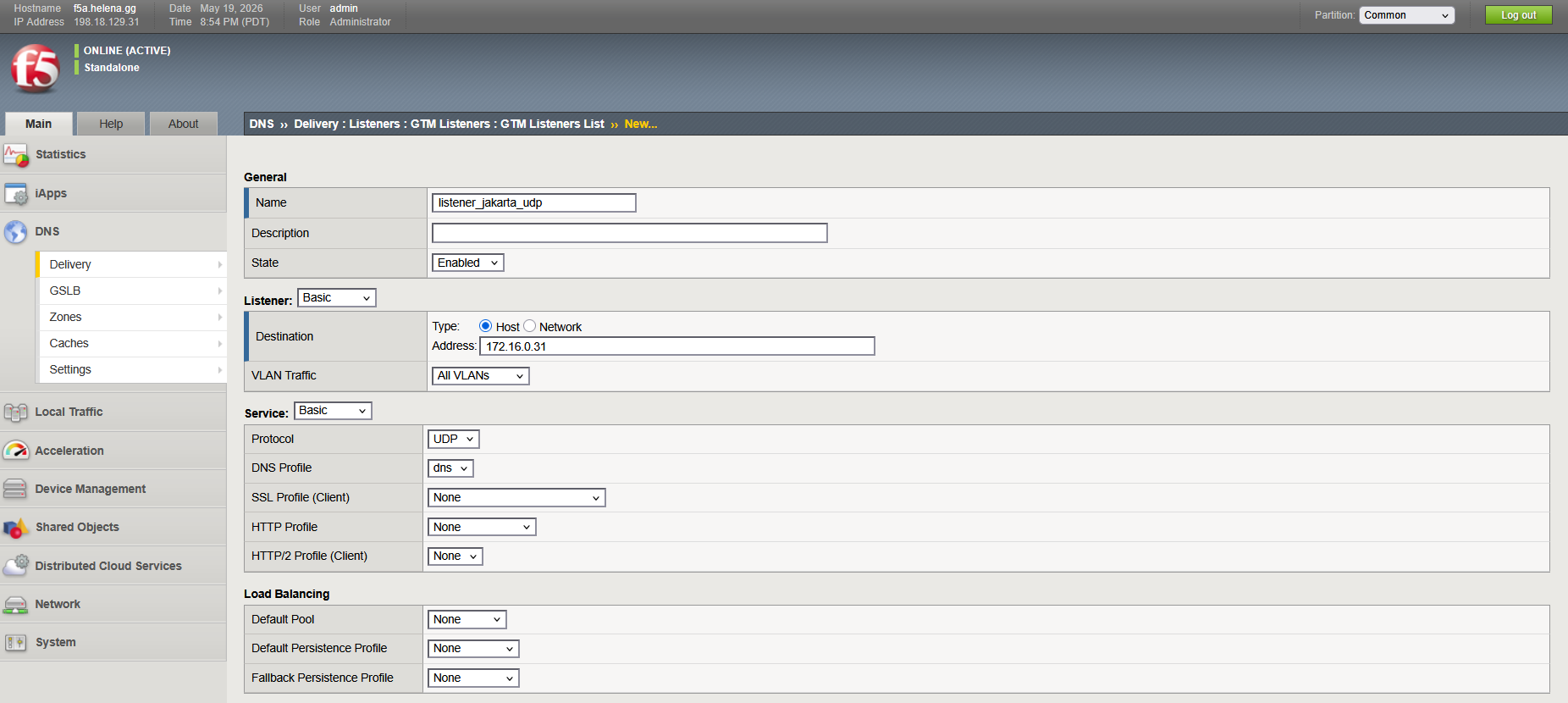

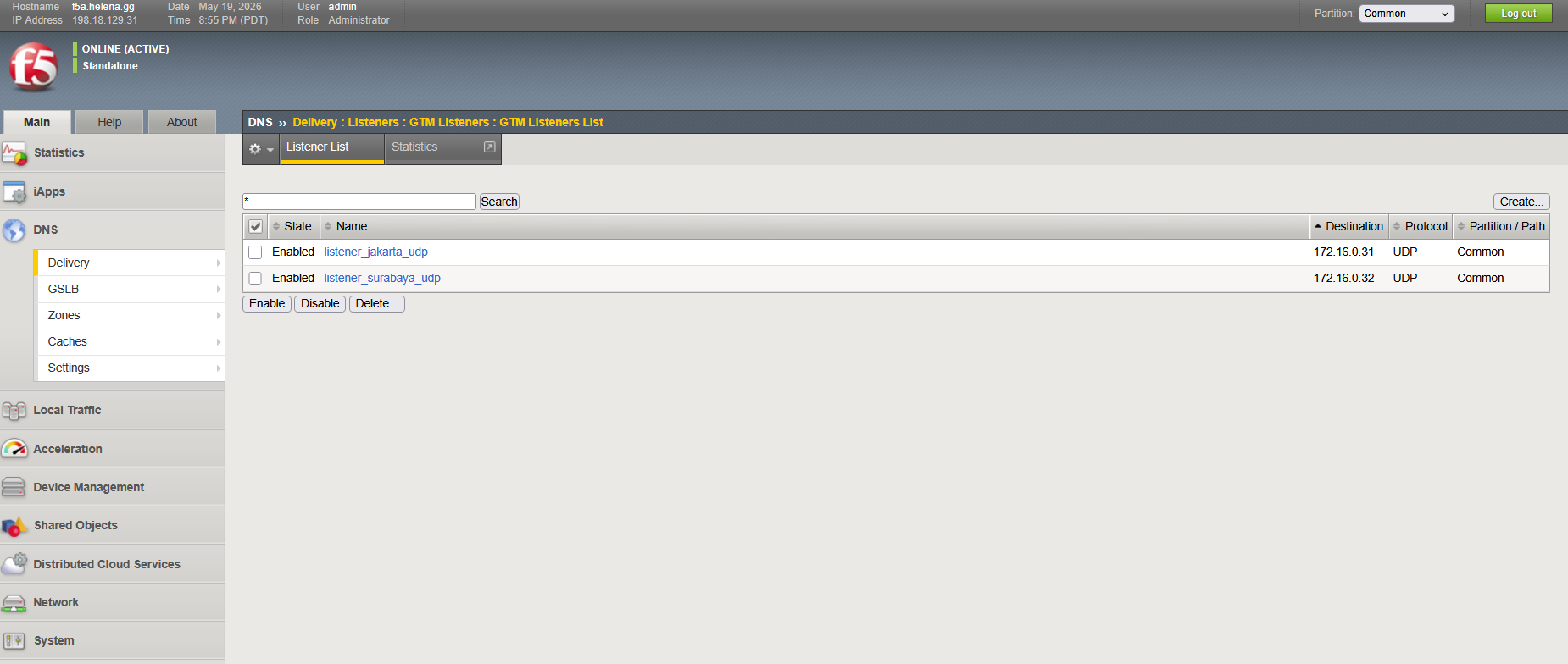

Lastly we create the GTM Listener, this allows our F5 box to listen and respond to DNS queries on port 53

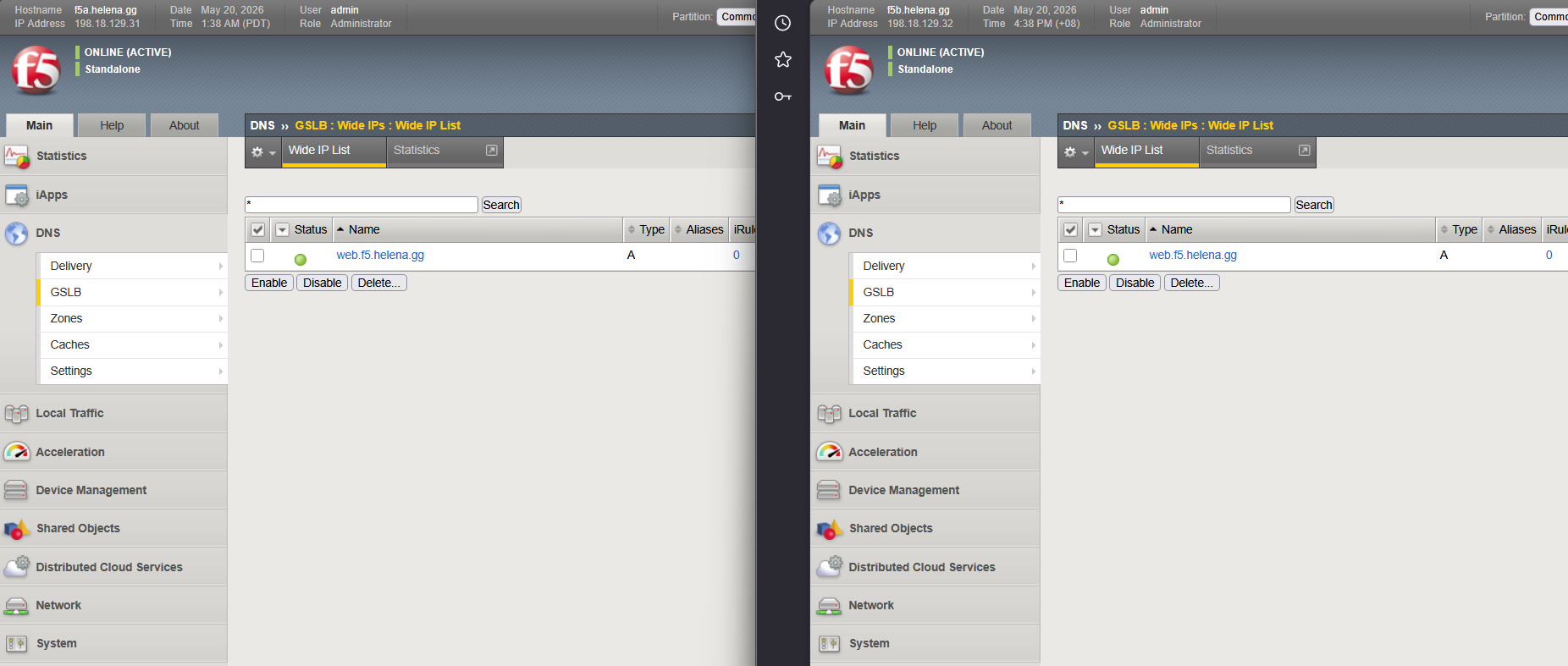

At this point, all configuration should be identical on Box 1 and Box 2 because of the GTM Sync

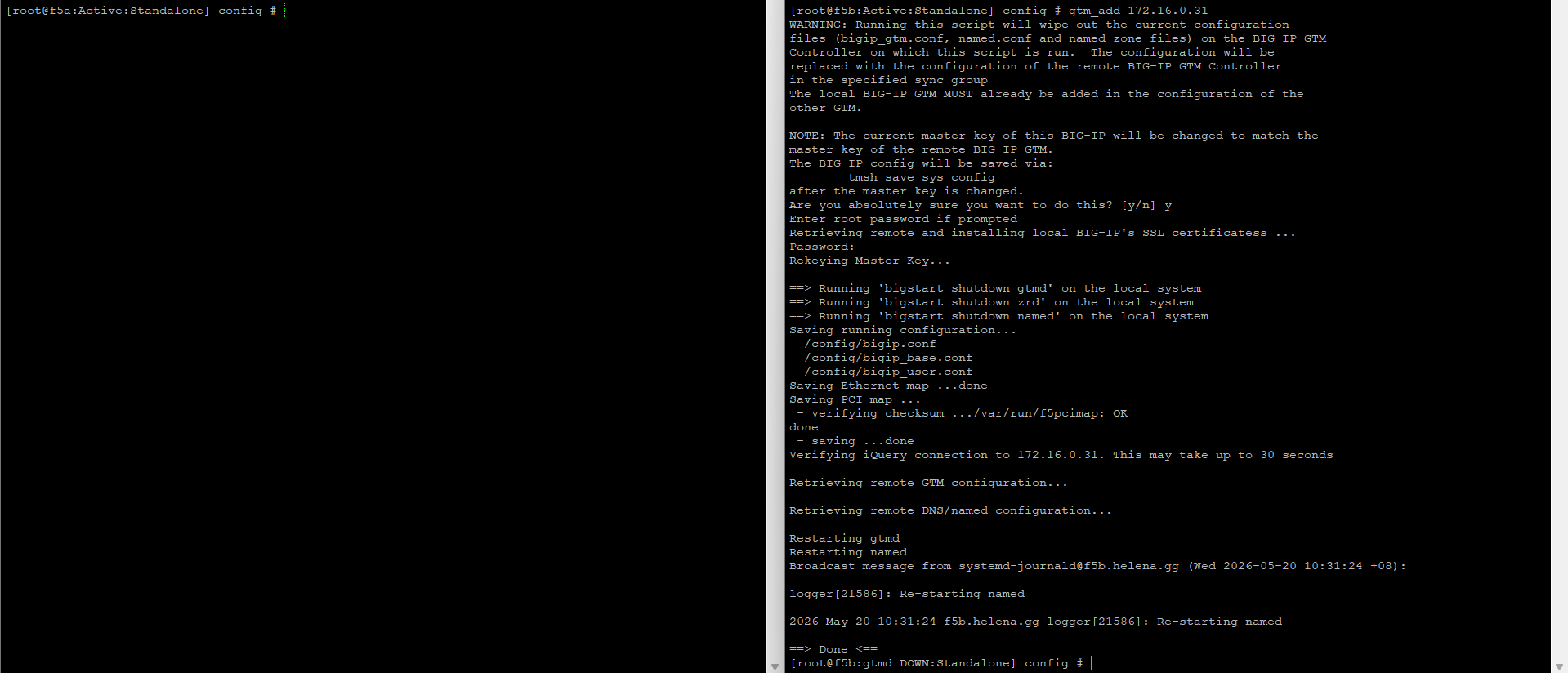

If for some reason the Sync is not happening, we can manually tell box 2 to retrieve GTM config from Box 1 with a cli command

gtm_add 172.16.0.31

Configuring DNS Delegation

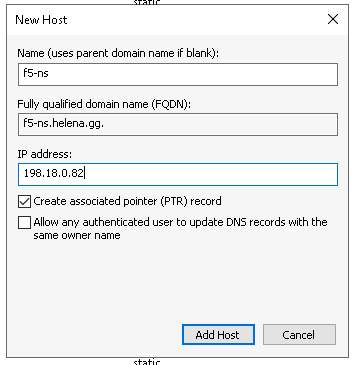

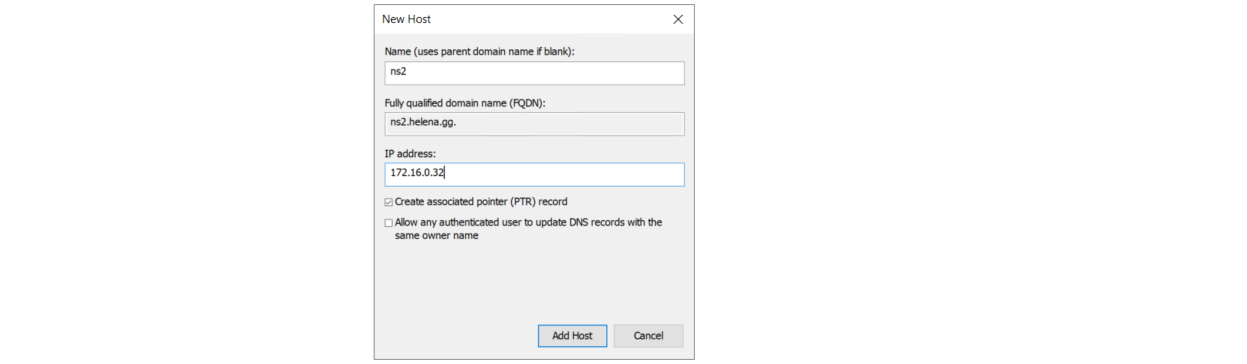

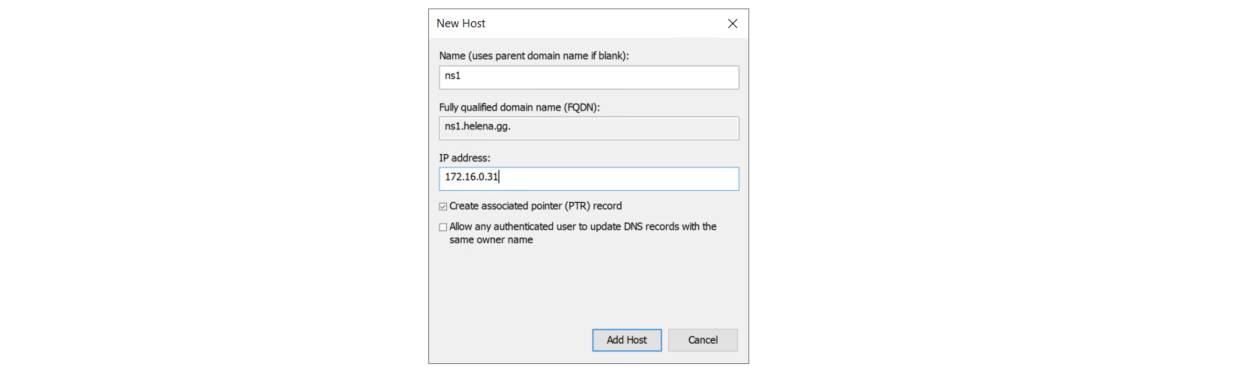

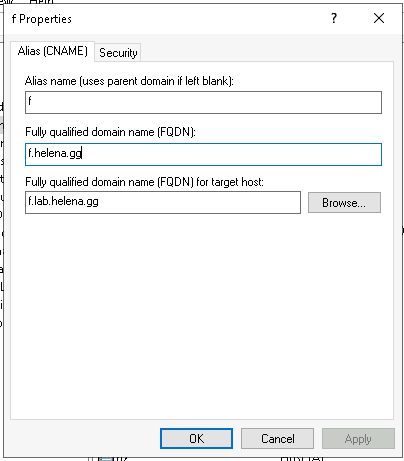

Now we can proceed configuring DNS Delegation on our DNS Server, first we will add both our F5 boxes as Name Server Hosts

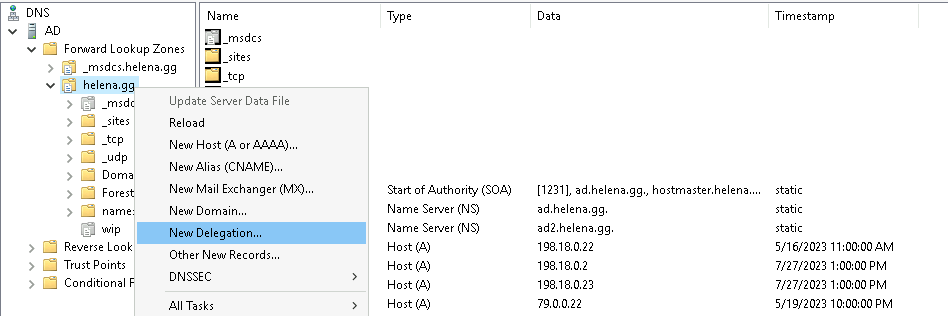

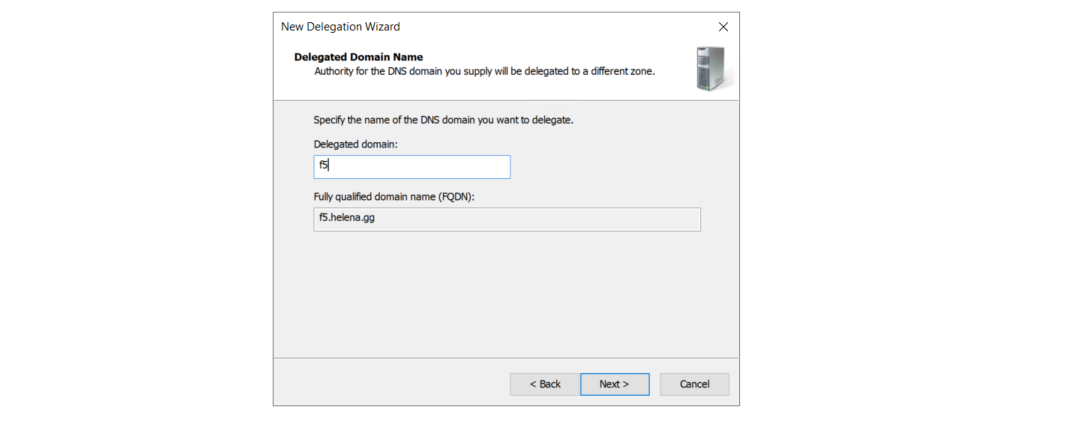

Then we create a new Delegation Domain Name “f5”, this tells the DNS Server to delegate all “f5.helena.gg” query to our nameservers

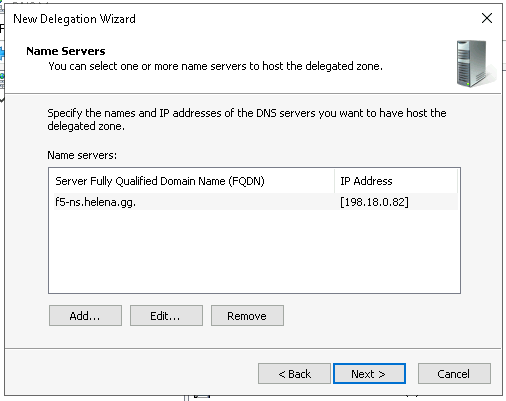

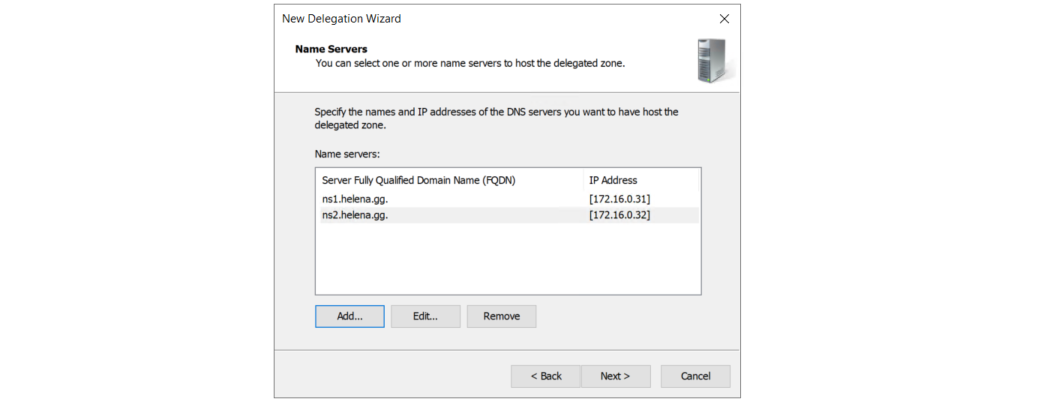

And add the nameservers

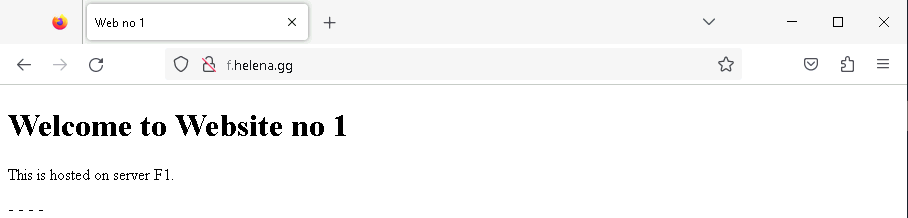

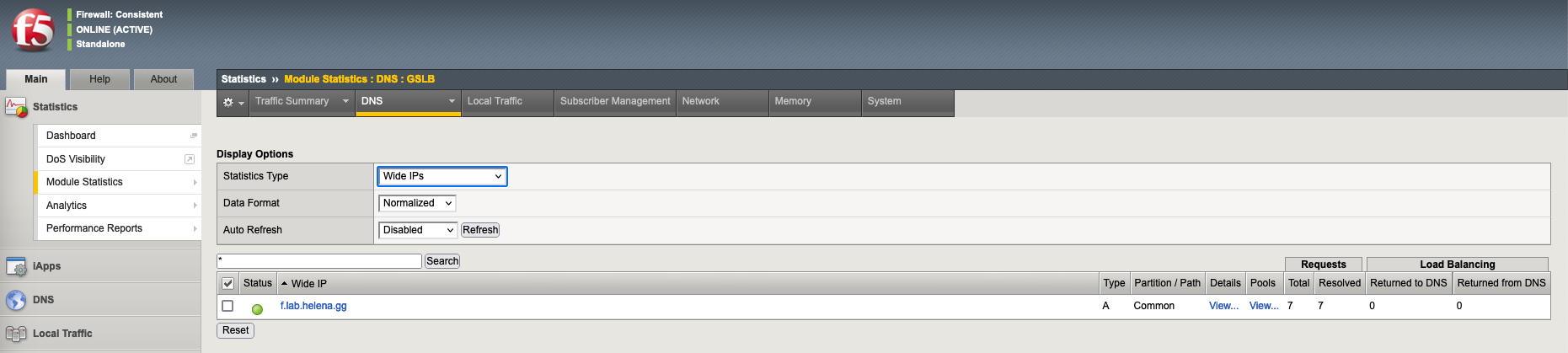

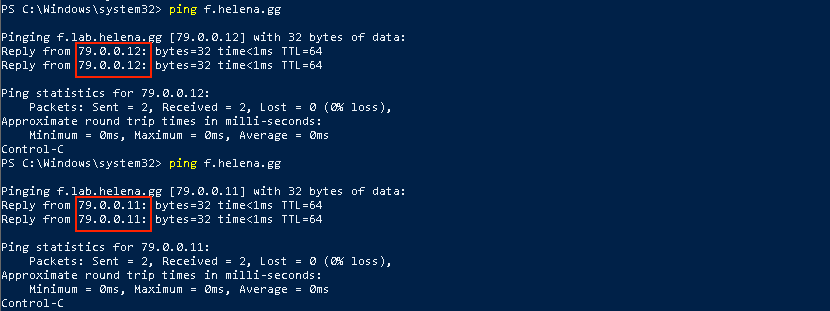

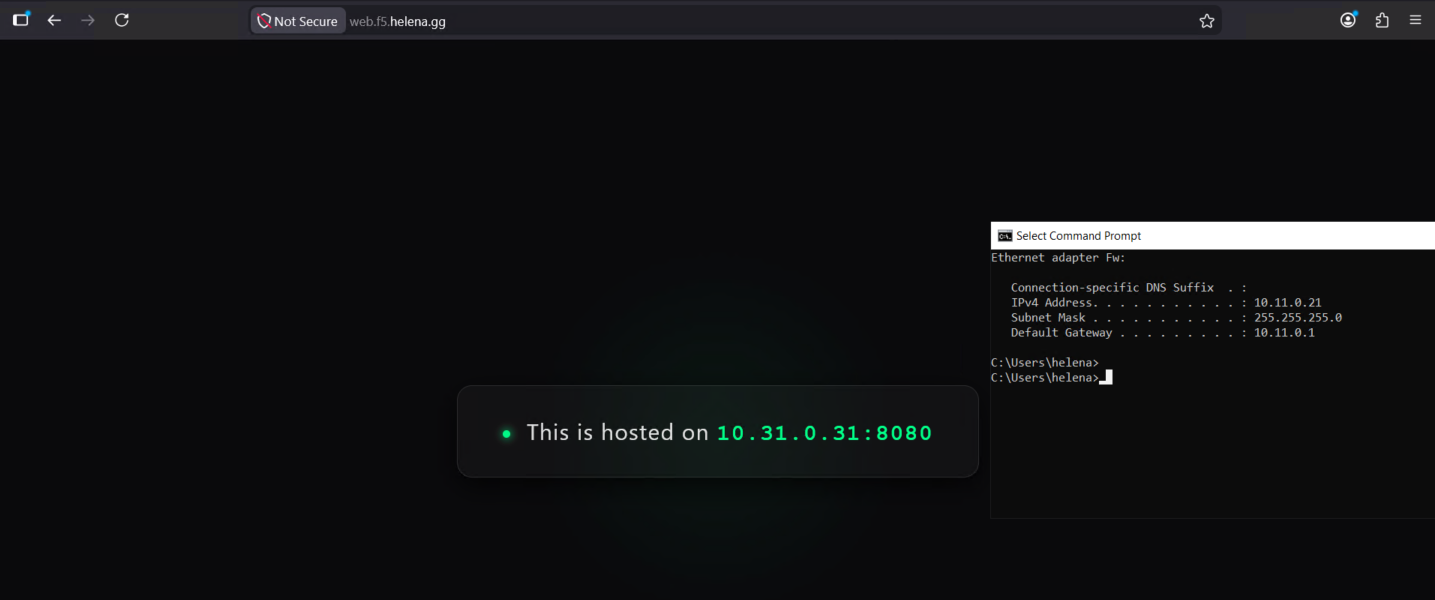

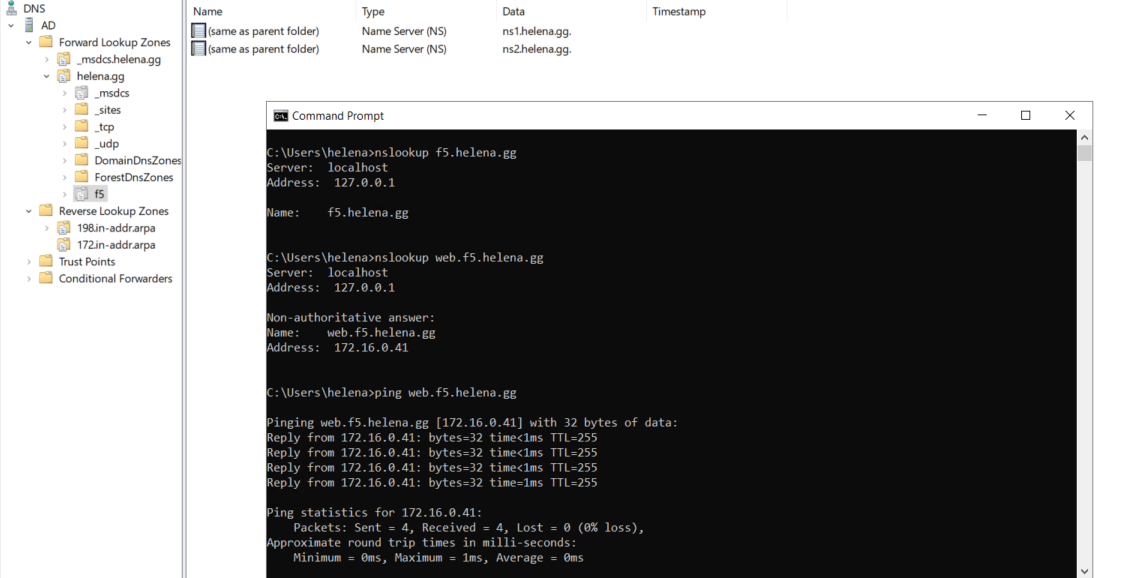

Now when we query the delegated subdomain, F5 will respond the DNS queries

Failover

We shutdown all LTM nodes on DC 1 to simulate failure, which GTM will detect and mark the member as down

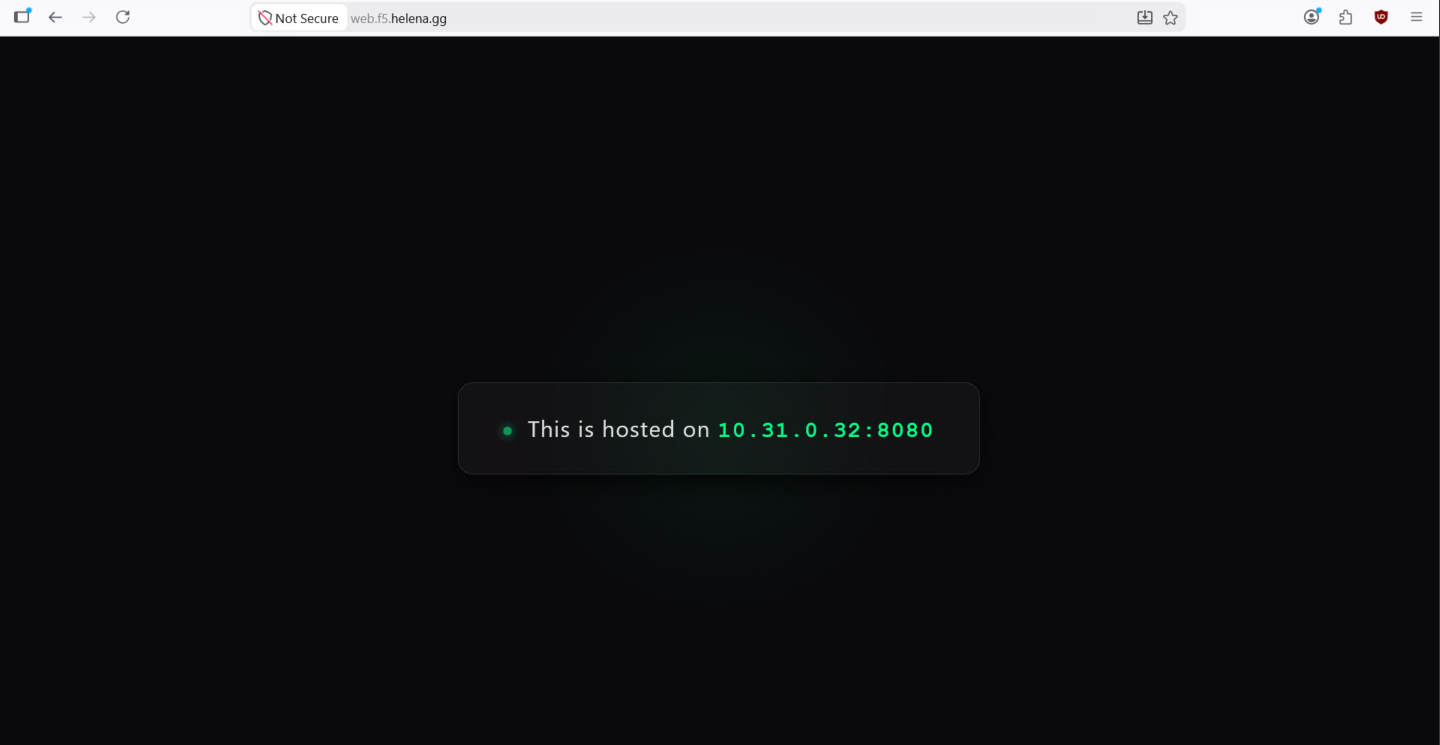

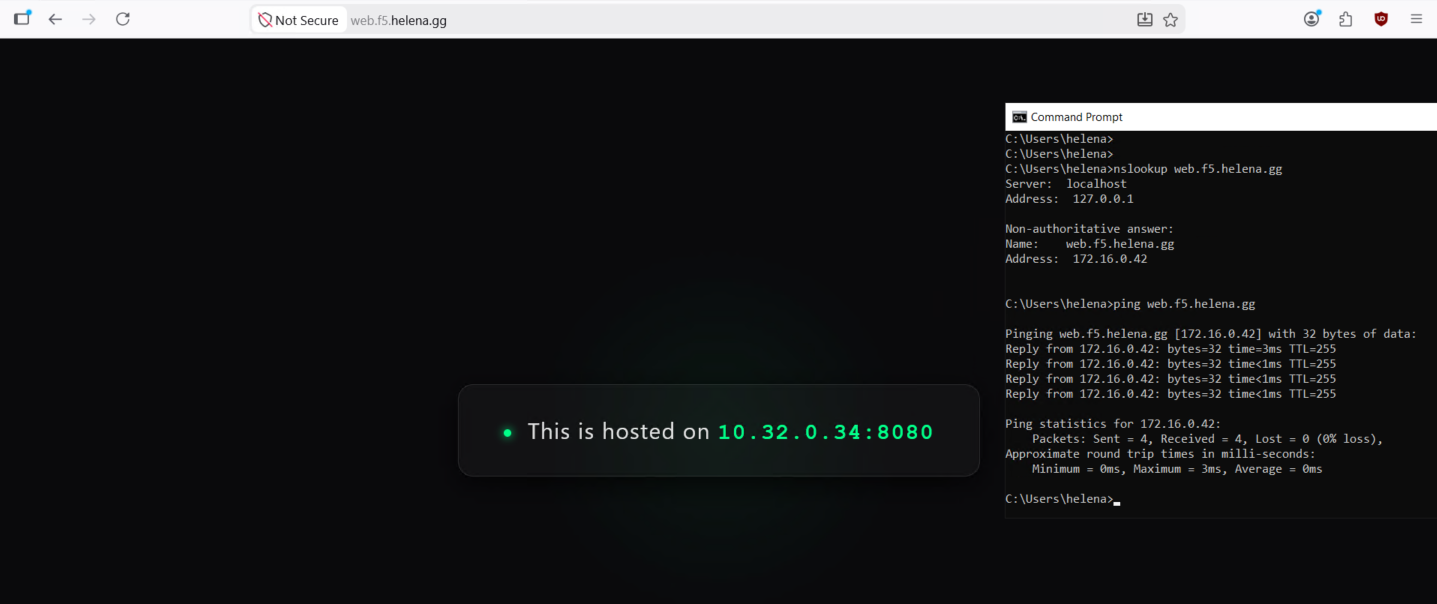

And GTM automatically routes the DNS queries to the active DC, which is our DC Surabaya

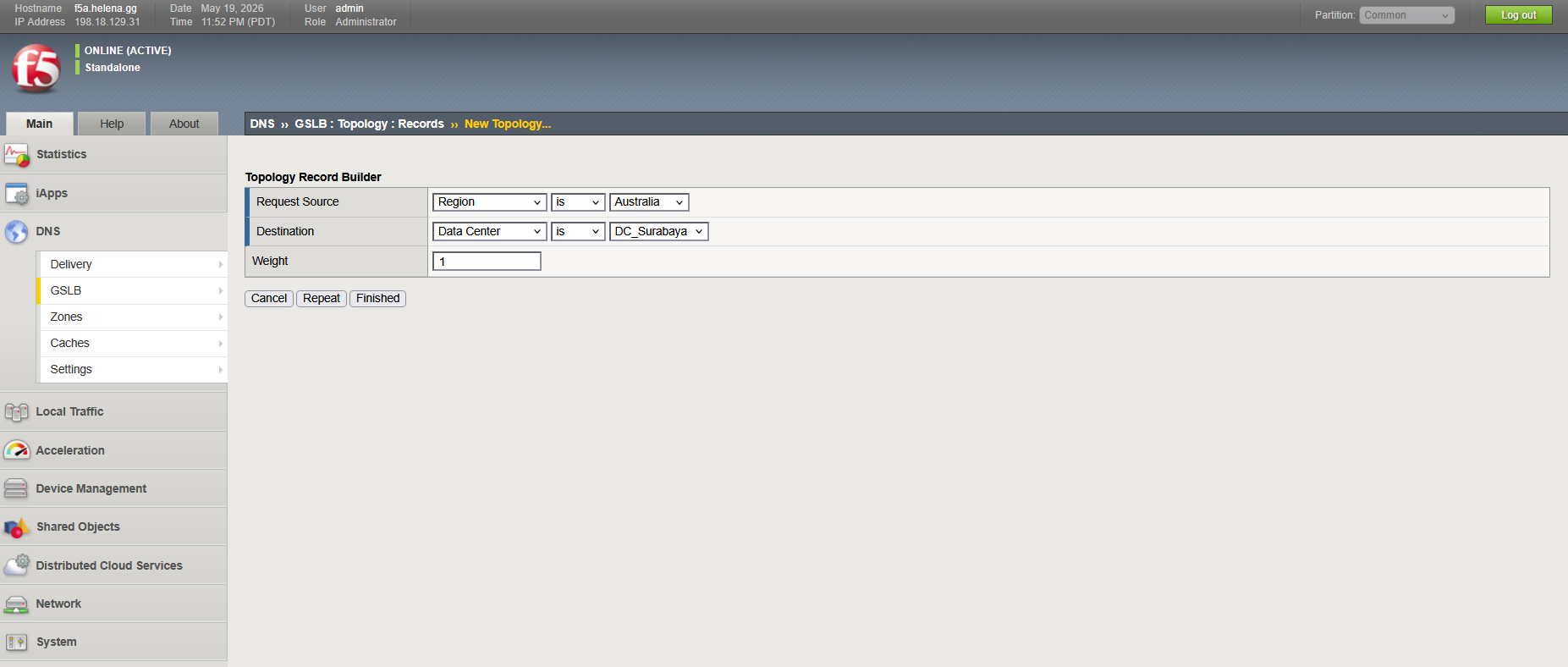

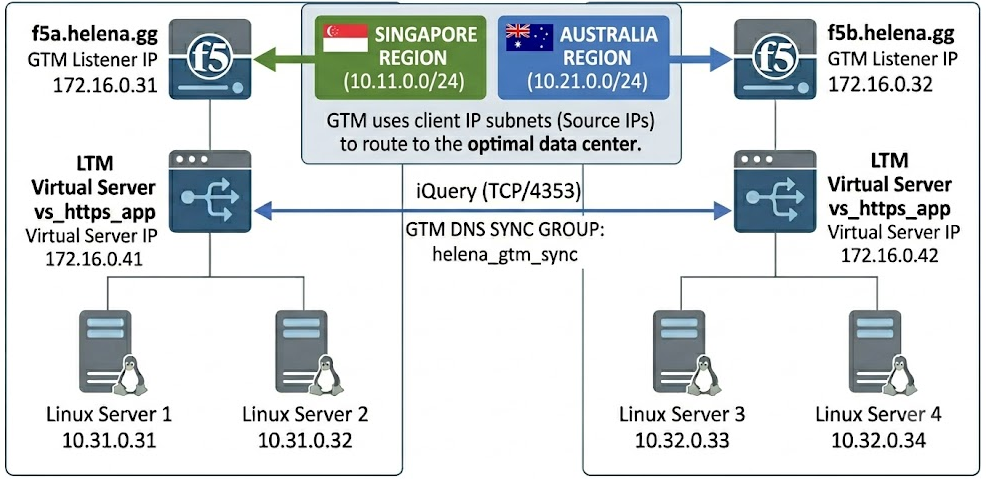

Geo Based GTM

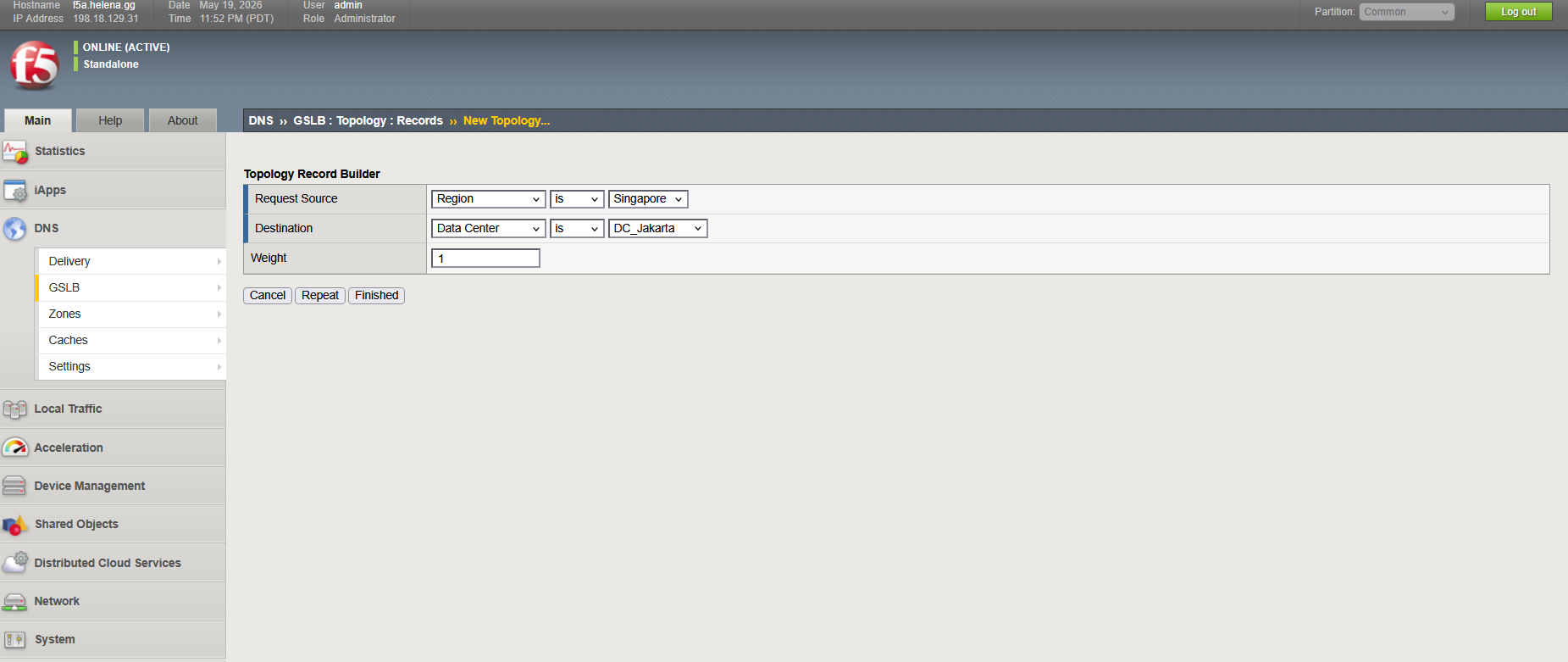

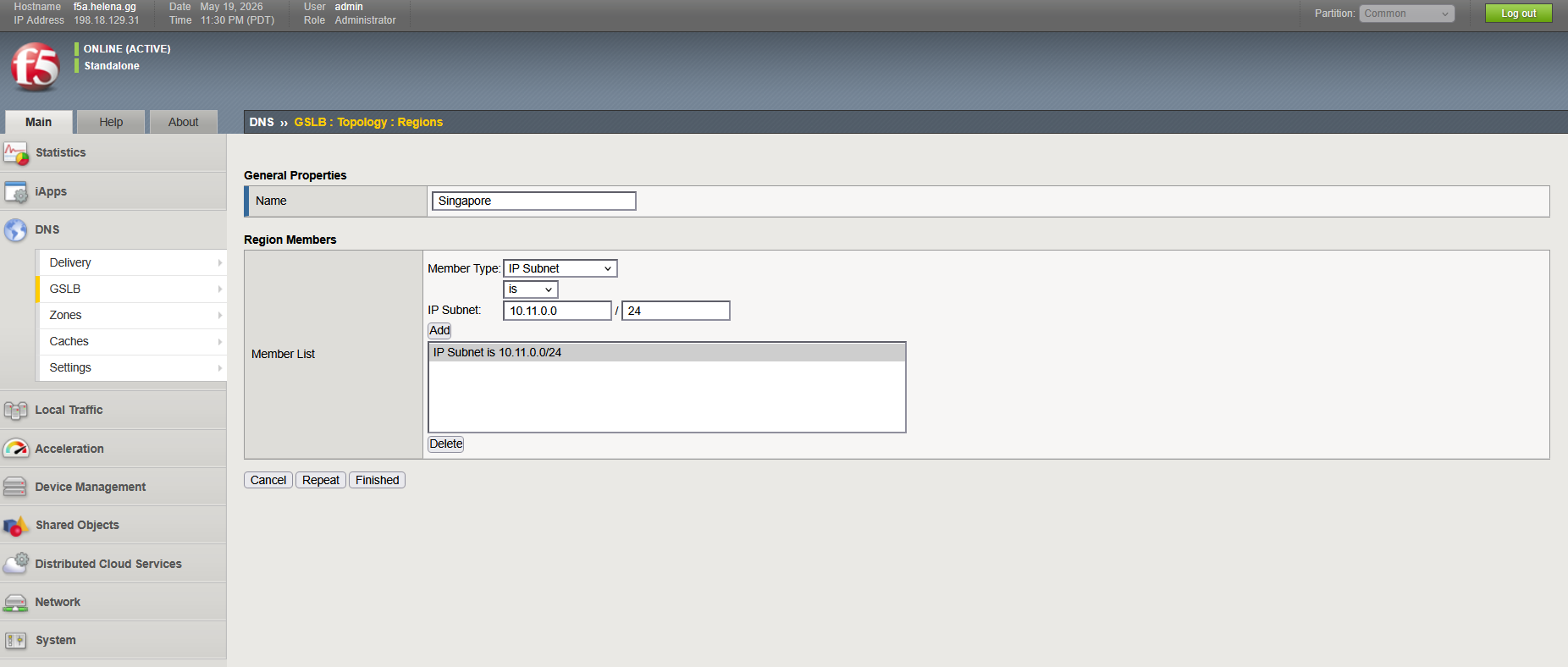

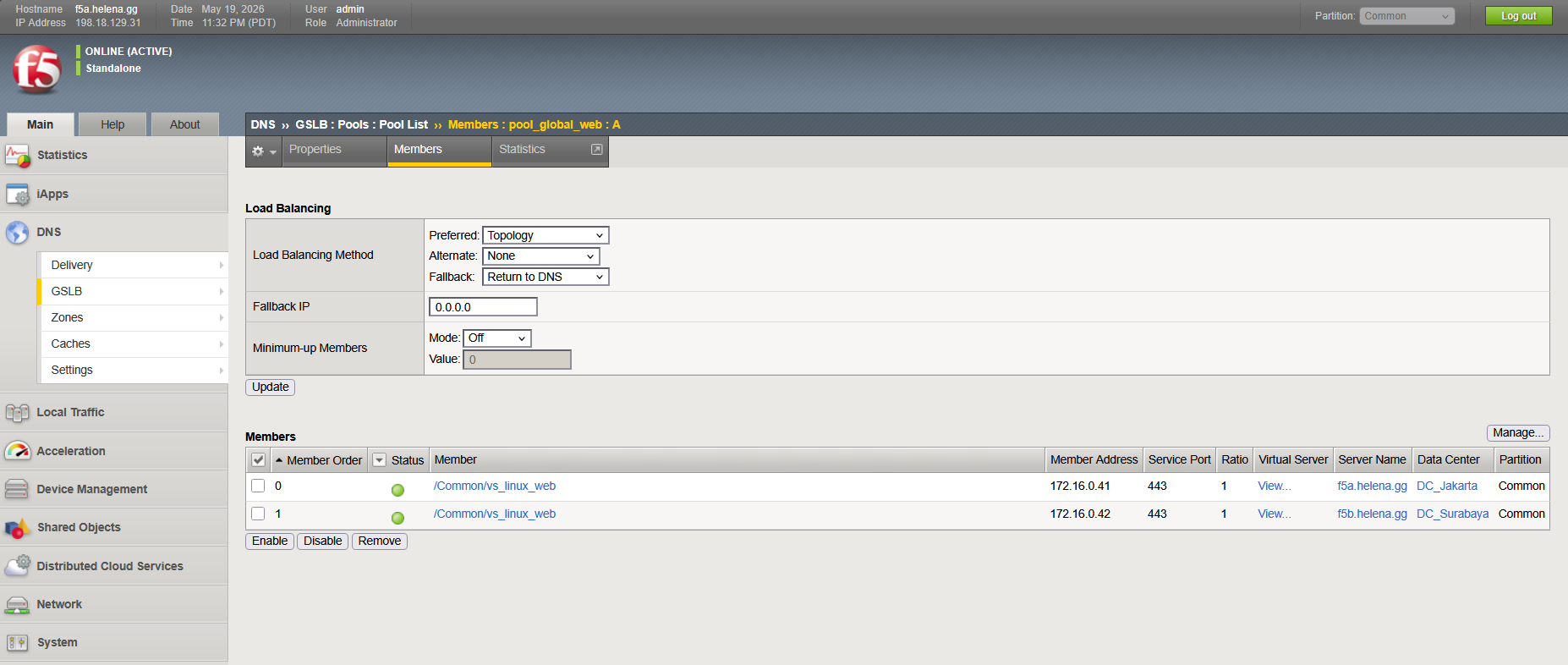

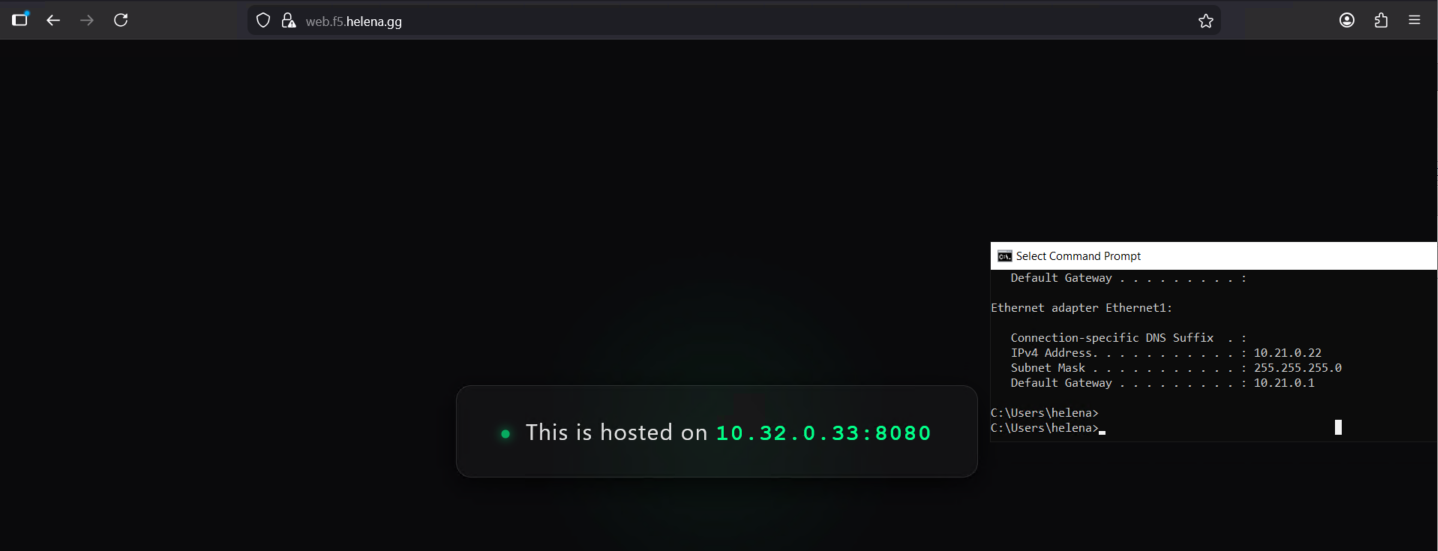

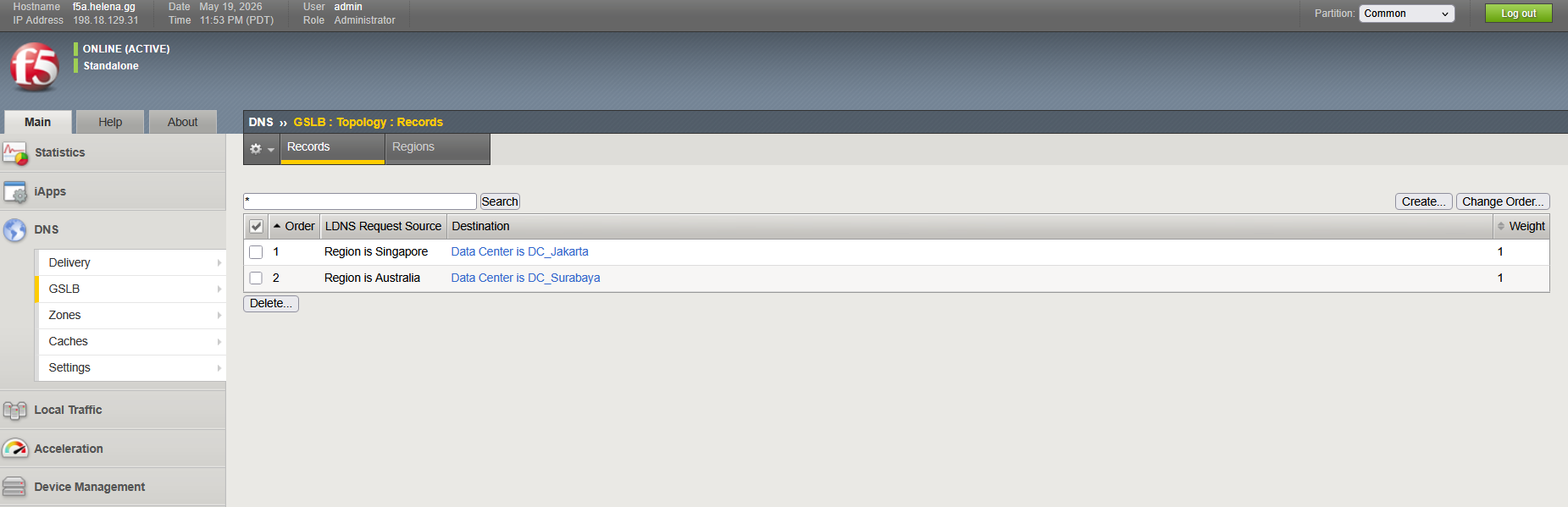

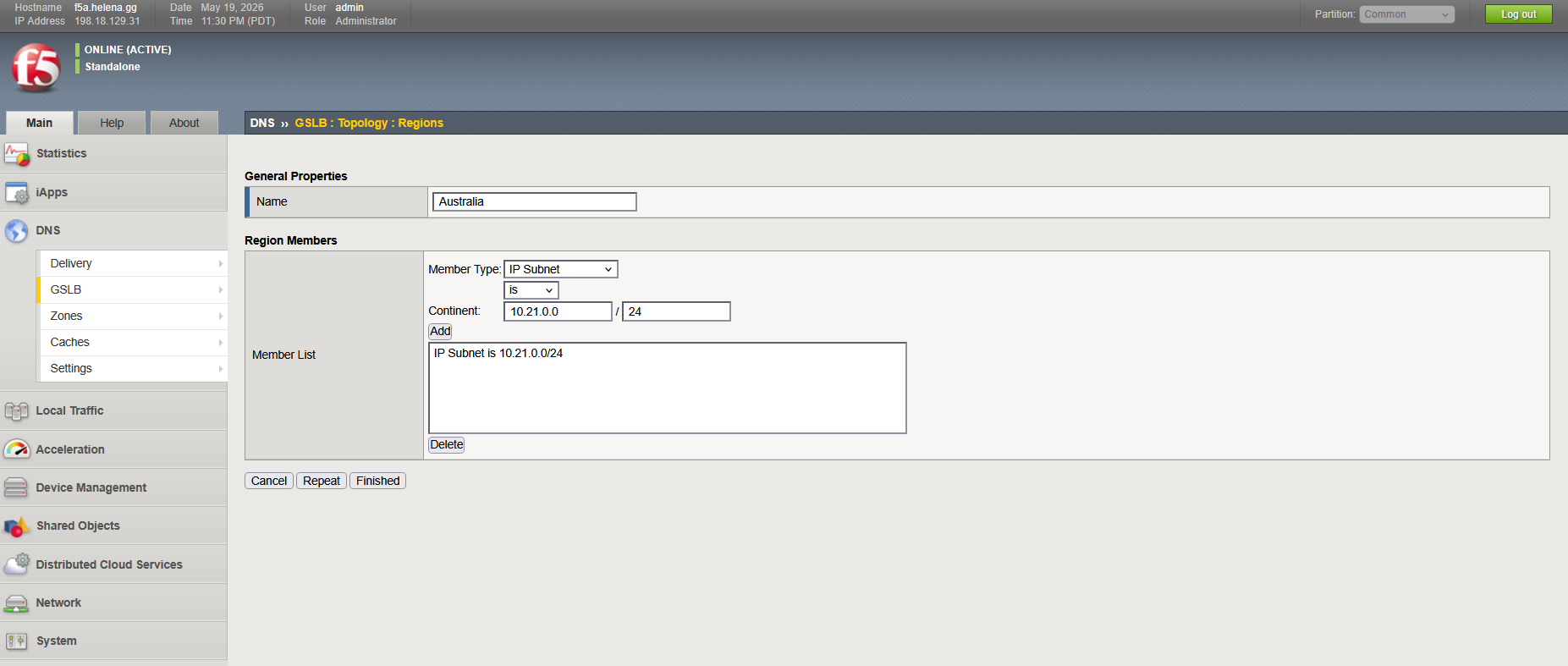

To optimize the usage and latency, we can configure GTM to serve specific DC based on the clients’ region. Here we will split it into 2 client origins, Singapore and Australia where each will be prioritized by dedicated DC
