Alibaba Application Load Balancer with WAF

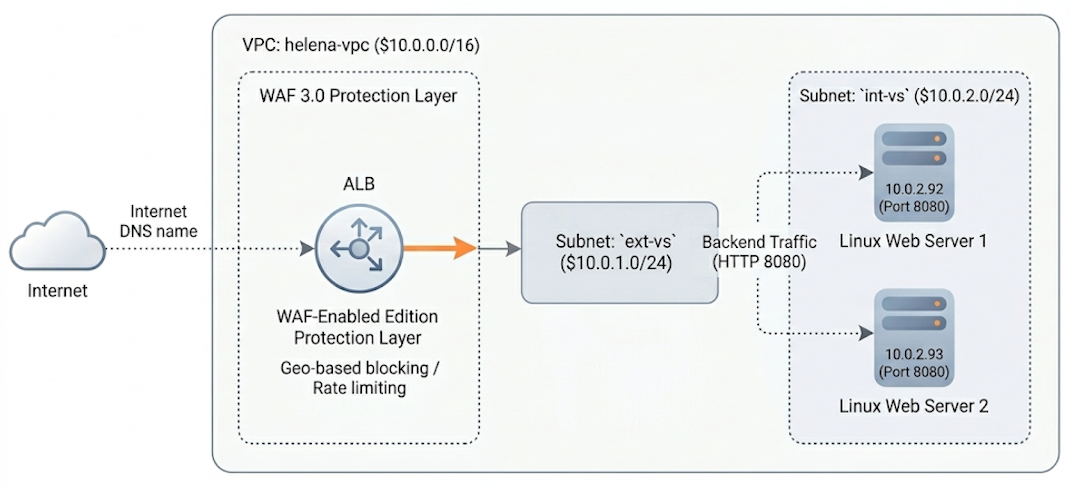

Alibaba Cloud ALB distributes incoming internet traffic across multiple backend servers to ensure high availability. When integrated with WAF, it filters and protects traffic (e.g., rate limiting, geo-filtering) before forwarding only clean HTTP requests to the backend servers.

VPC

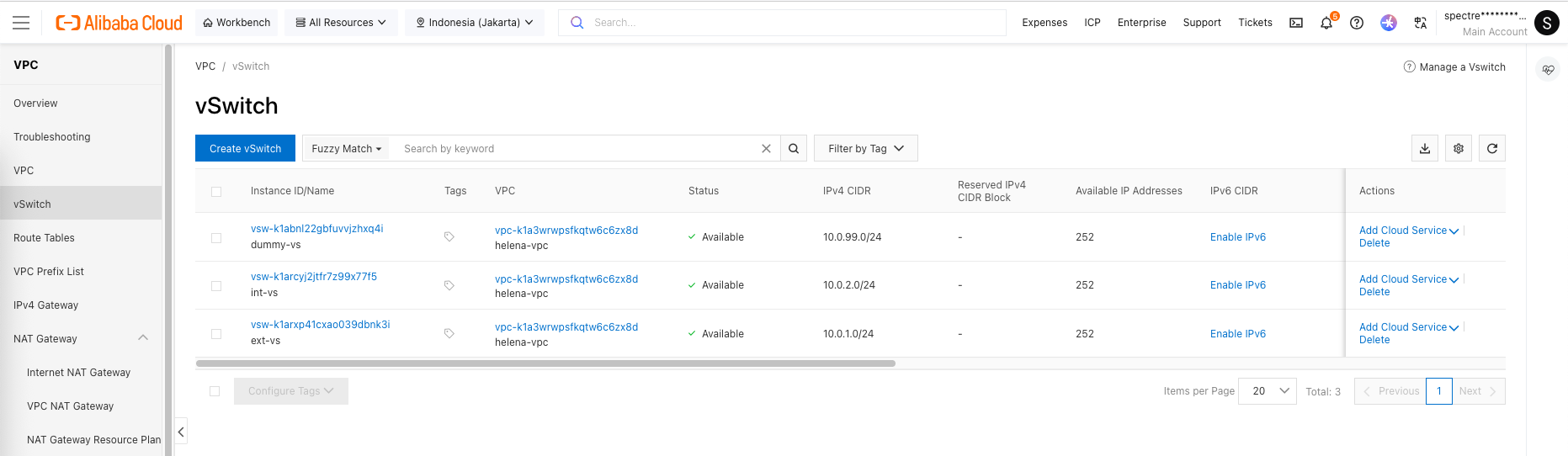

Before configuring ALB, we need to ensure that our External vSwitch has multi domain availability, here we create a Dummy vSwitch on a different zone to fulfill that requirement

Instances

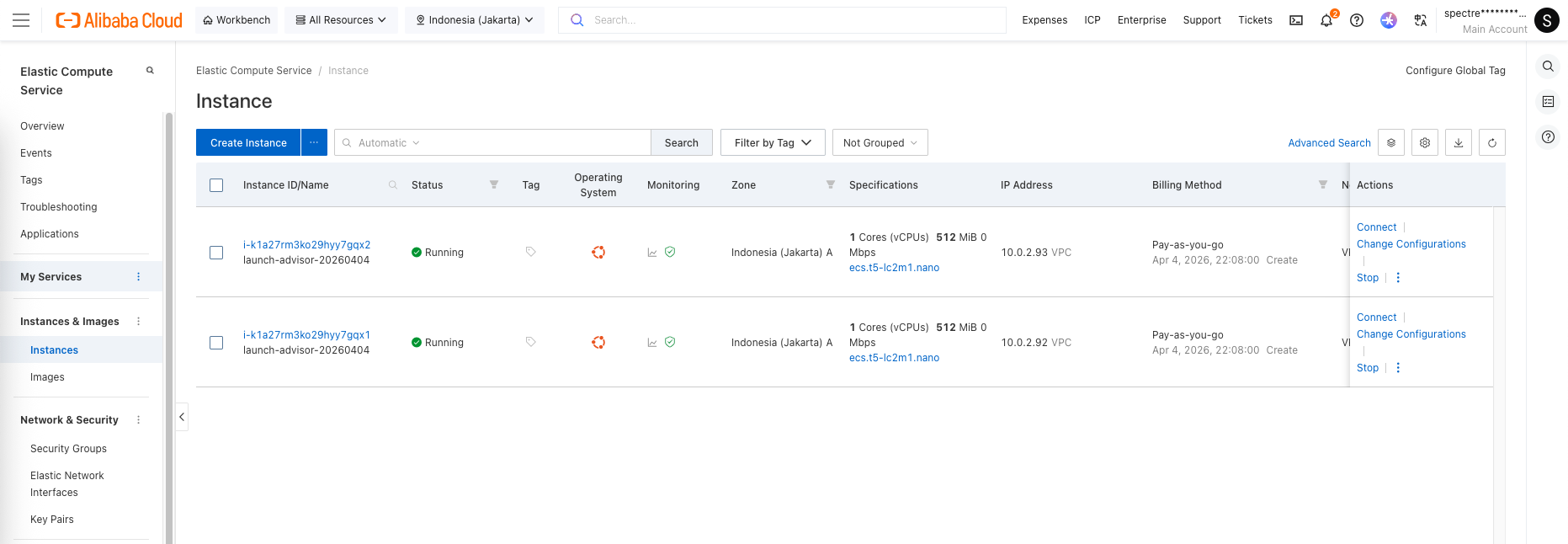

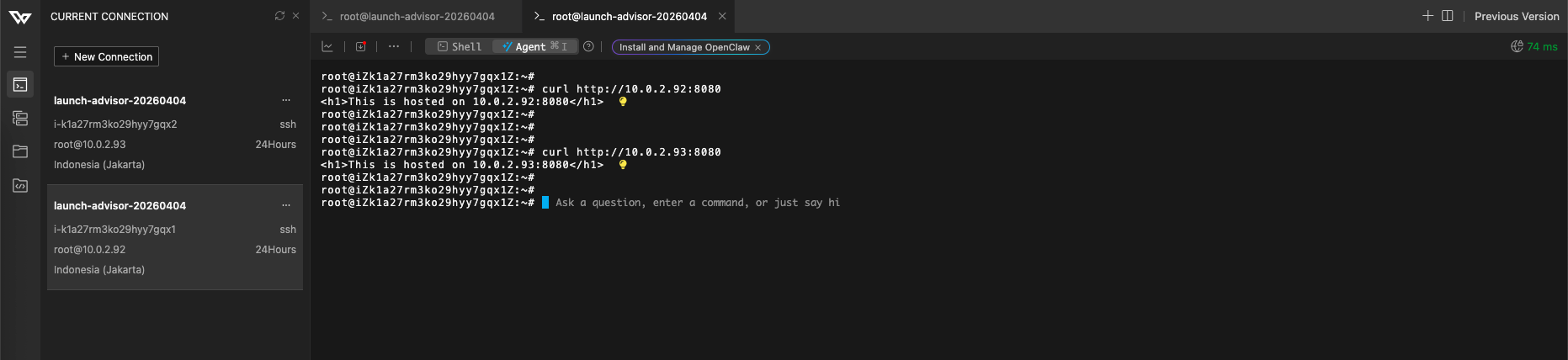

For the instances, we have 2 linux servers serving web on port 8080

ALB

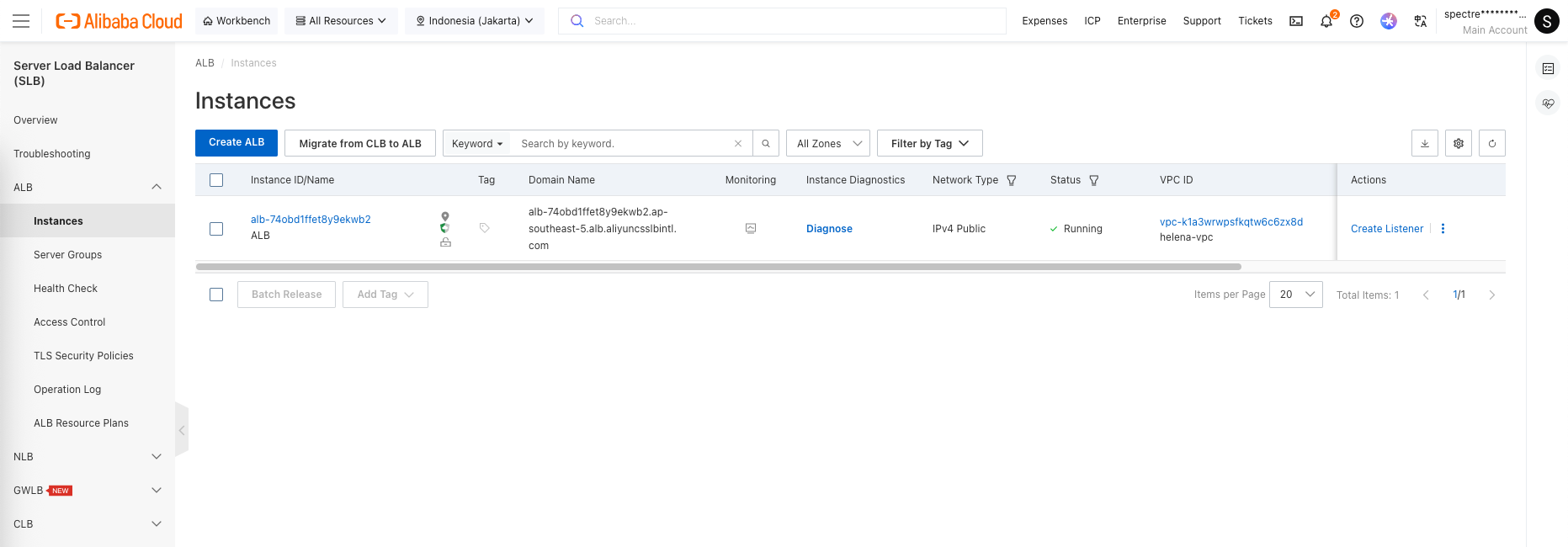

Next we go to Server Load Balancer and select create new on ALB

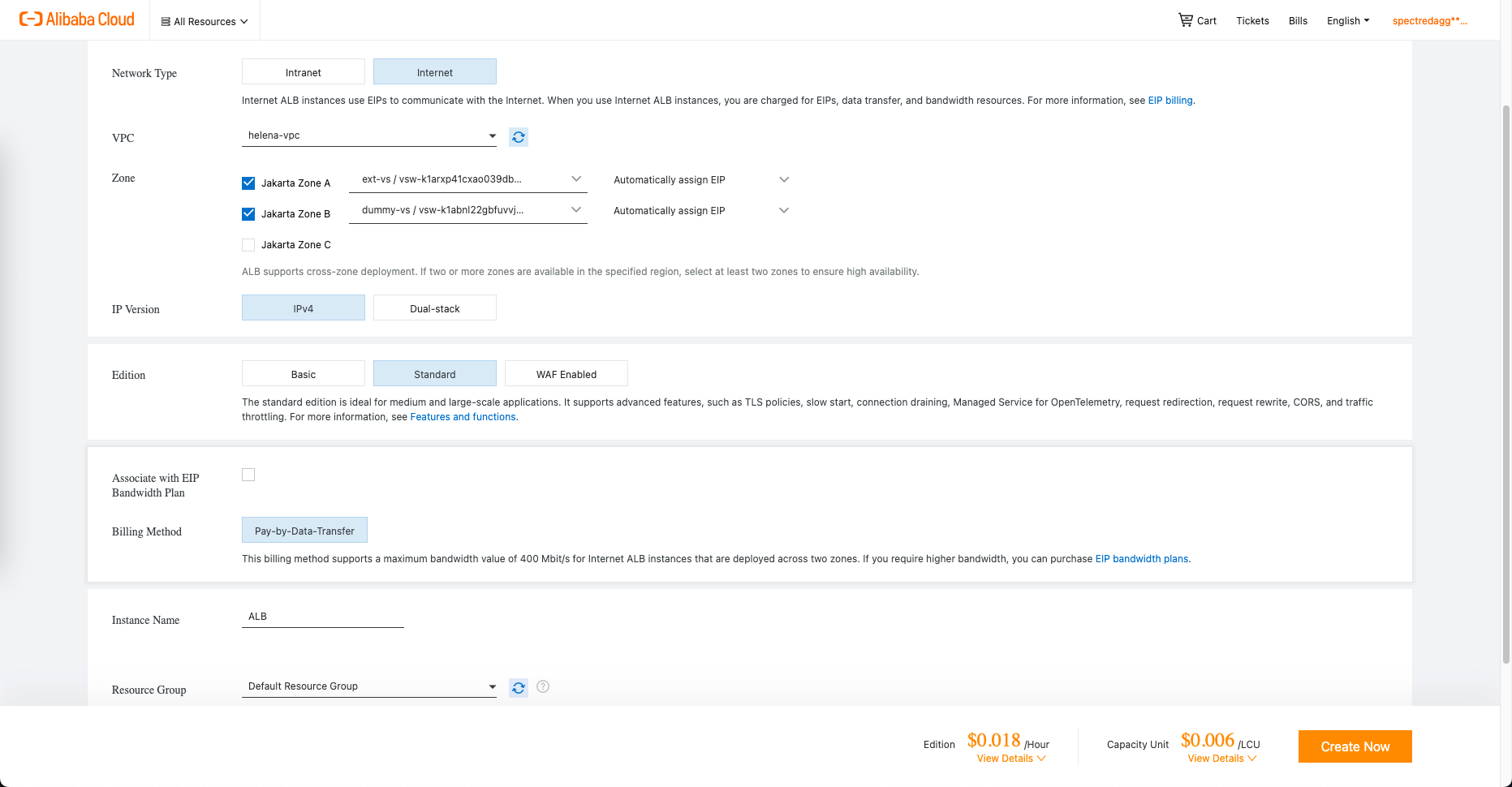

The network type is Internet and we choose our 2 vswitches on different zones, for the Edition we will configure standard for now and enable WAF later

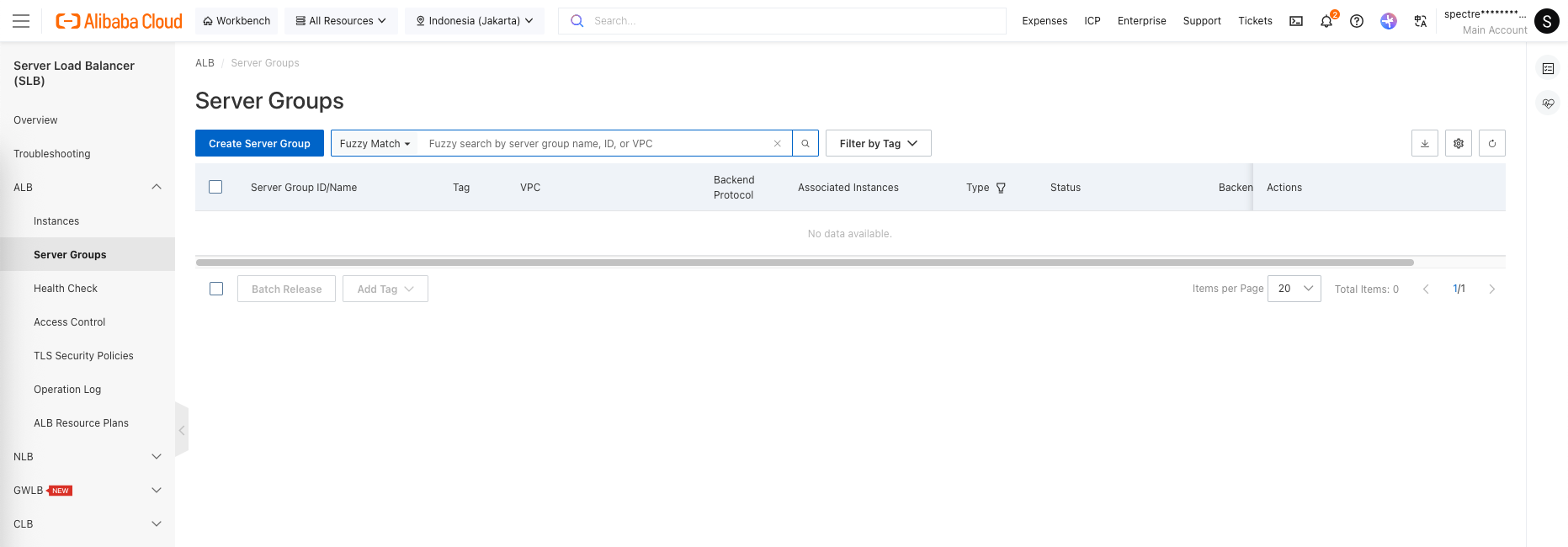

After that we configure the Server Group, create new

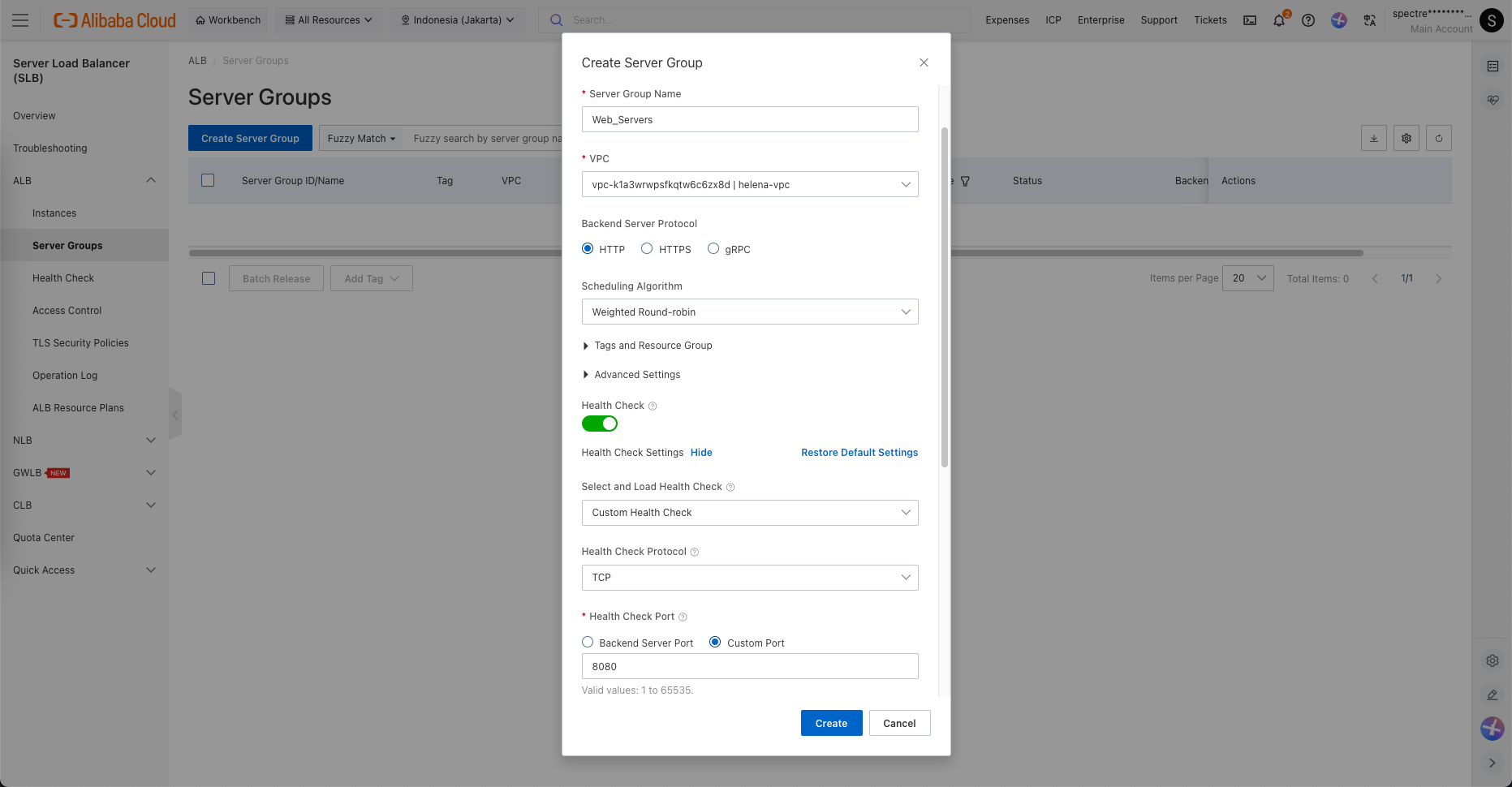

We name it Web_Servers and configure Health Check on port 8080

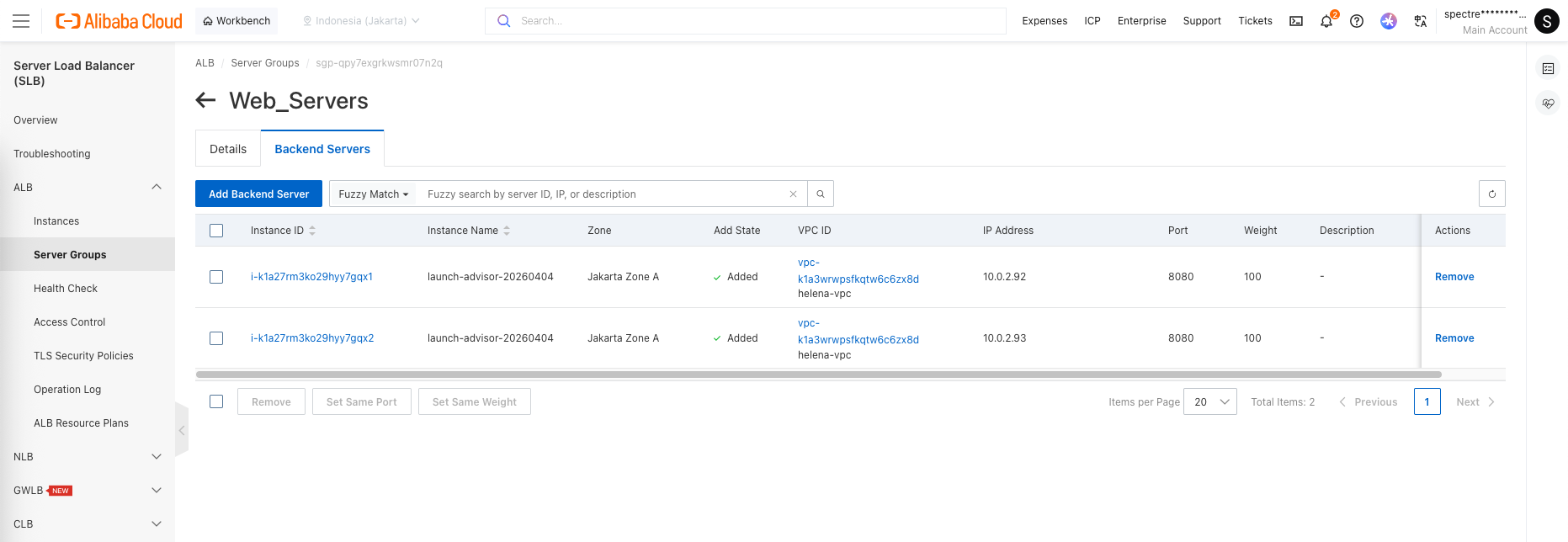

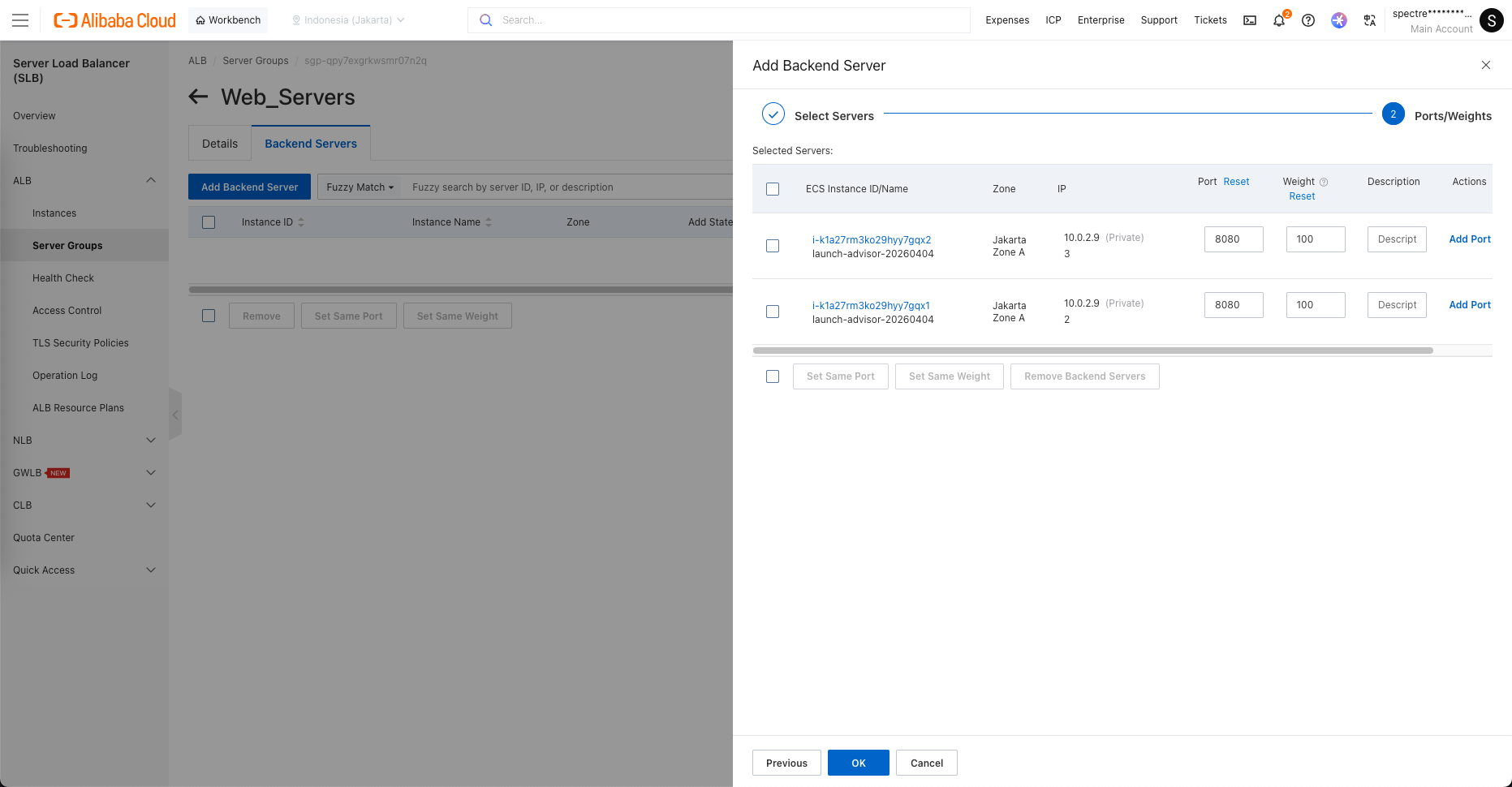

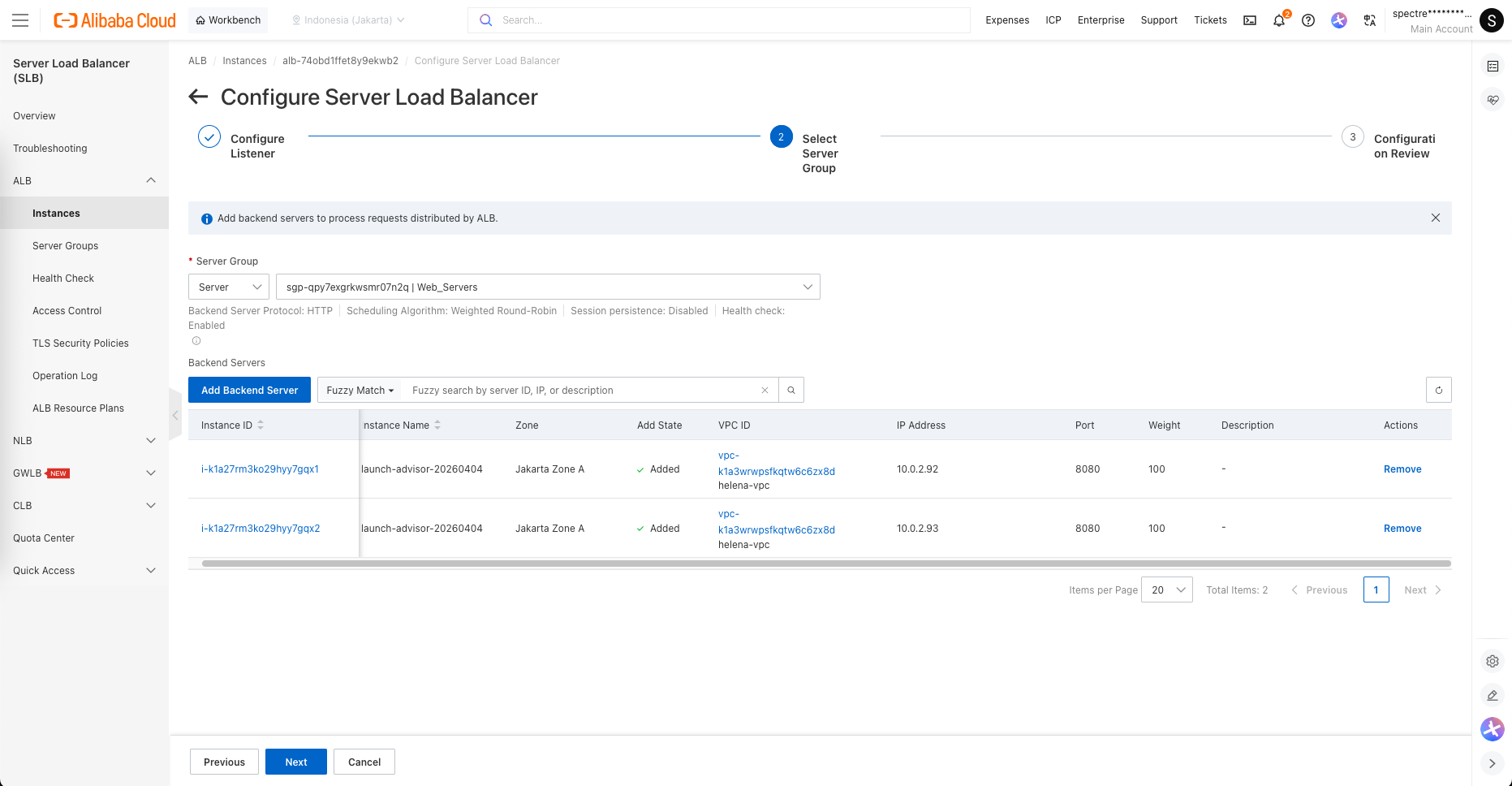

Then add the backend servers, which are our linux servers

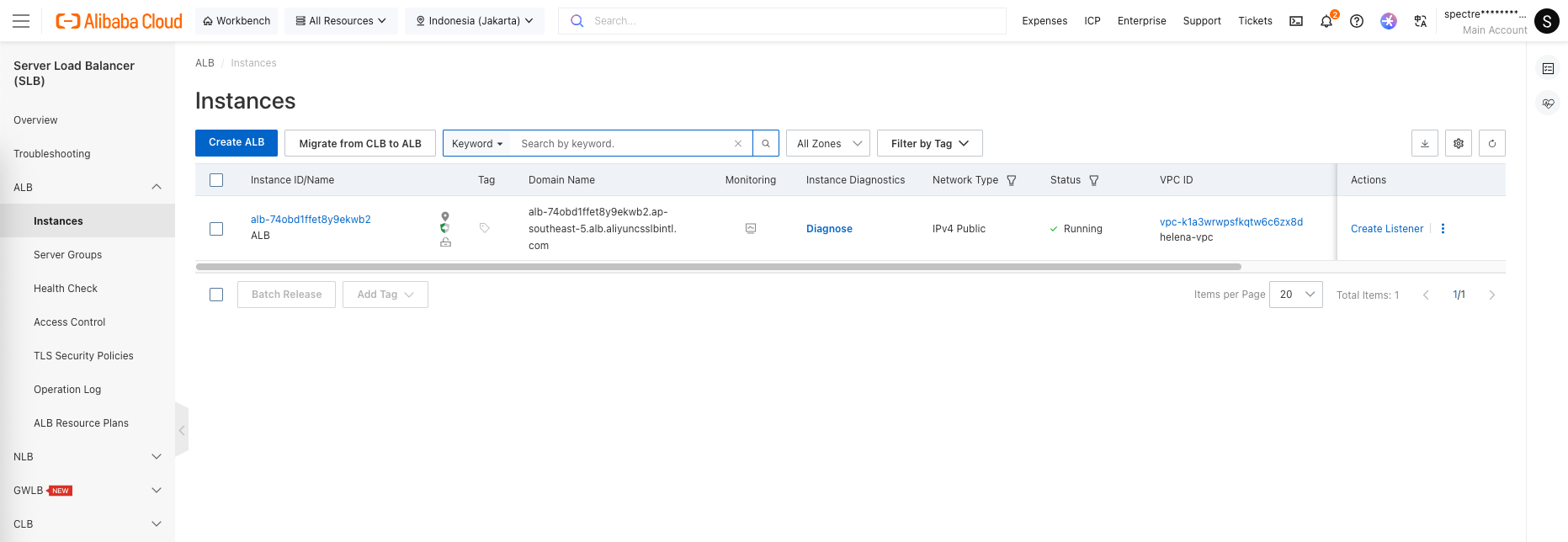

Back to our ALB Instance, now we configure the Listener

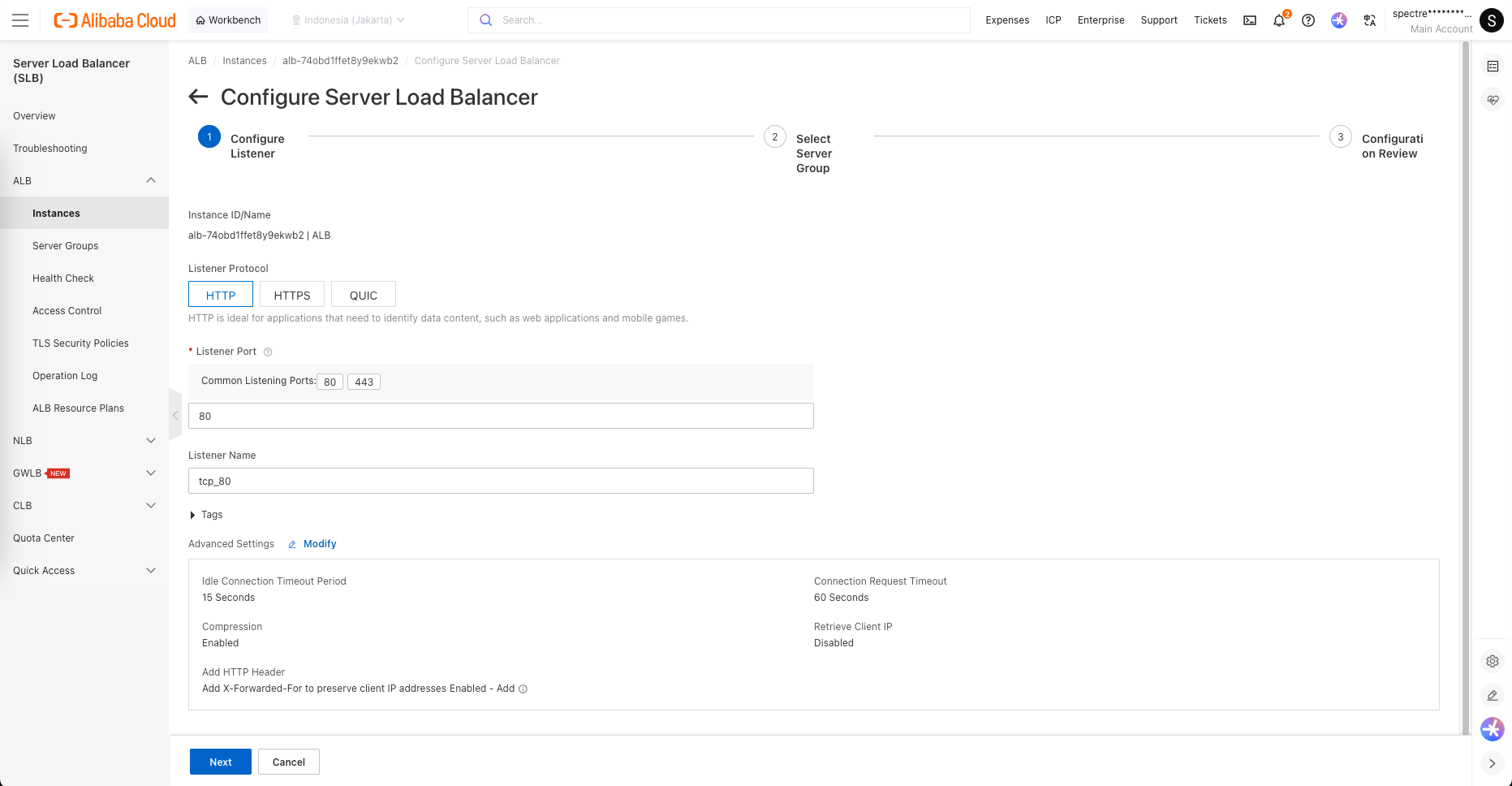

We set the listener to be on port 80 (HTTP) and point it to our Backend Servers

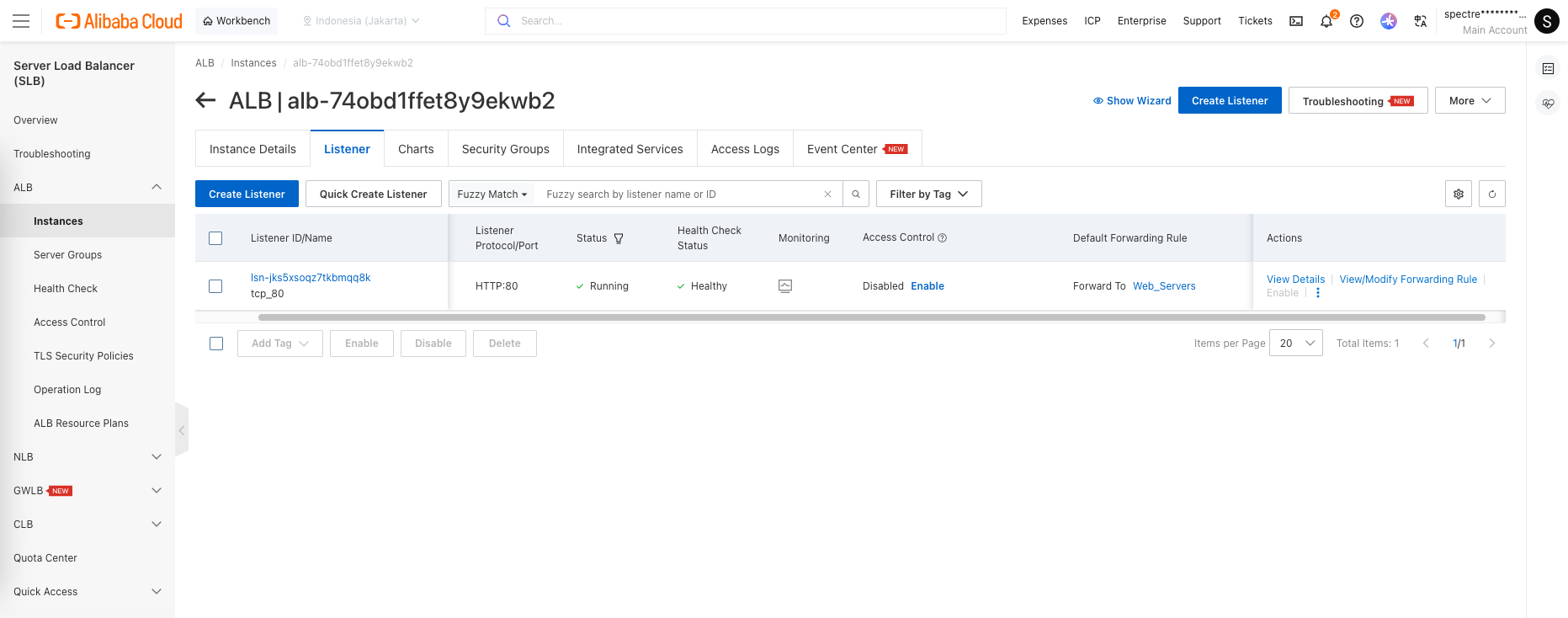

That should conclude our ALB configuration, we can see our listener is now up and healthy

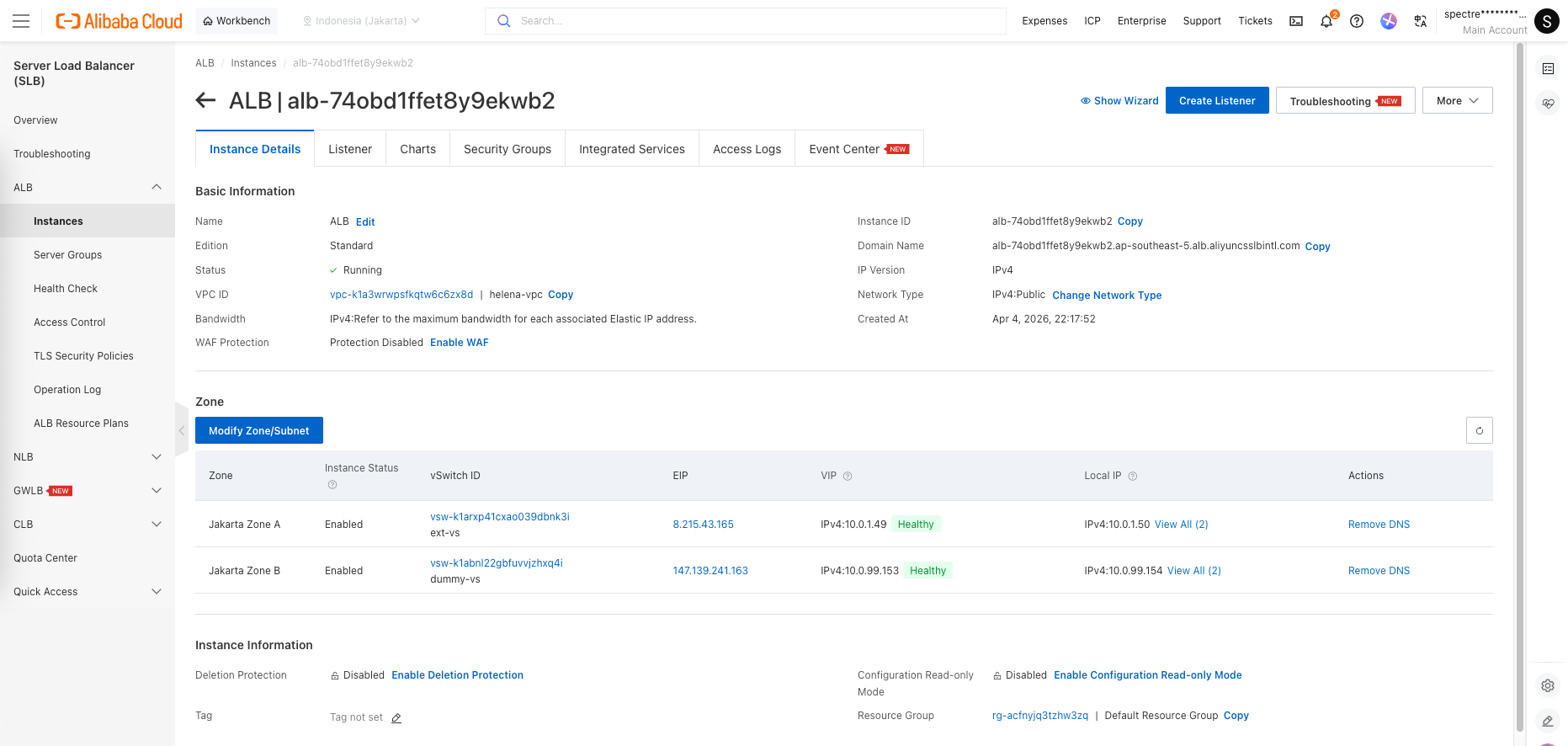

And we can copy the Domain Name and the EIP for accessing the ALB from the internet

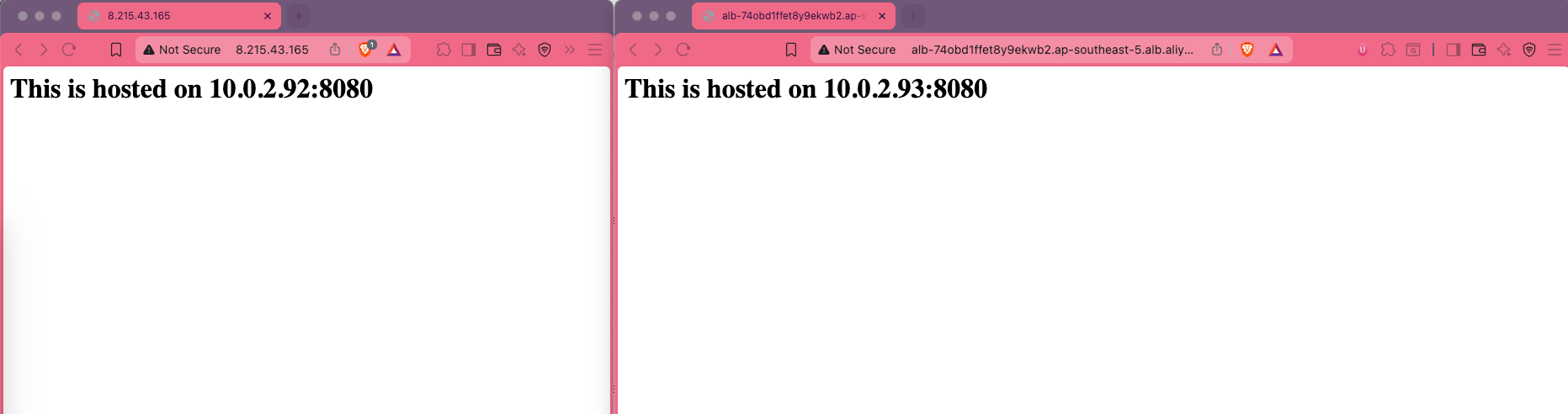

Accessing the EIP or the Domain Name allows us to reach the ALB which load balances the traffic to both our linux servers

WAF

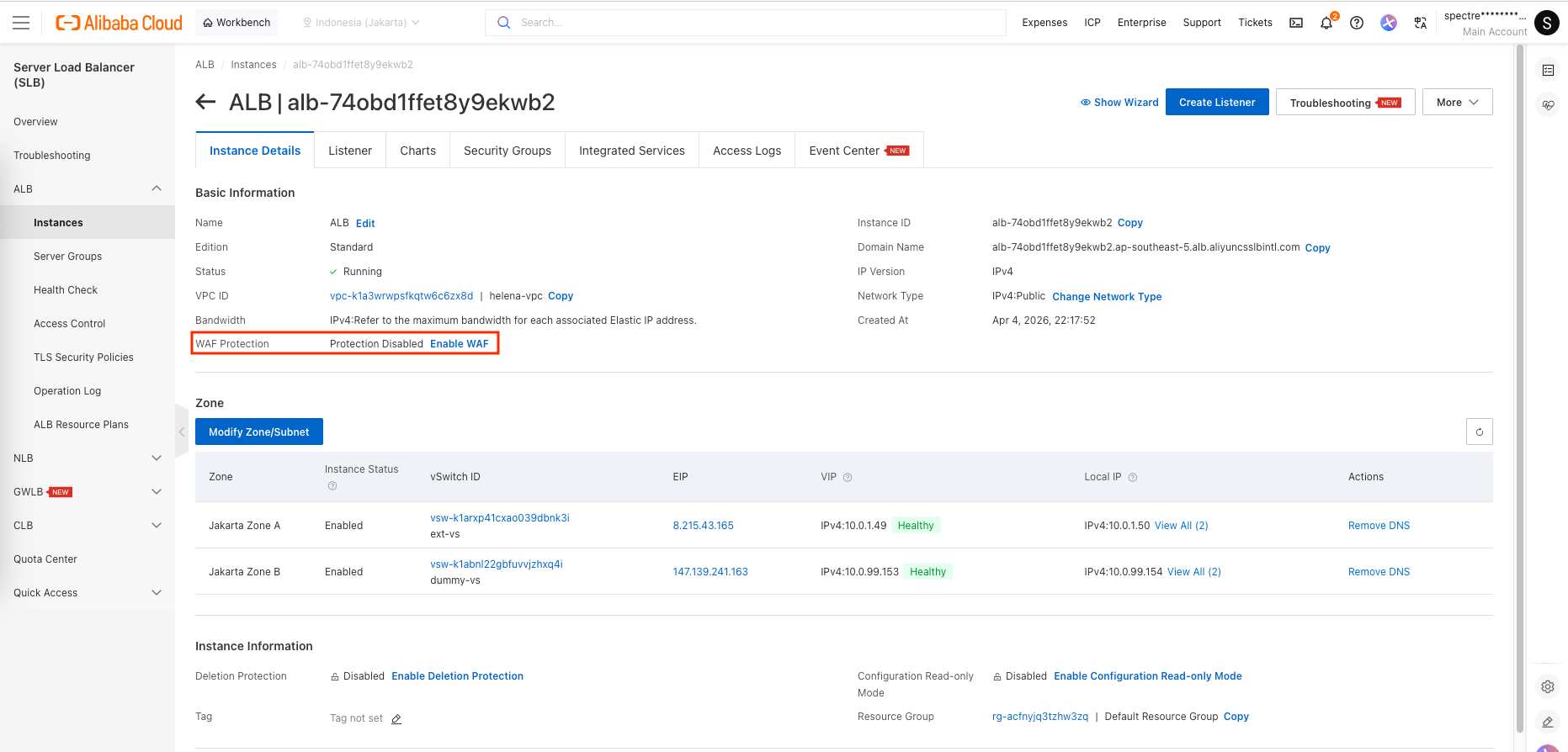

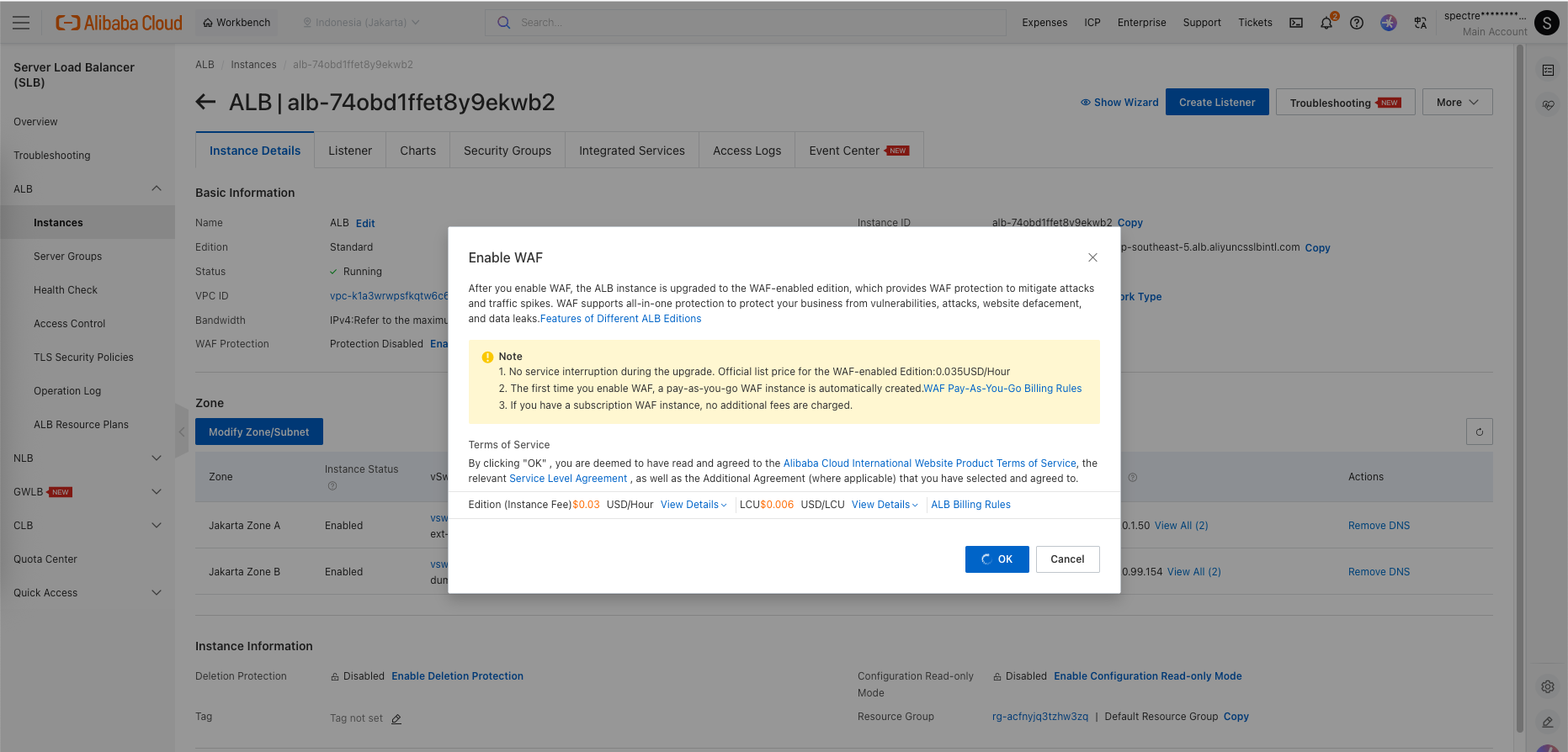

Next we enable WAF, to do that open the ALB Instance and hit enable WAF

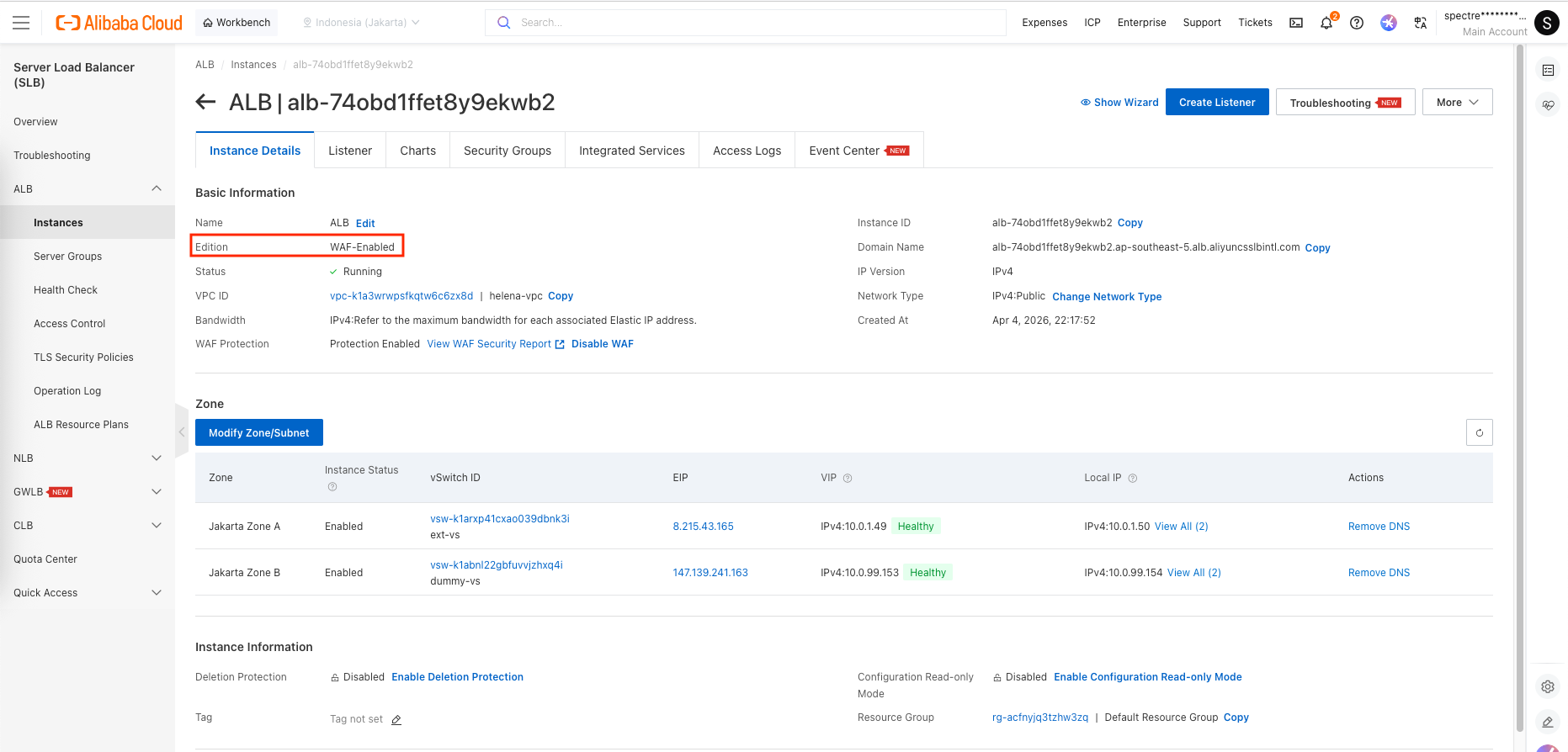

That will change the edition from Standard to WAF Enabled

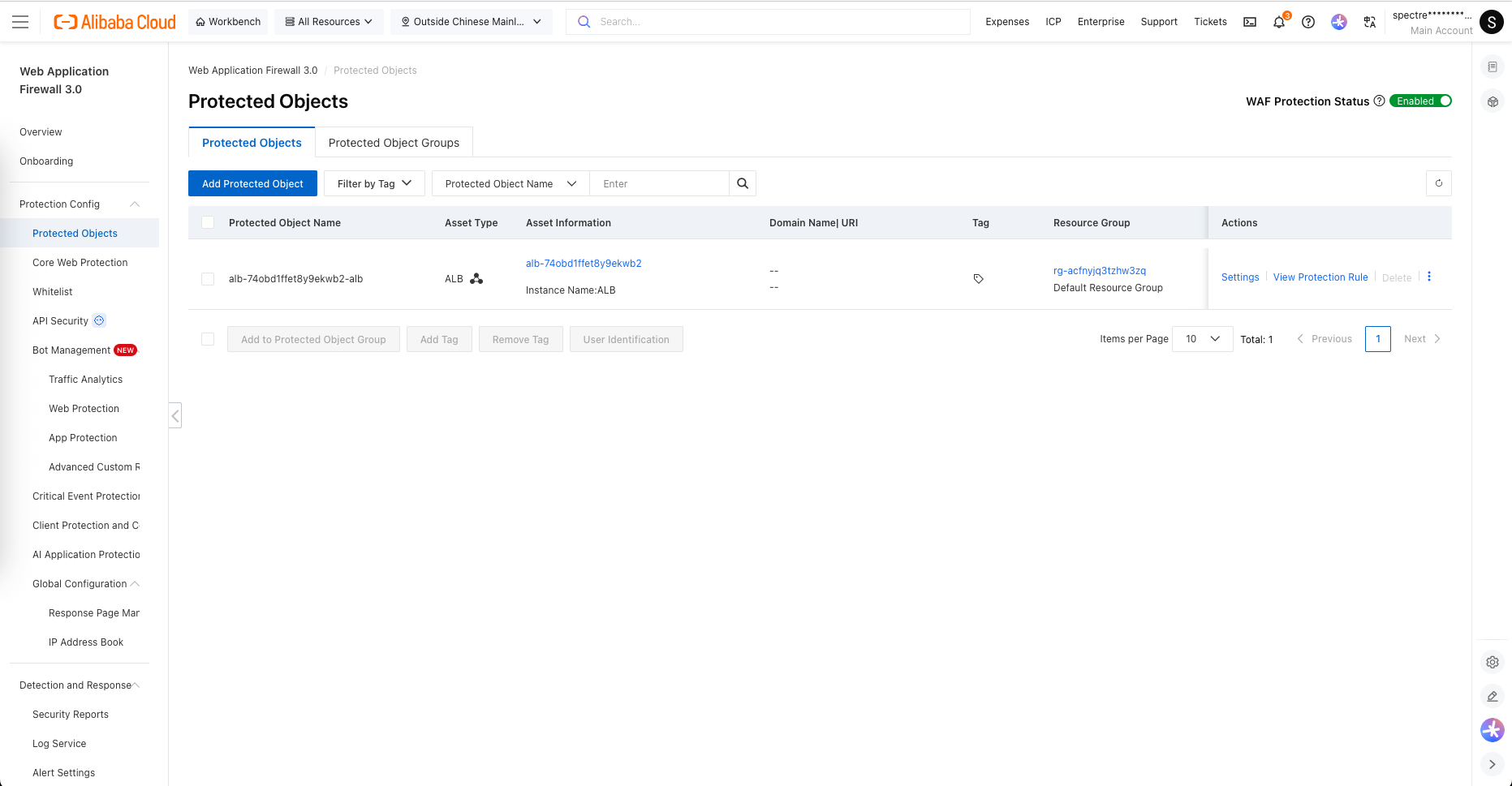

We can open WAF dedicated console and on the Protected Objects we will see our ALB Instance

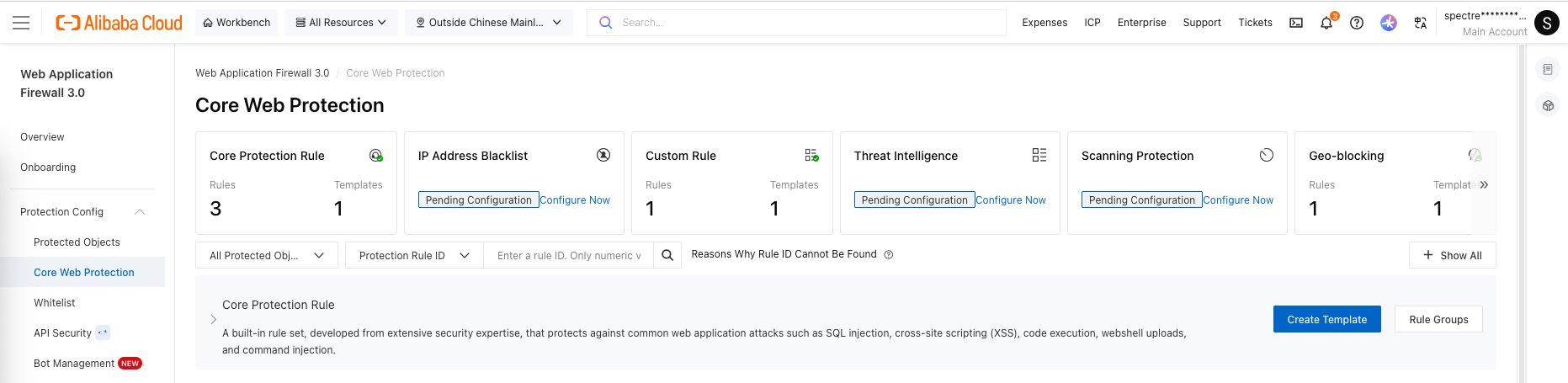

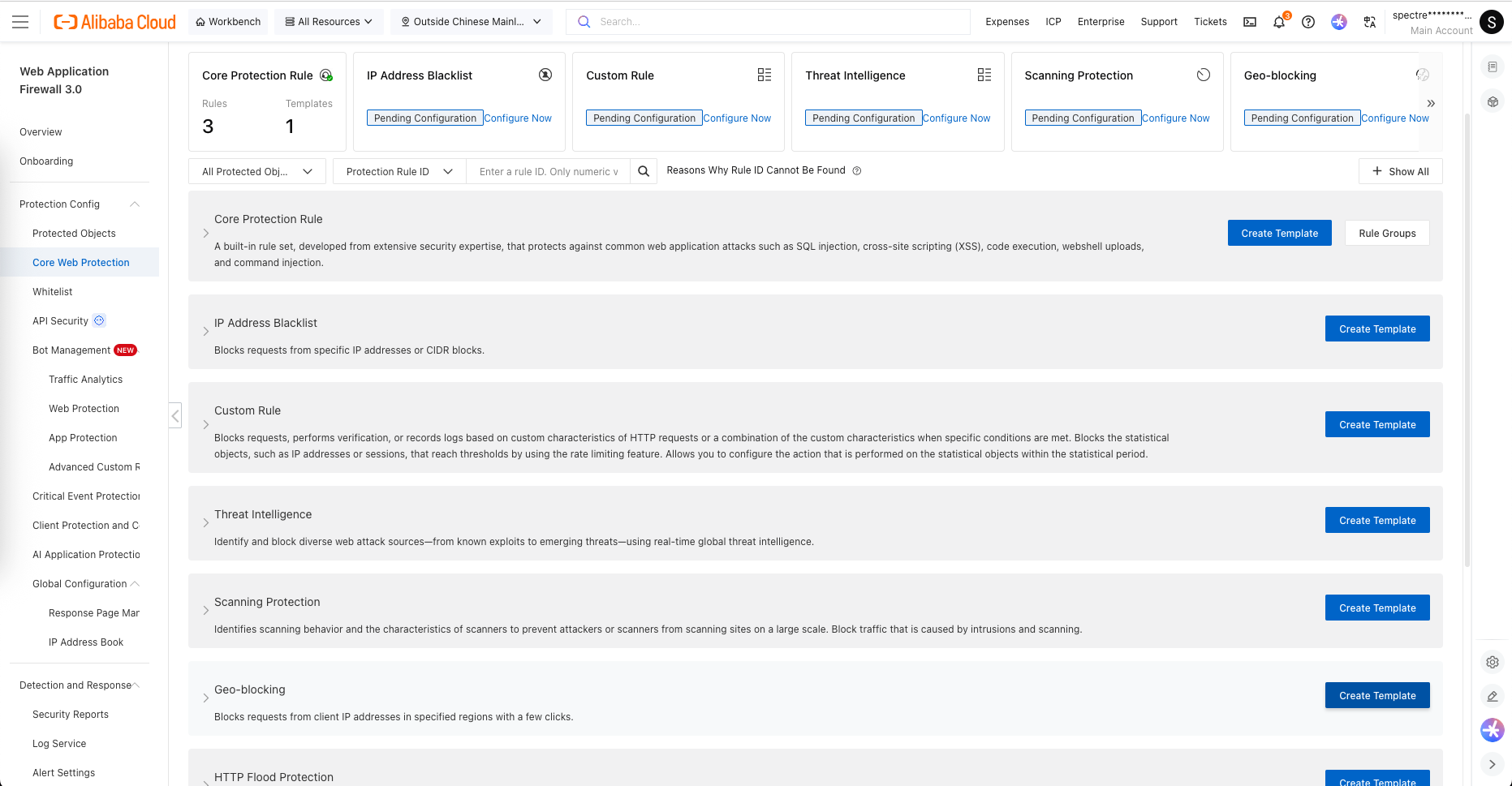

On Core Web Protection, we can configure rules that’s applied on the WAF, here we will configure geo-blocking and rate-limiting

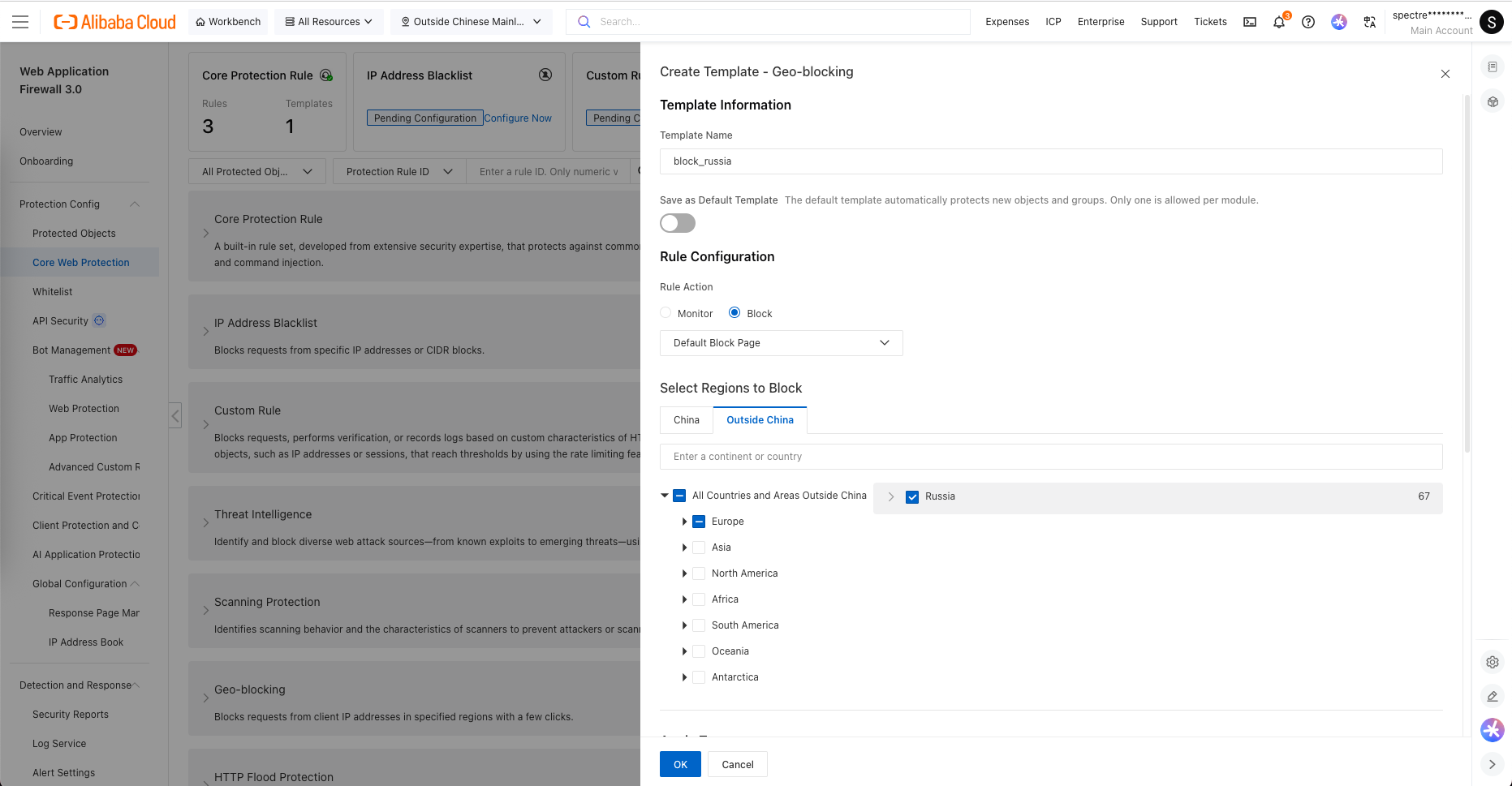

First the Geo-blocking, we will block any traffic coming in from Russia

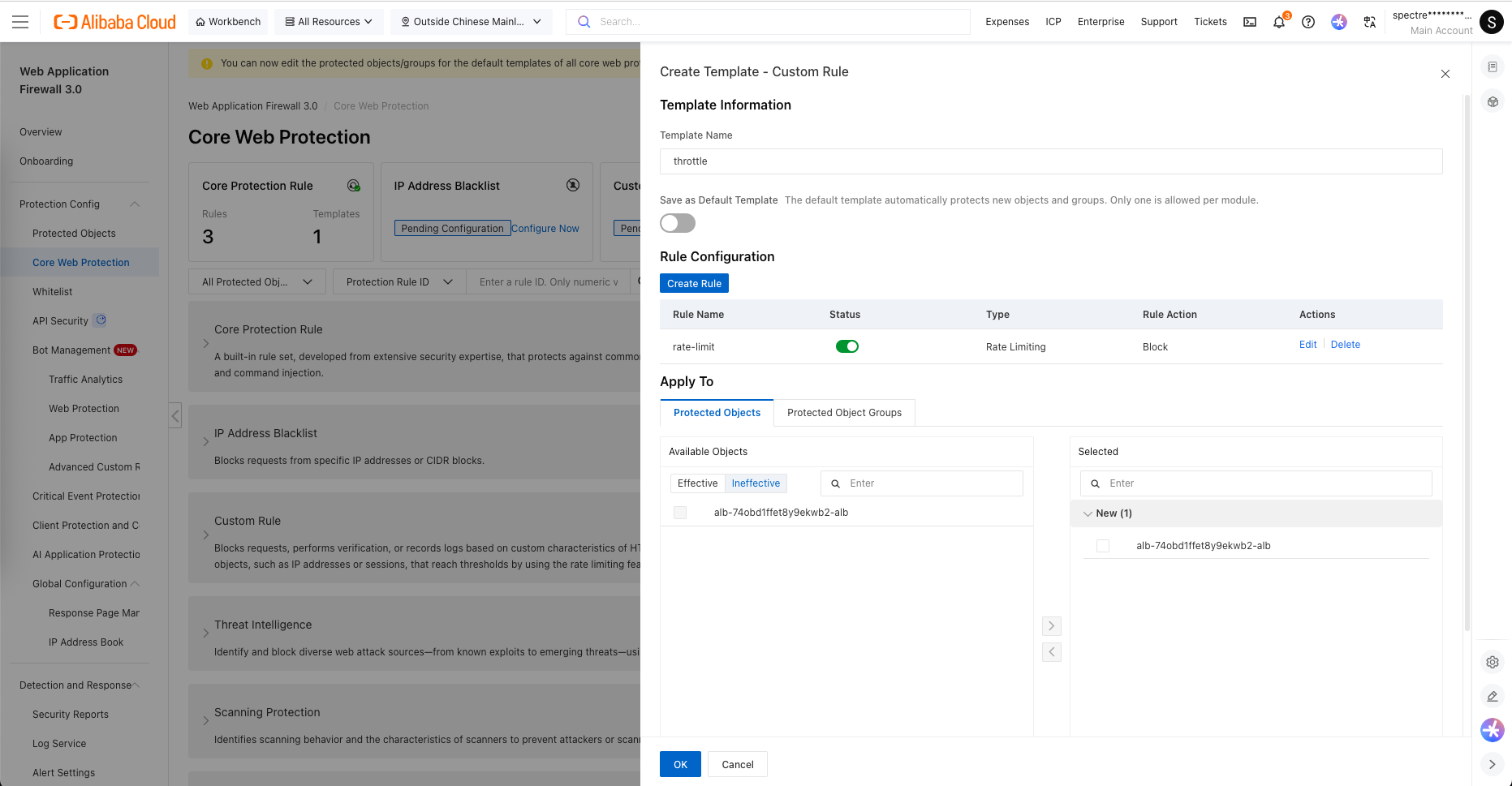

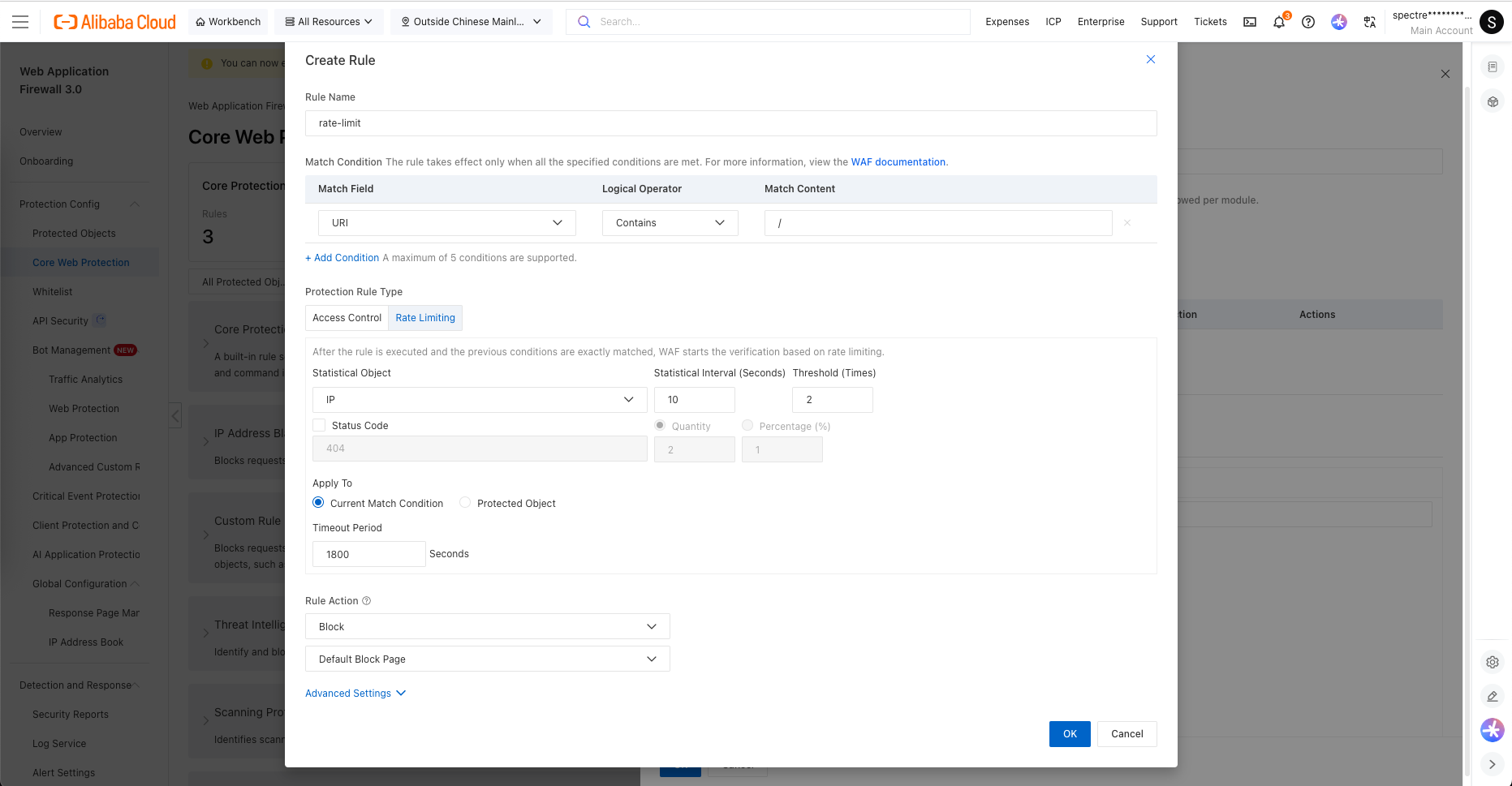

Then Rate-limiting, create new Custom Rule add a Rate Limiting Protection

Now the Core Web Protection shows that Custom Rule and Geo-Blocking has active rules

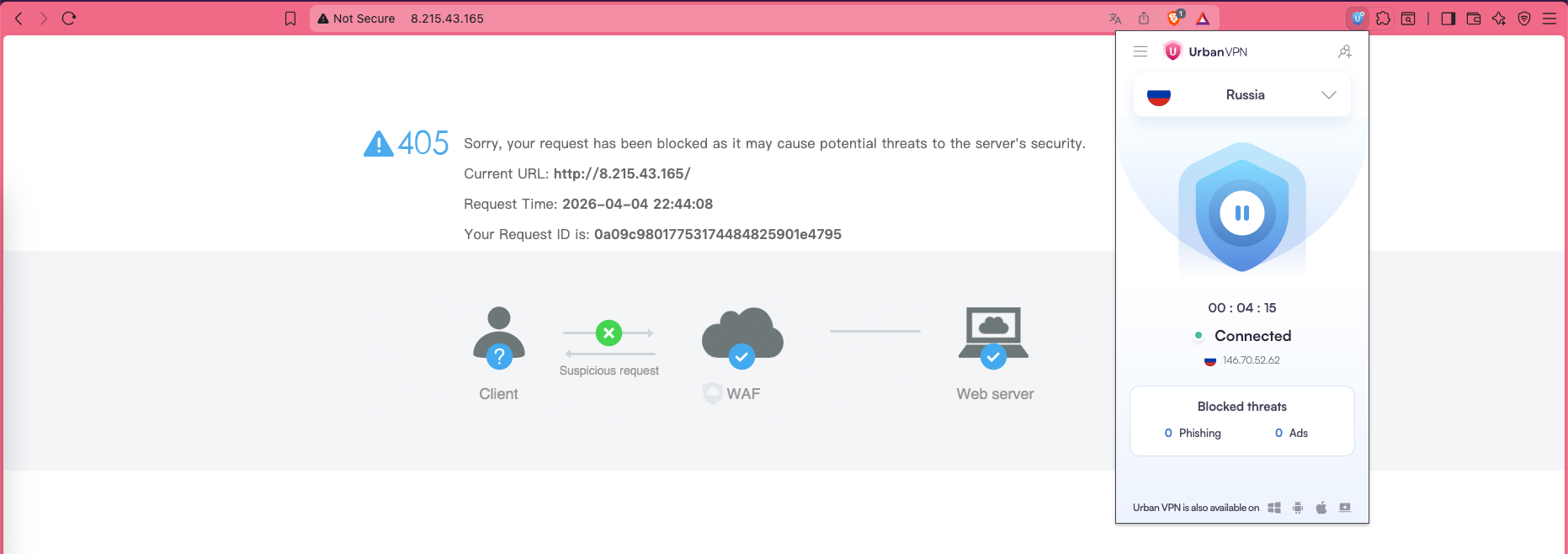

And finally if we try accessing it from Russia or spamming the url, we will get blocked
