Alibaba VPN with Check Point

Posted Mar 10, 2026

By Kadek Sena Perdiana 2 min read

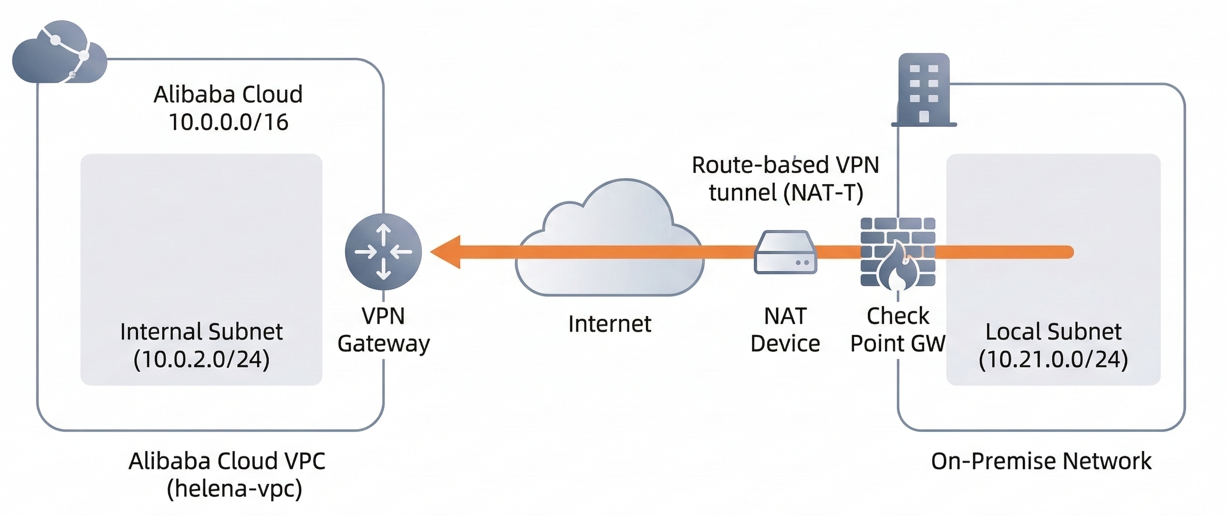

Alibaba Cloud VPN Gateway is a managed service that enables secure, encrypted connections between our VPC and on-premises environments using the IPsec protocol. In this lab, we established a Route-based VPN tunnel between the helena-vpc on Alibaba Cloud and an on-premises Check Point firewall sitting behind a NAT device. This setup allows the two networks to communicate seamlessly across the public internet.

VPC

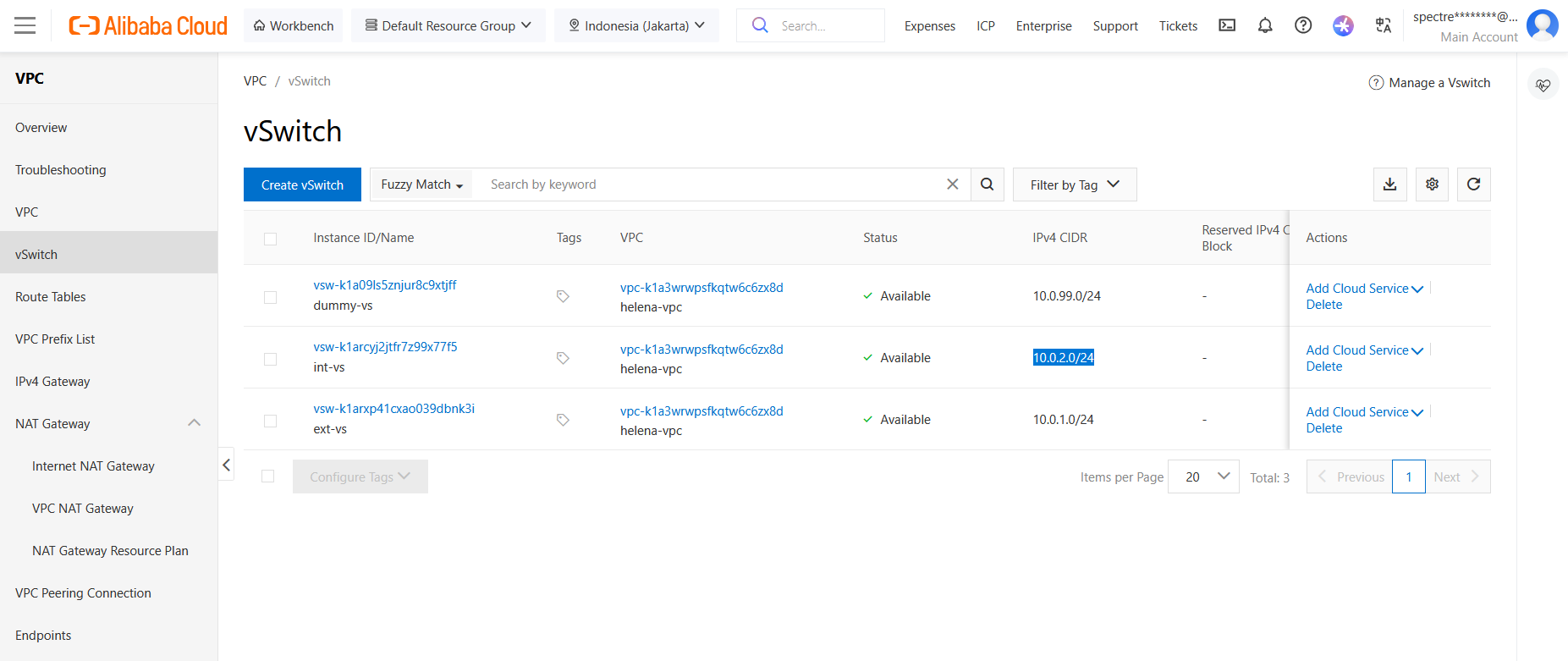

First we prepare the VPC, we will use the int vSwitch (10.0.2.0/24) inside the helena-vpc as alibaba’s protected network. VPN setup requires us to have zone redundancy subnets so we add a dummy vs (10.0.99.0/24) just to satisfy this

VPN Gateway

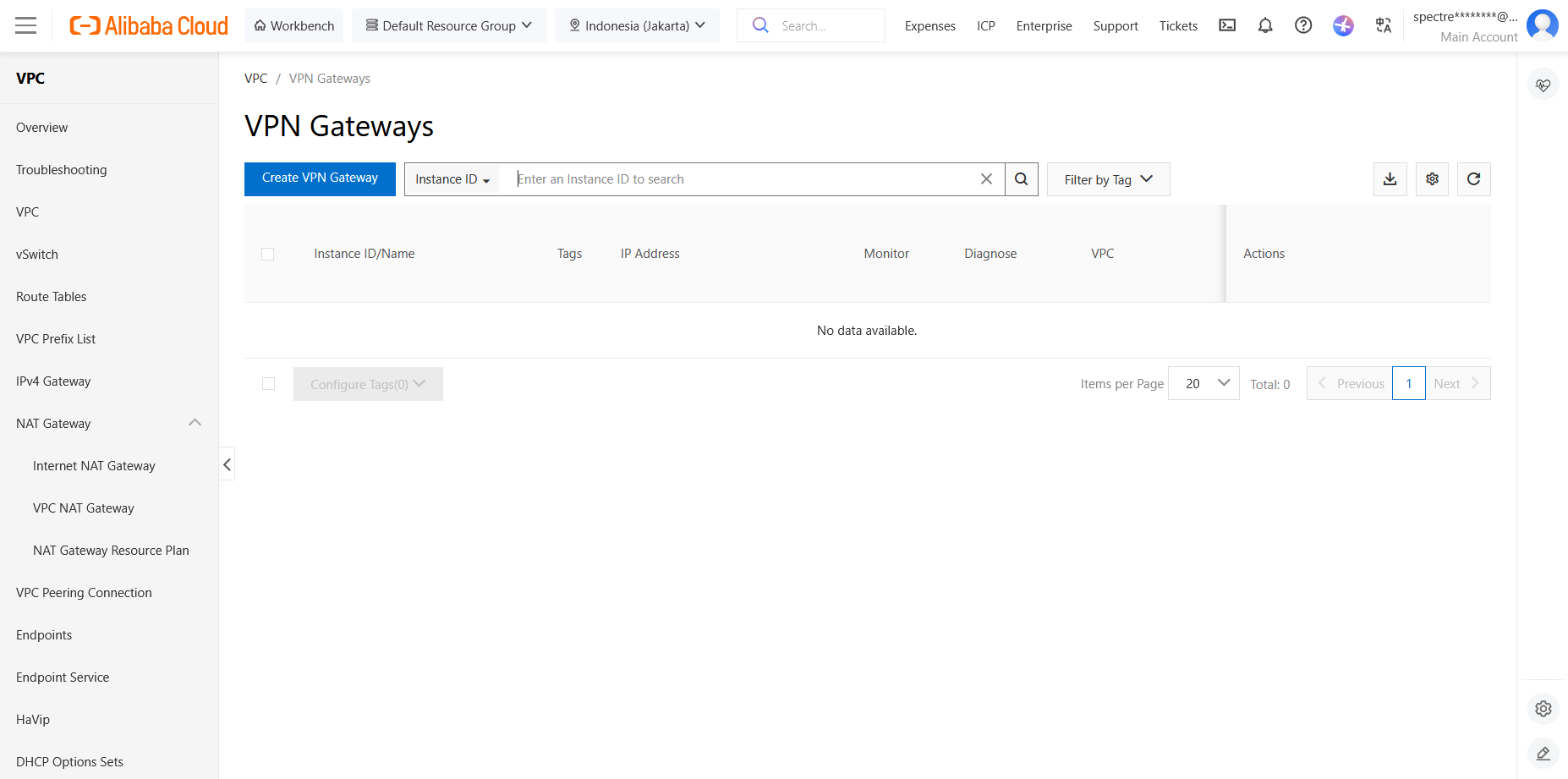

Next we setup the VPN Gateway, create new

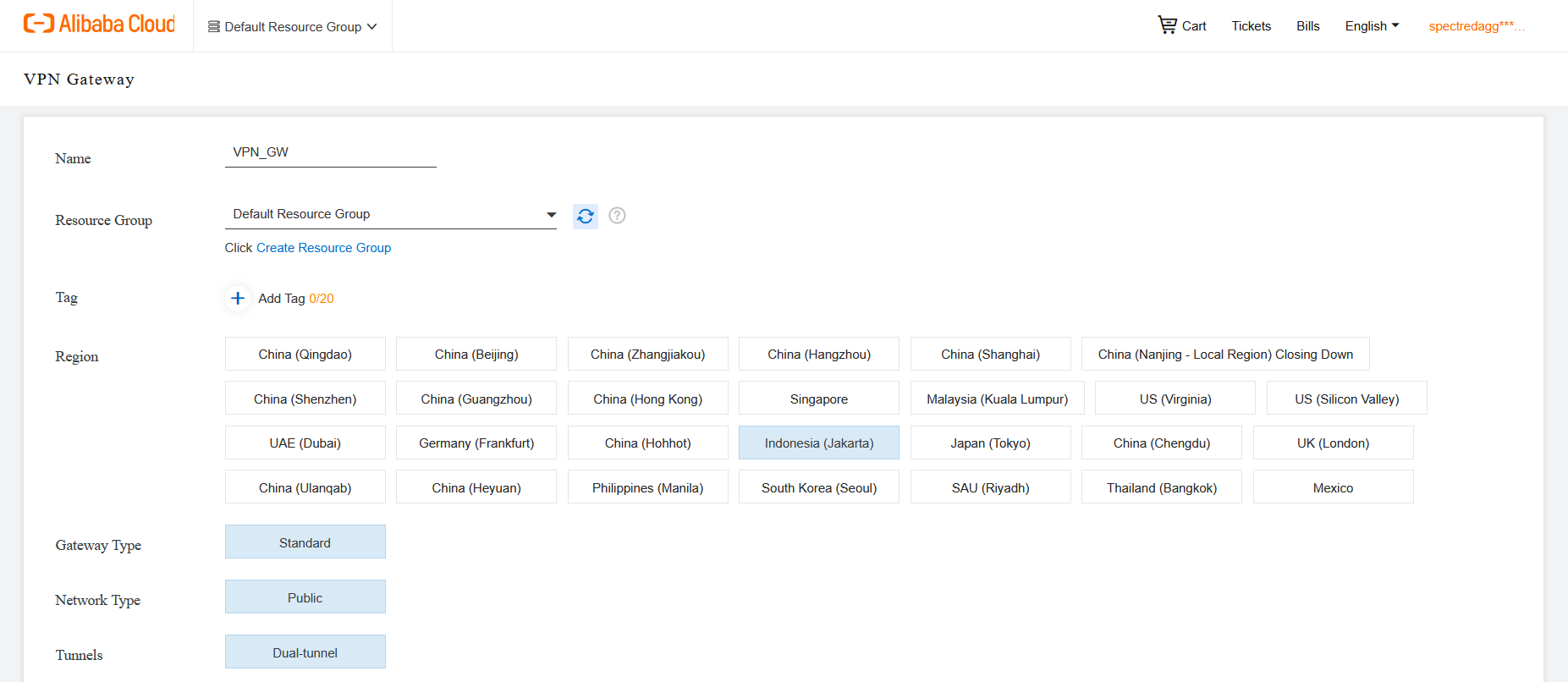

We name it VPN_GW and select the Jakarta Region

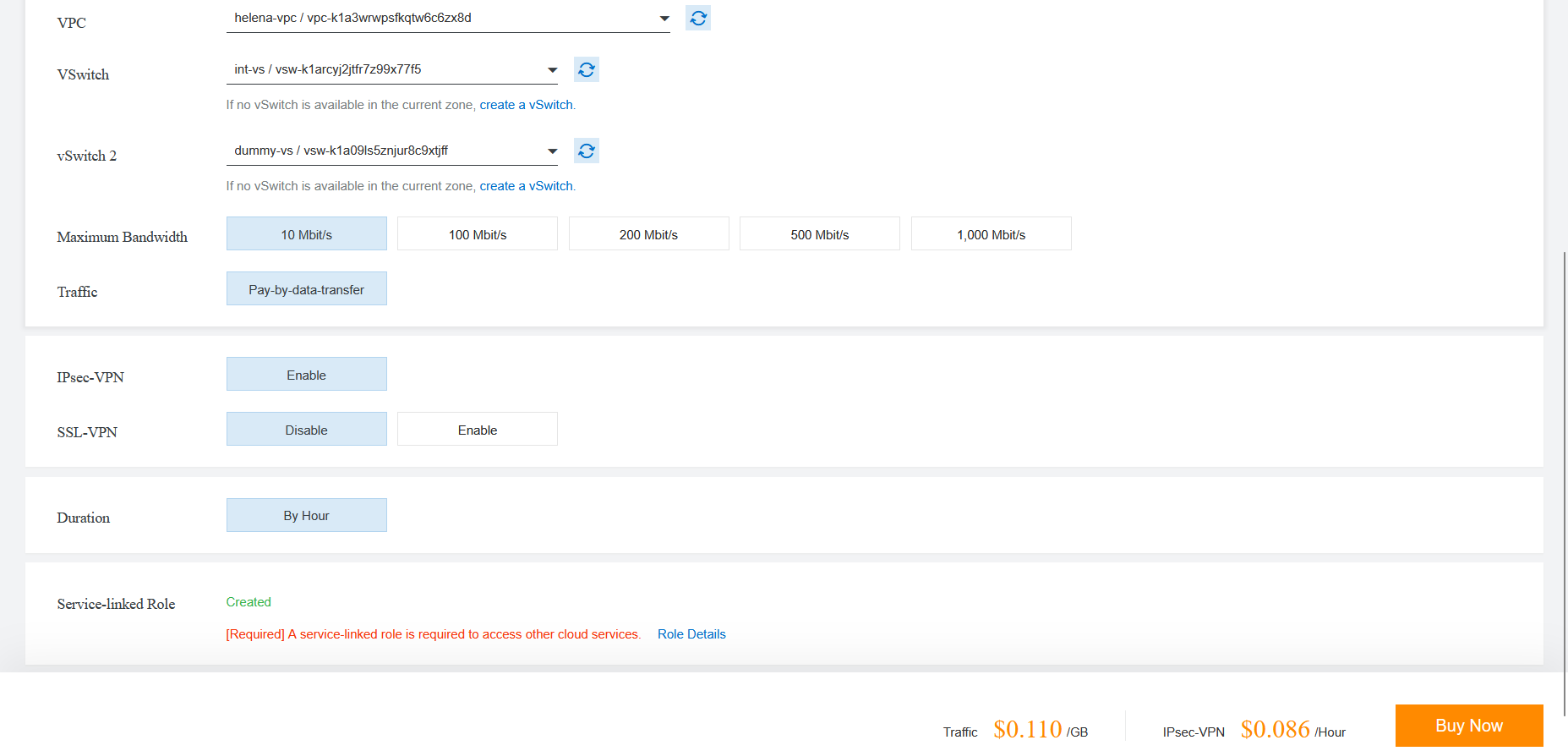

Then we select our VPC and vSwitches

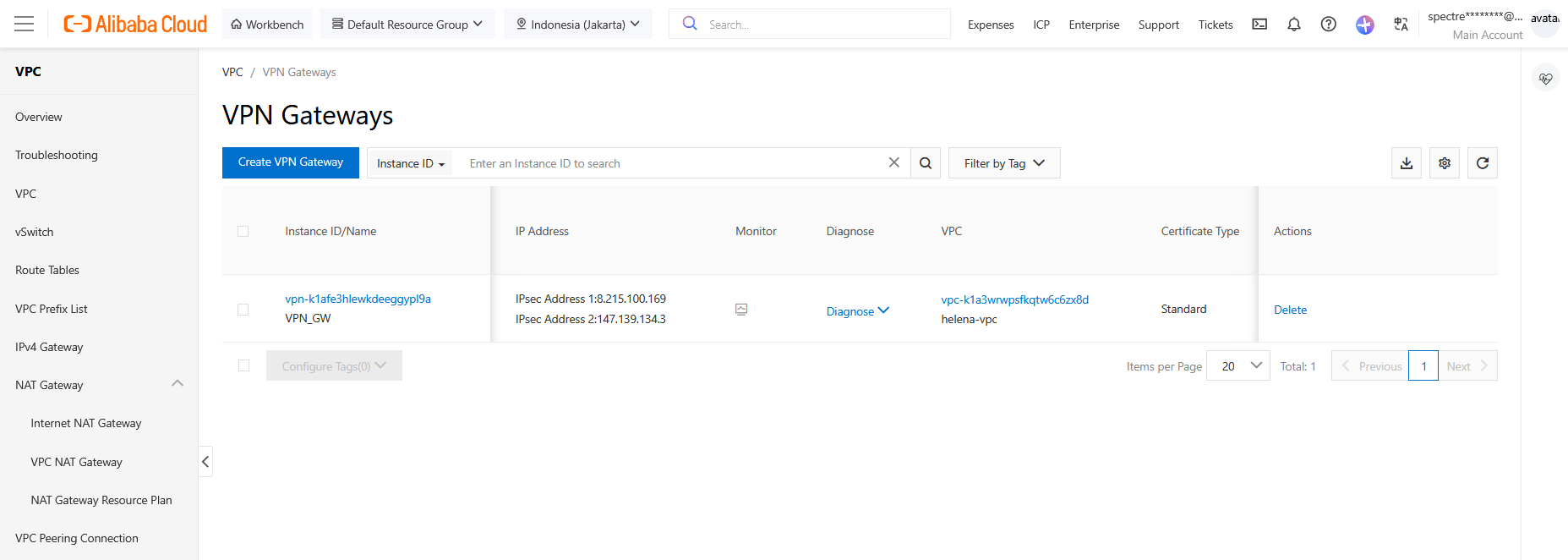

Here’s the configure VPN Gateway, take note of the Public IP Address as we will use it as peer address from the on-prem side

Customer Gateway

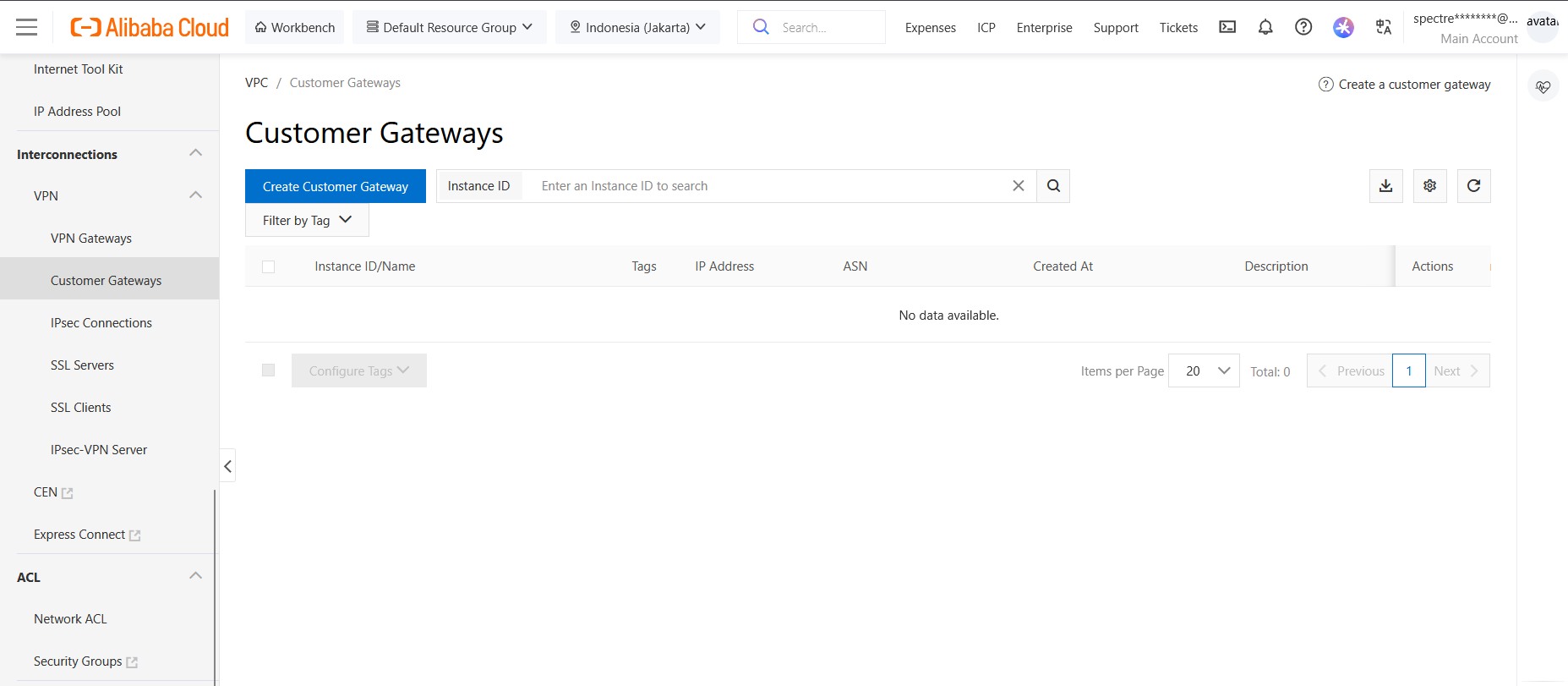

Next we configure the Customer Gateway, which will be our Check Point firewall on on-prem side

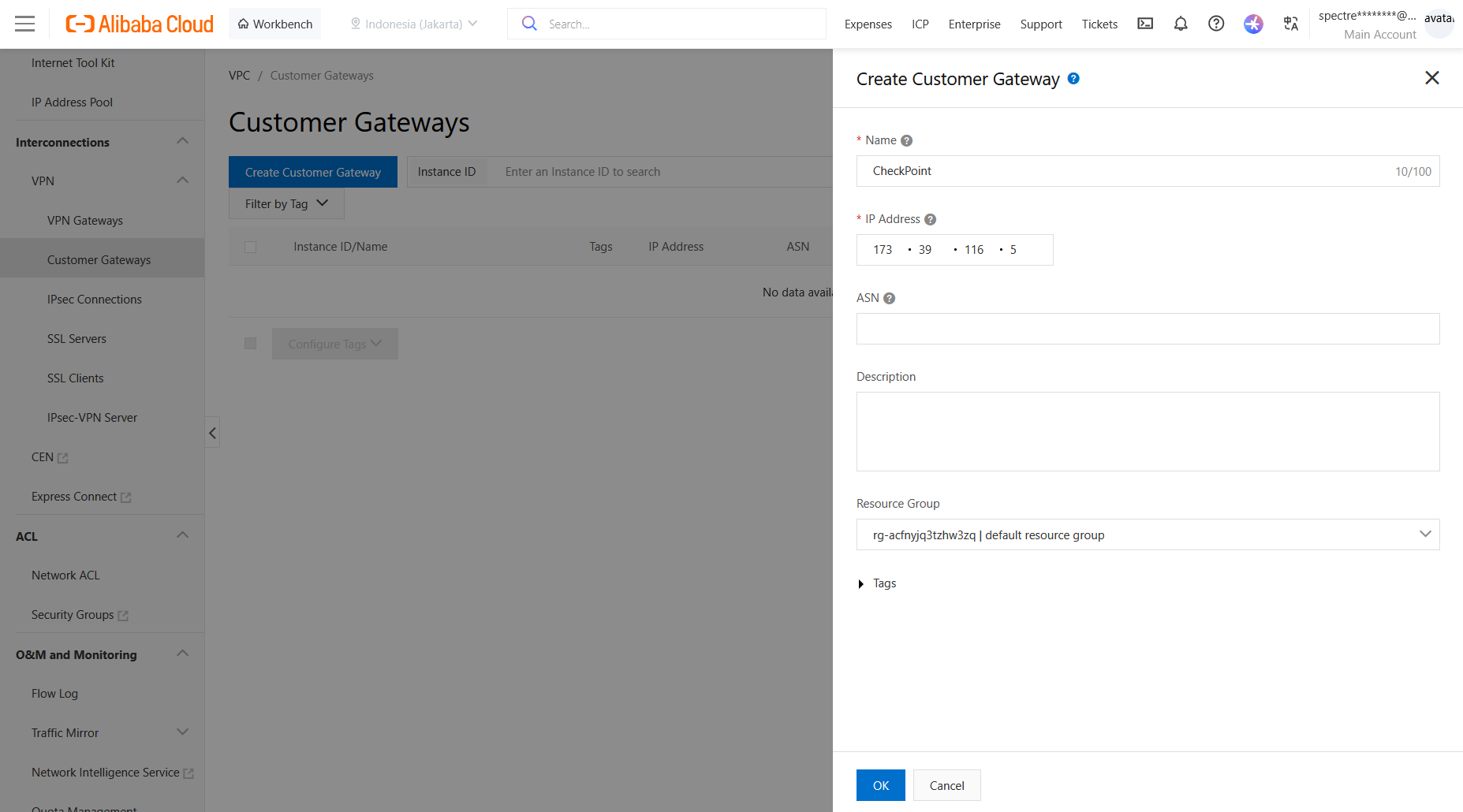

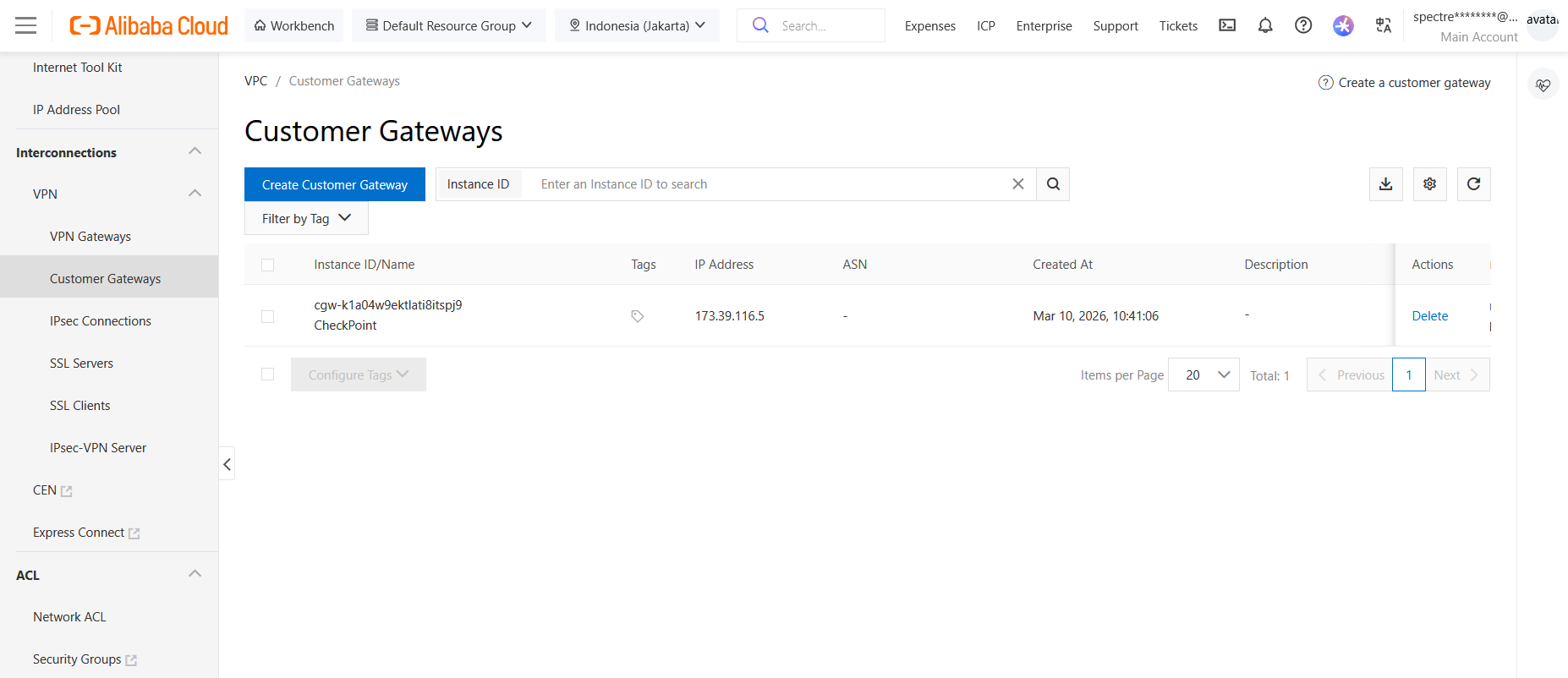

We create new, give it name and insert the CP’s Public IP Address. Note that this device is sitting behind NAT and not directly accessible, so the VPN connection will be initiated from the on-prem side

IPsec Connection

After that we configure the IPsec VPN

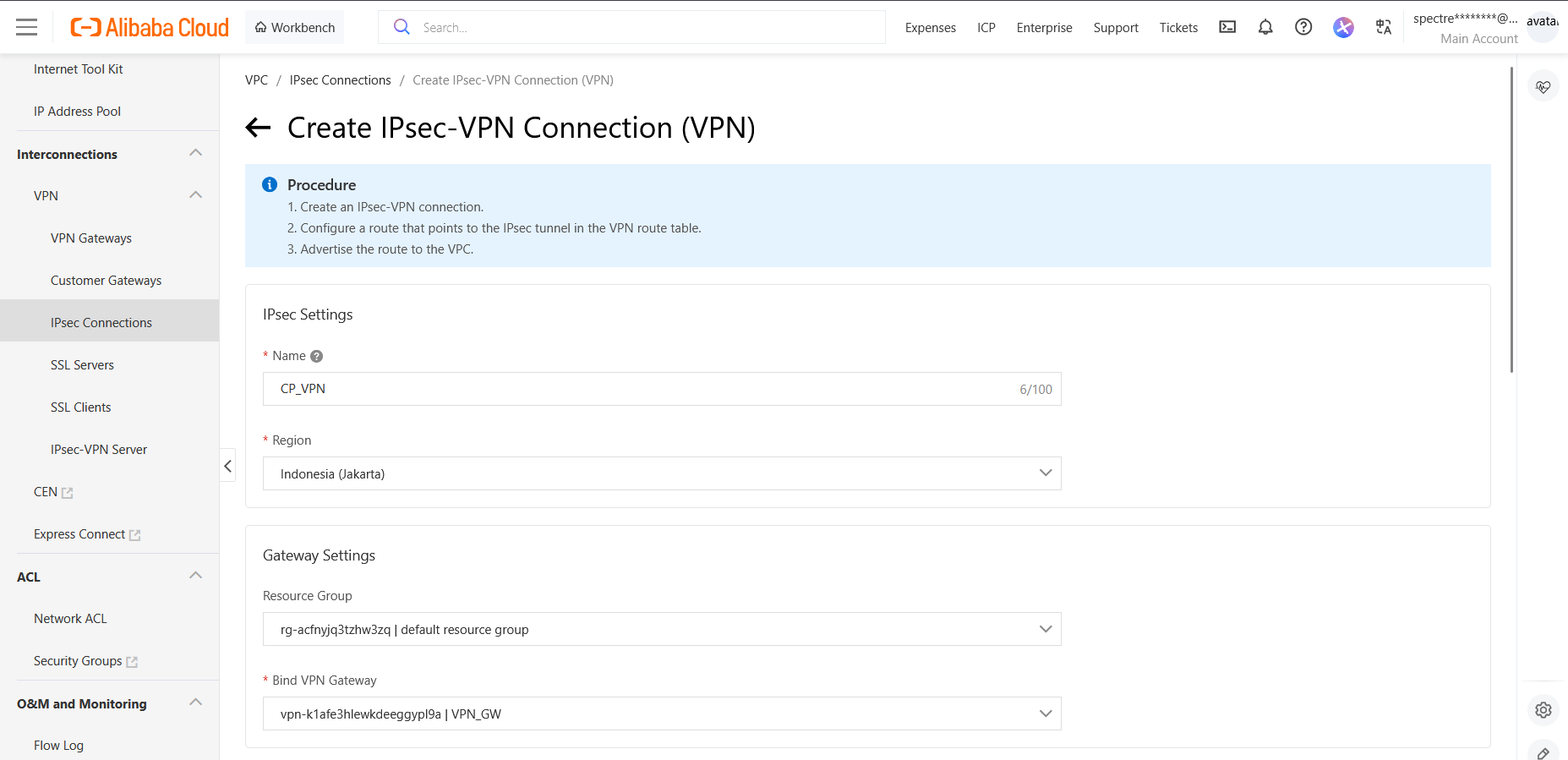

We give it name and bind it to our VPN Gateway

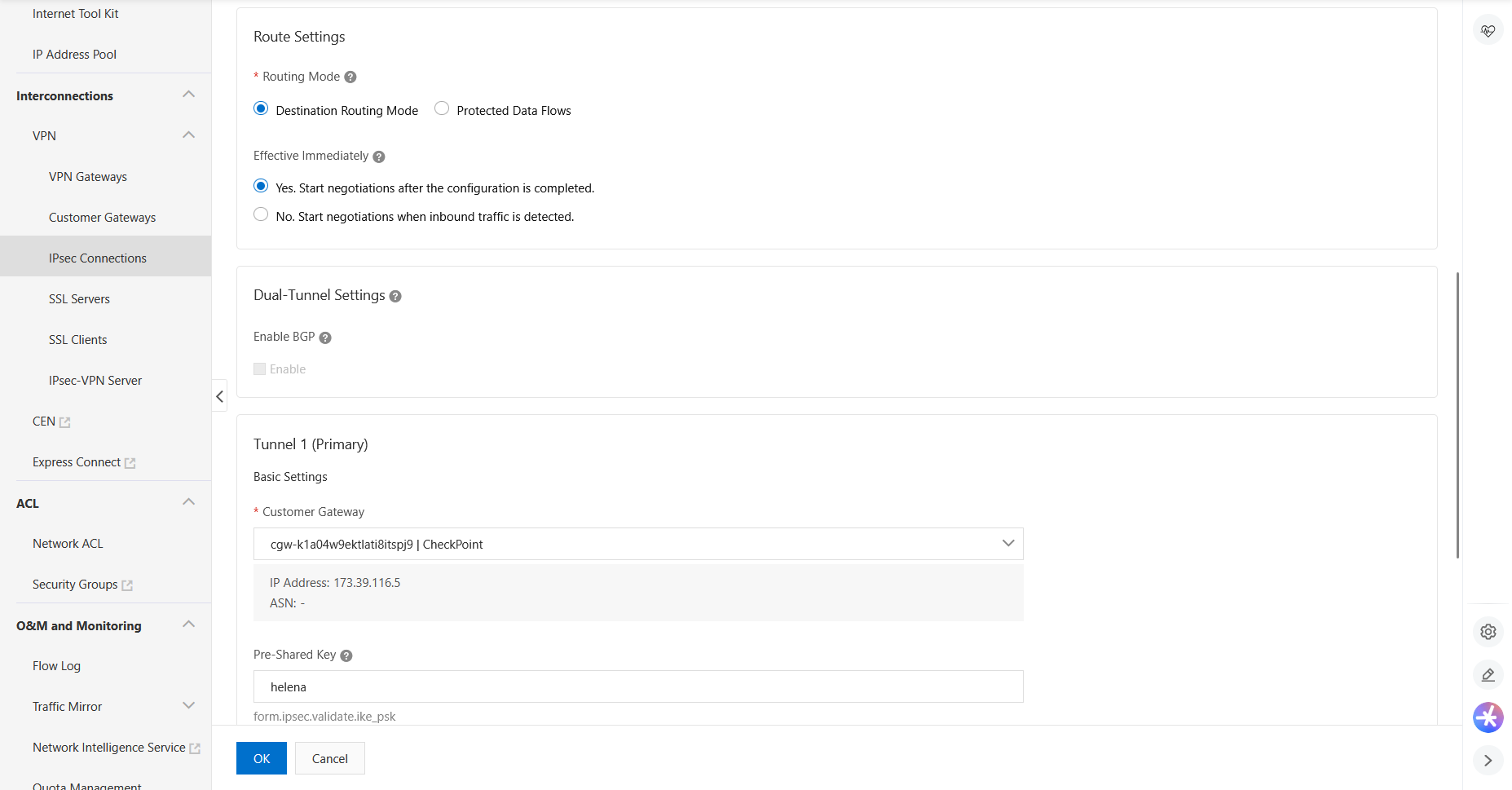

Then we select the Destination Routing Mode and select our Customer Gateway for Primary and Secondary Tunnels

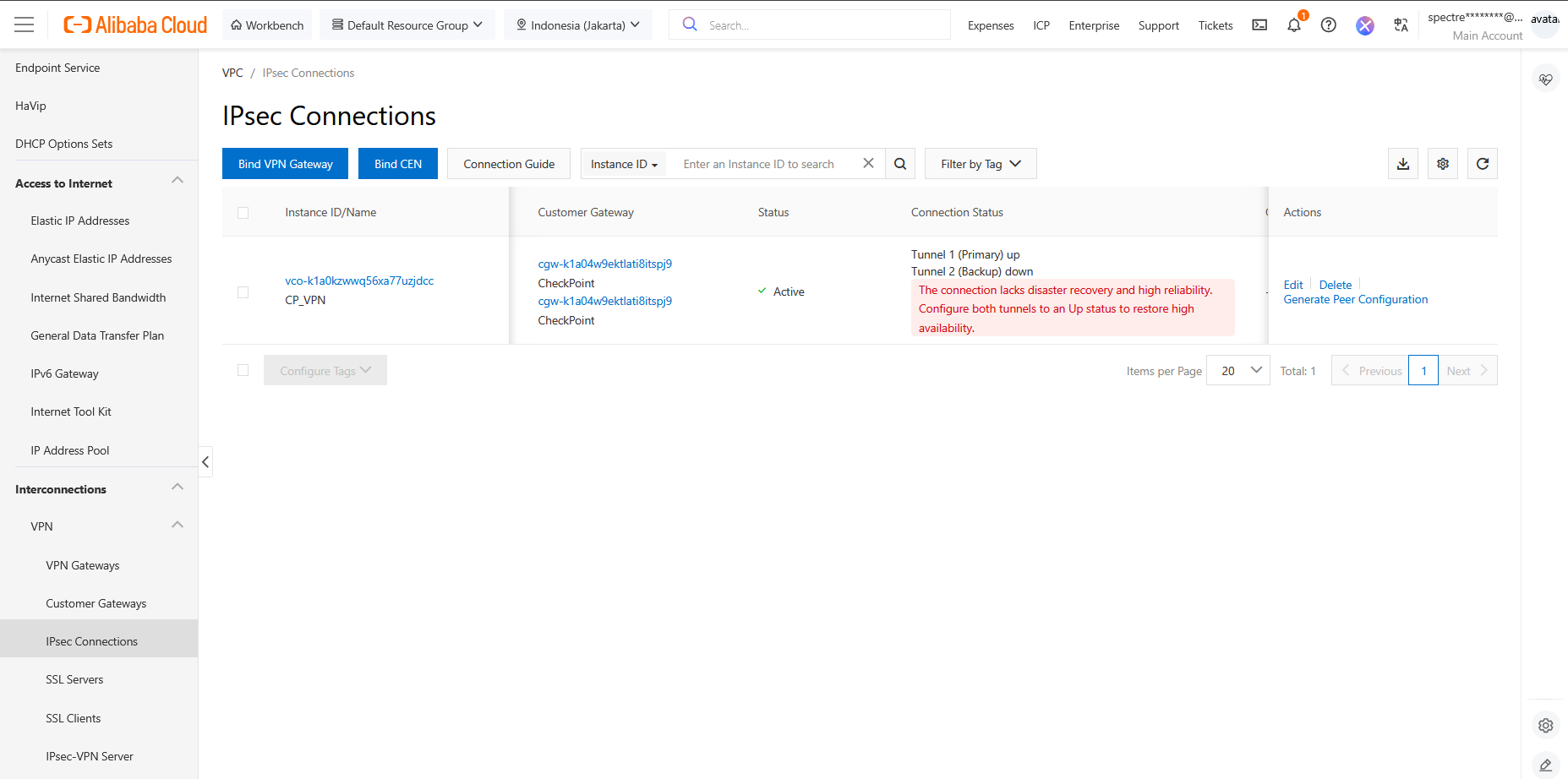

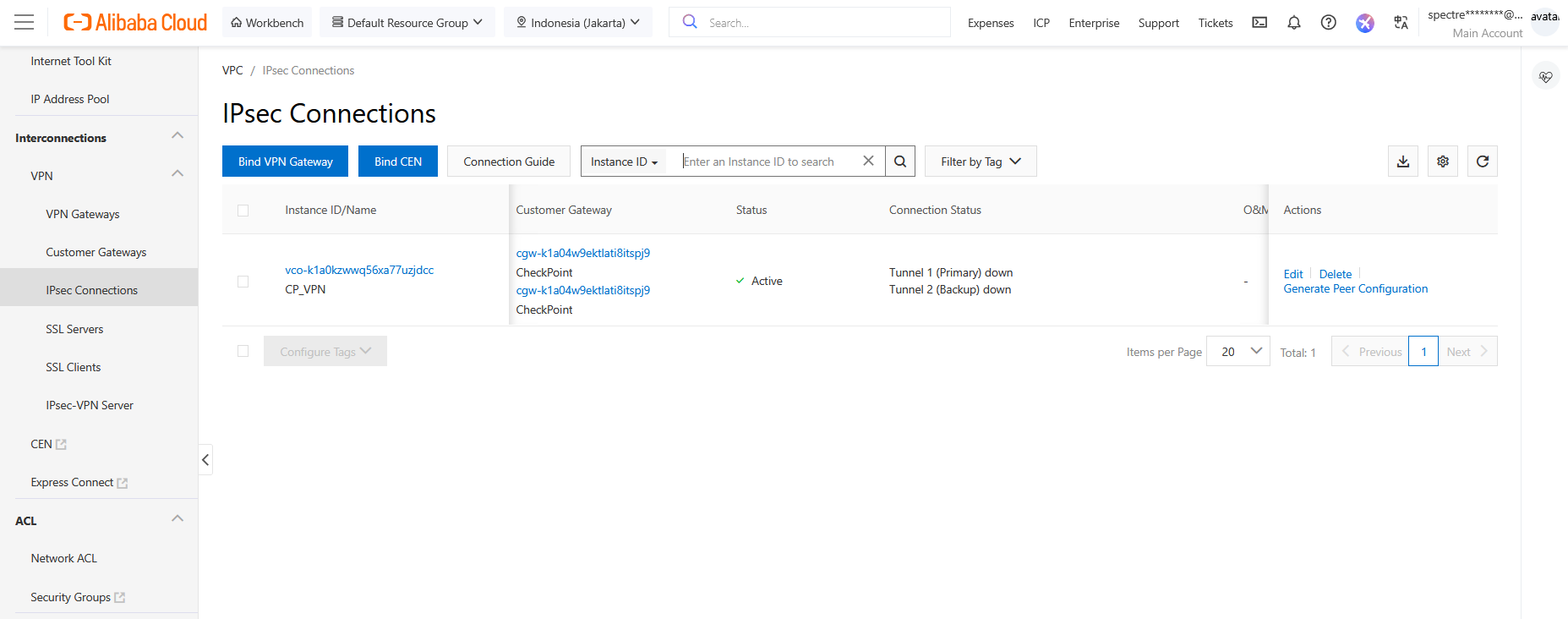

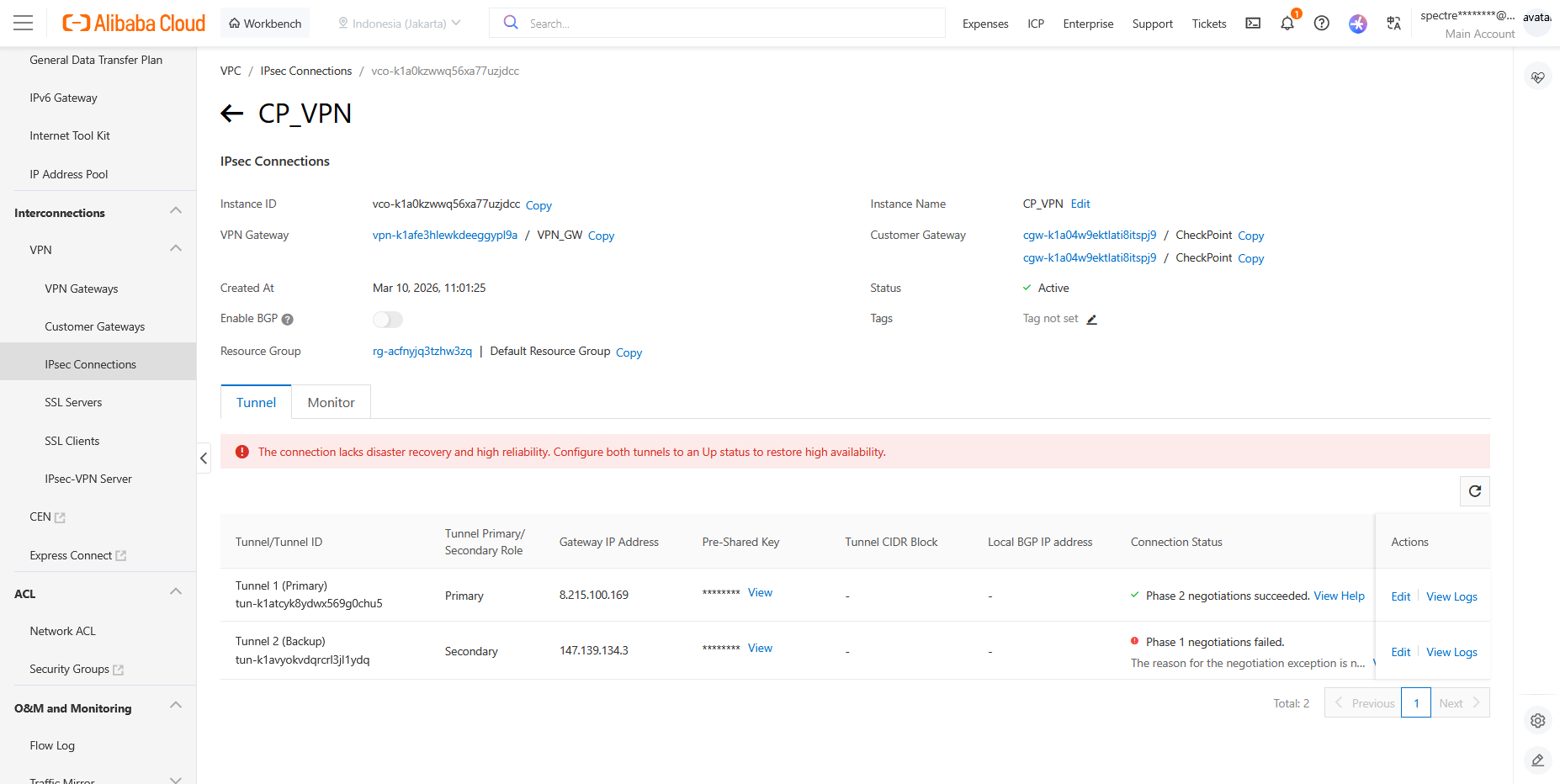

Here’s the IPsec configuration after completing the setup. Notice that we have 2 tunnels by default but we will only use the Primary for simplicity

Routing

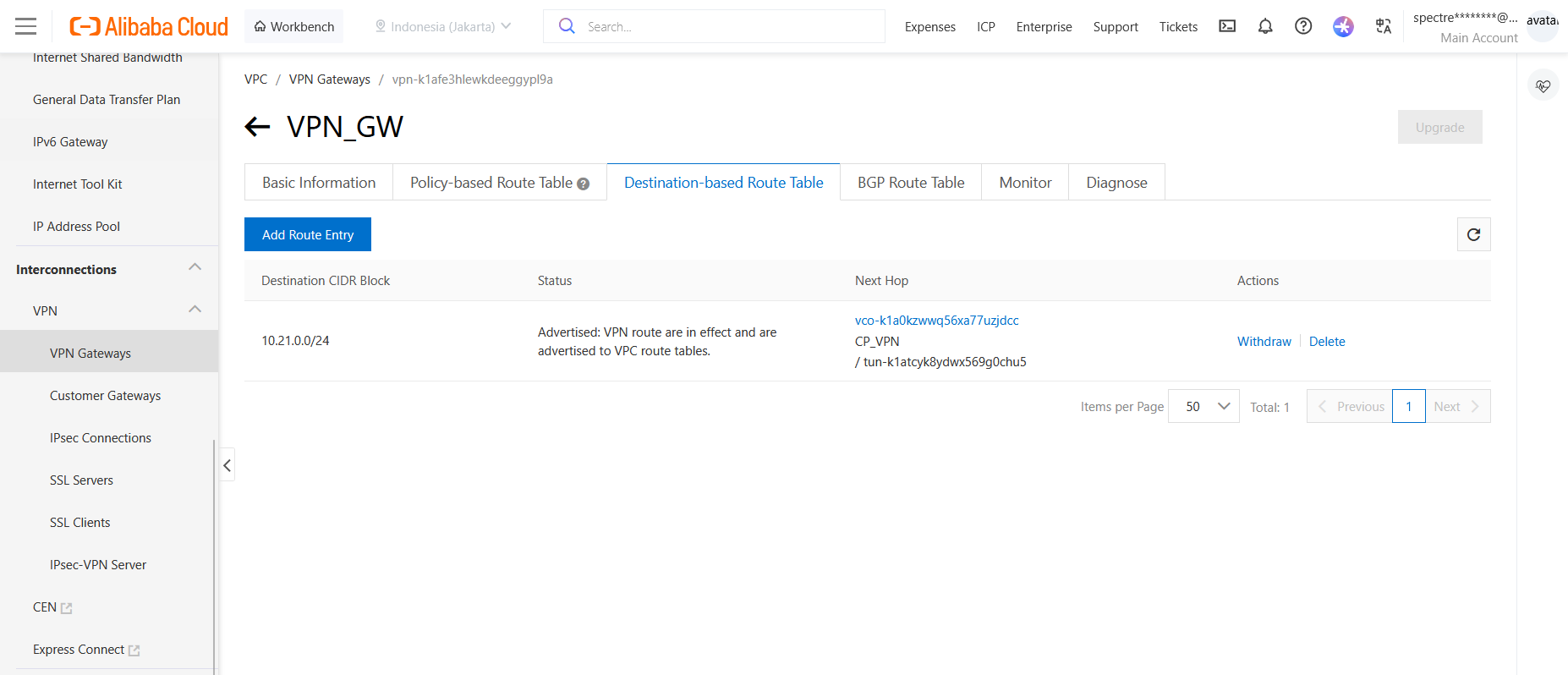

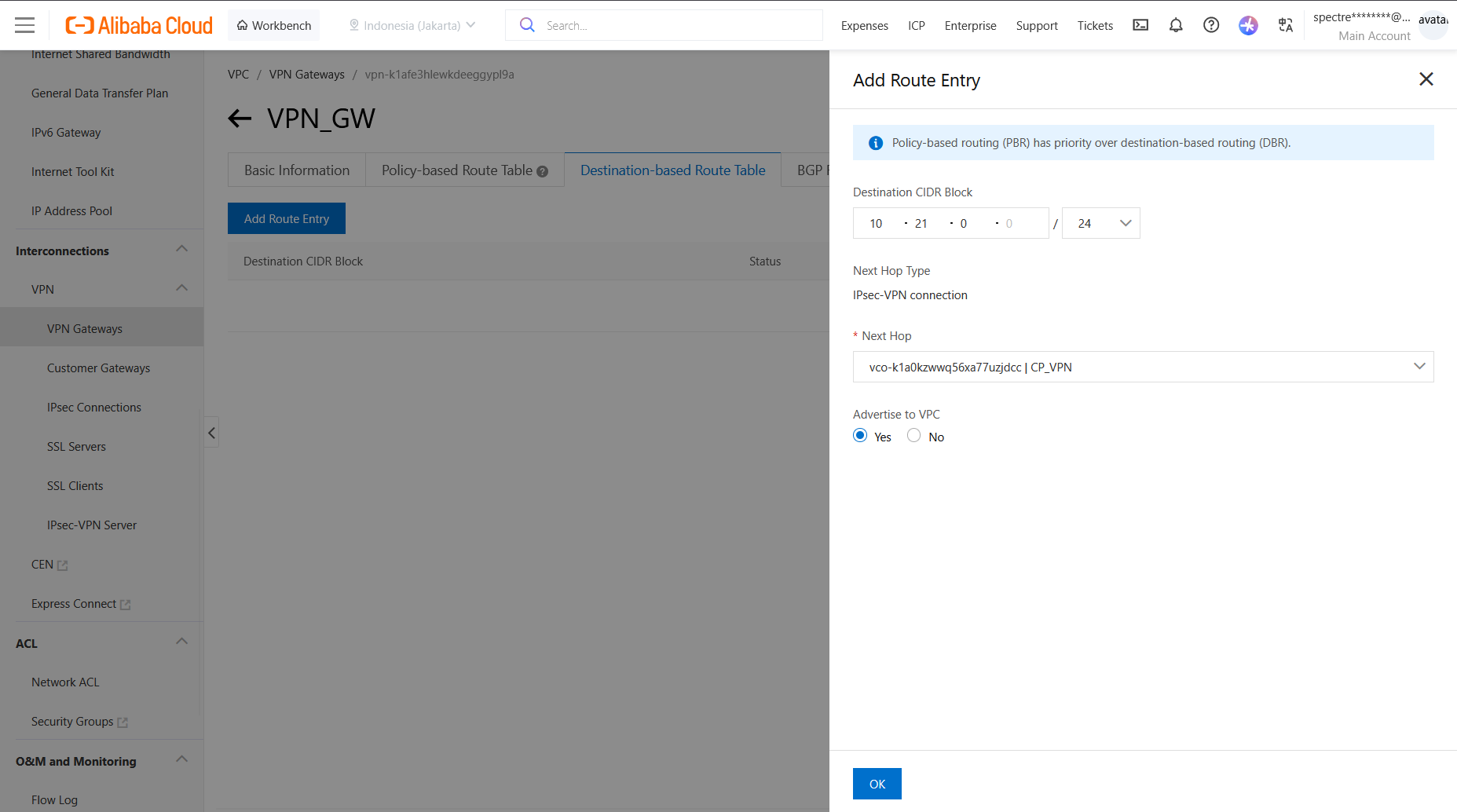

Now back to VPN Gateway, select Destination-based Route Table and add the CP’s internal subnet with our IPsec VPN as the next hop

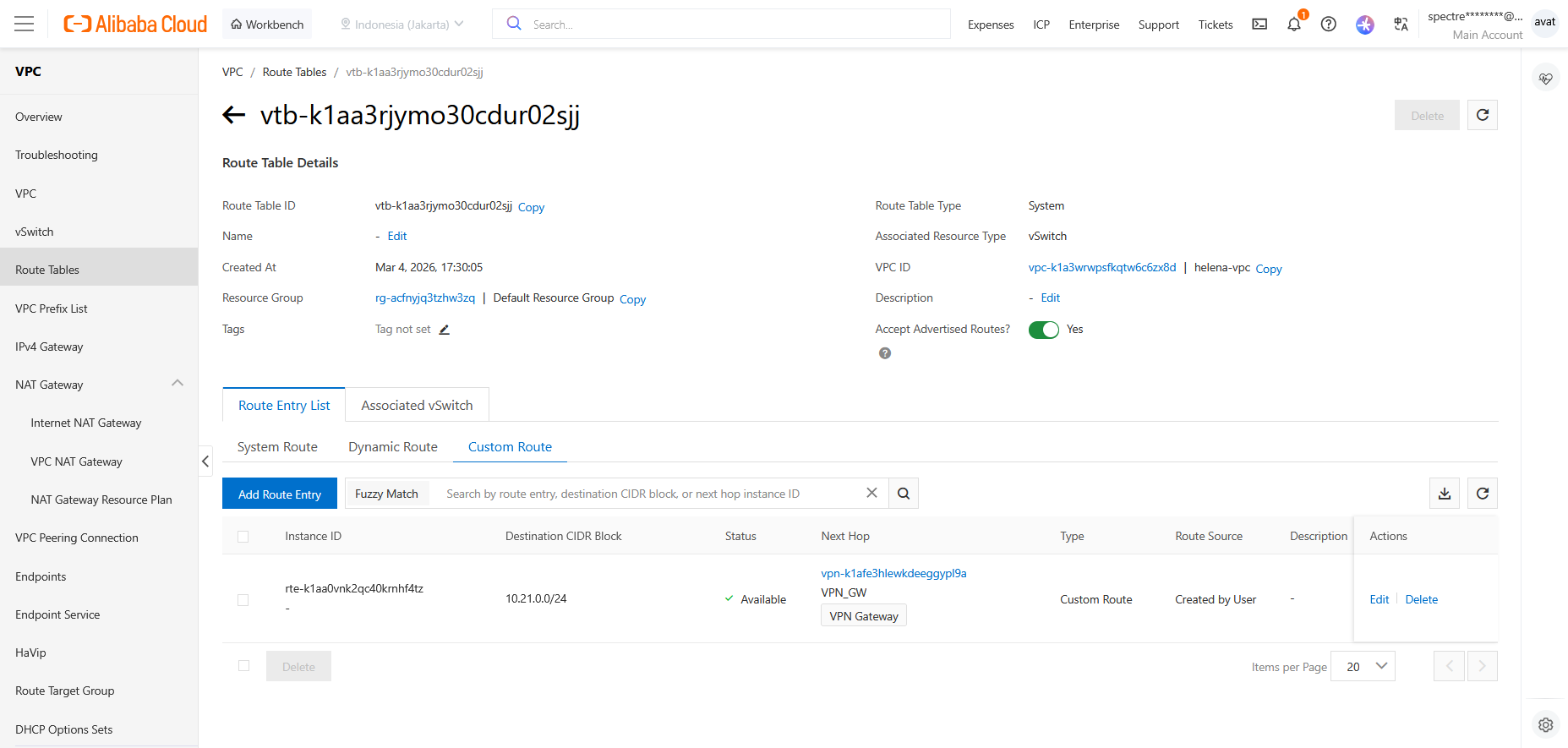

On vSwitch’s Route Tables, we can see the the route to our VPN is automatically created here

Check Point

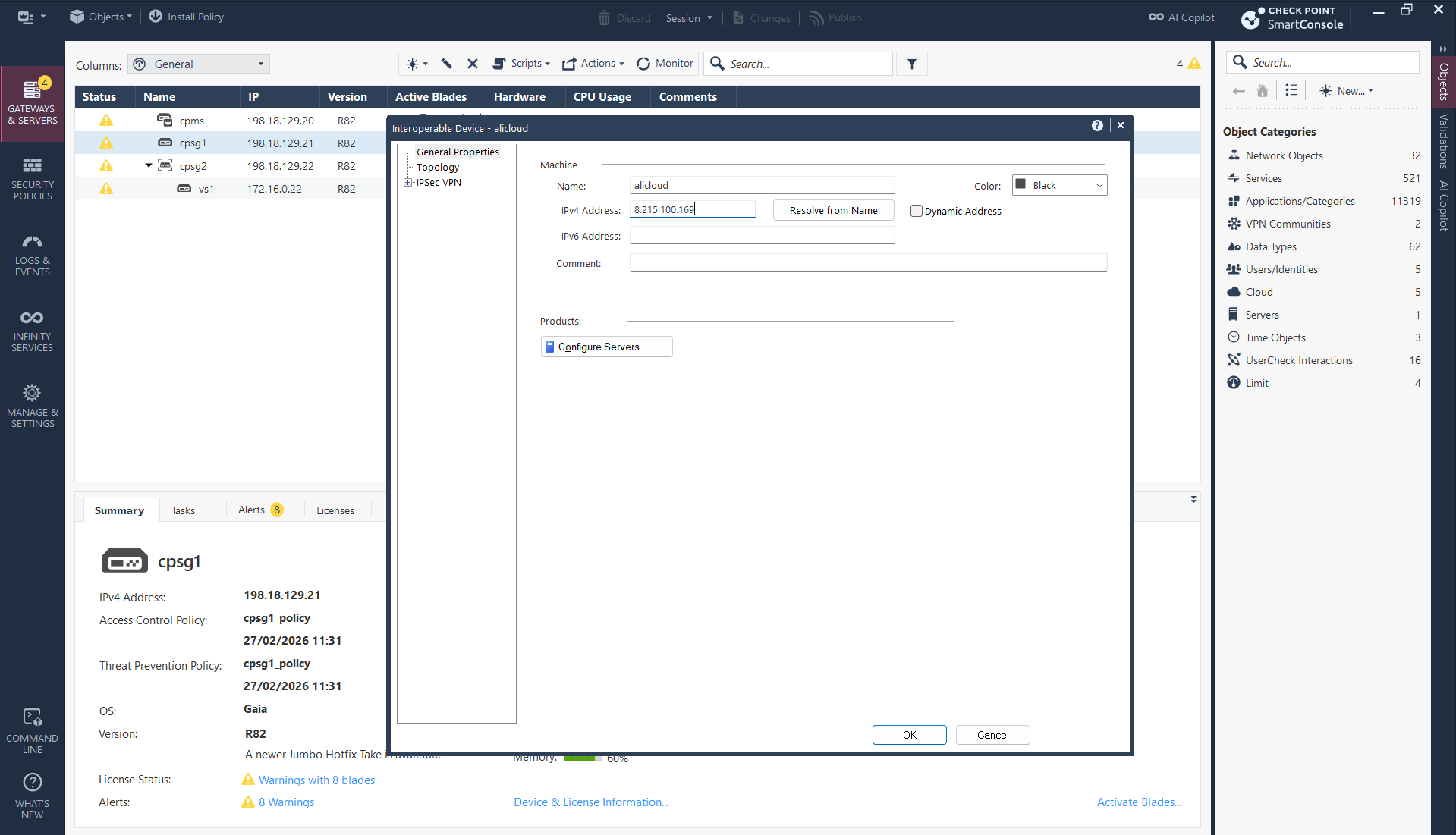

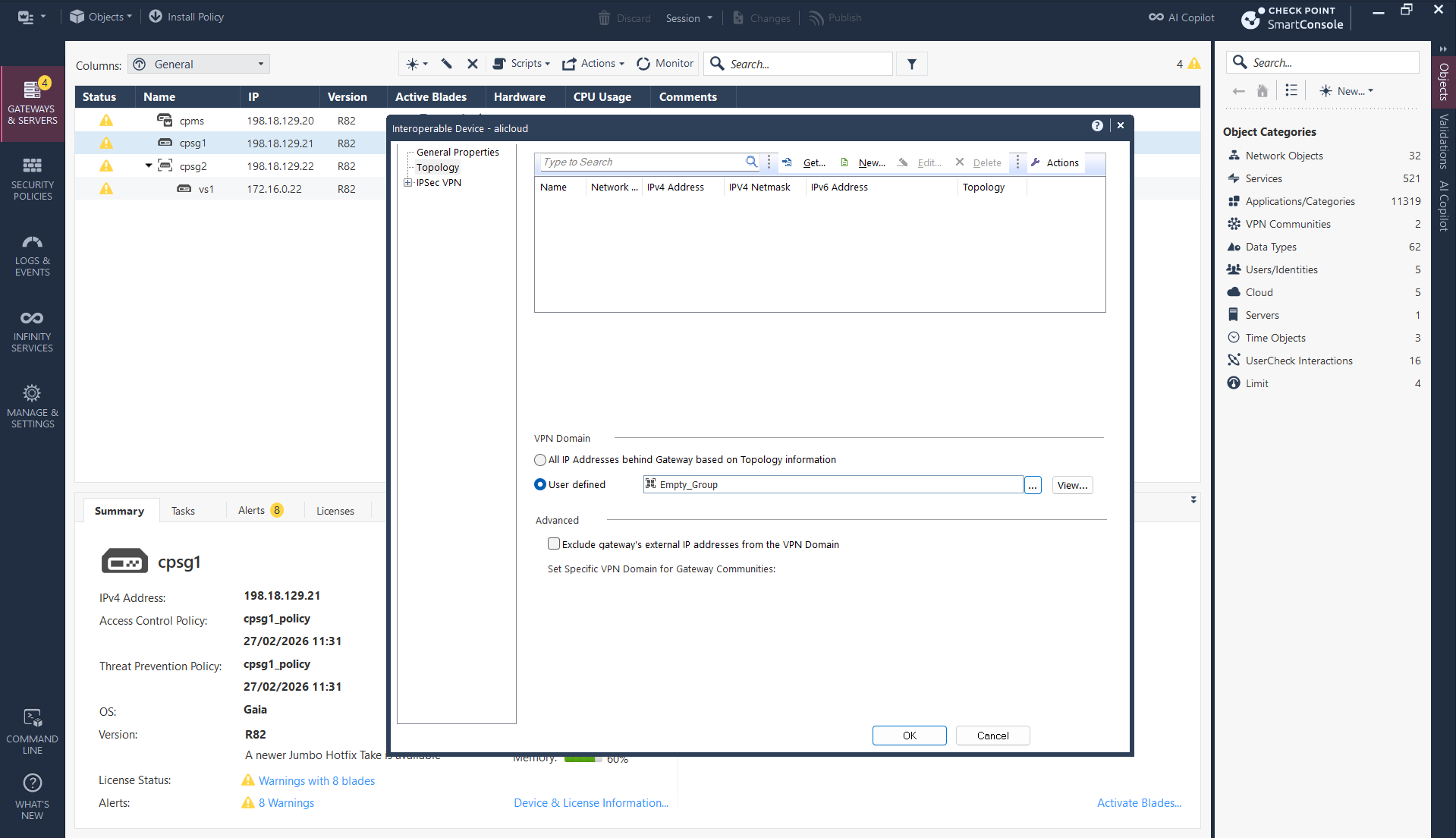

Now configre the Check Point side, add an Interoperable Device and point it to Alibaba’s Public IP

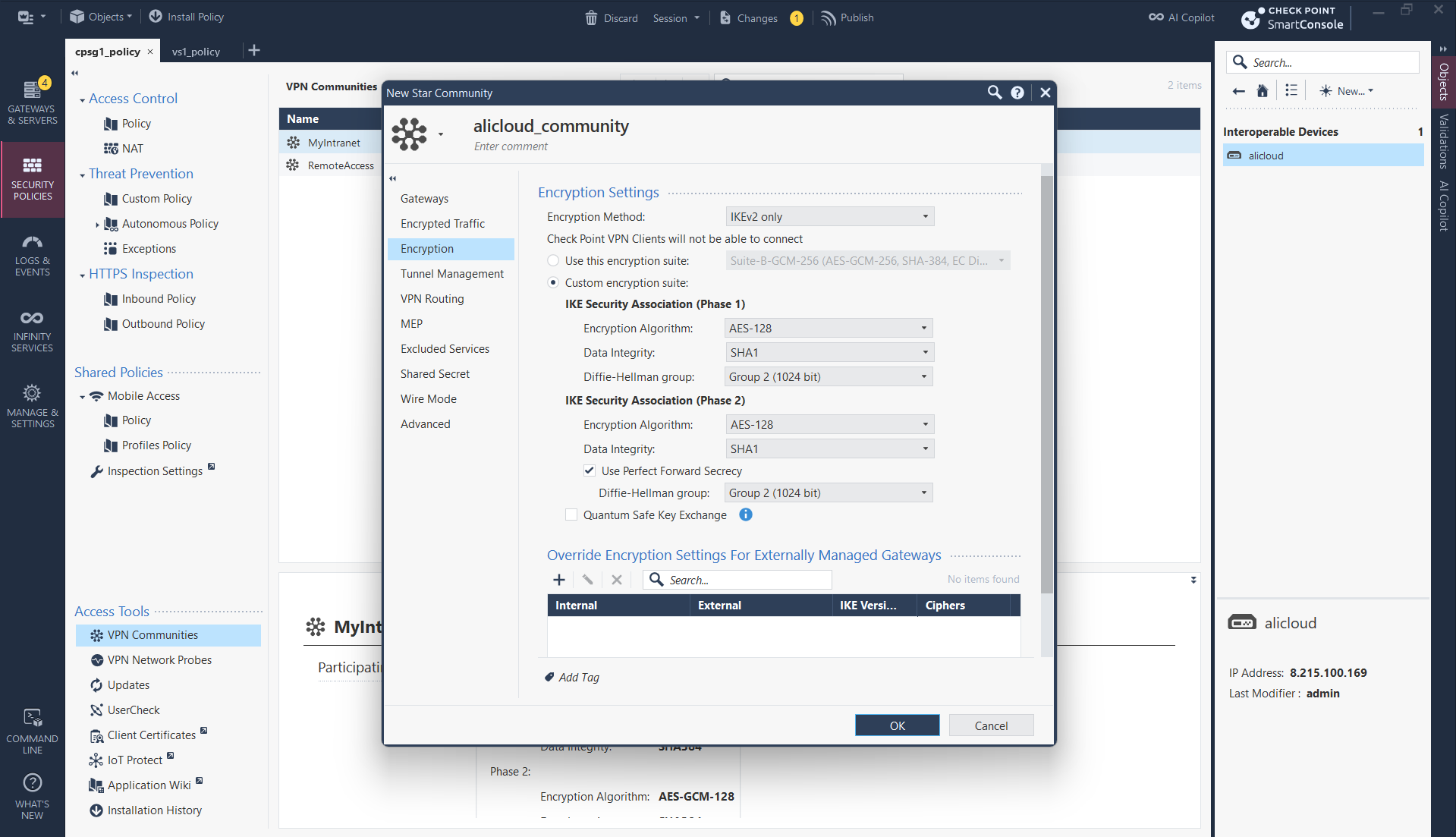

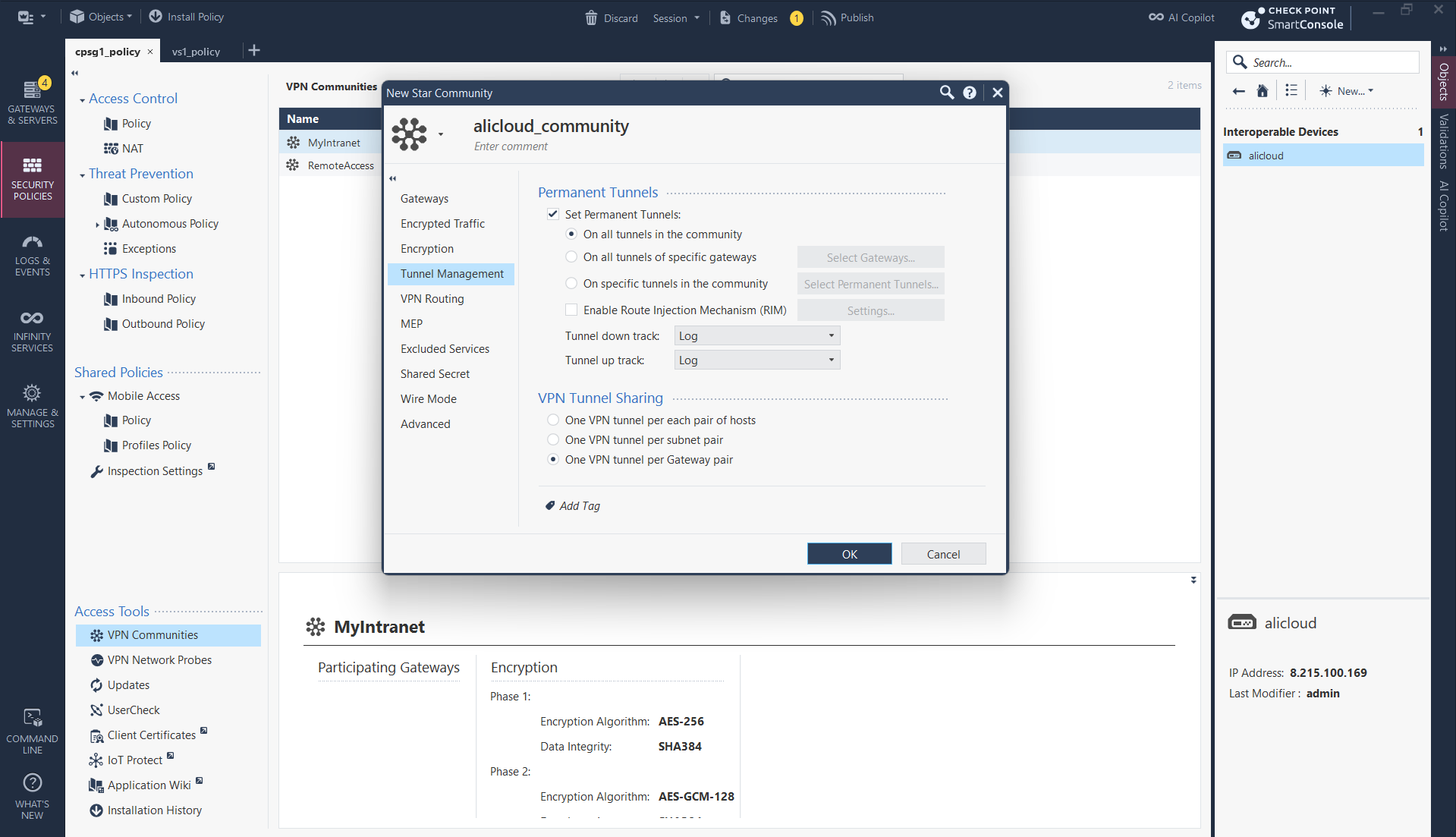

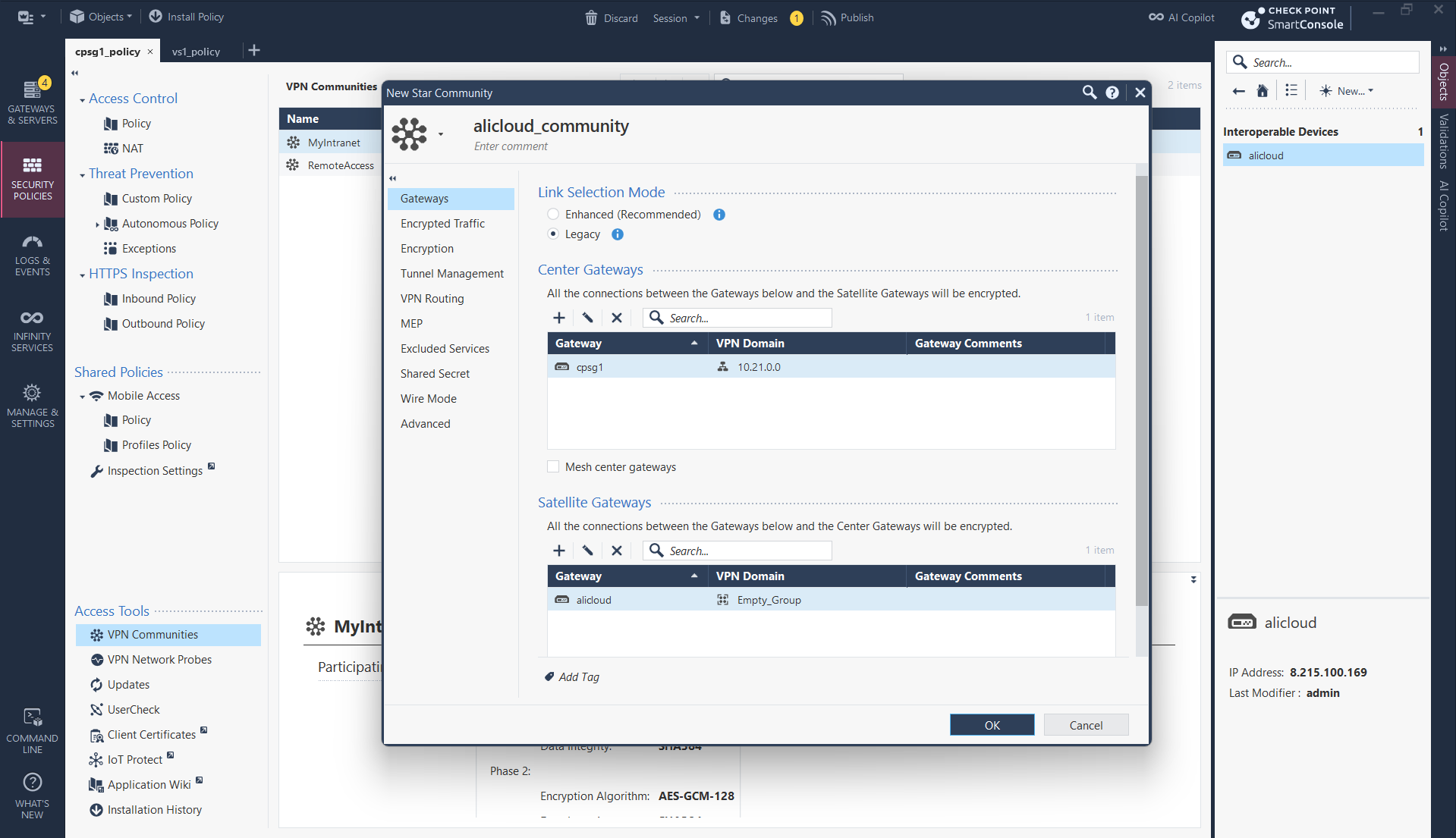

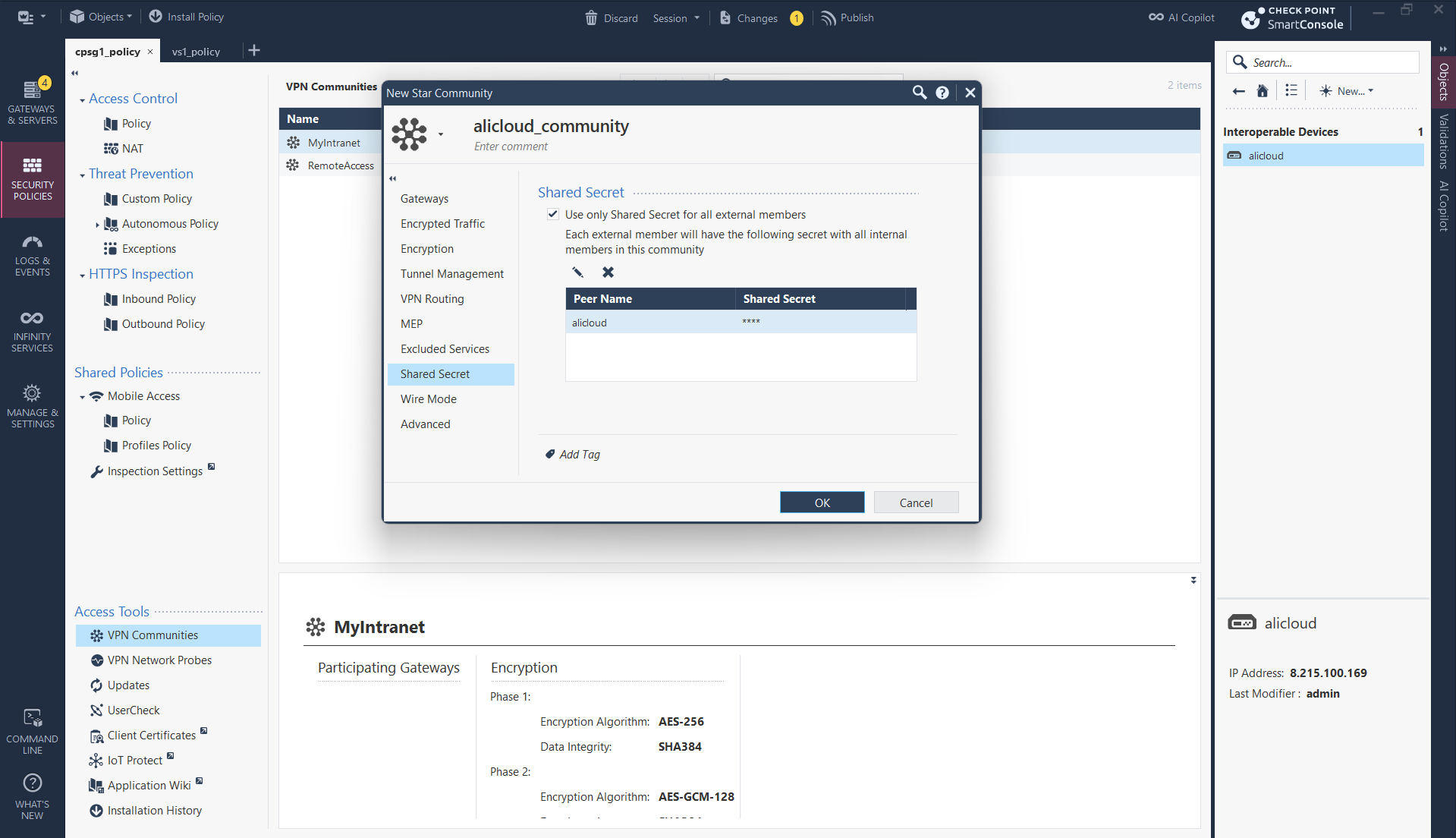

Then create a Start VPN Community

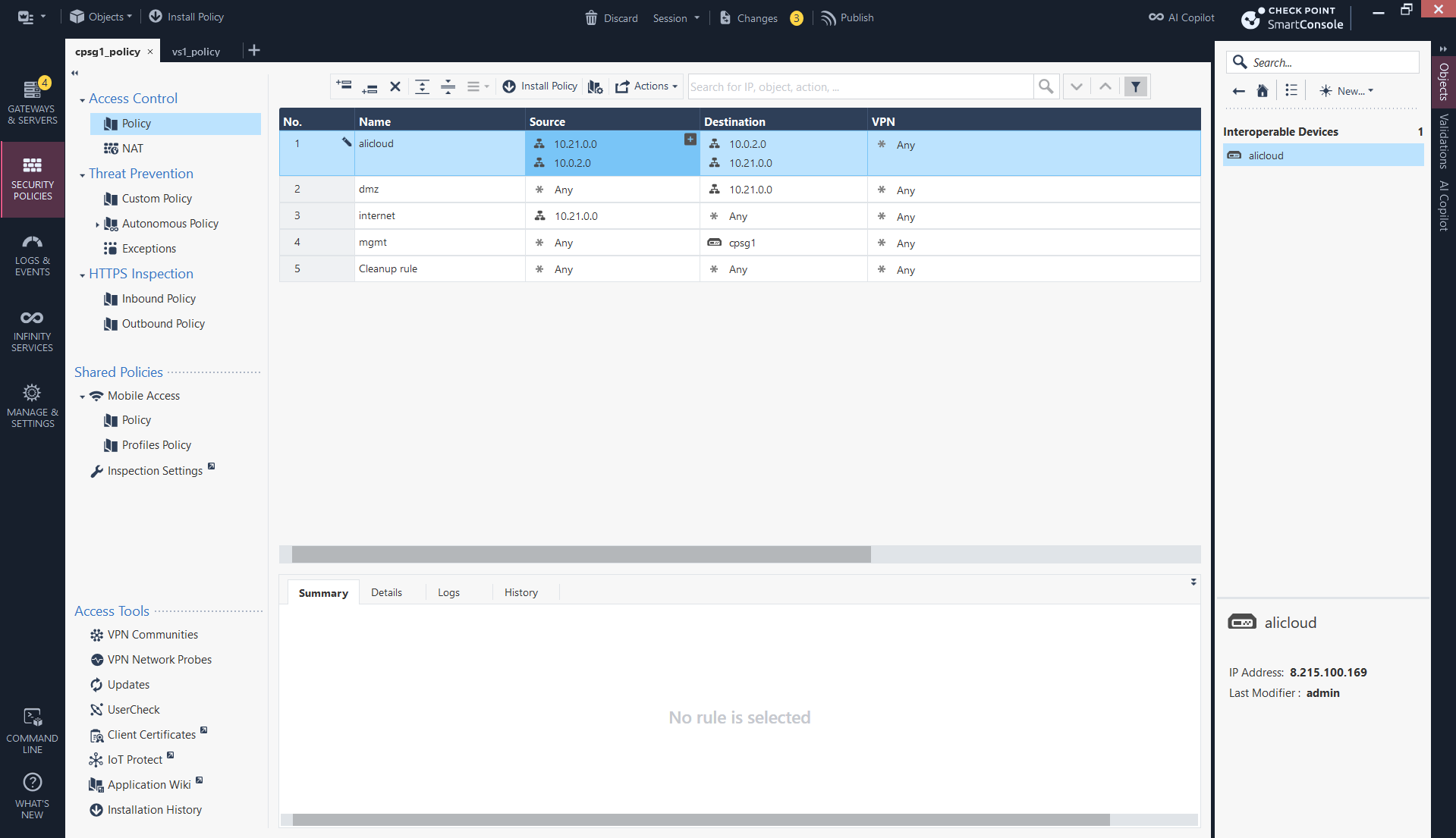

We also need firewall policy to allow traffic between the 2 subnets

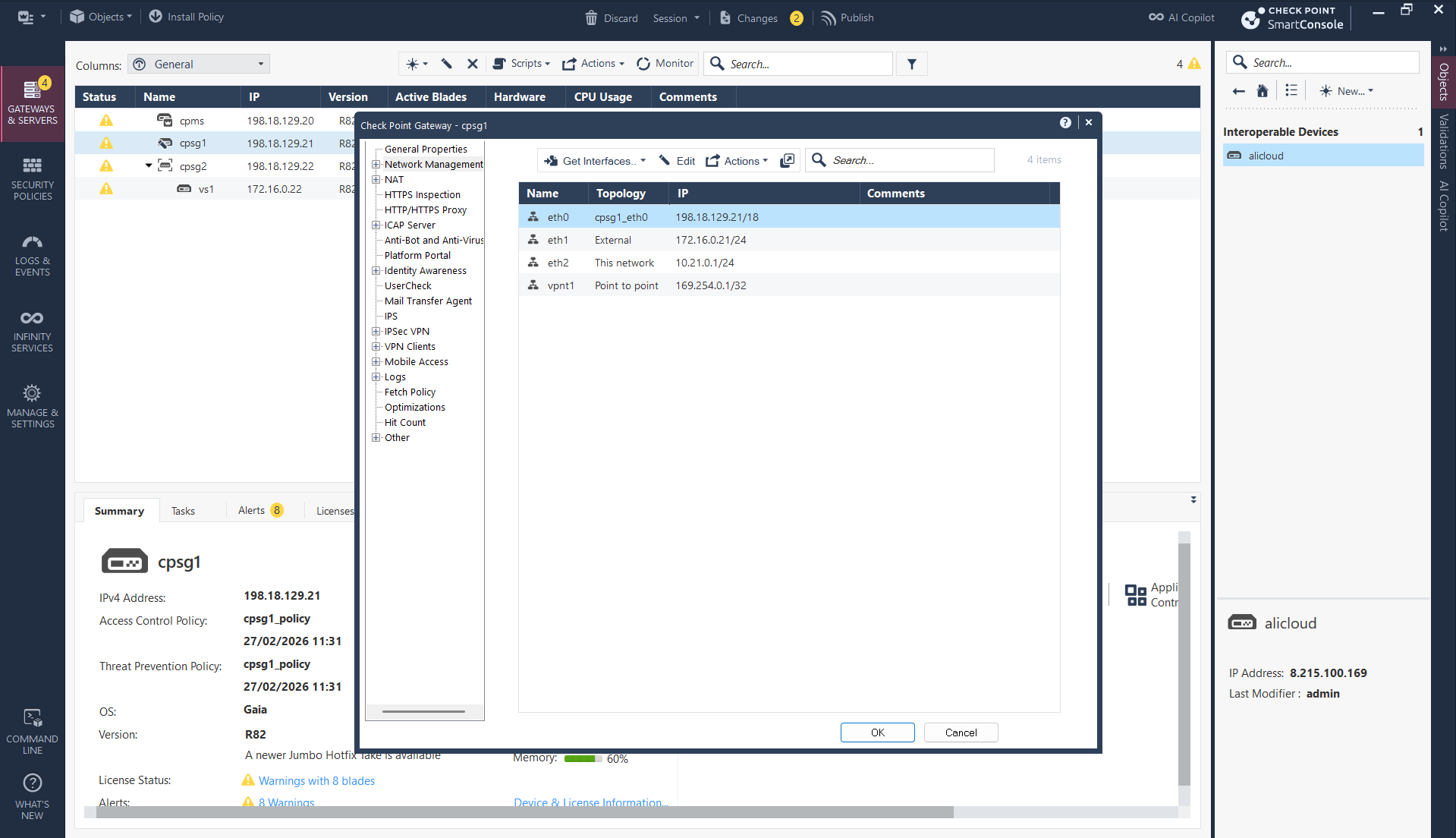

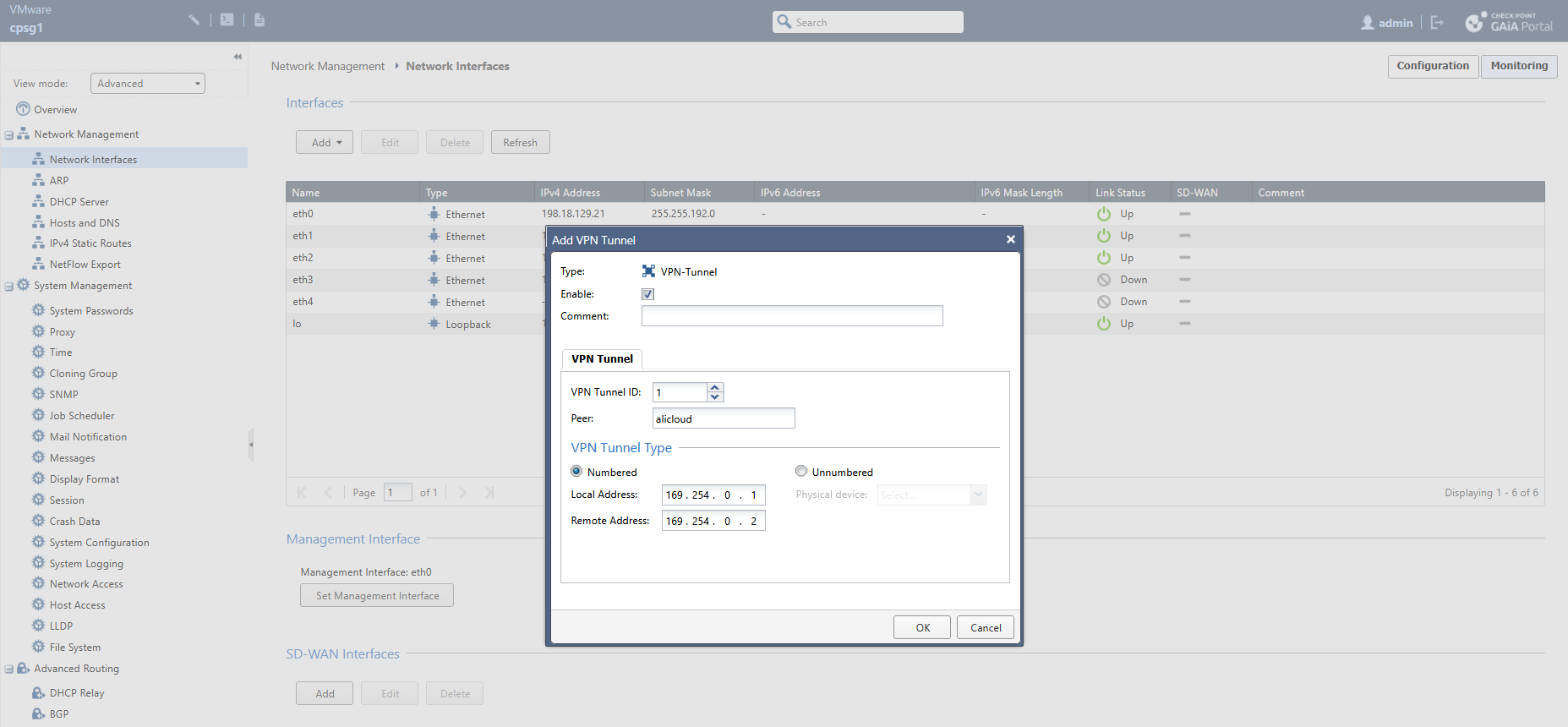

Next we create the Tunnel Interface, use the Interoperable Device as the peer and add a unused private subnet for p2p communication

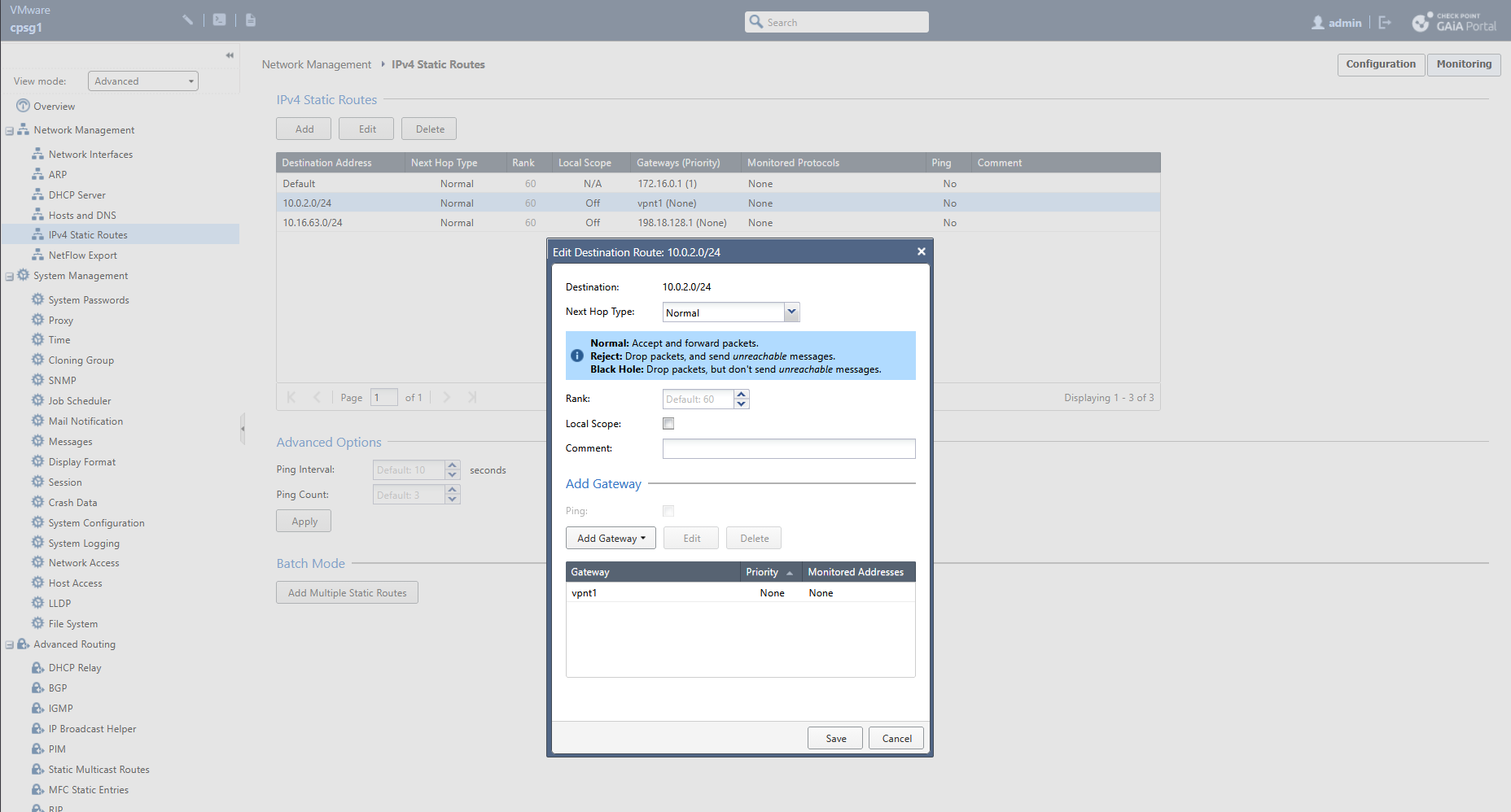

Then we steer the traffic going to 10.0.2.0/24 to use the VTI as the next hop

Import the newly made interfaces into smartconsole

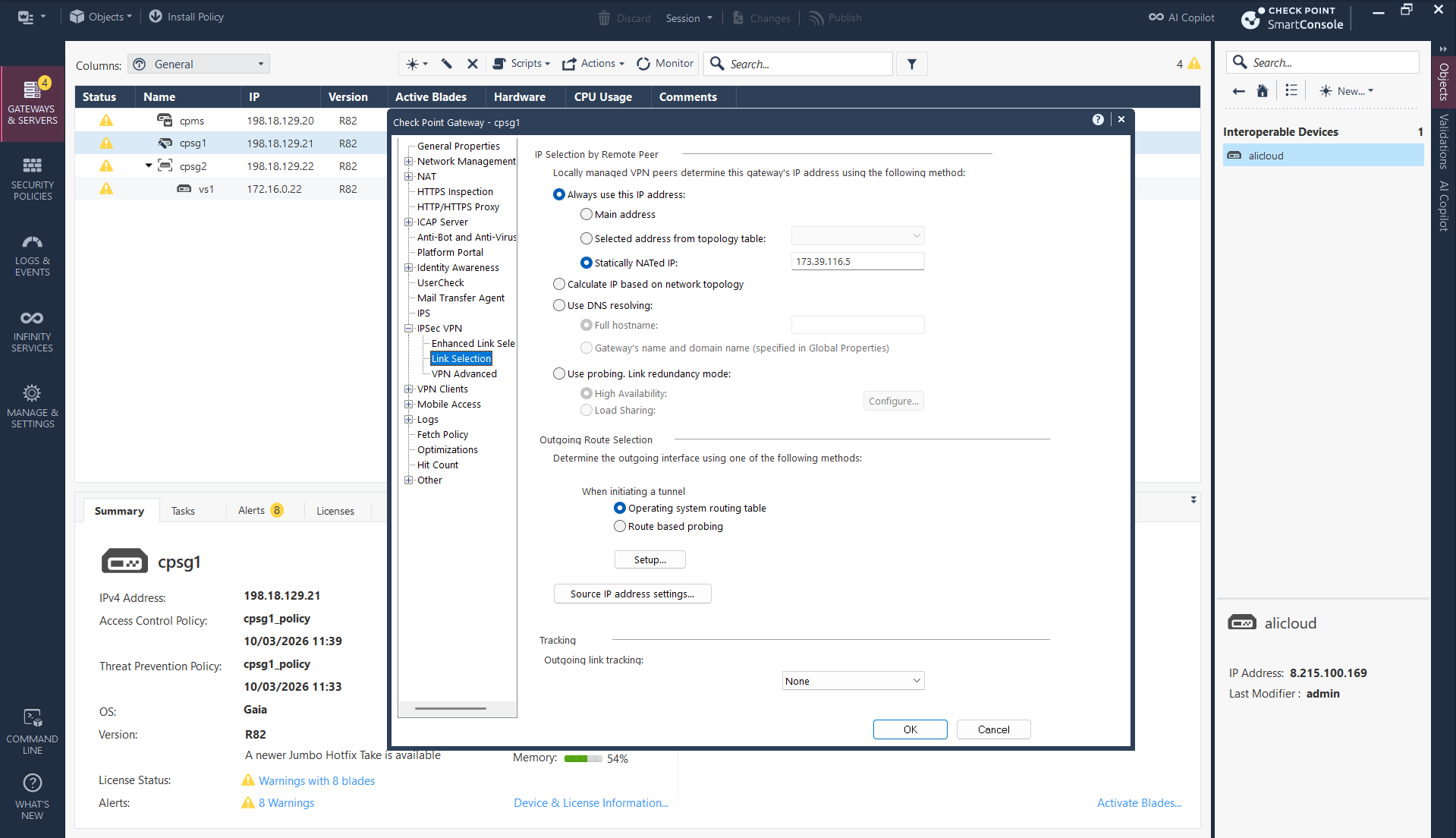

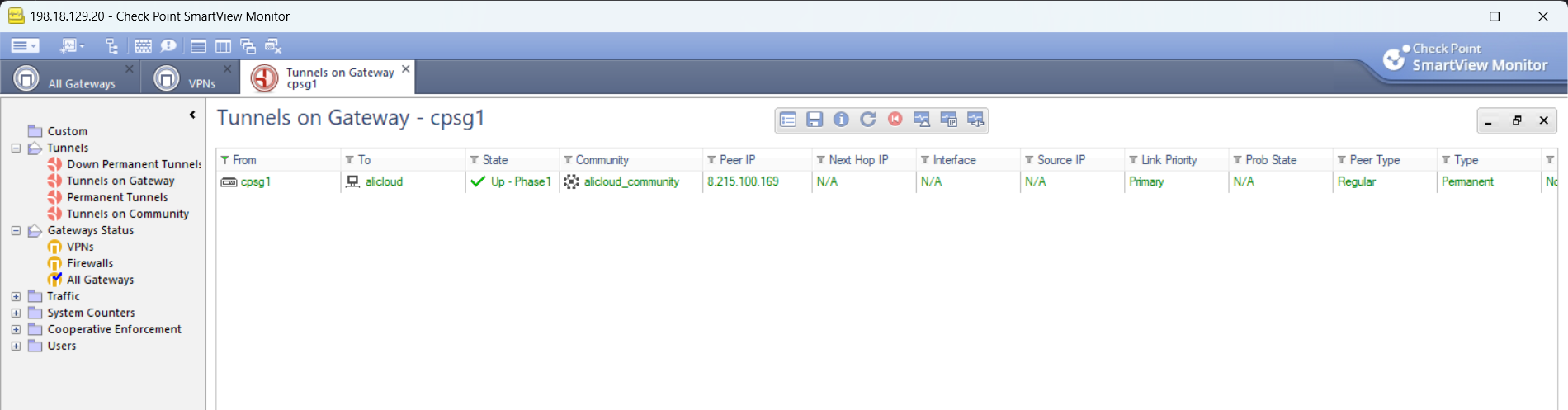

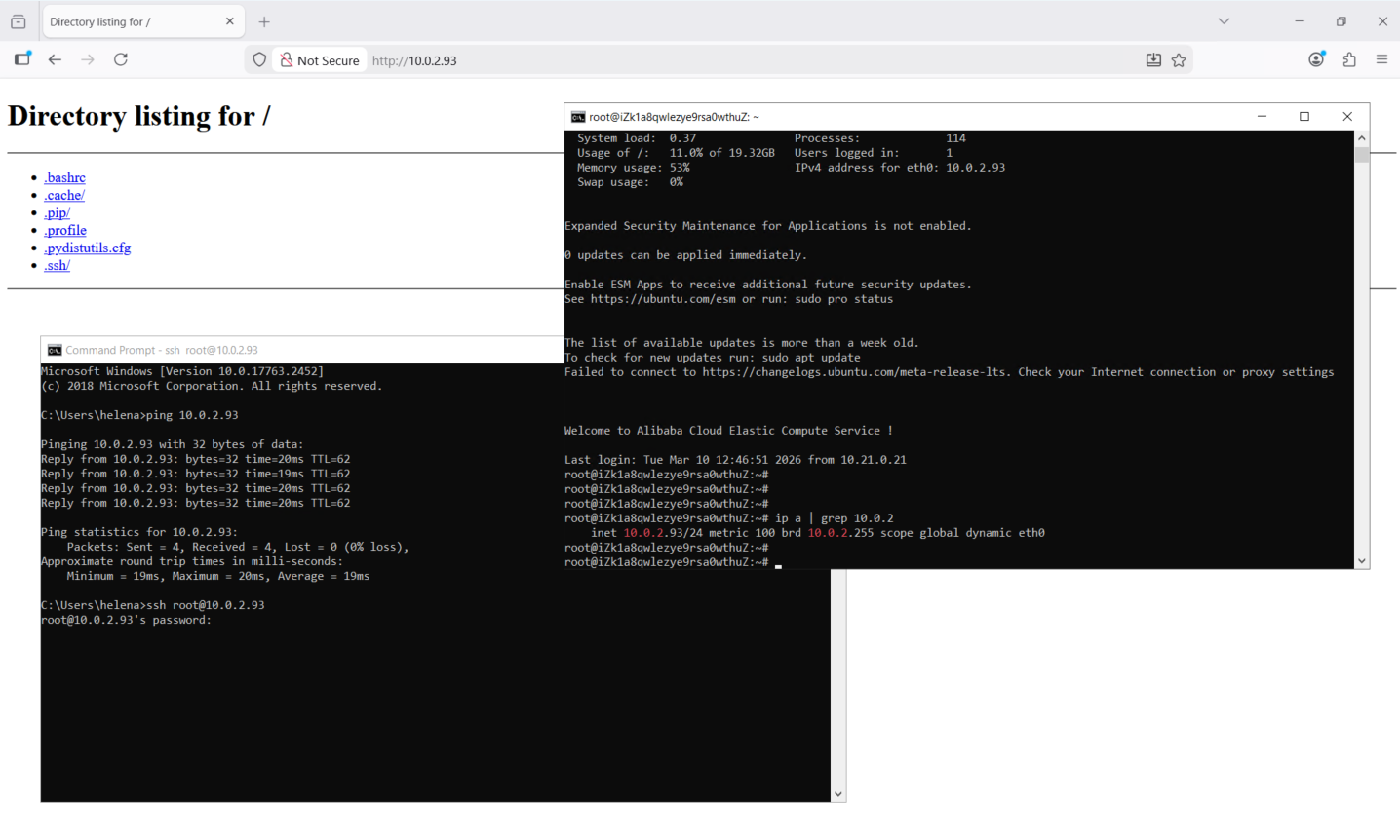

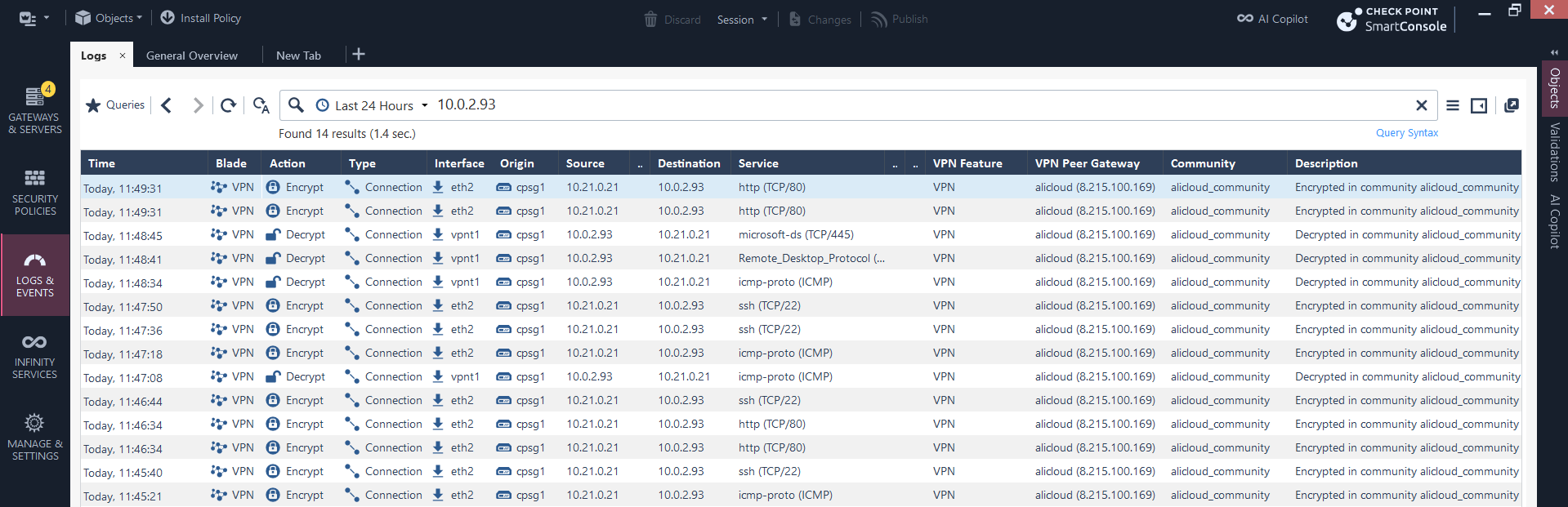

And lastly, because our firewall is sitting behind NAT, we need to manually enter the Public IP as our local id so Alibaba can identify it. That should conclude the CP side configuration
