Entra ID with MFA

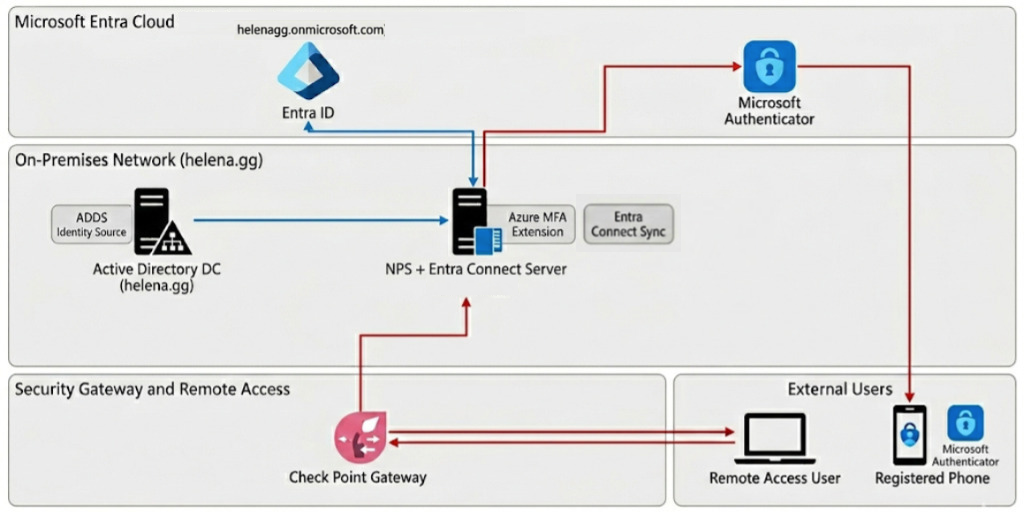

Microsoft Entra ID (formerly Azure Active Directory) is a cloud-native identity platform that synchronizes with on-premises ADDS via Entra Connect to create a seamless hybrid identity layer. By integrating the NPS Extension, it functions as a centralized MFA engine for our Check Point VPN, intercepting RADIUS authentication to trigger push notifications via the Microsoft Authenticator app.

Setting up Entra ID

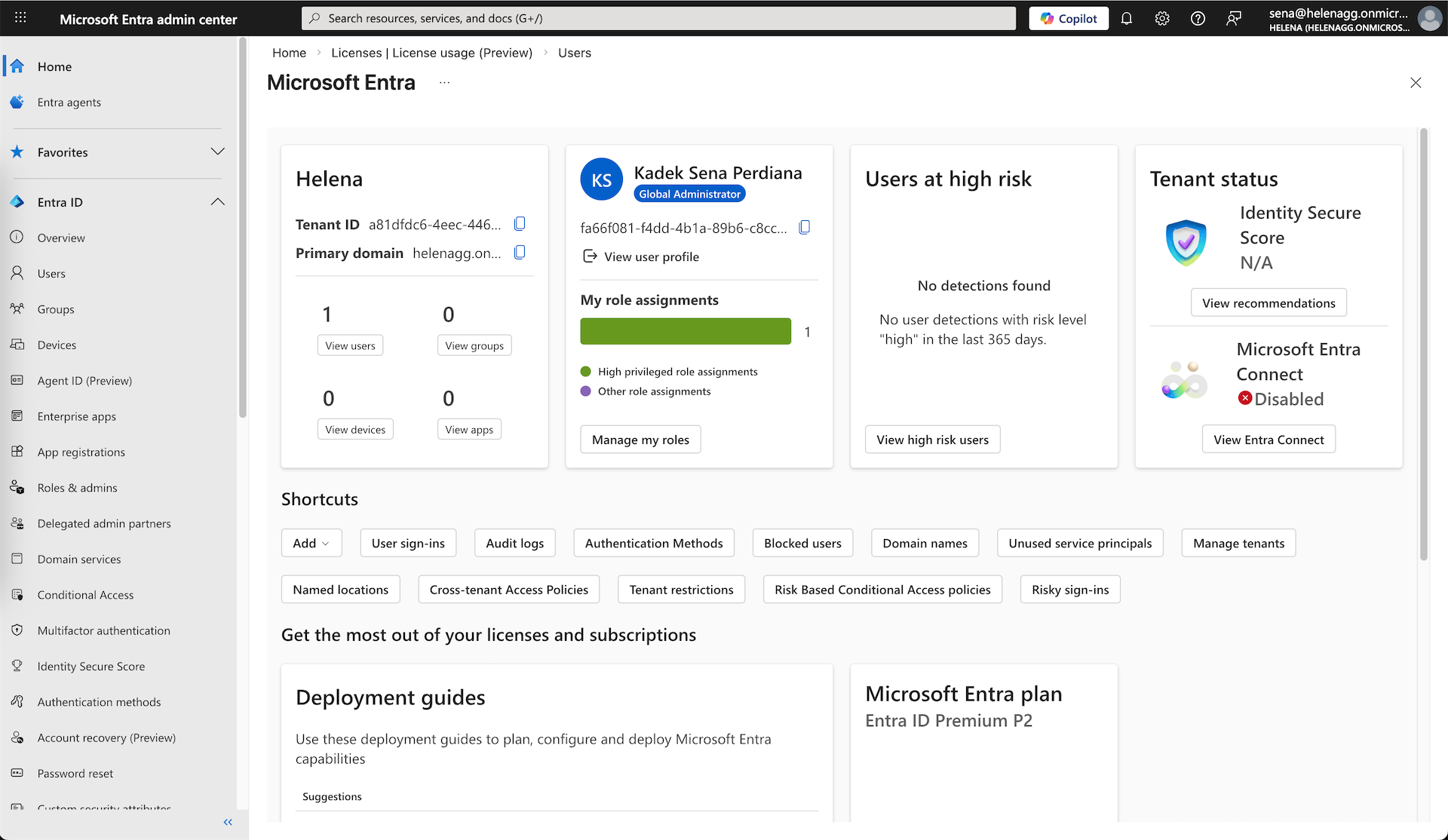

First we setup a new Microsoft Account with Entra ID P2 license, here we create a new domain at helenagg.onmicrosoft.com

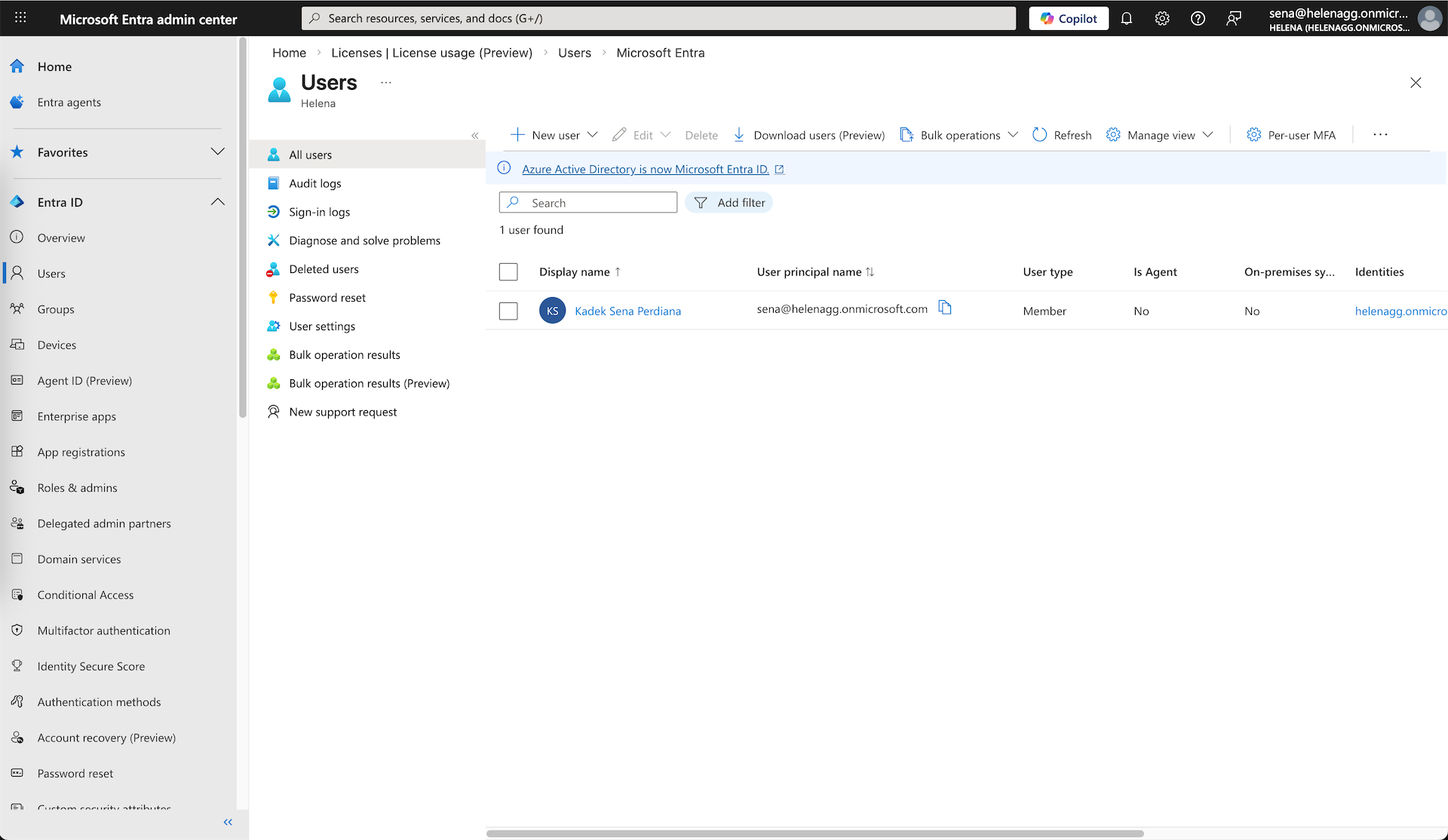

At this point we only have 1 user, which is the Tenant admin

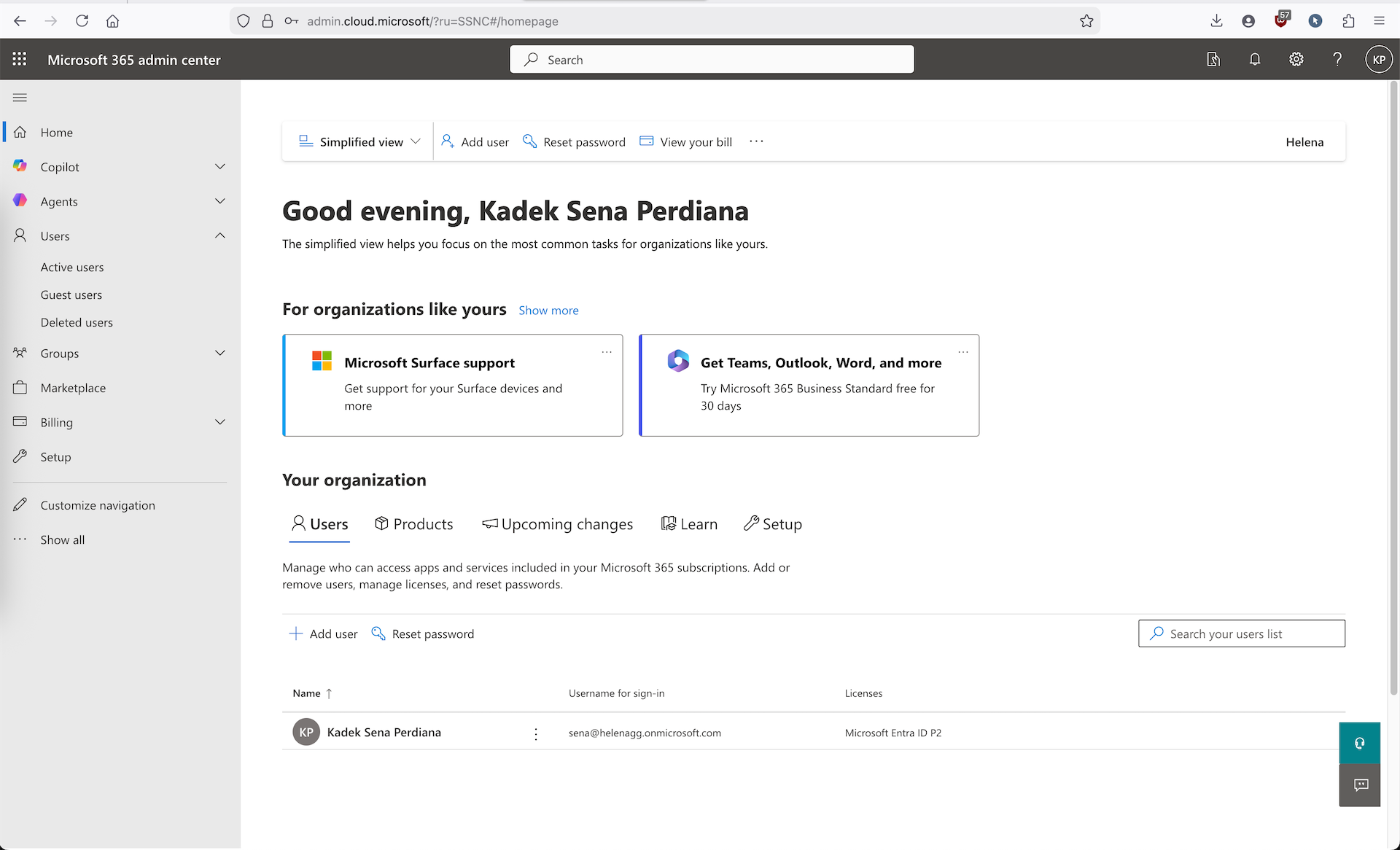

To manage our users, we can open the Microsoft 365 Admin Center

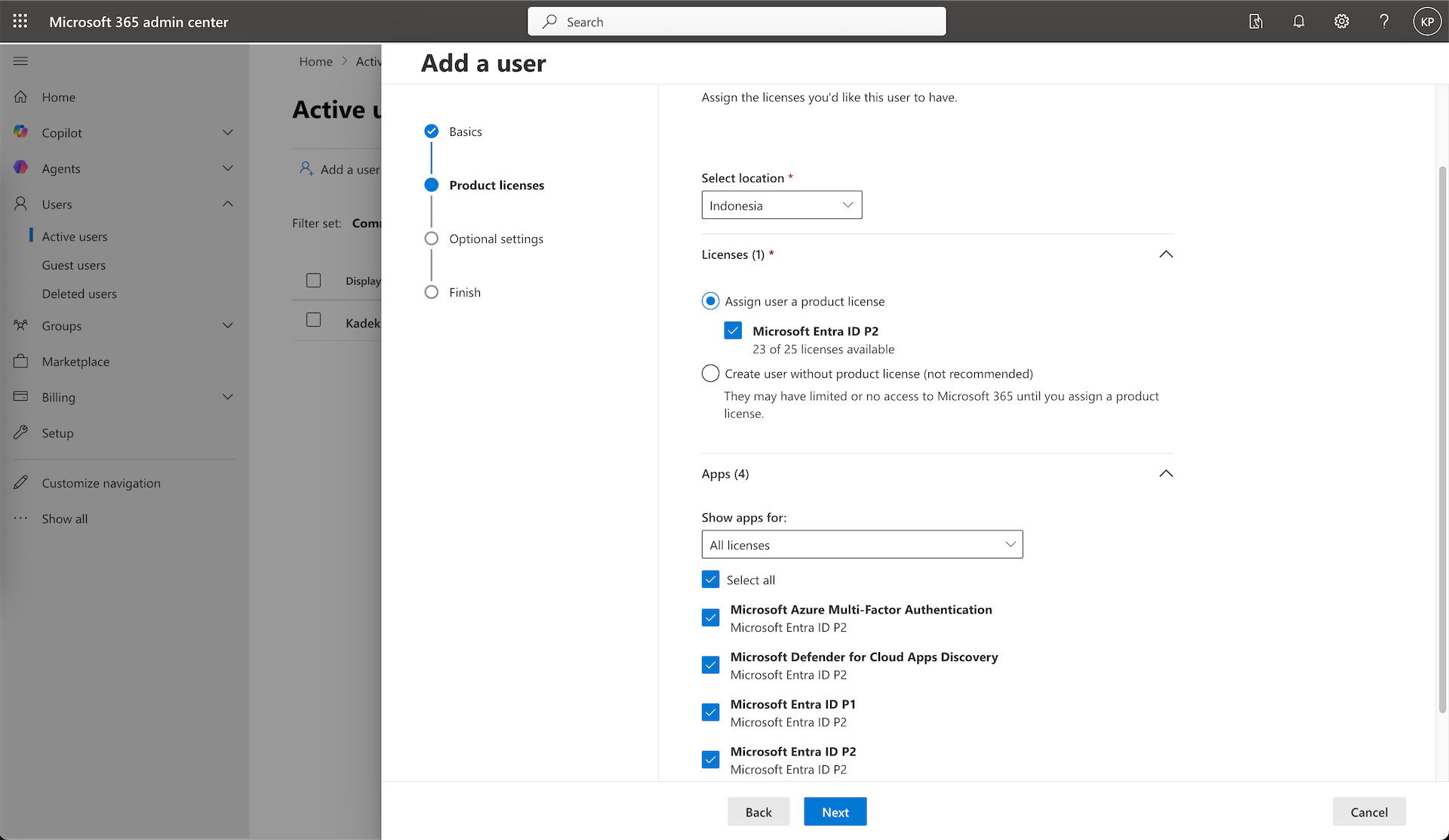

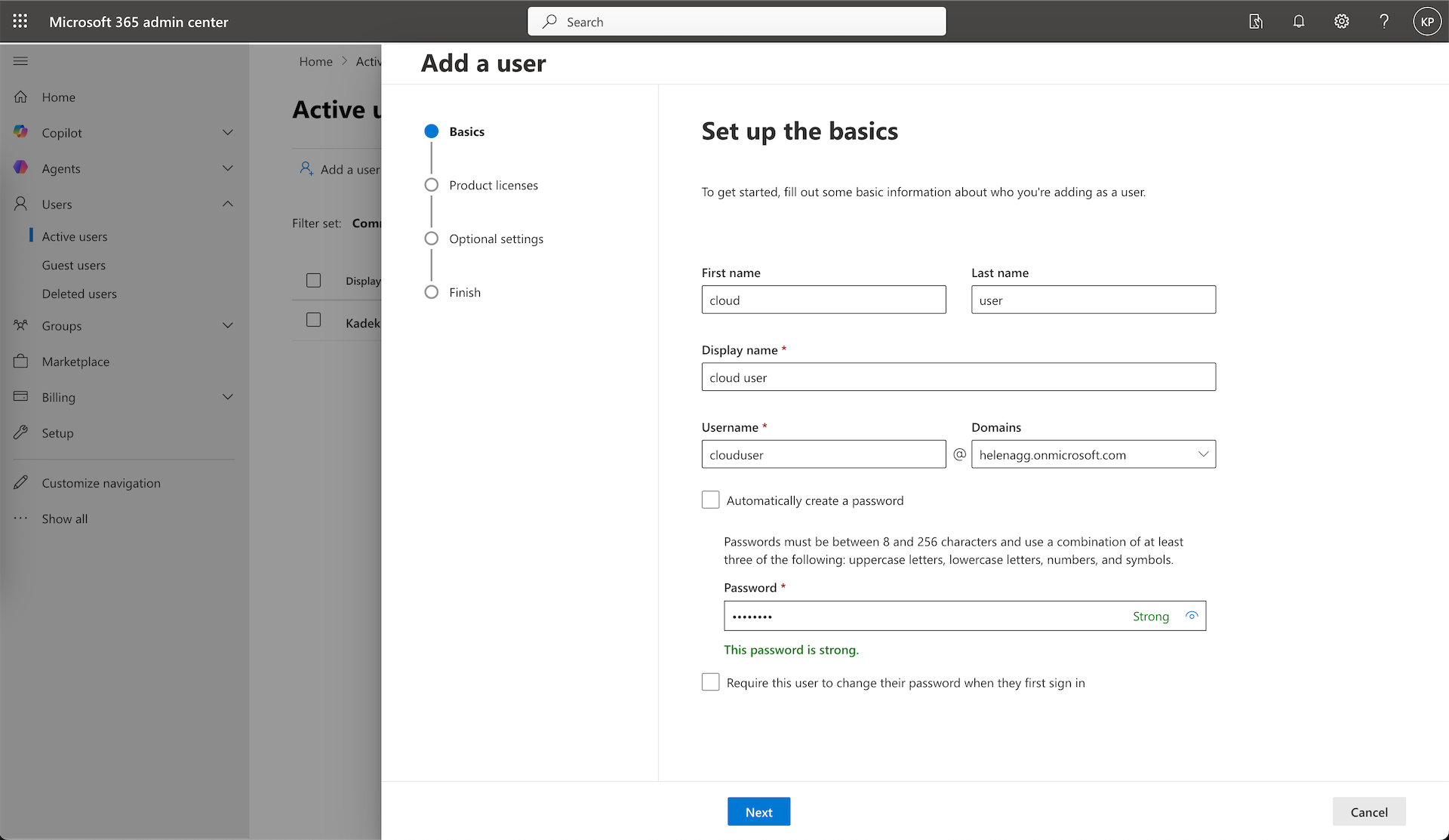

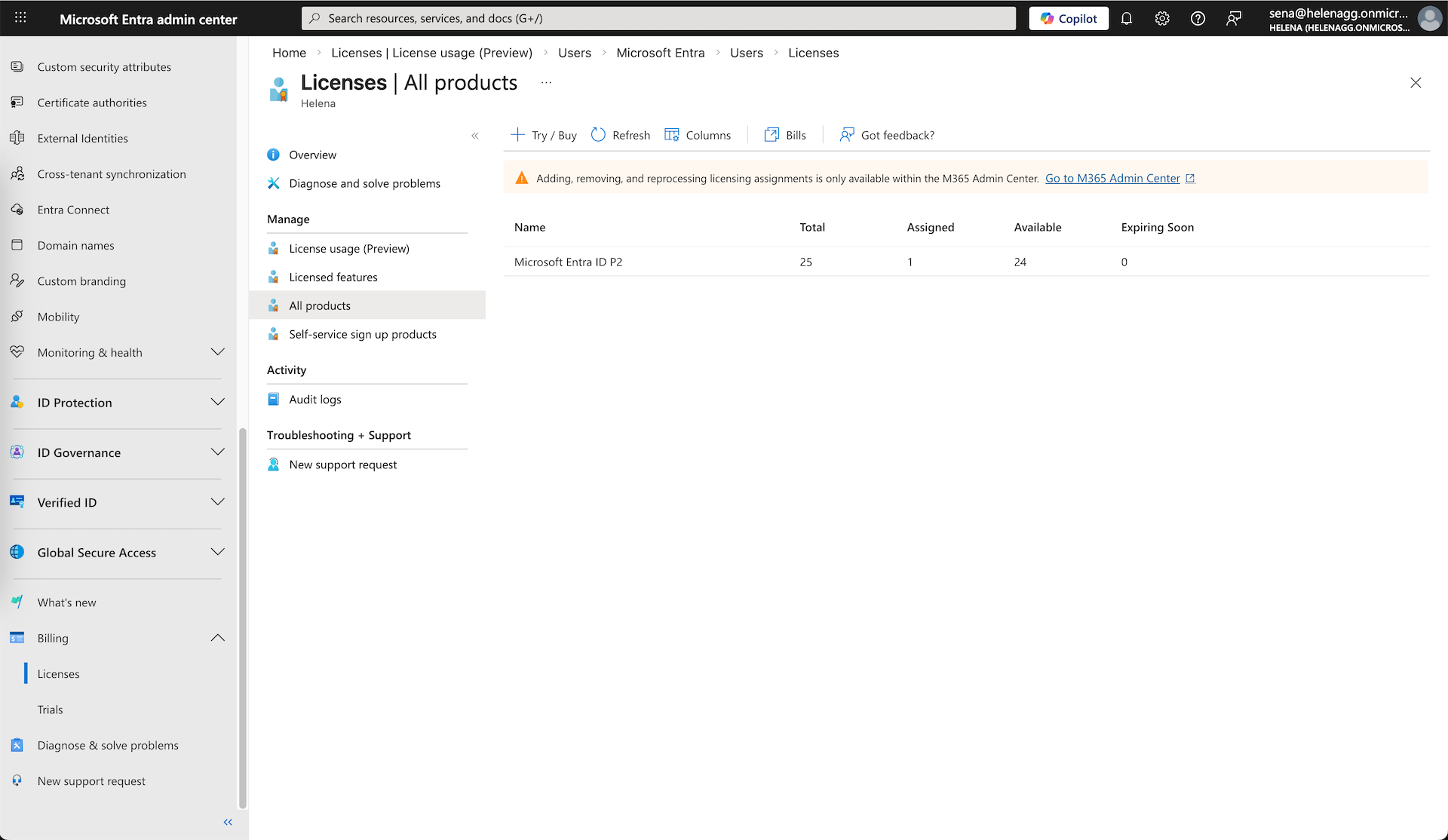

We’ll add a new “clouduser” and assign the Entra ID P2 license so it can use the MFA feature if we choose to configure

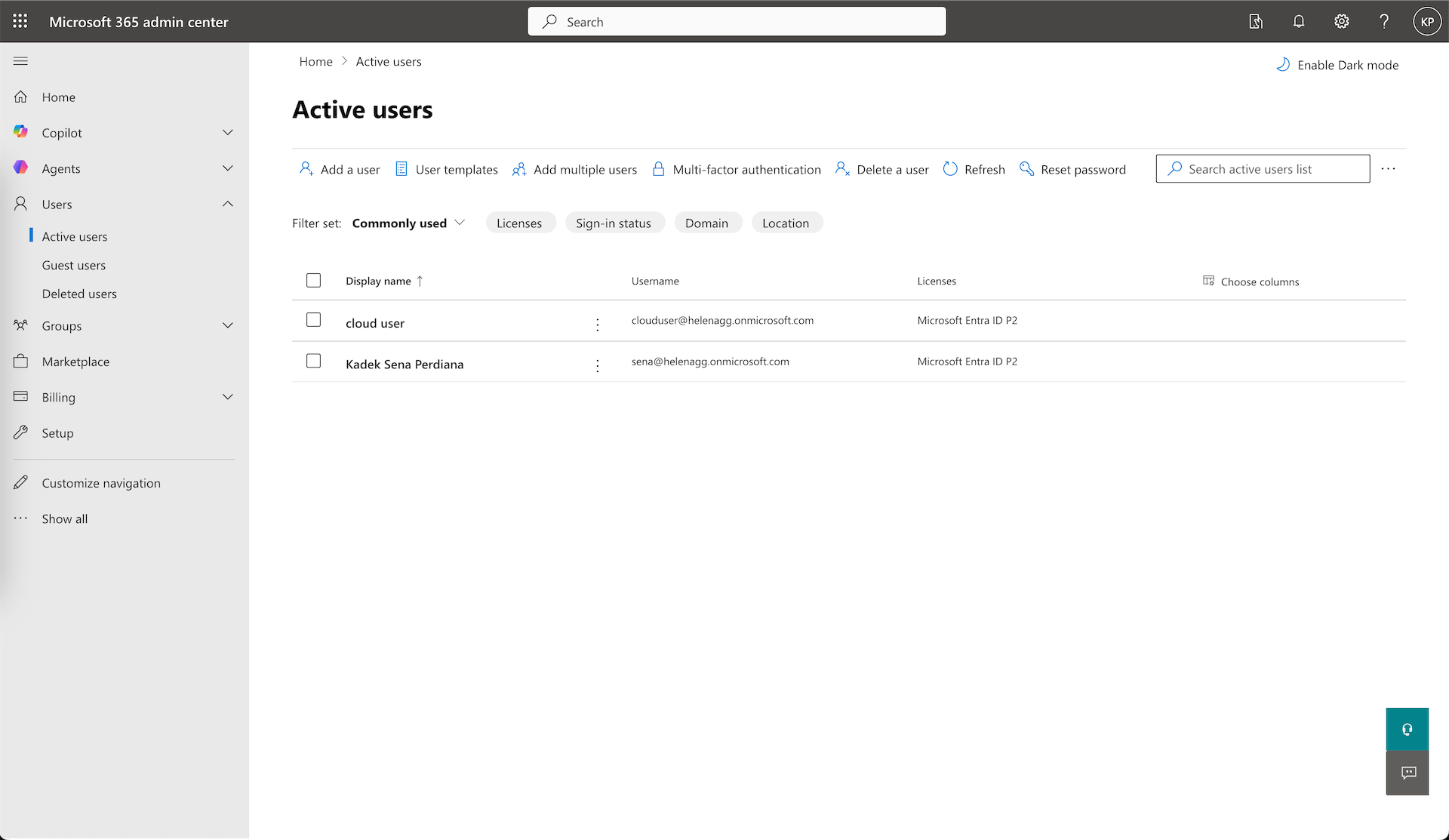

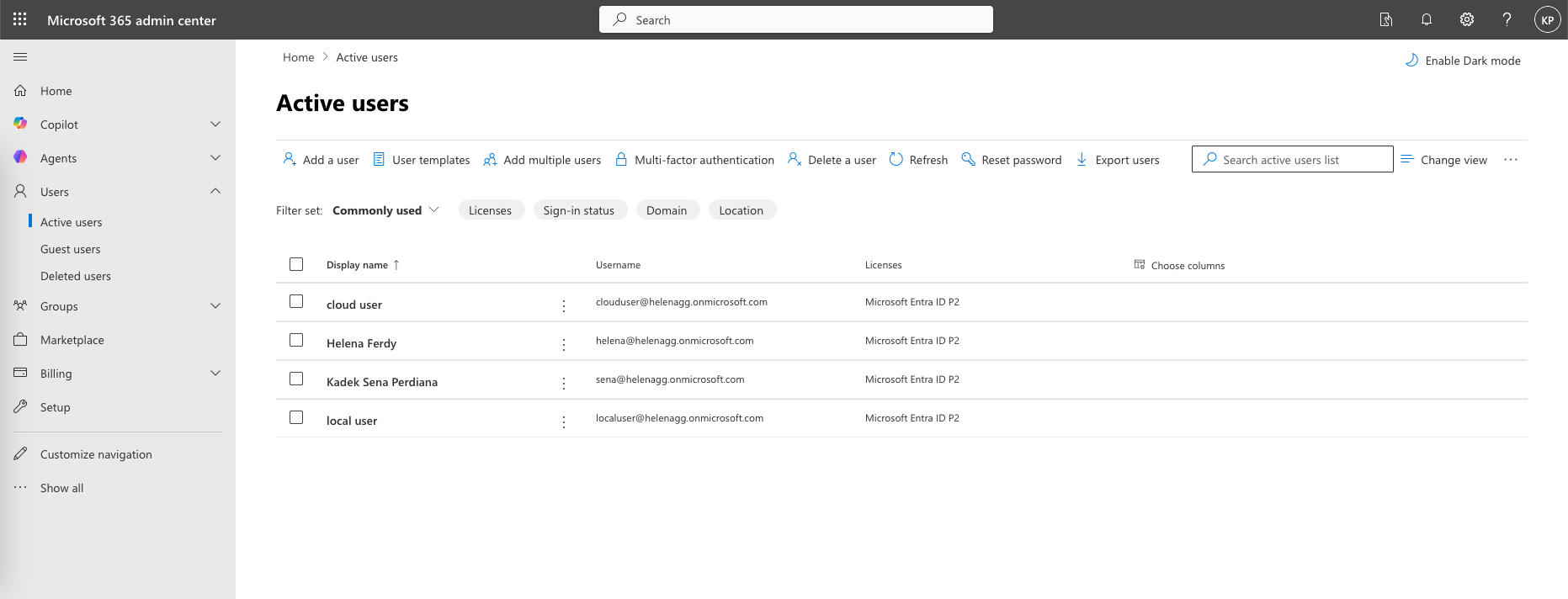

Now the users will show up on both 365 Admin Center and inside the Entra Portal

Syncing ADDS Users

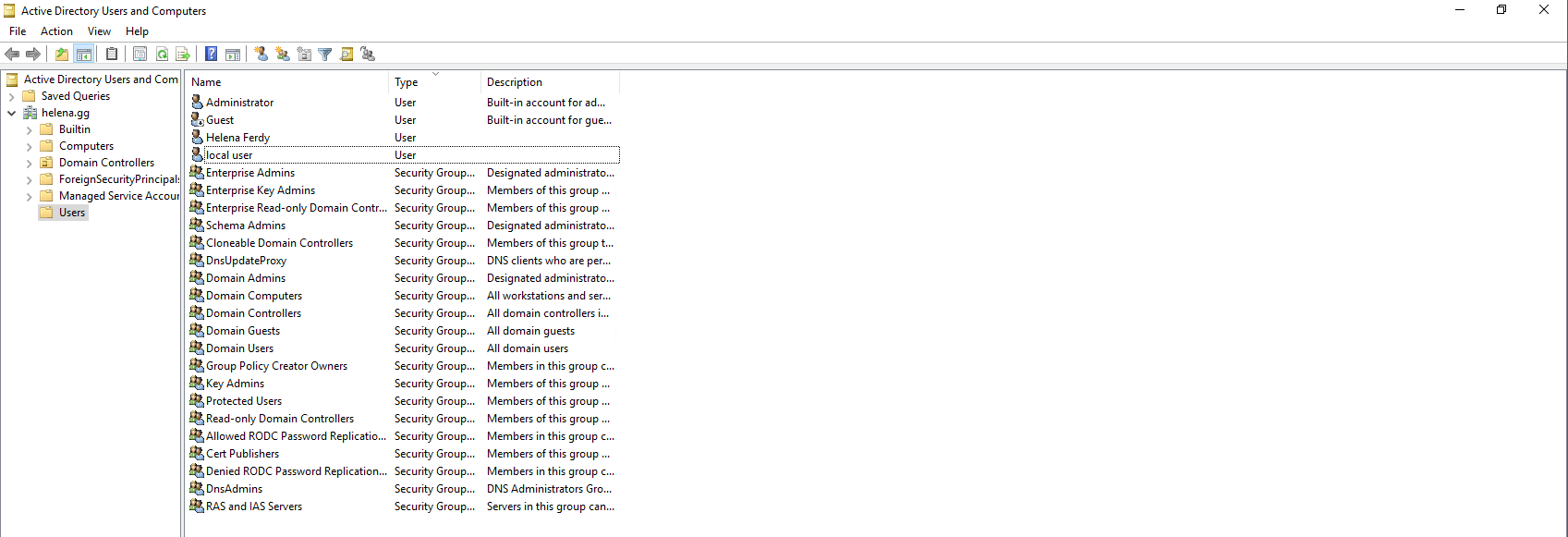

Instead of manually creating users like we did with “clouduser”, we’d sync it from existing users on our On-prem ADDS server

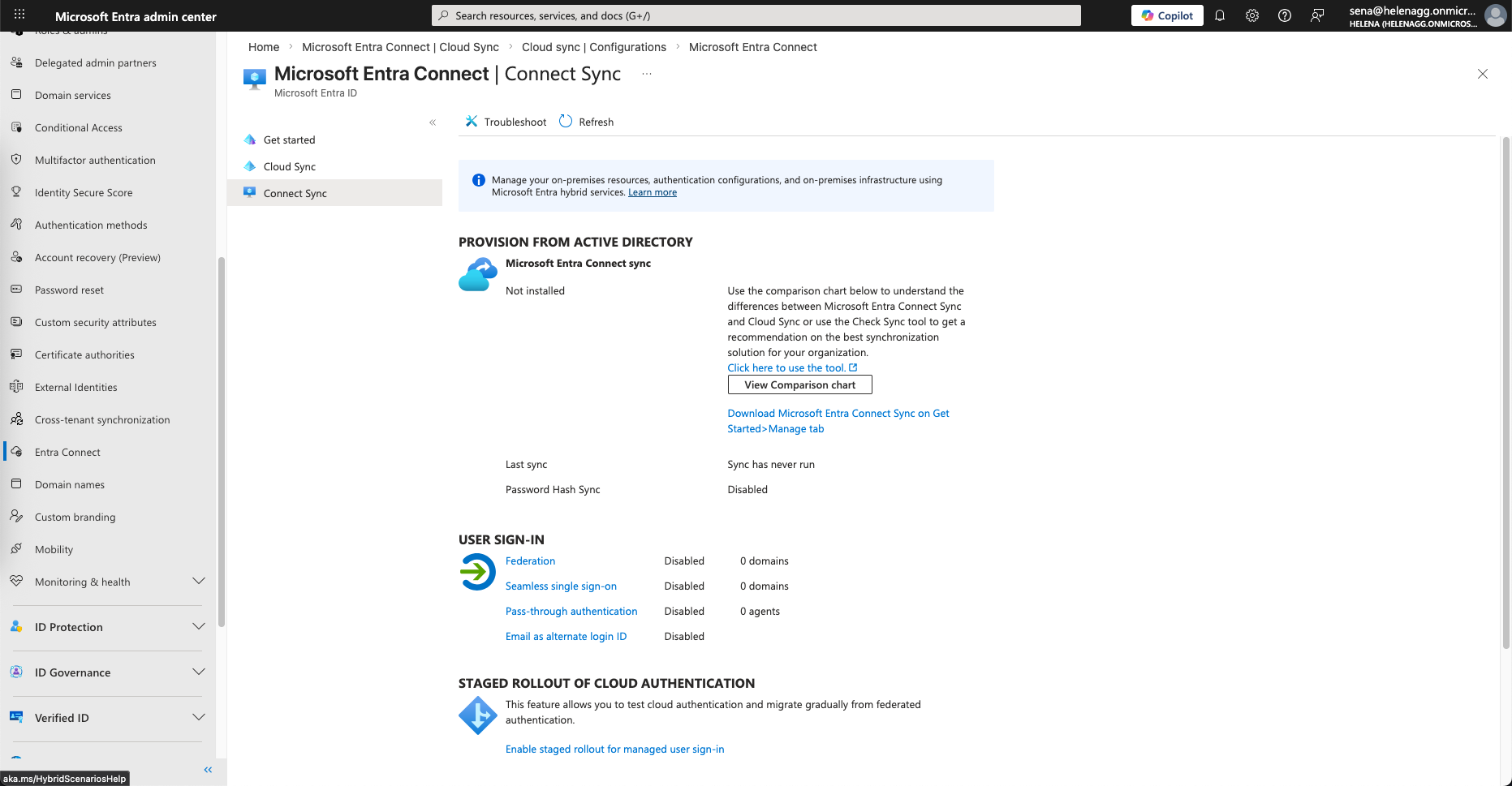

To to that we will use Entra Connect (Connect Sync). Download the installer

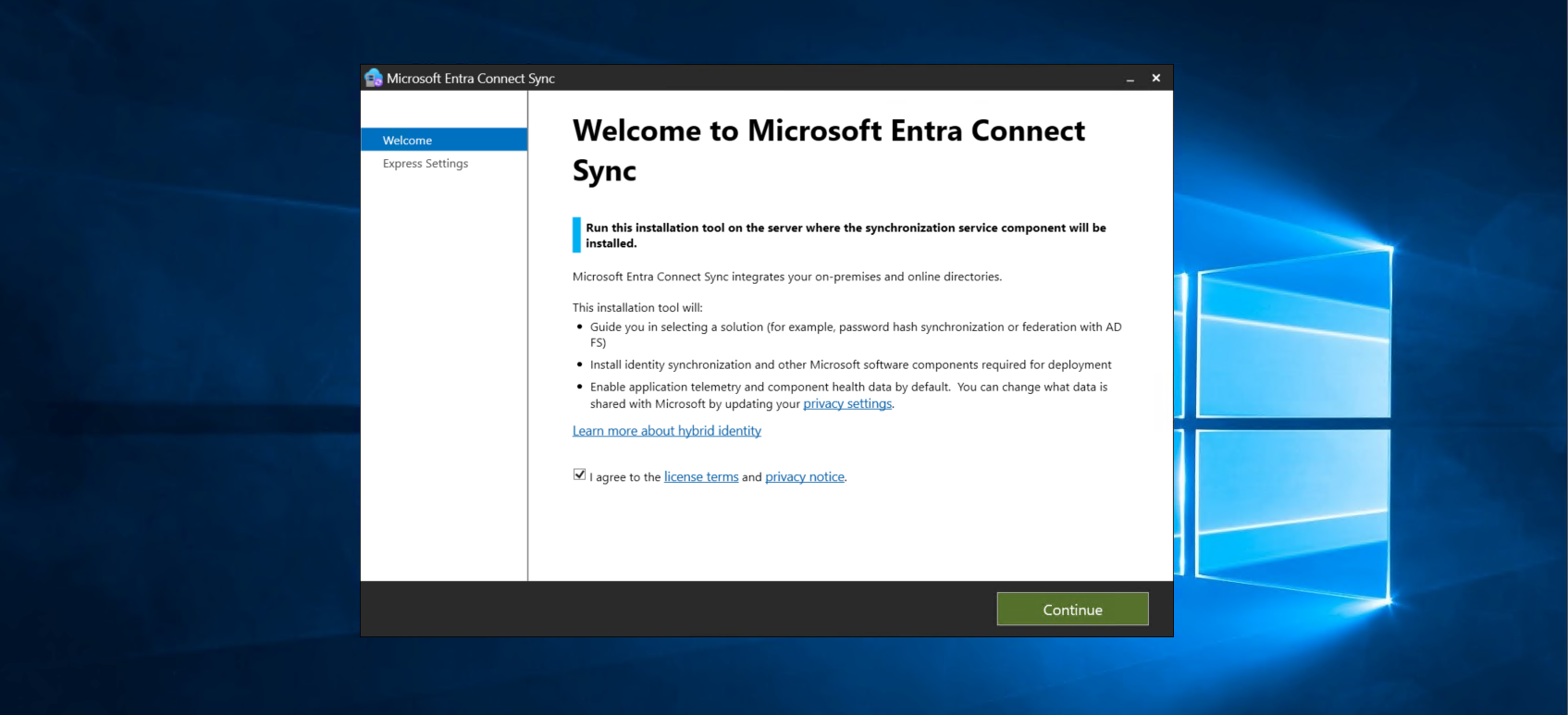

And install it on a Windows Server that joins the Domain

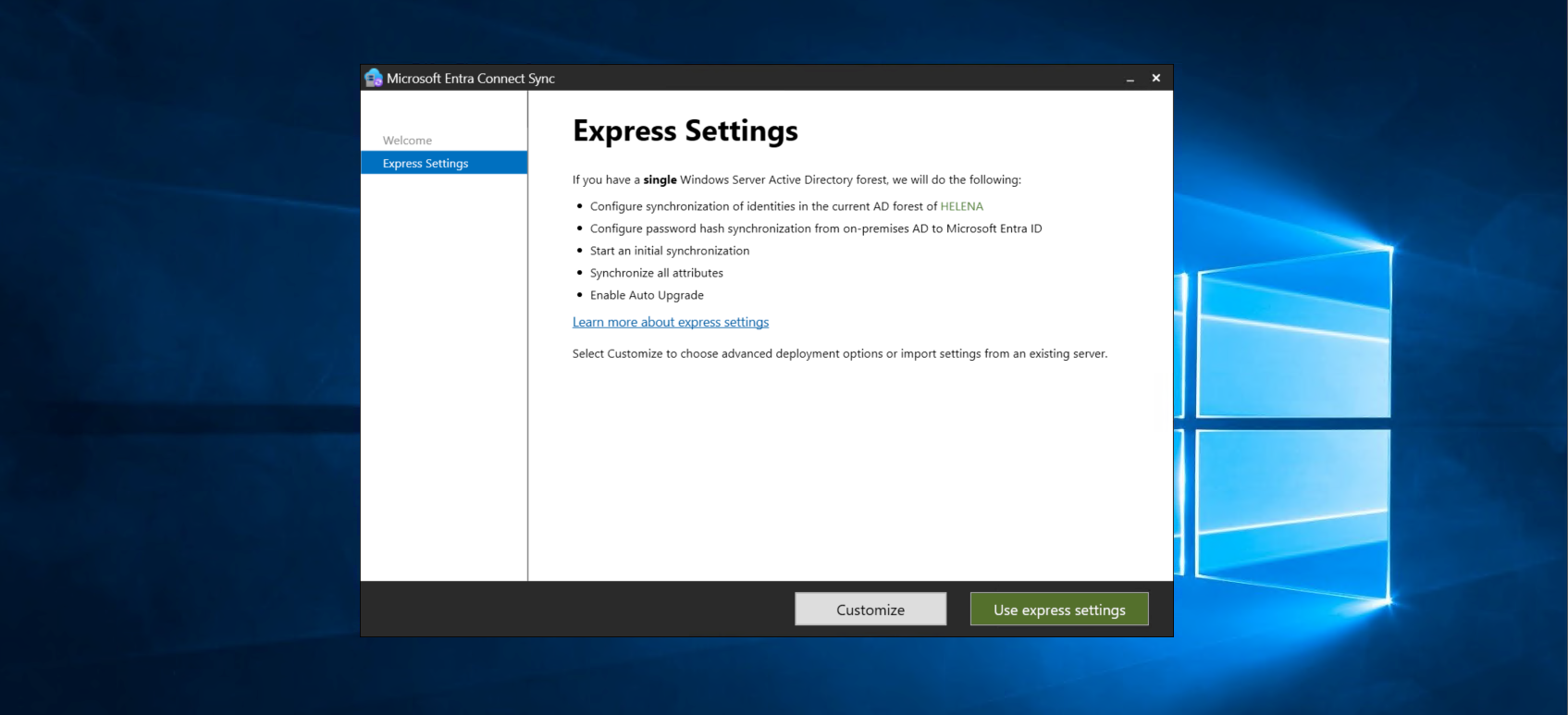

Here we have to use Customized Settings so we can enable an option to bypass domain verification, this is required because our lab domain (helena.gg) is different from the Entra domain (helenagg.onmicrosoft.com)

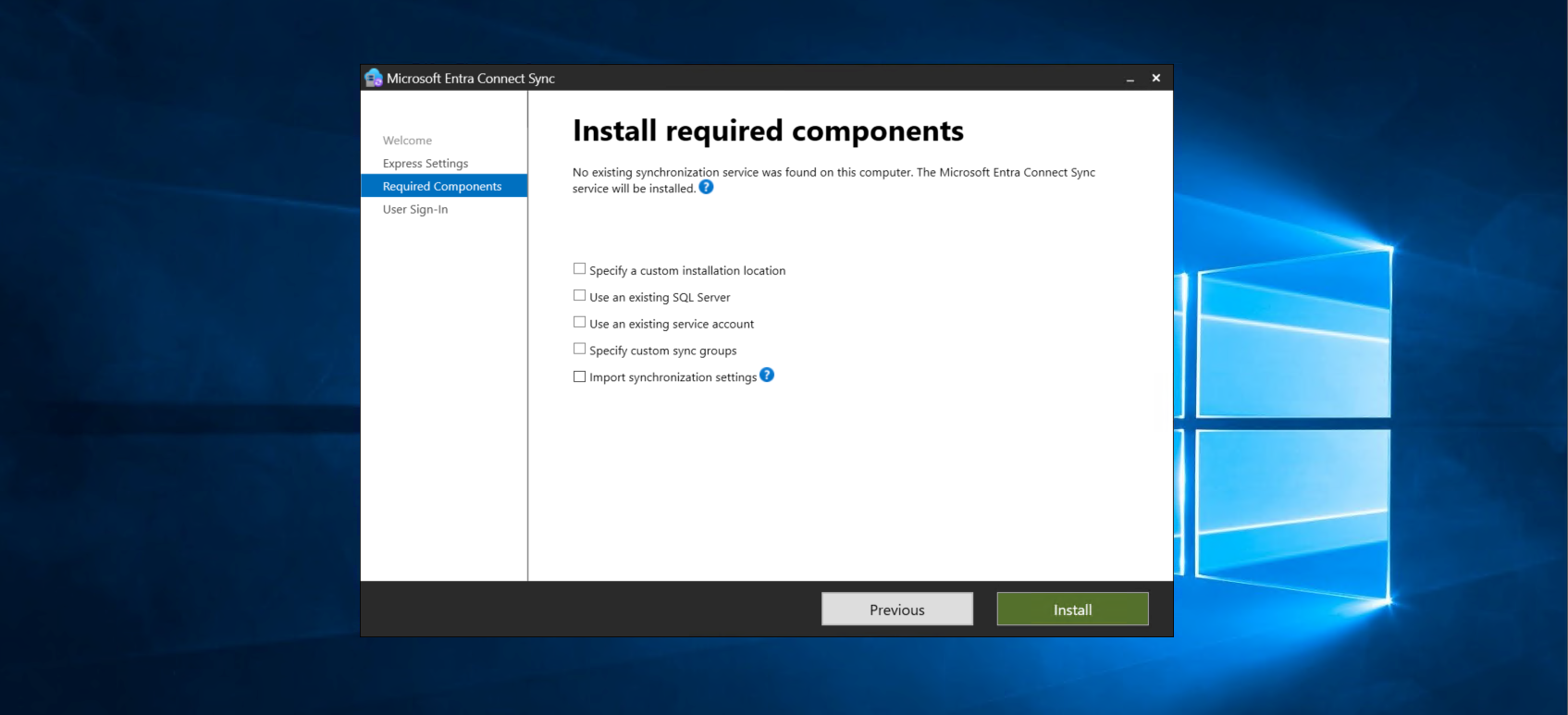

On required components leave all on defaults

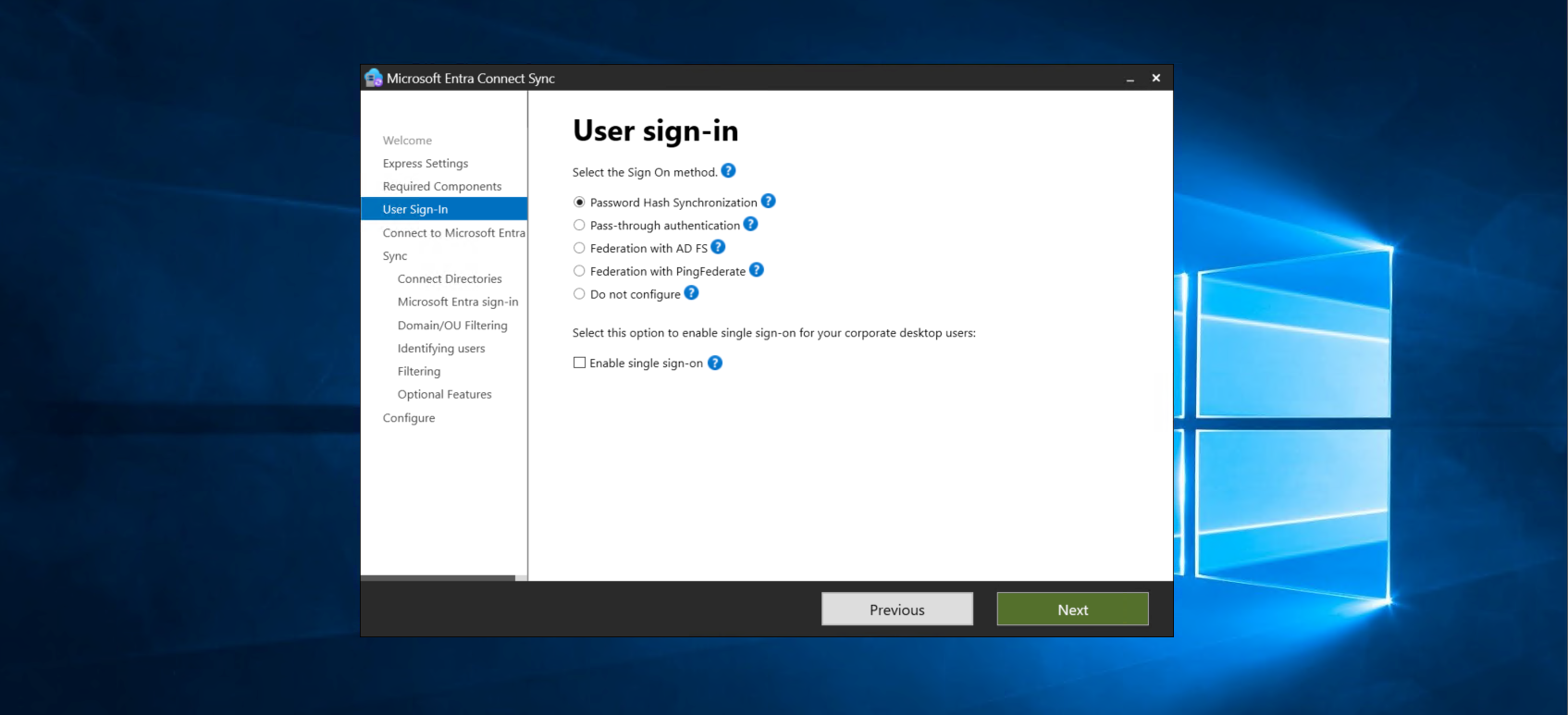

For user sign in, select Password Hash Synchronization. This is what allows our users to use their local AD password in the cloud.

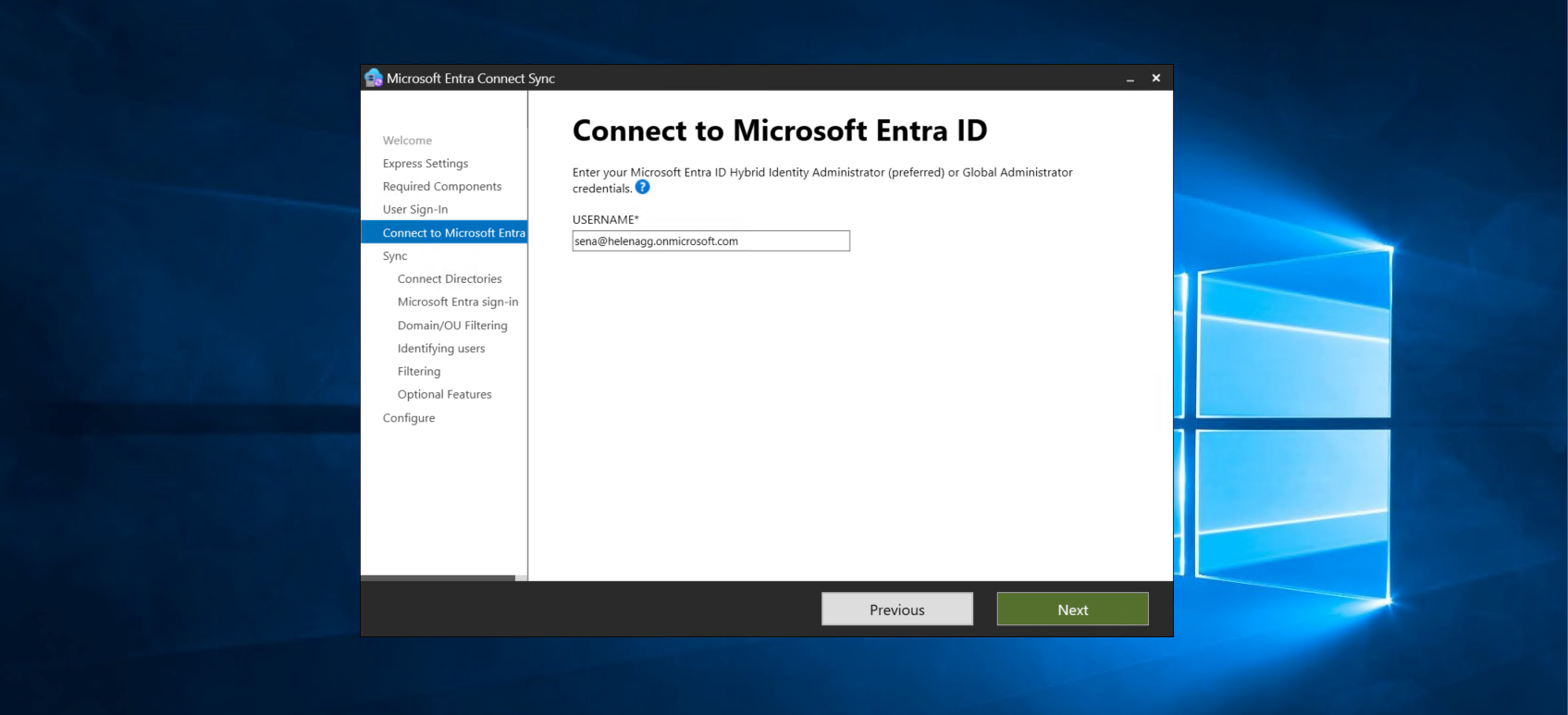

Then enter the admin user of our Entra ID

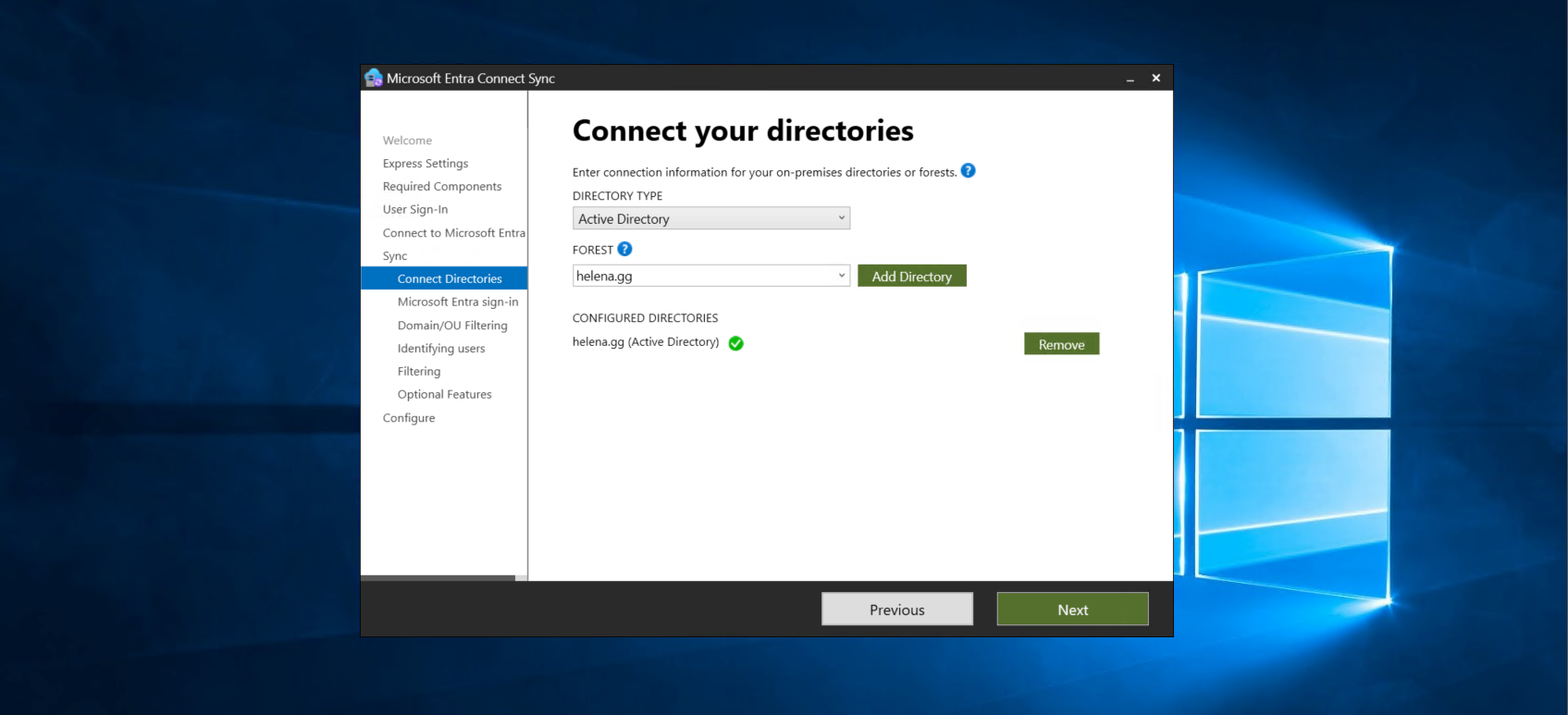

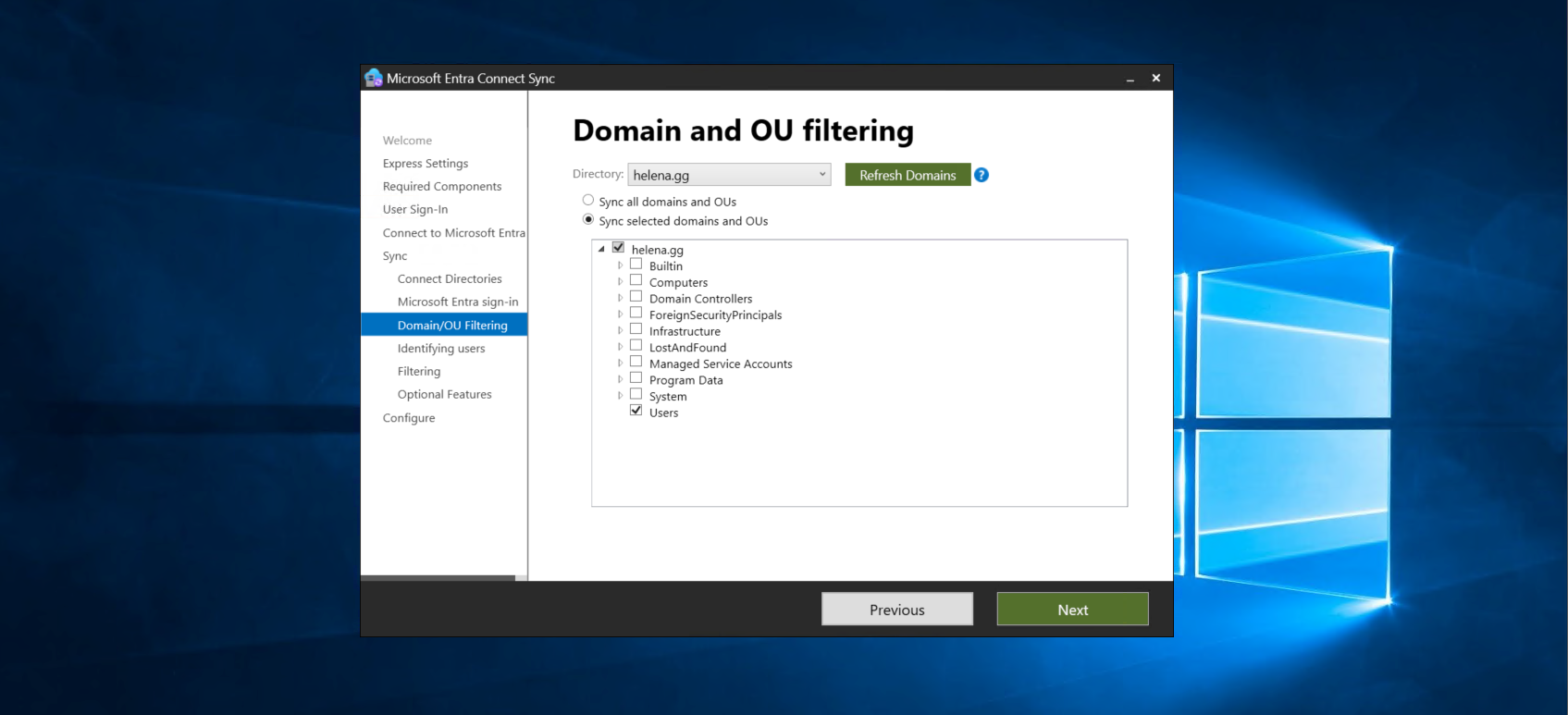

After that we select our on-prem domain that will be synced to the cloud

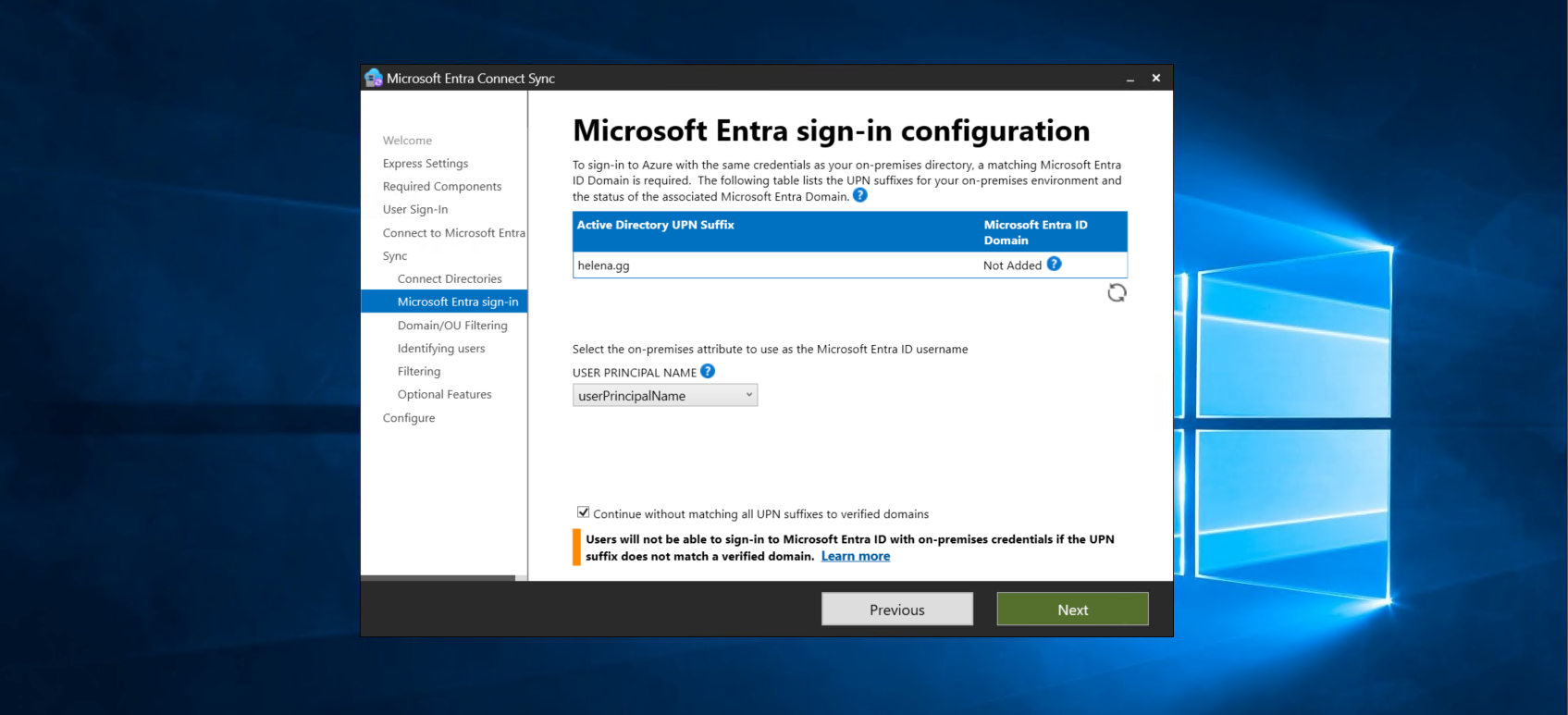

So this is the important step for our lab, select Continue without matching all UPN suffixes to verified domains to bypass the domain matching verification

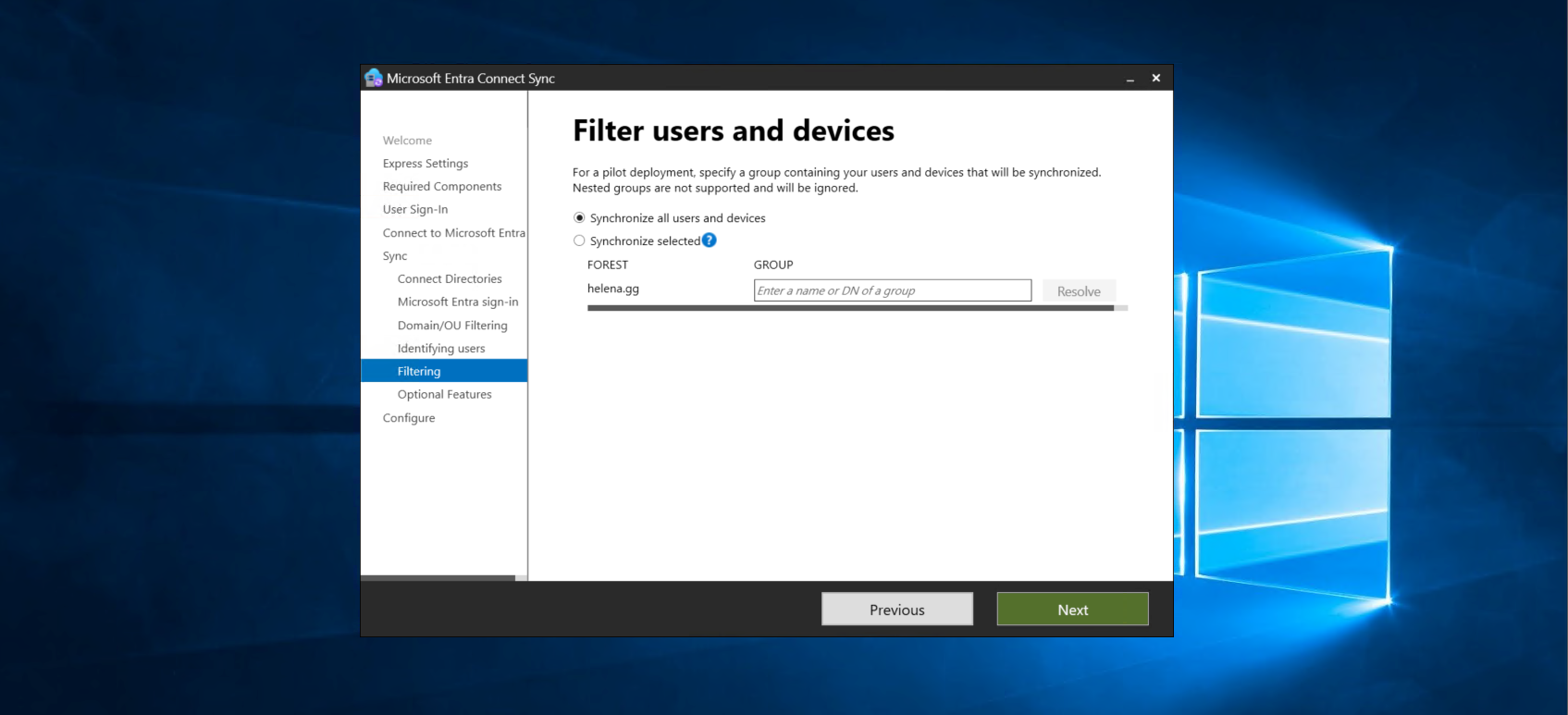

Then select the users to be synced

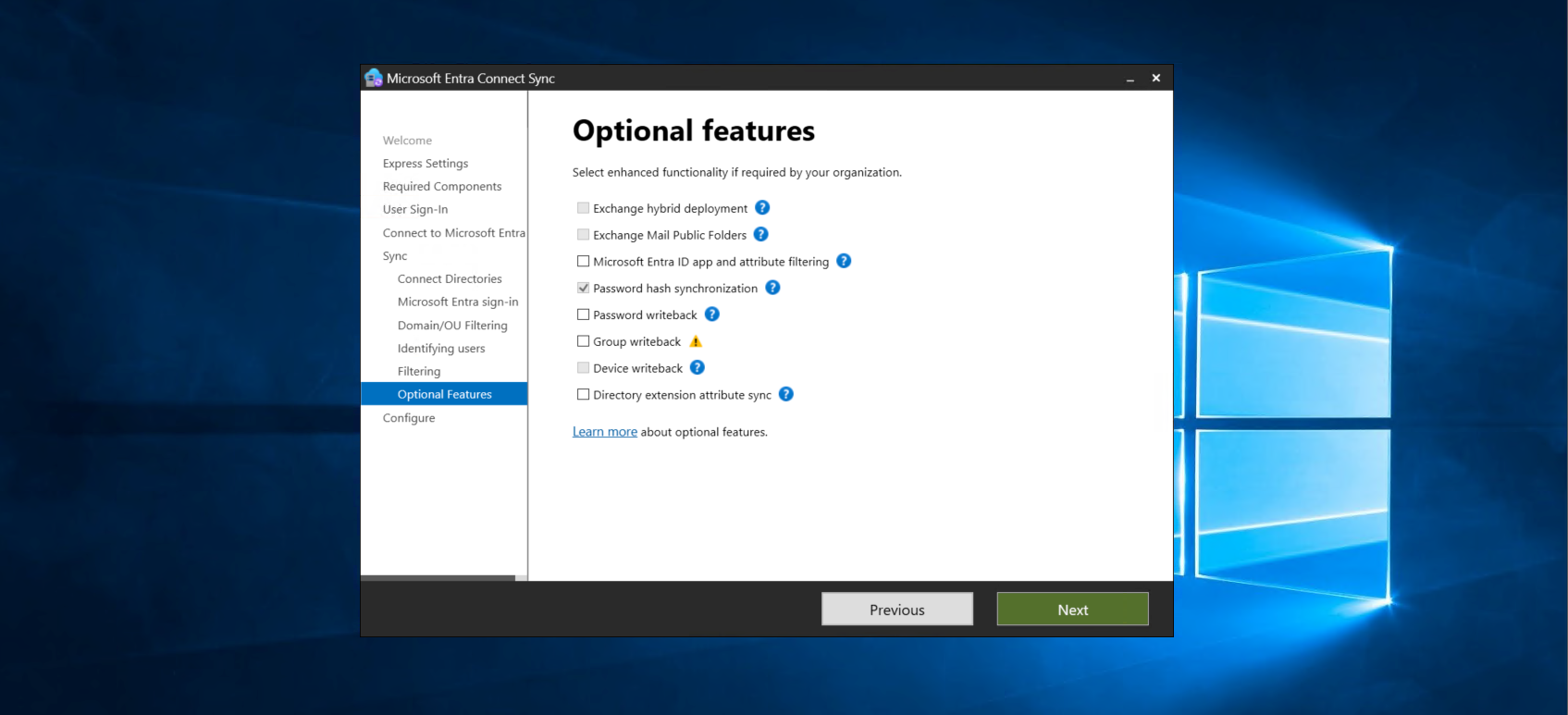

On optional features, make sure Password Hash Synchronization is enabled

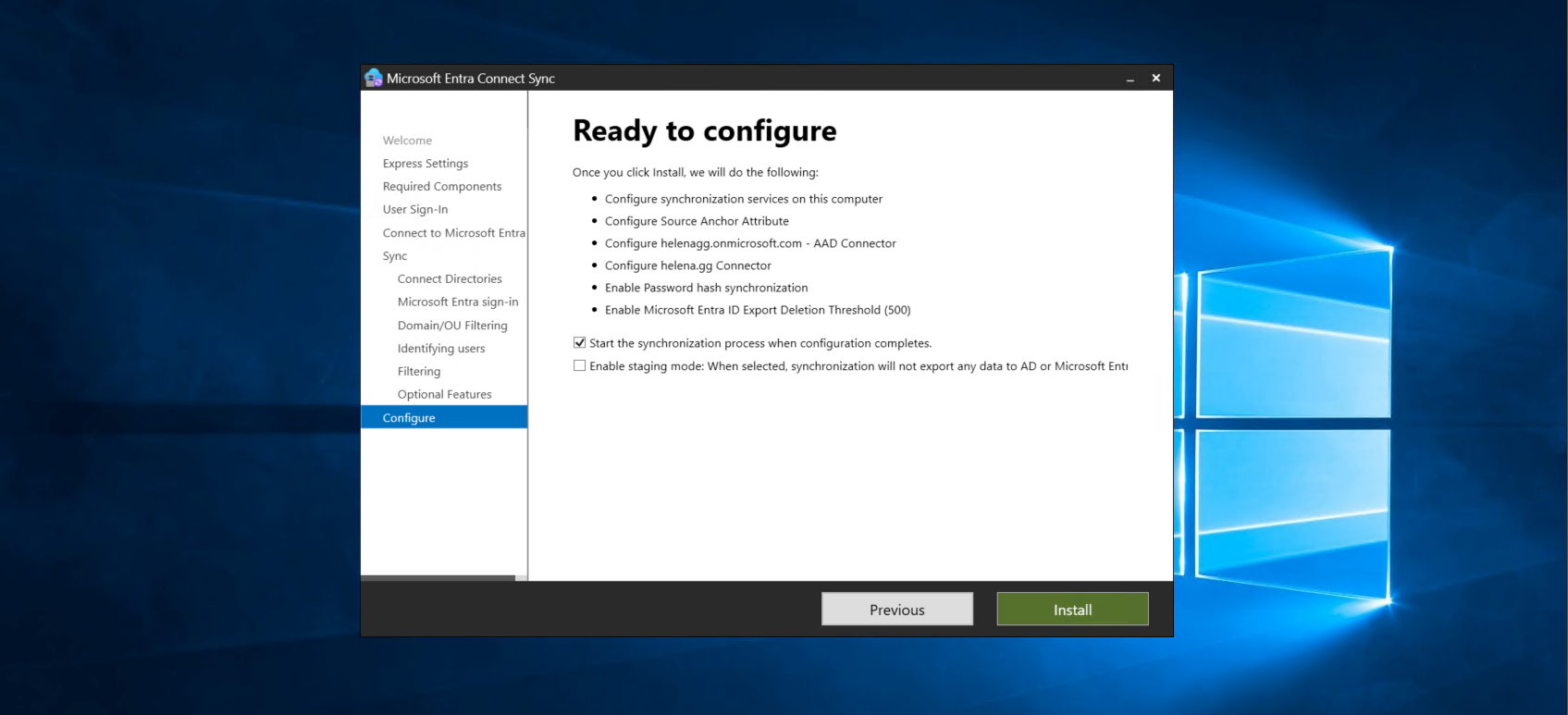

Review the configuration and hit install

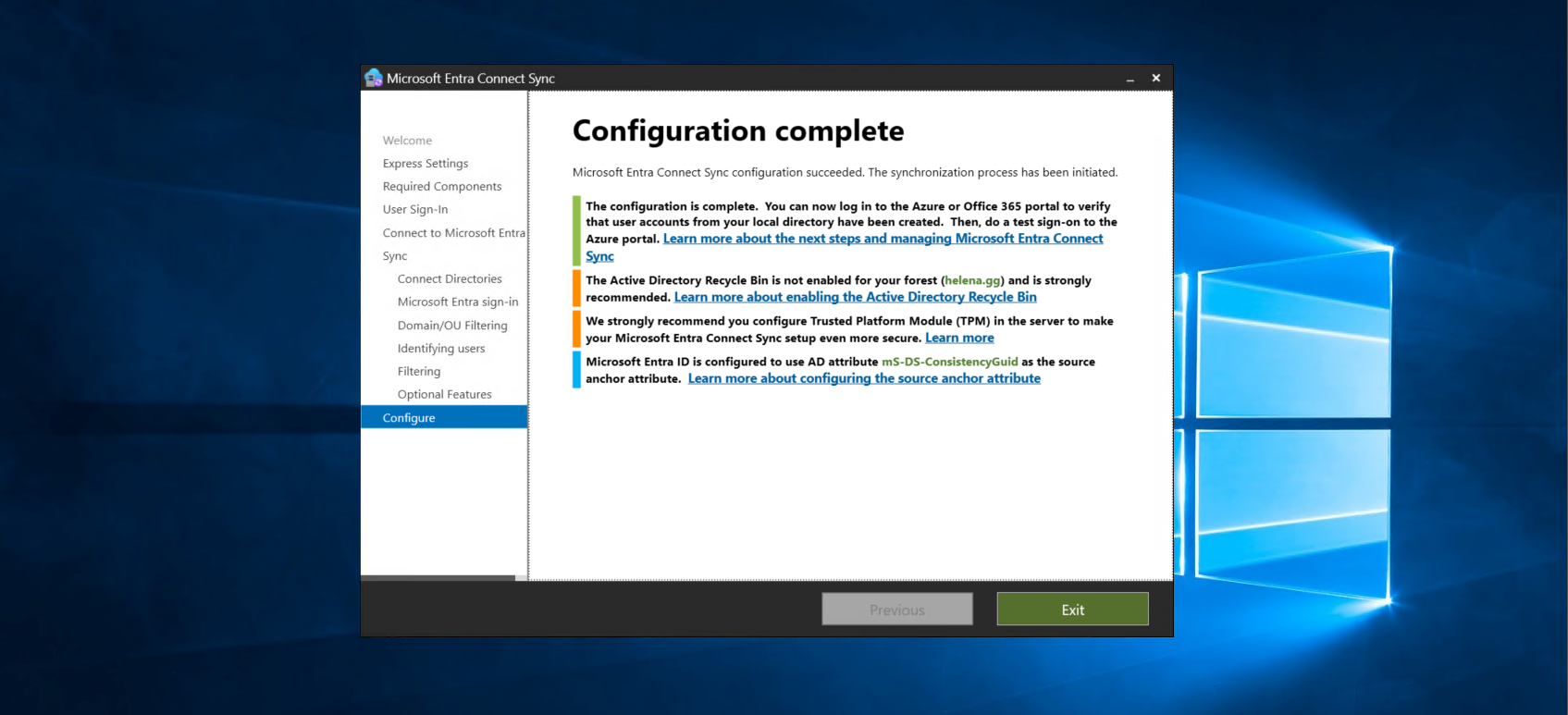

After a couple minutes, the configuration should succeed

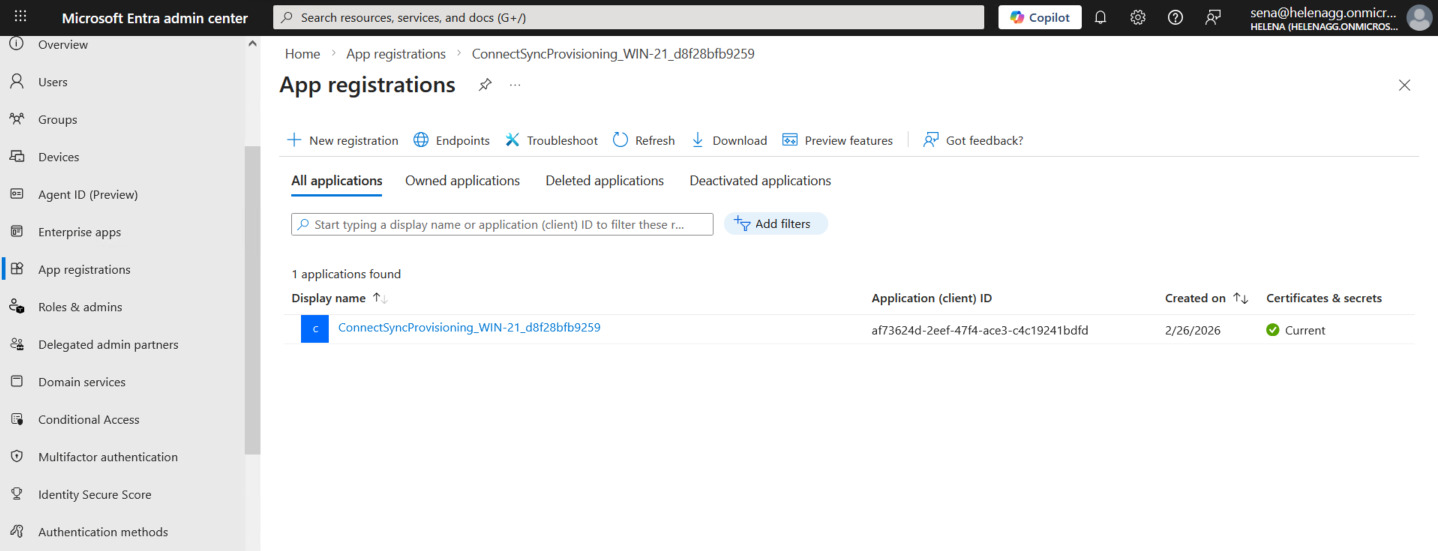

Back to our Entra Portal, we can see the Connect Sync Application is registered

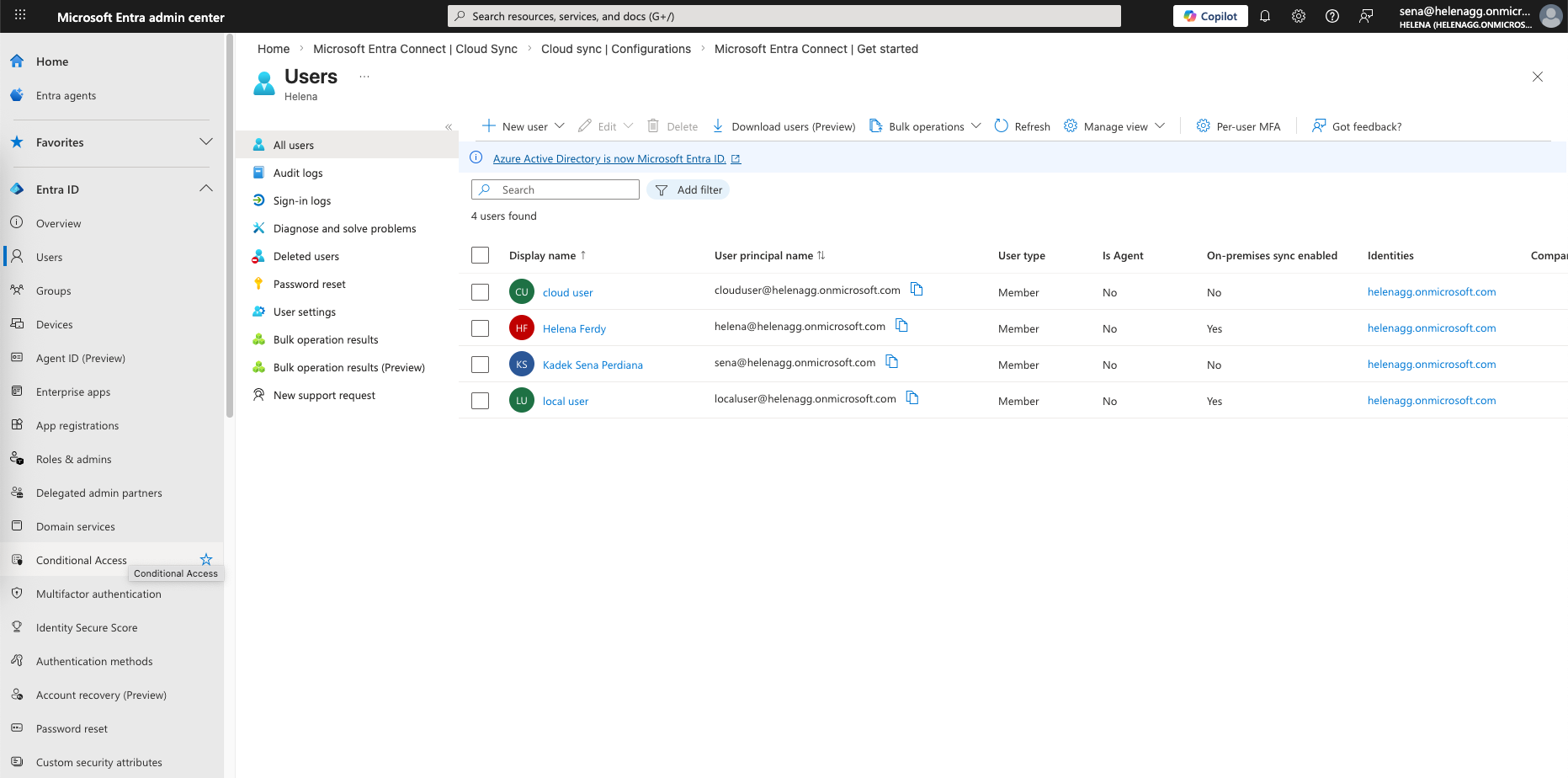

And now our ADDS users also show up here

Enabling MFA

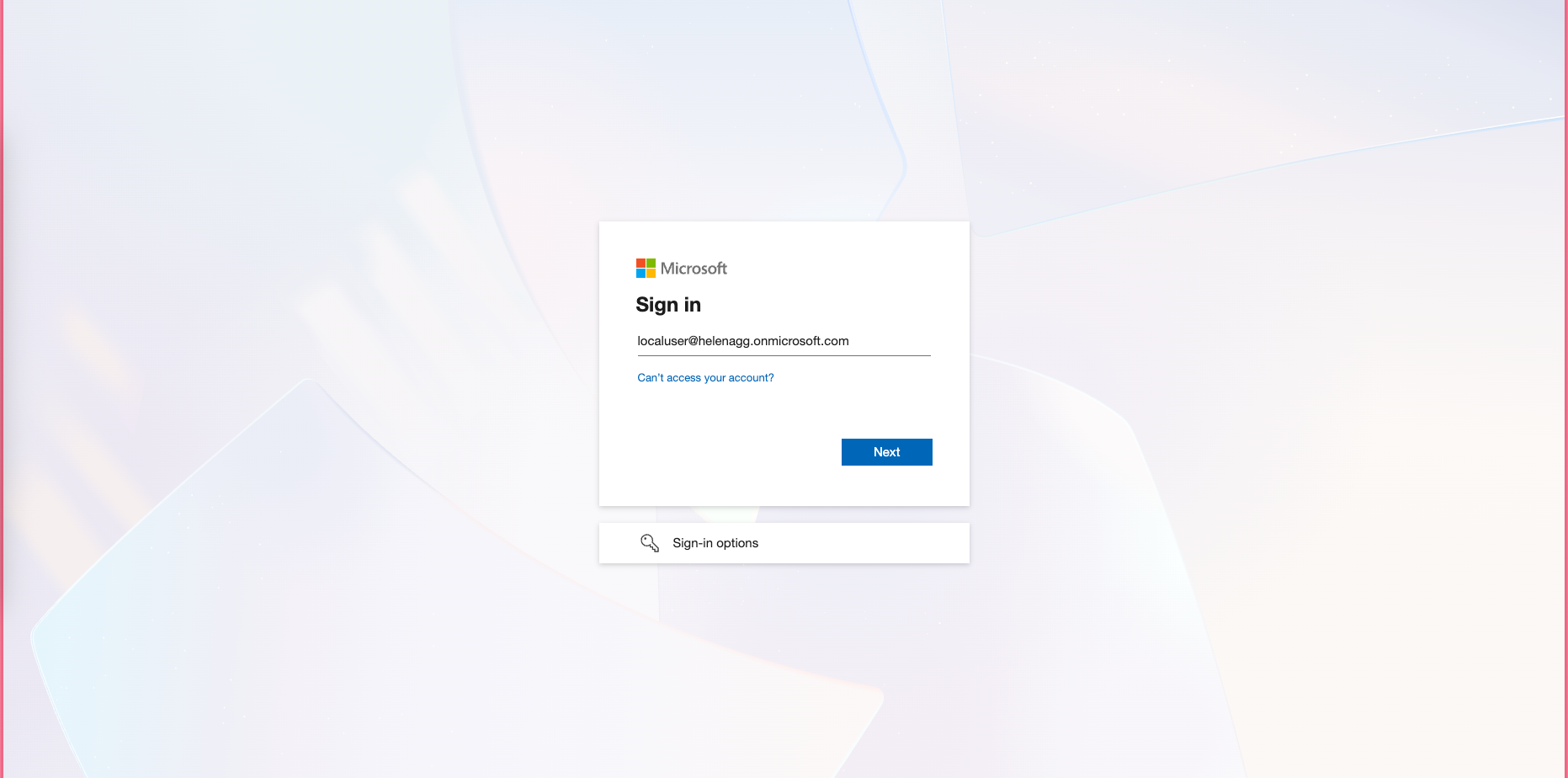

To enable MFA, we can login to Microsoft using our newly synced users

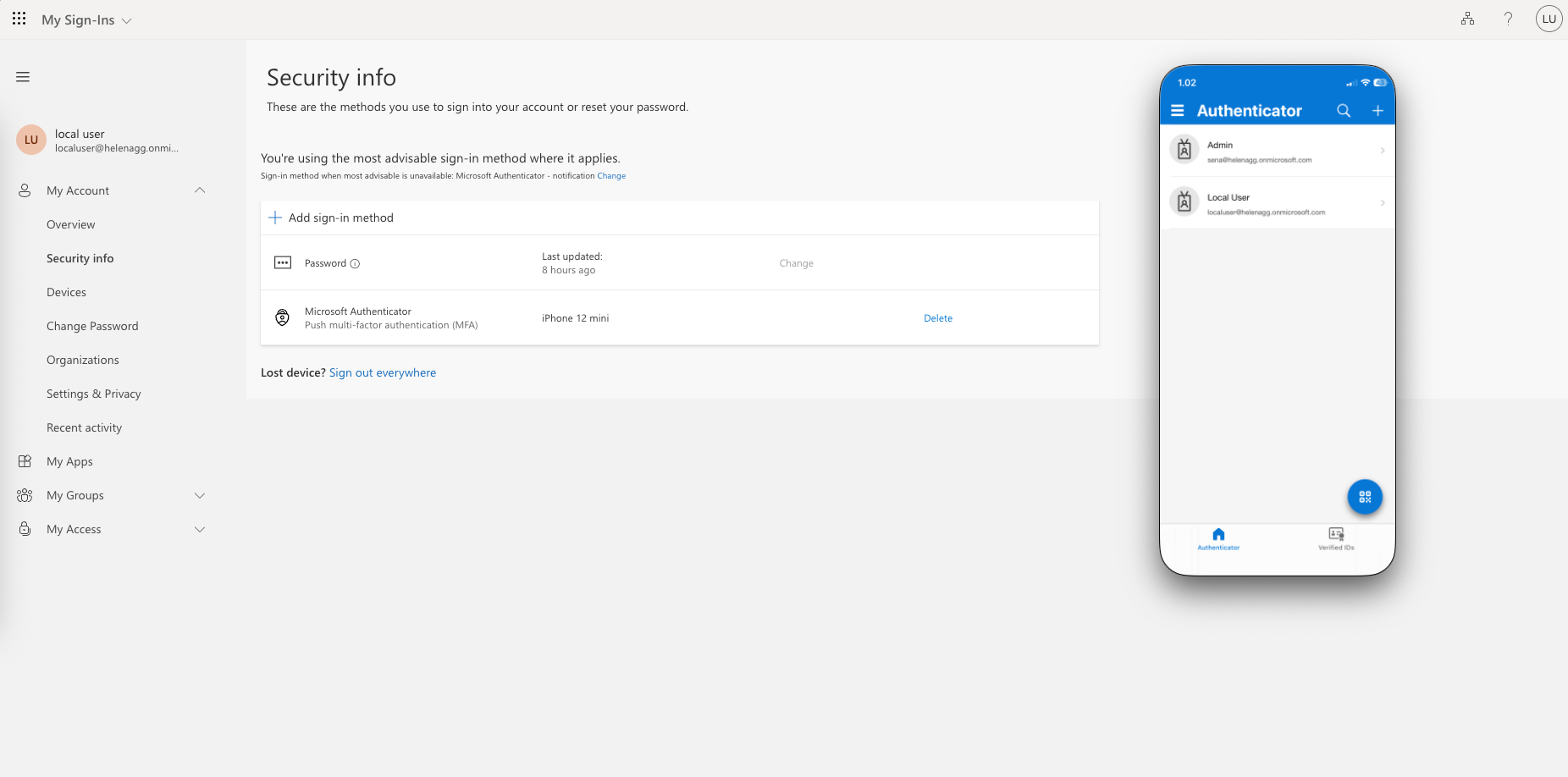

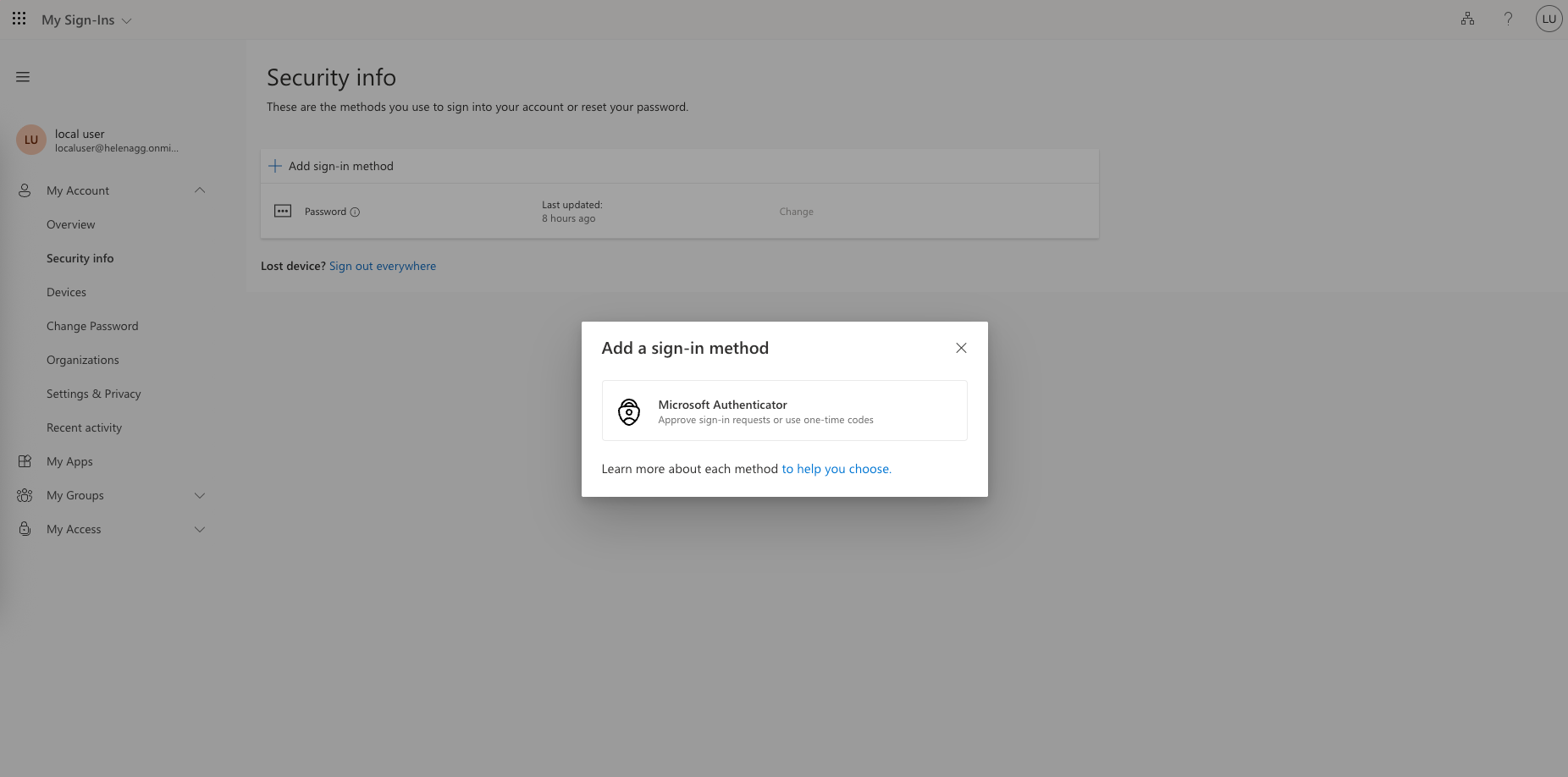

Inside it, we add the Microsoft Authenticator as the MFA sign-in method

Now everytime we need to authenticate the localuser, we will get an MFA verification

NPS Configuration

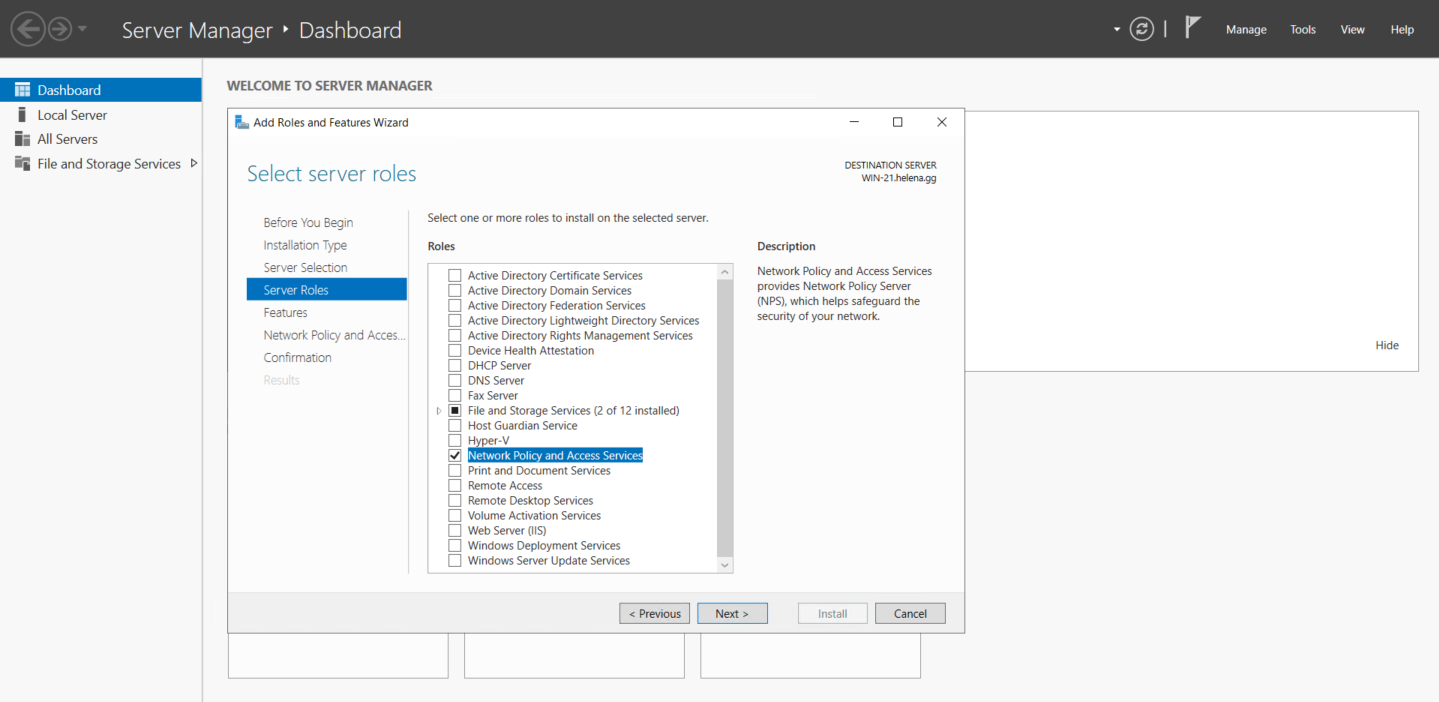

Now that we have our Entra users set up, lets proceed configuring NPS as our proxy server to receive Radius connection from the VPN gateway and bridge it to Entra ID. First we enable the Network Policy and Access Services on a Windows Server that joins the domain

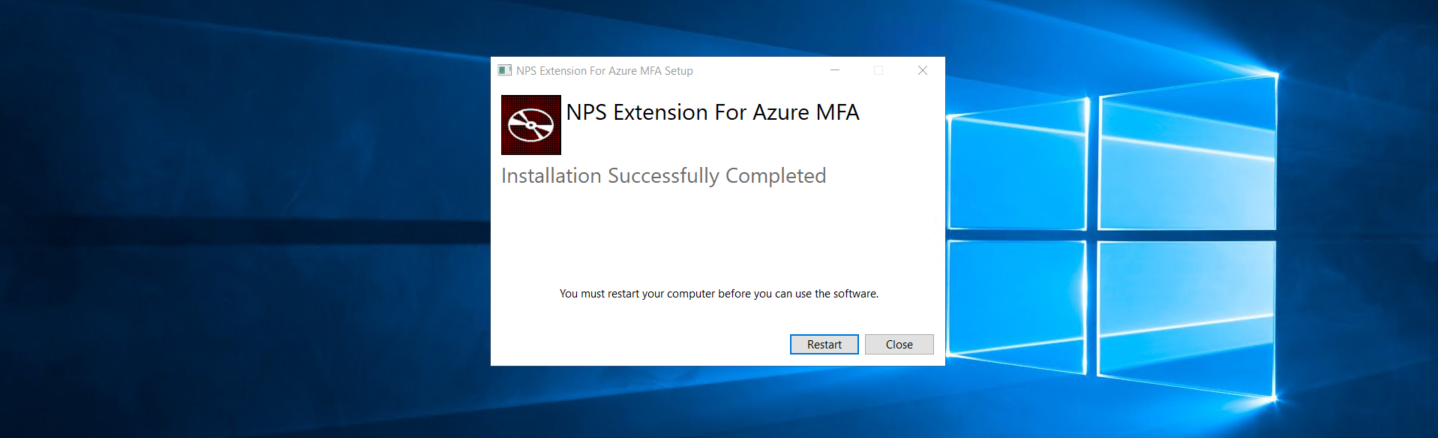

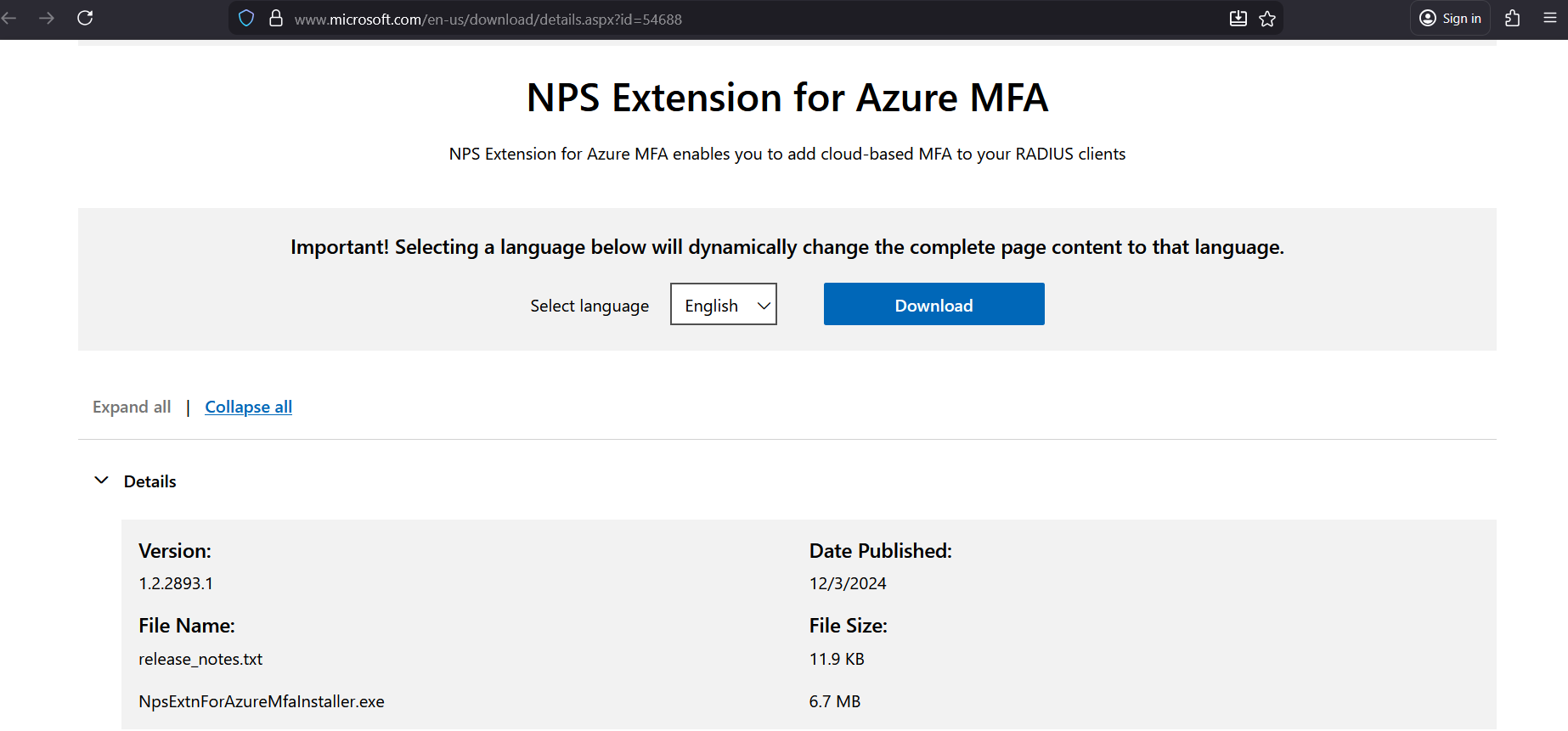

After that, download the NPS Installer and run it

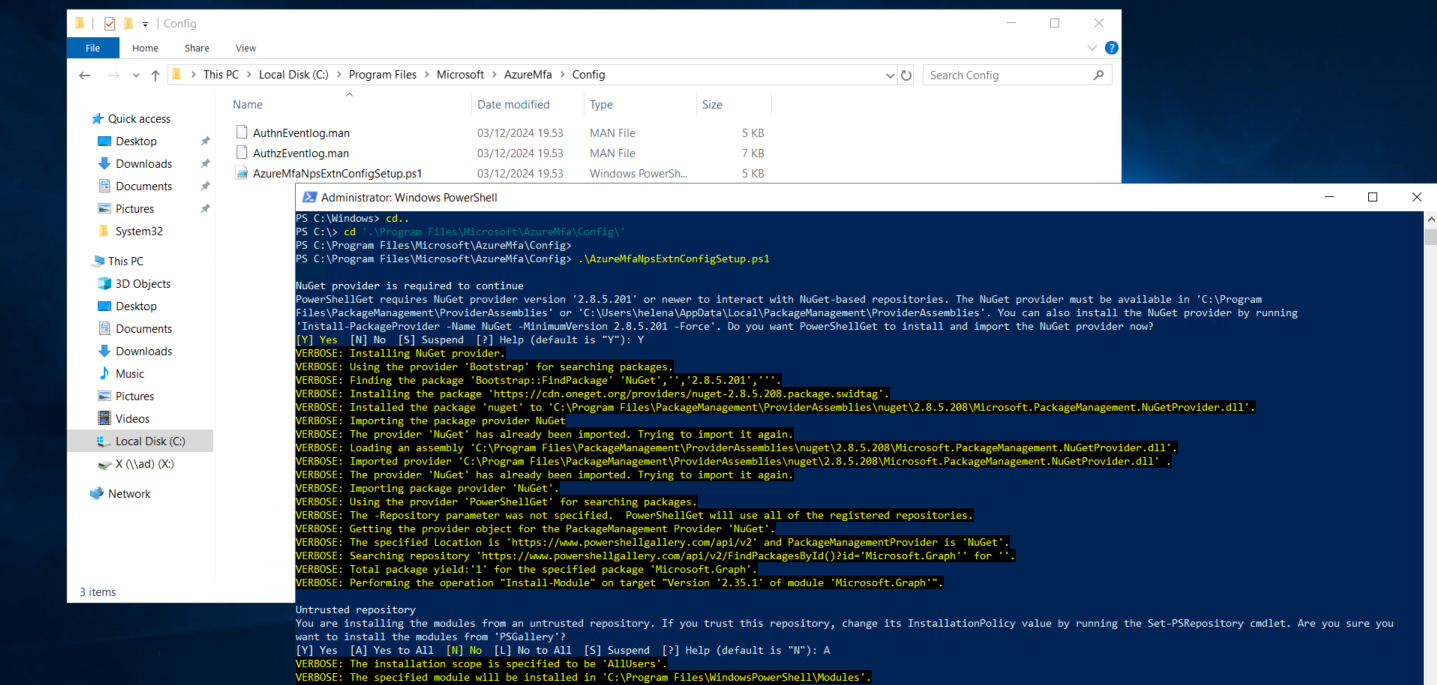

Next go to “C:\Program Files\Microsoft\AzureMfa\Config” and run the “AzureMfaNpsExtnConfigSetup.ps1” script

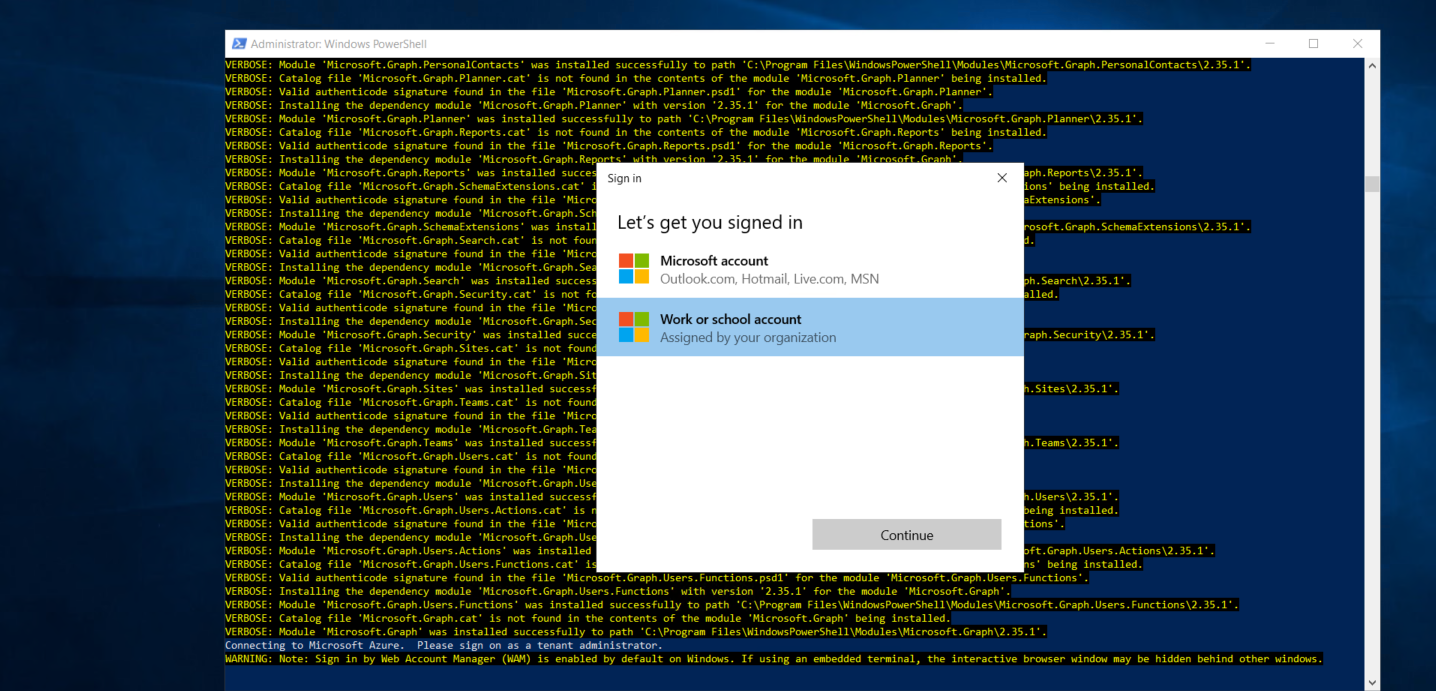

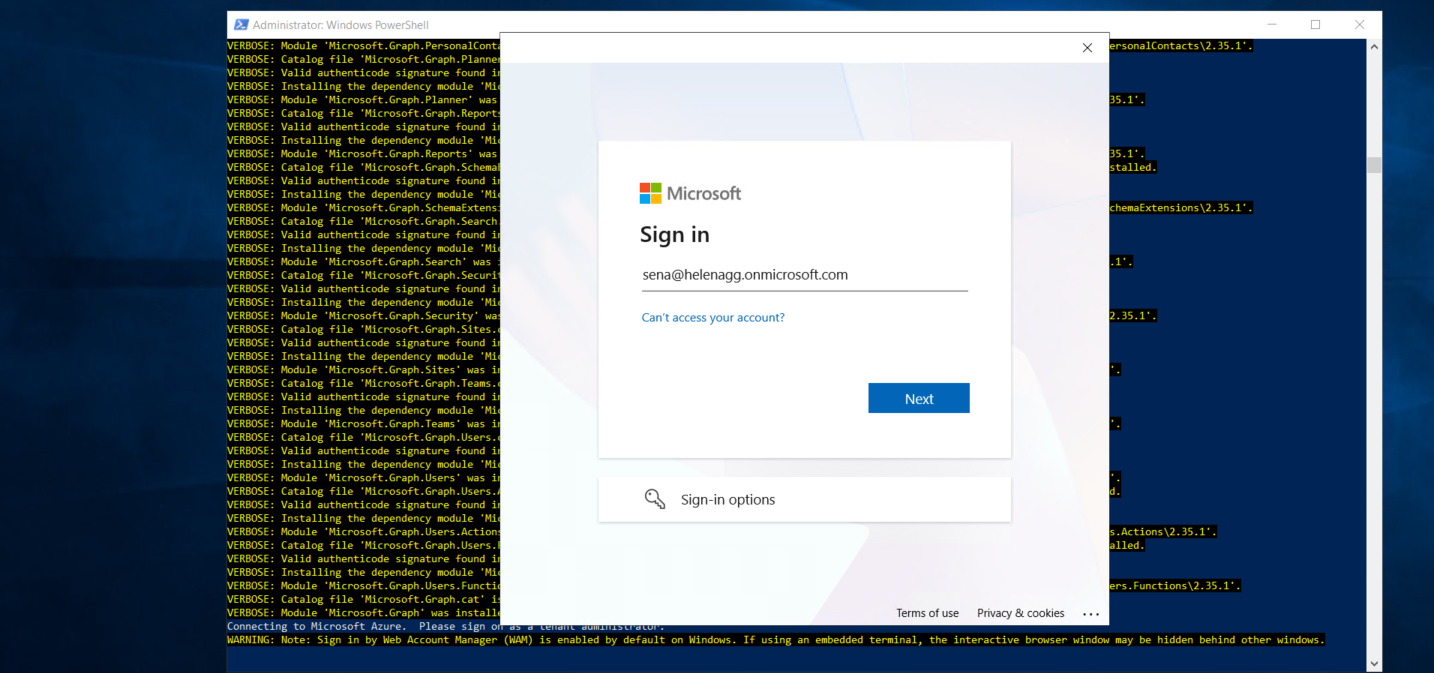

It will asks us to add our Tenant Admin User

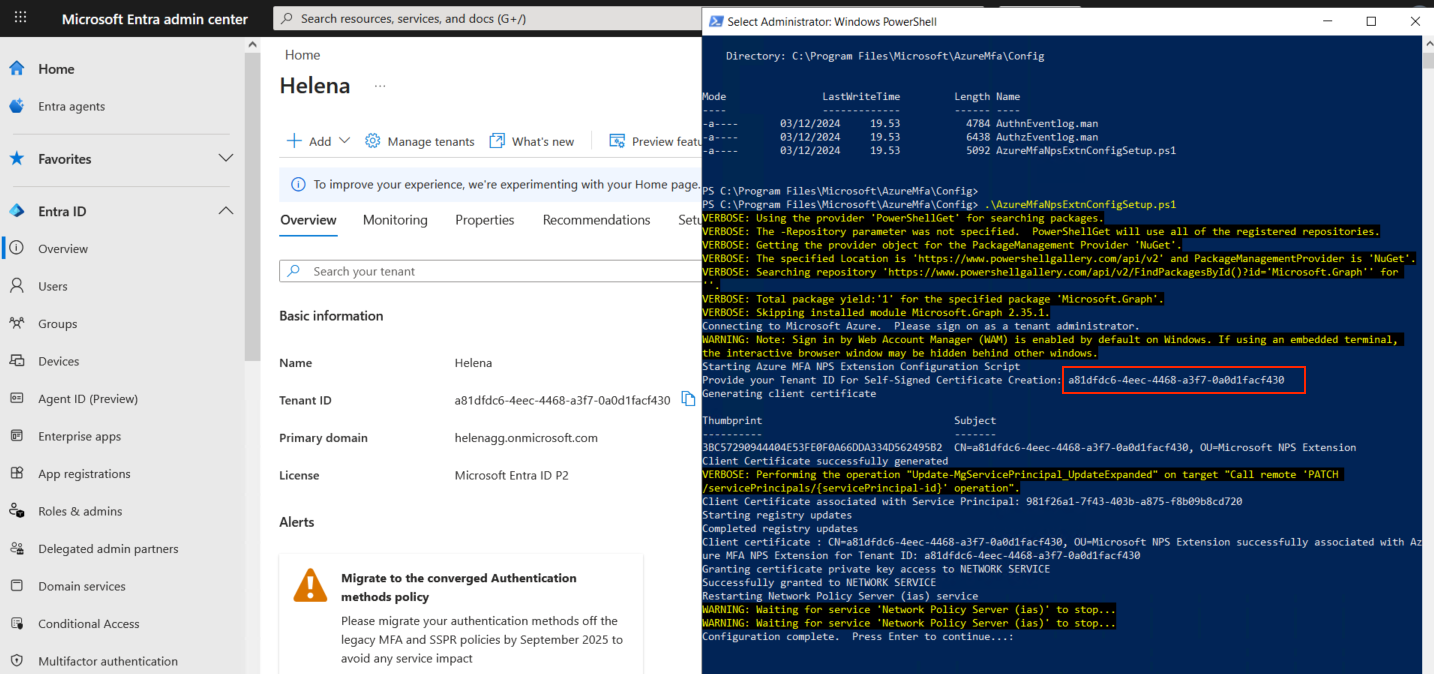

Run the command again until it asks for our Tenant ID

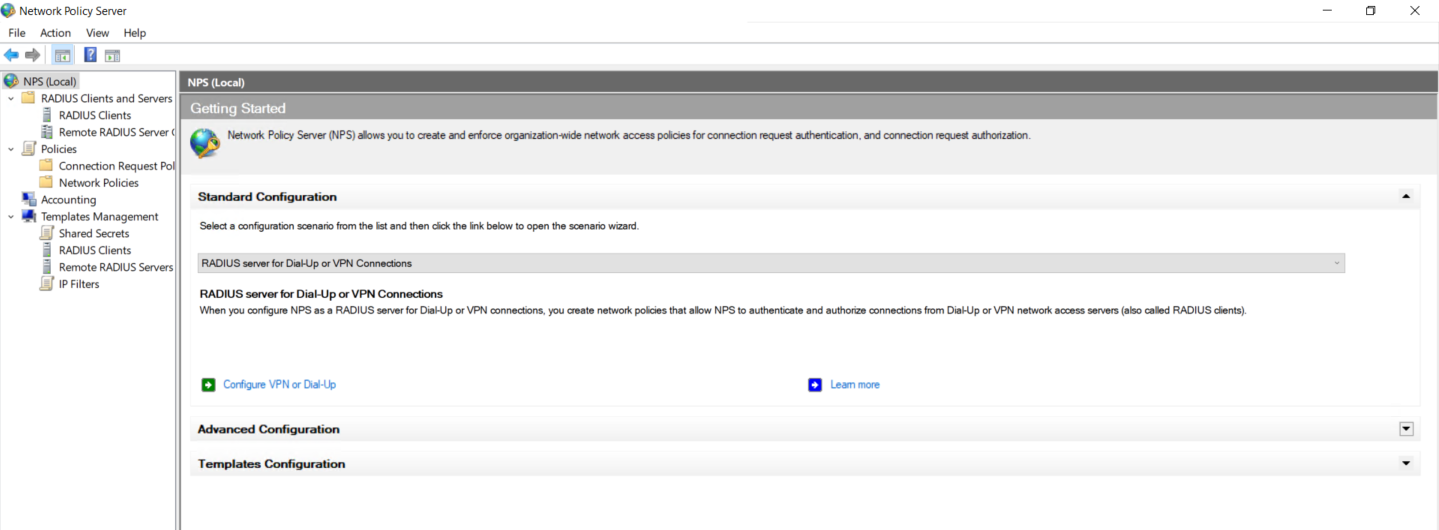

Next we can open the NPS Window inside the Server Manager

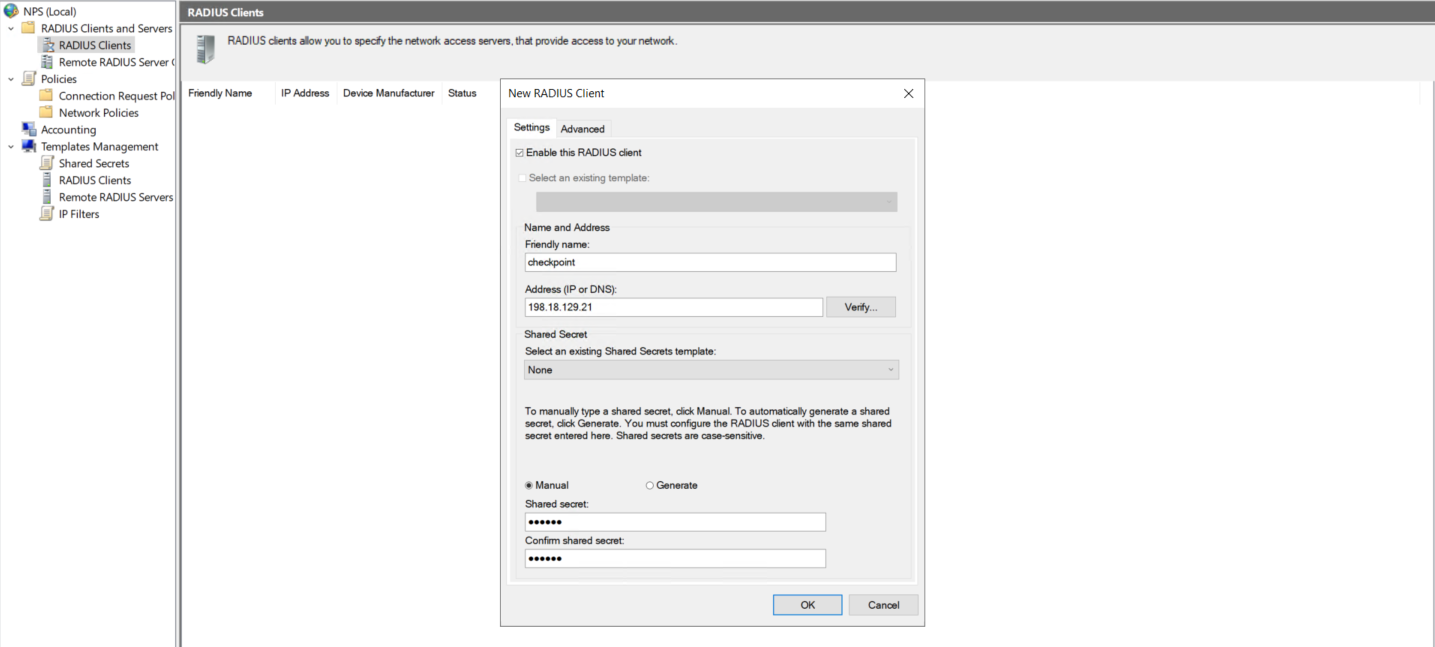

First we’ll add the Checkpoint as the Radius Client

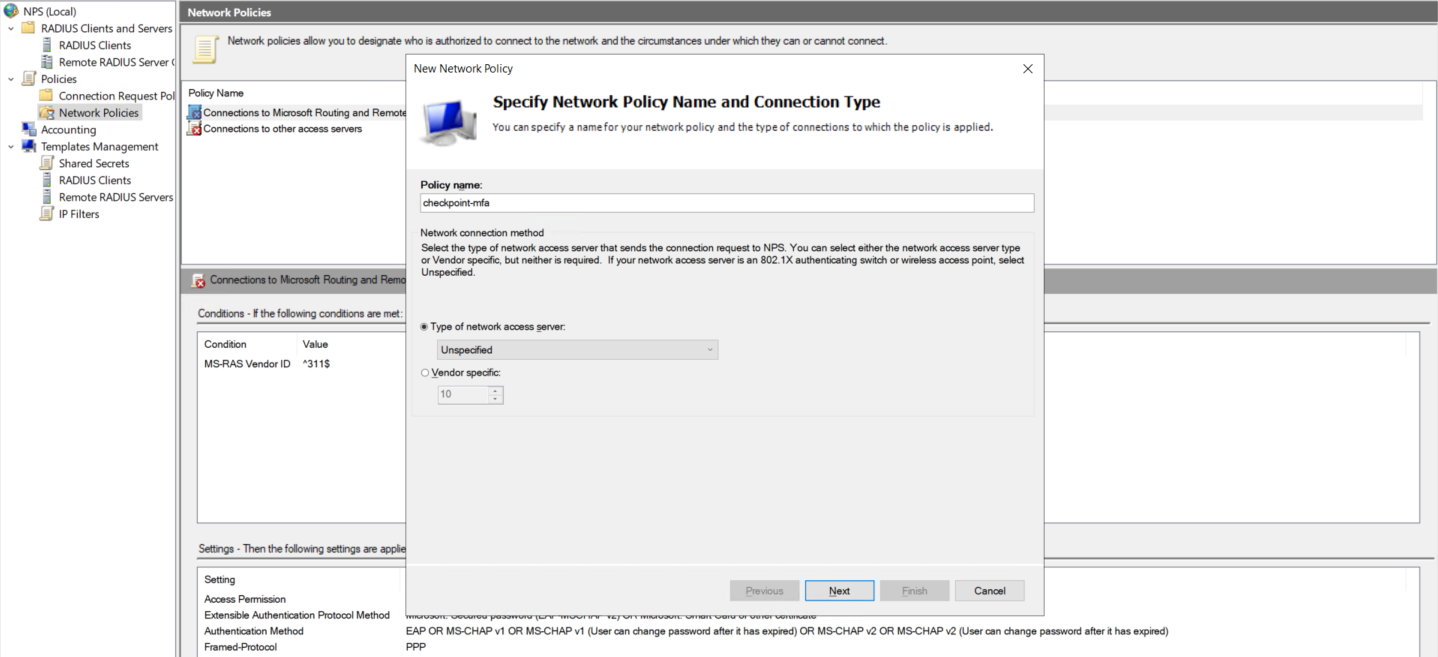

After that we create a Network Policy

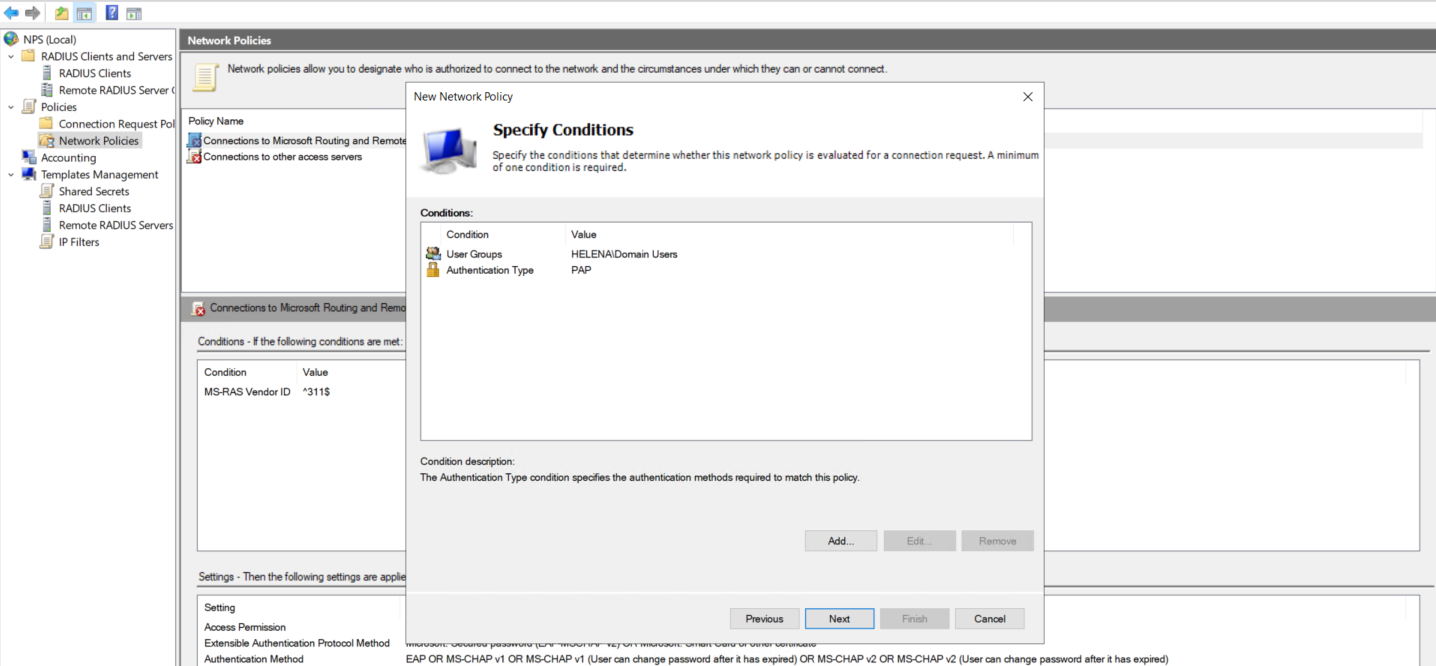

For the condition, we will configure simple condition that looks for Domain Users and PAP authentication method

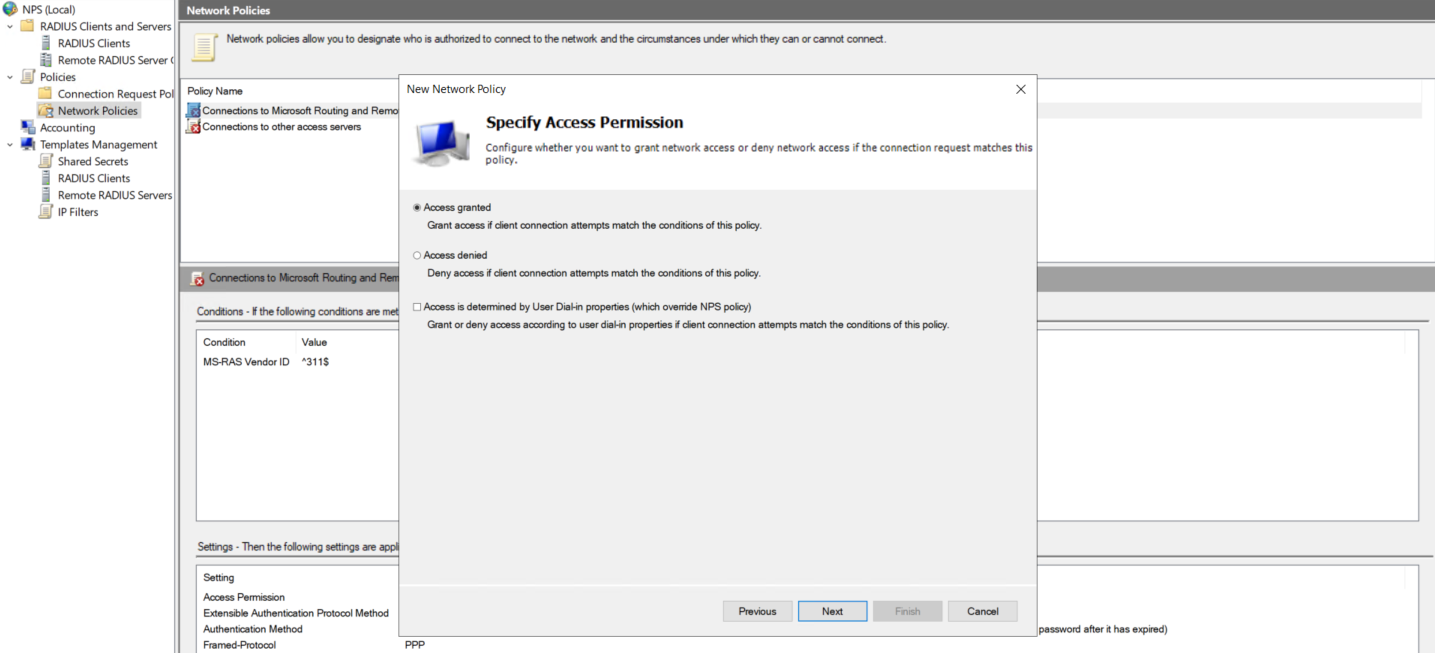

Then select Grant Access

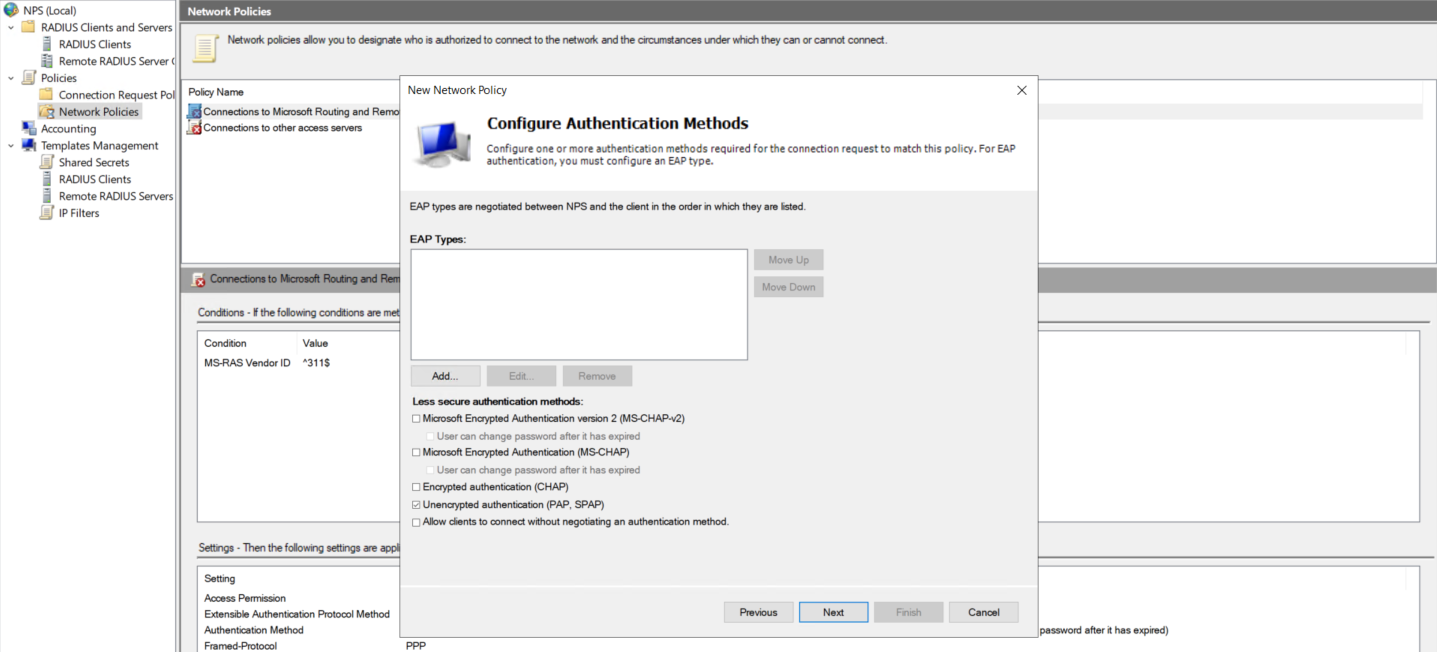

And enable Unencrypted Authentication (PAP, SPAP)

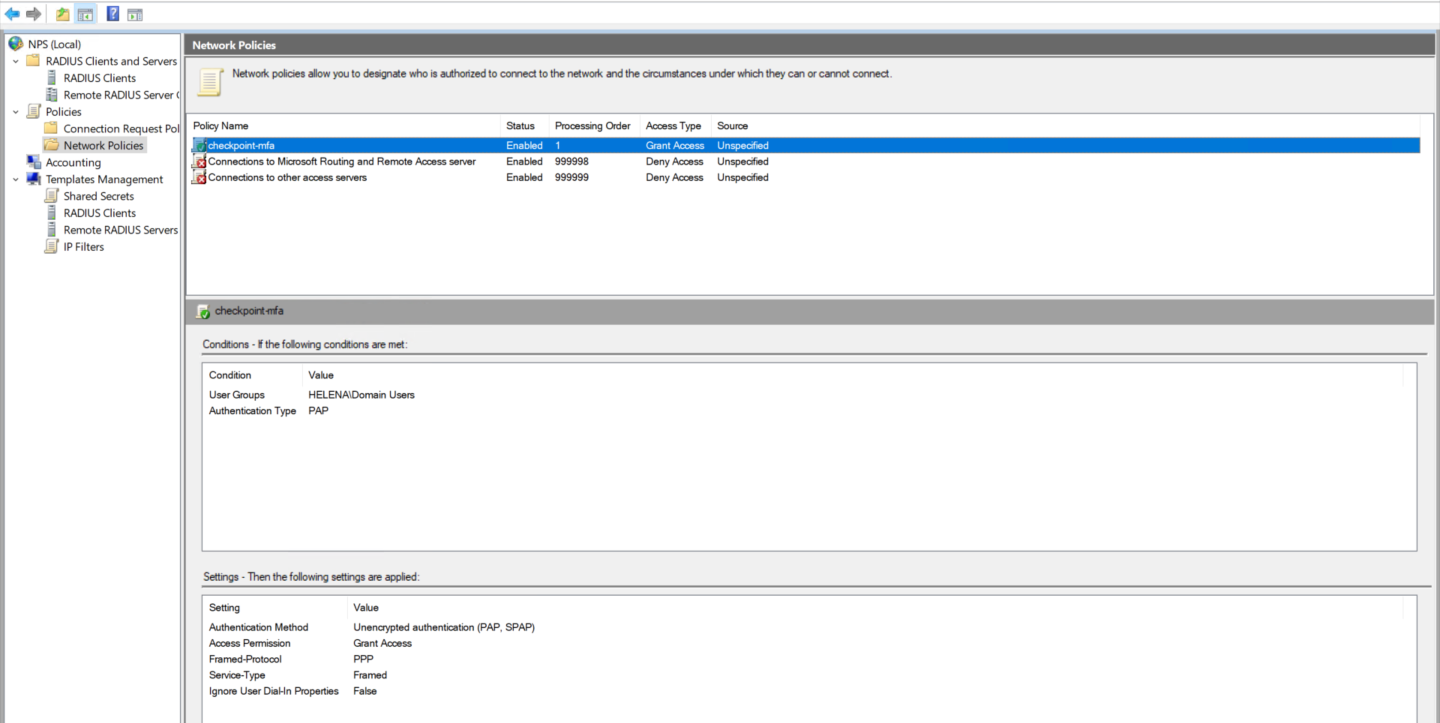

That should conclude our NPS configuration

Check Point Configuration

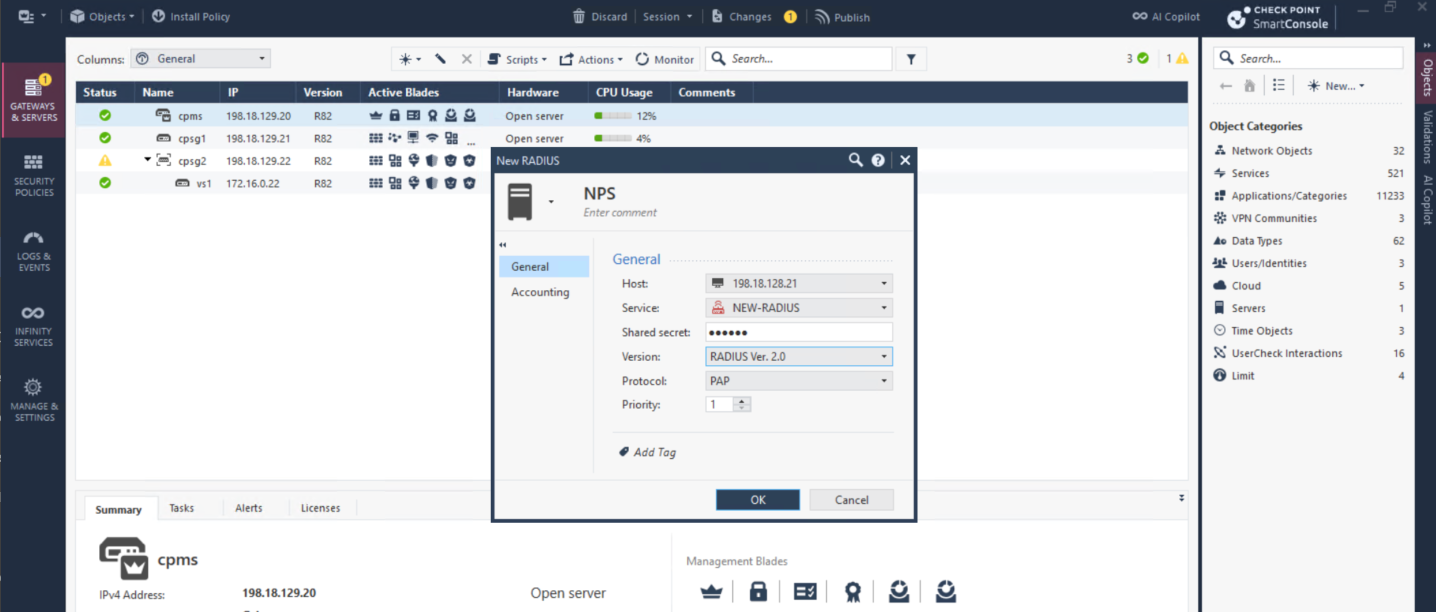

Now we move on to Check Point side, we’ll simply modify the existing working SSL VPN configuration to now use our NPS Server as Radius Auth Server. First we add the NPS as Radius Server

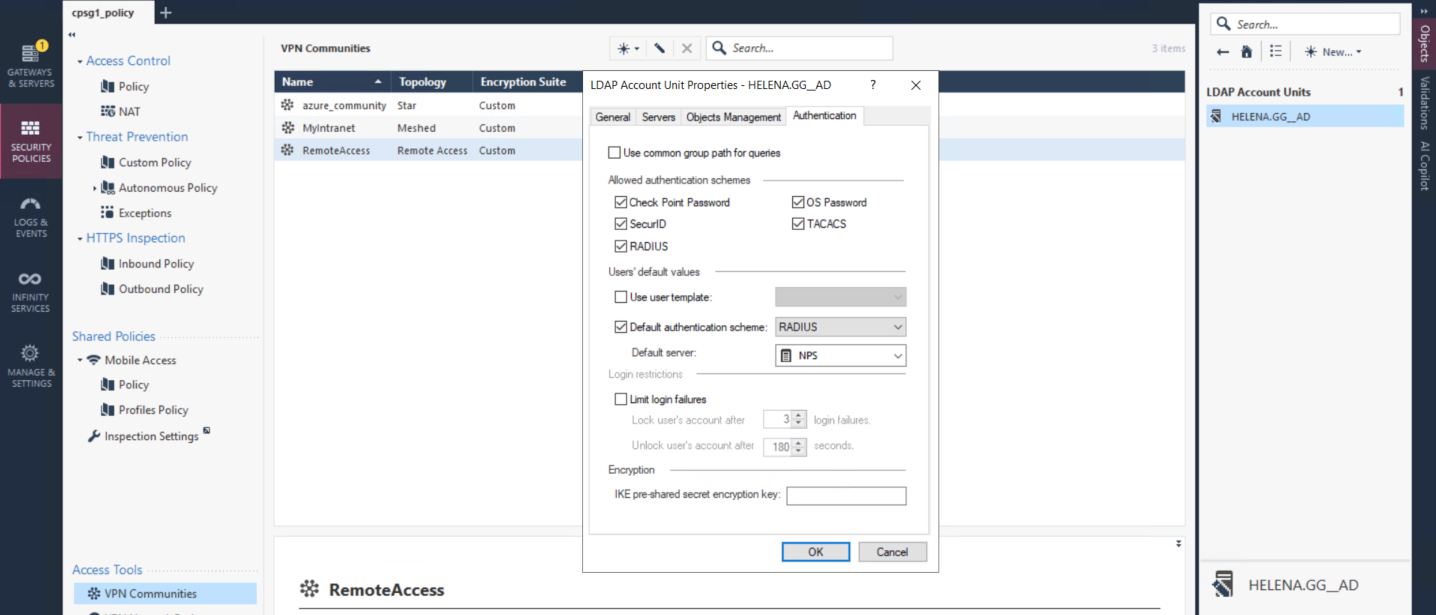

Then we select our existing LDAP Account Unit and point the authentication to our NPS Server

Domain Mismatch

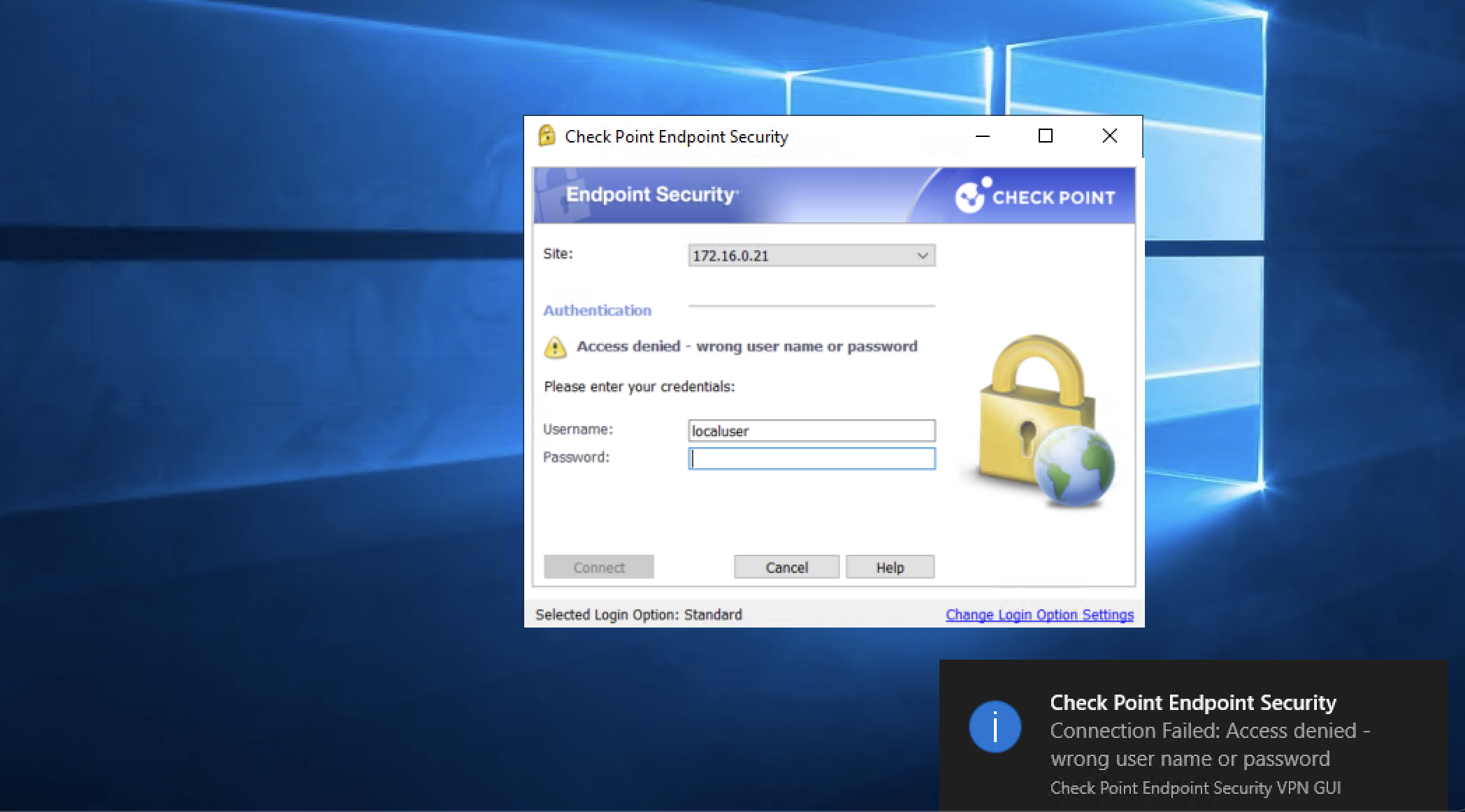

At this point if we try to connect to VPN, we’ll get denied with invalid credentials error

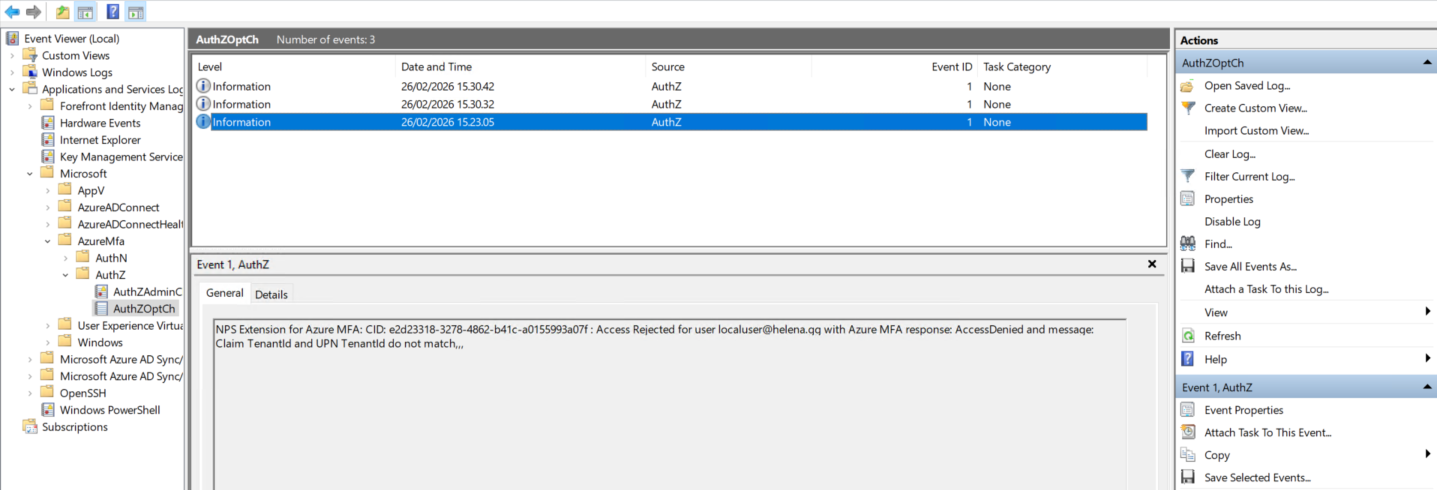

Looking at Event Viewer logs, we see that we have Tenant and UPN mismatch. This happens because we try to use helena.gg users to authenticate to Entra domain of helenagg.onmicrosoft.com

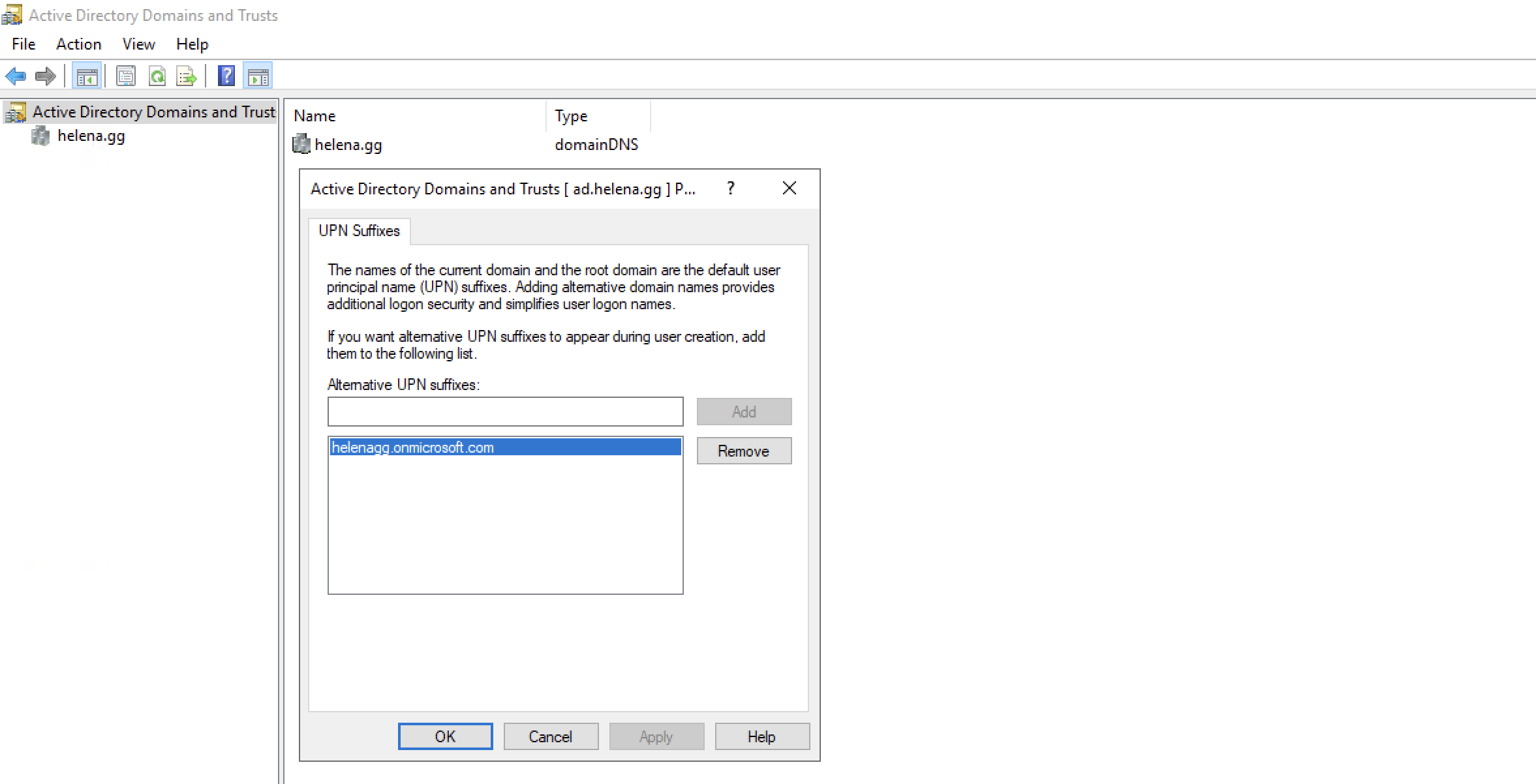

To overcome this, we’ll apply a workaround. First we add an alternate domain of “helenagg.onmicrosoft.com” into our AD Domain & Trusts. This allows us to give alternate domain to our users

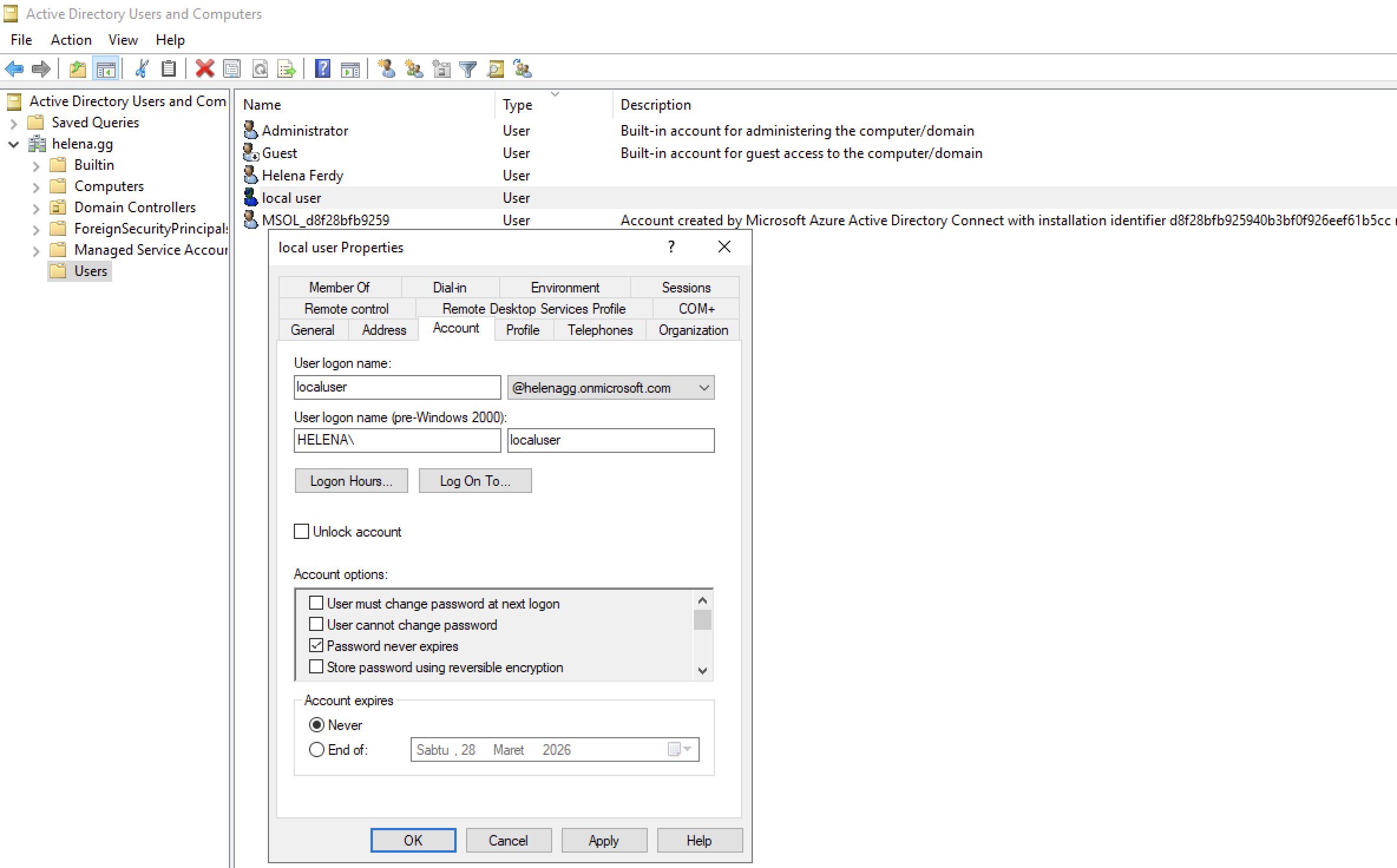

Now we change the domain of localuser from helena.gg to helenagg.onmicrosoft.com

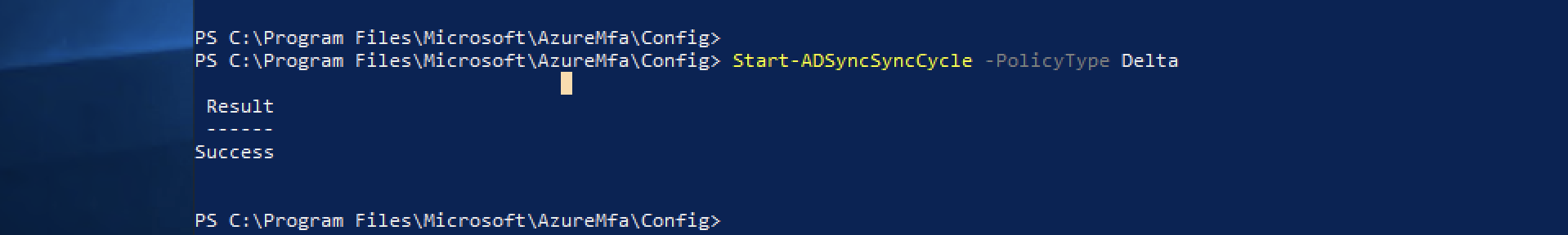

We need to resync the users on our Entra Connect by running command “Start-ADSyncSyncCycle -PolicyType Delta”

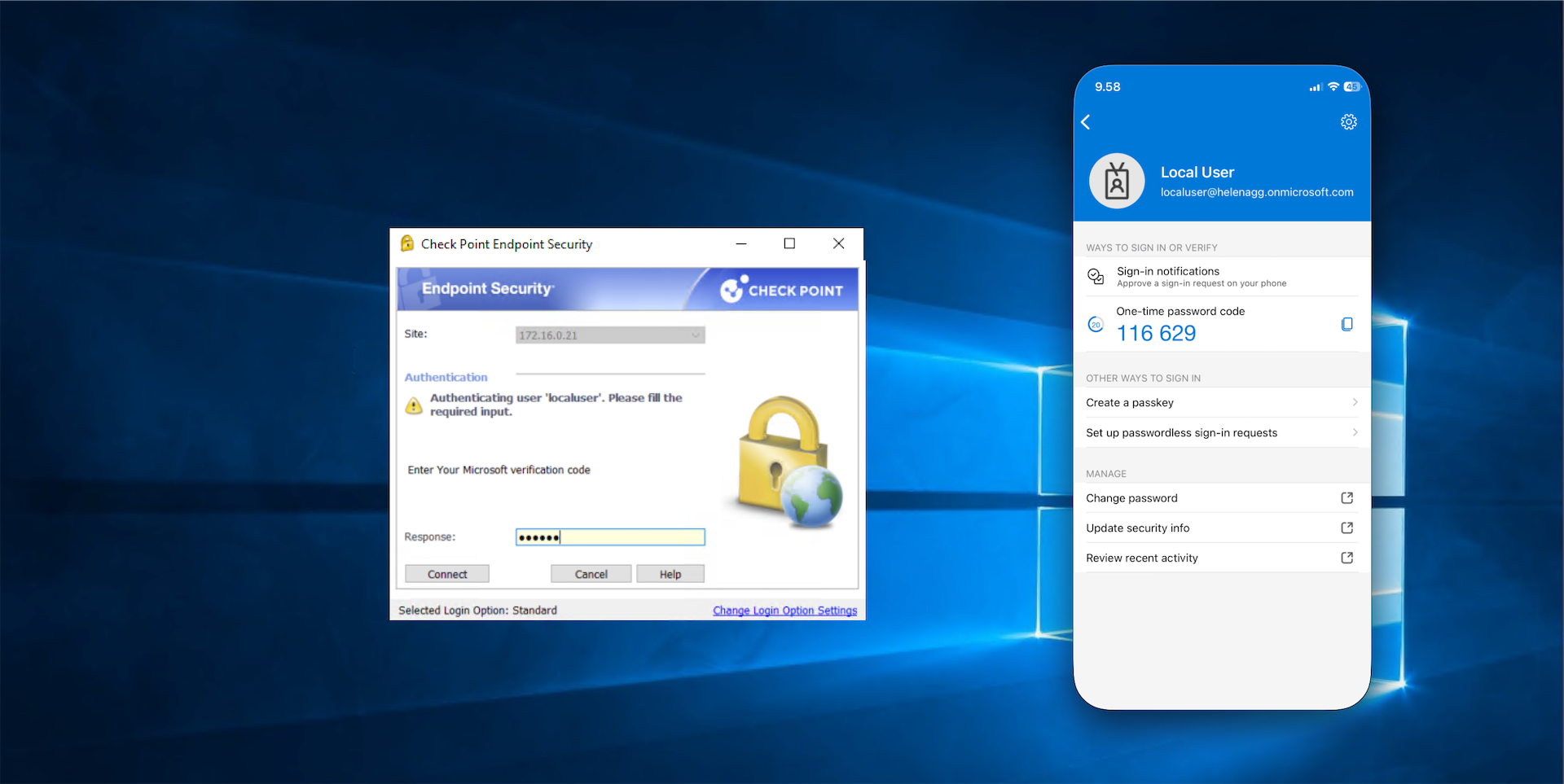

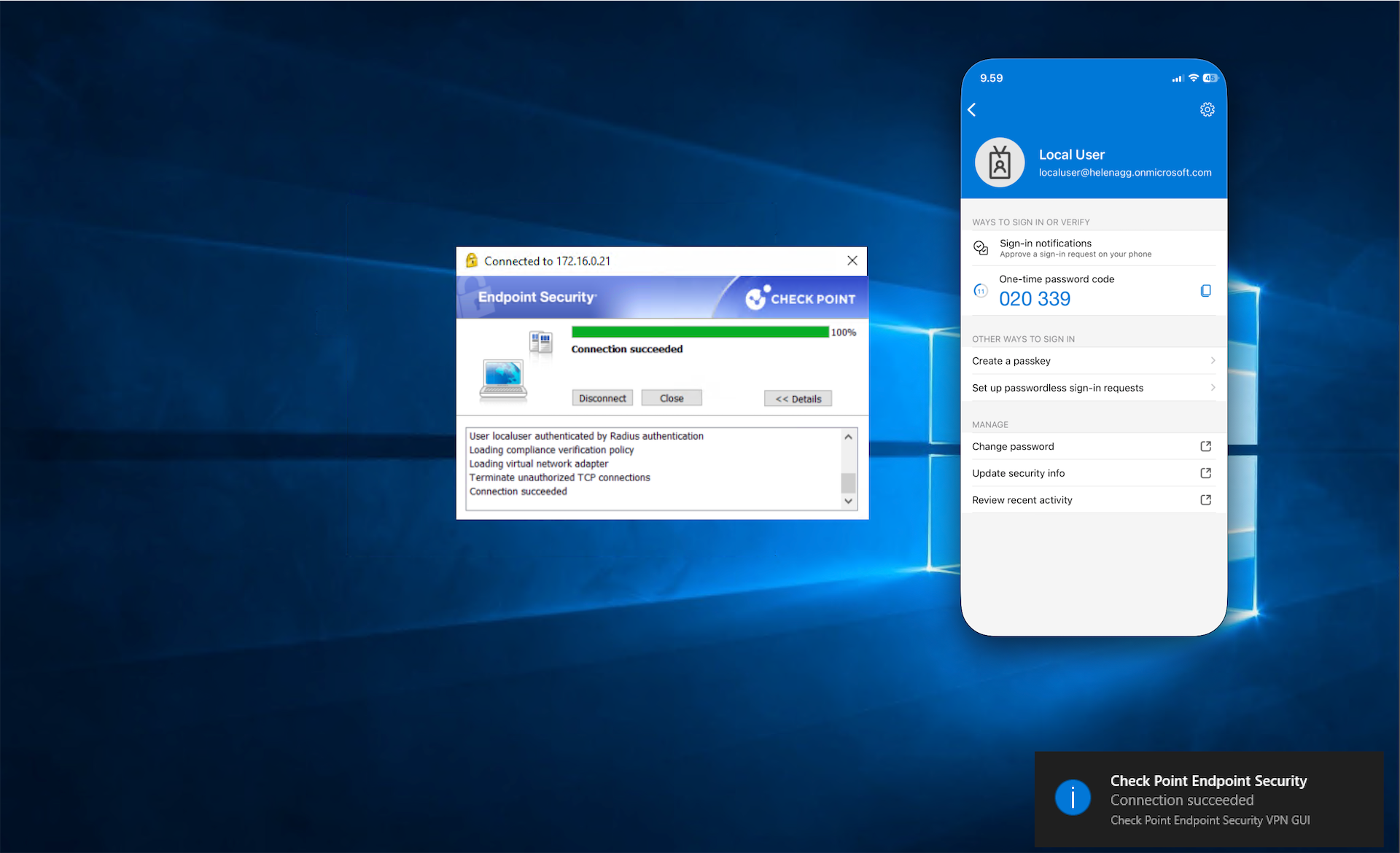

Now when we try to connect the vpn with localuser, we’ll get presented with MFA verification

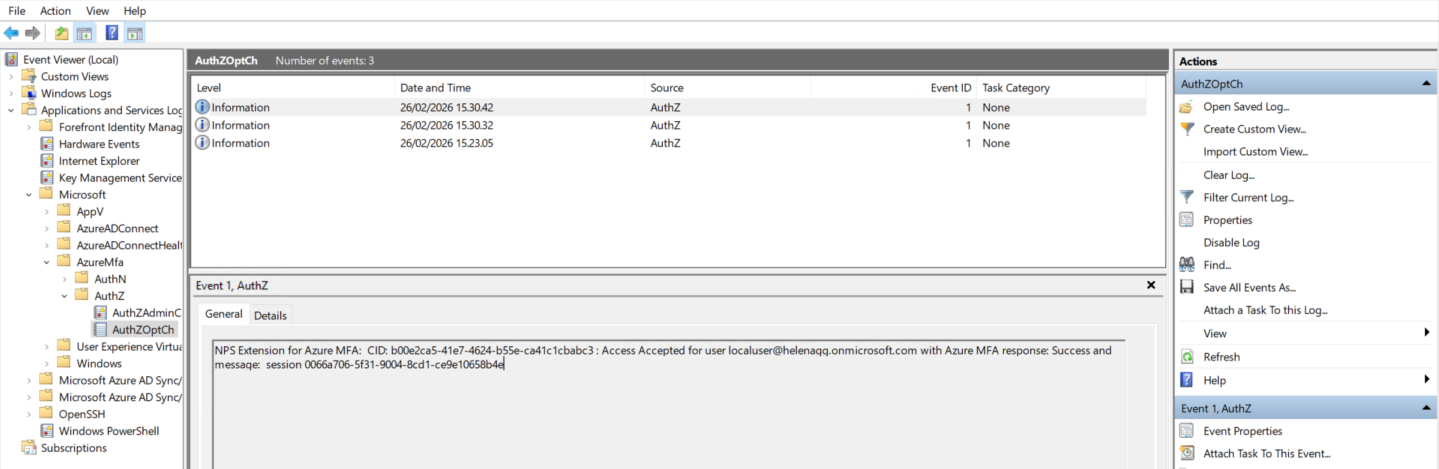

Event Viewer logs also shows that the Azure MFA extension has successfully proxied the user to be authenticated on Entra ID

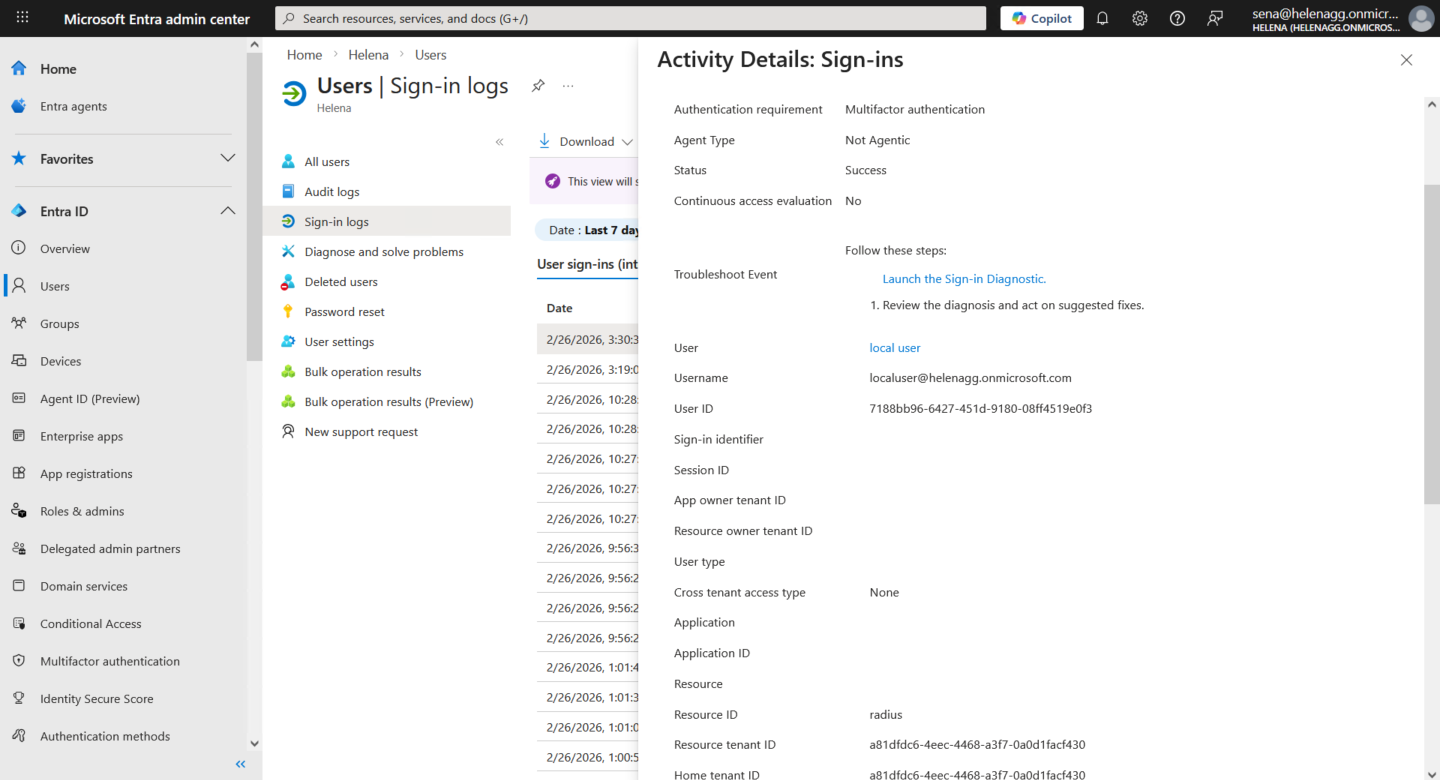

On Entra Portal, we can see the login logs of the users, verifying that MFA login was successfully triggered by a radius client
